***Producto Open Box con garantía de 12 meses***
***Su estado estético puede presentar signos de uso muy leves, ya que el componente pudo haber sido usado para testeos o exhibición***
***Producto se envía con embalaje original***
***Producto no incluye accesorios, tales como manuales y otros***
***Producto incluye antenas WiFi***
Especificaciones:
| Brand | ASRock |
|---|---|

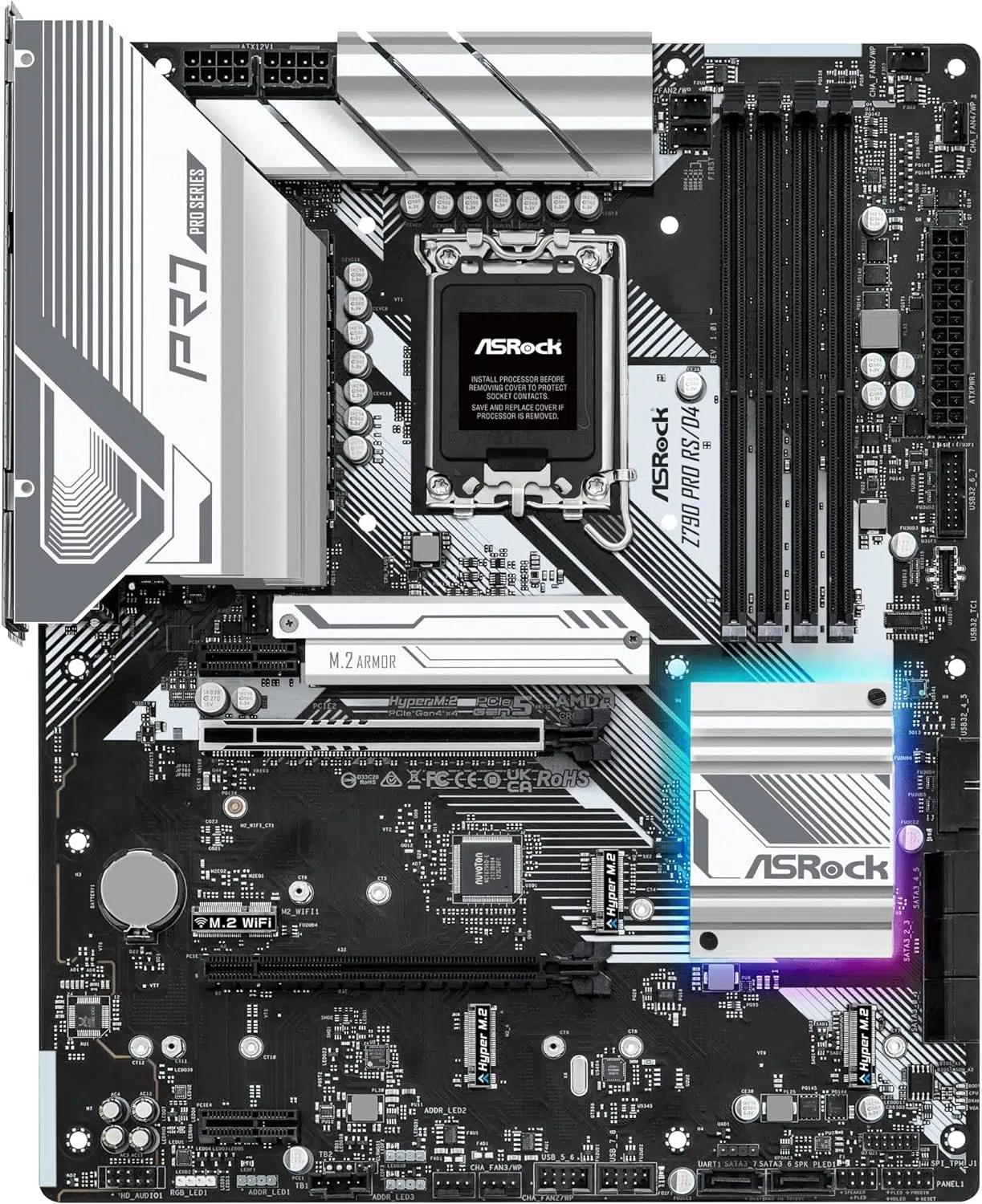

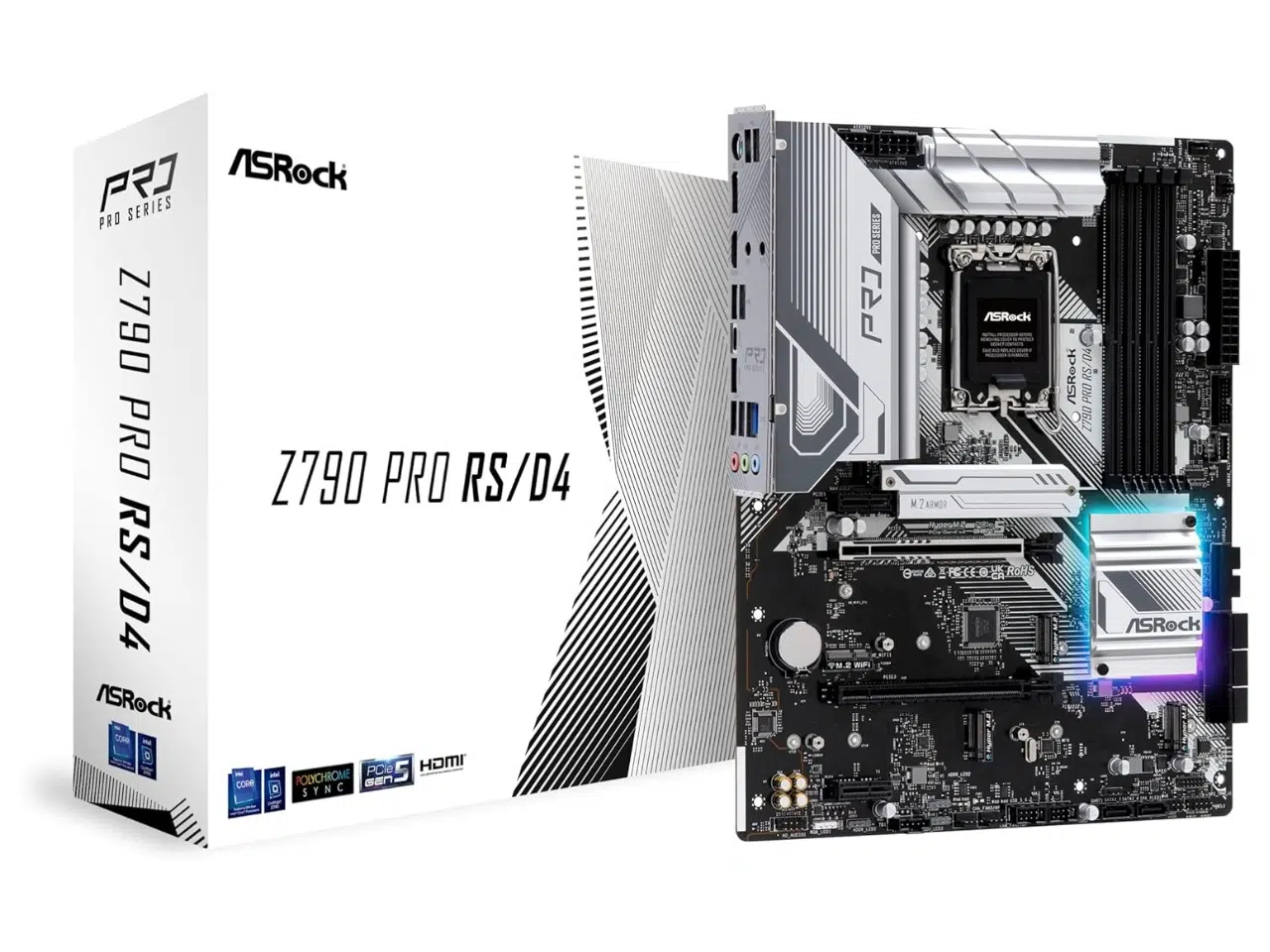

| Model | Z790 PRO RS/D4 |
| CPU Socket Type | LGA 1700 |
|---|---|
| CPU Type | Supports 13th / 12th Gen Intel Core Processors, Intel Pentium Gold, Celeron Processors |
| Chipset | Intel Z790 |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)* 1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively. 1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively. 2DPC 1R Up to 4533+ MHz (OC), 3200 MHz Natively. 2DPC 2R Up to 4266+ MHz (OC), 3200 MHz Natively |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 5.0 x16 | 1 x PCIe 5.0 x16 Slot (PCIE2), supports x16 mode* |
|---|---|
| PCI Express 4.0 x16 | 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* |
| PCI Express x1 | 2 x PCIe 3.0 x1 Slots (PCIE1 and PCIE4)*
* Supports NVMe SSD as boot disks |
| SATA 6Gb/s | 8 x SATA 6Gb/s |
|---|---|
| M.2 | 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode** Supports Intel Volume Management Device (VMD) * Supports NVMe SSD as boot disks |
| SATA RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Additional RAID Controller | Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices |
| Audio Chipset | Realtek ALC897 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Dragon RTL8125BG |
|---|---|
| Max LAN Speed | 2.5Gbps |

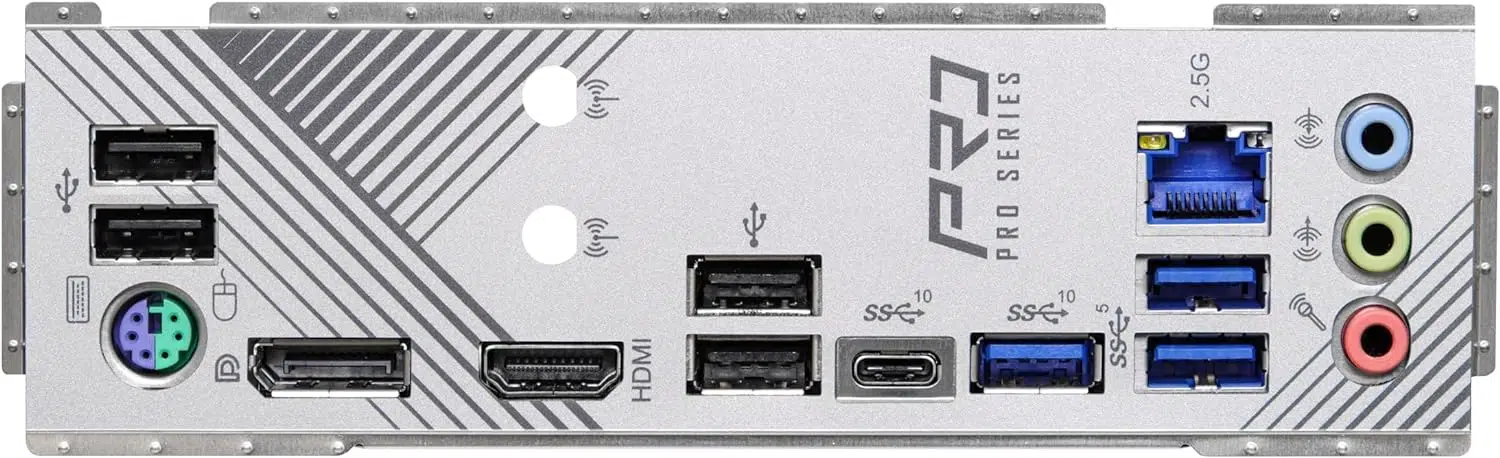

| Back I/O Ports | 2 x Antenna Mounting Points 1 x PS/2 Mouse/Keyboard Port 1 x HDMI Port 1 x DisplayPort 1.4 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) 2 x USB 3.2 Gen1 Ports 4 x USB 2.0 Ports 1 x RJ-45 LAN Port HD Audio Jacks: Line in / Front Speaker / Microphone |
|---|
| Onboard USB | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) |
|---|---|
| Other Connectors | 1 x eDP Signal Connector 1 x SPI TPM Header 1 x Power LED and Speaker Header 1 x RGB LED Header* 3 x Addressable LED Headers** 1 x CPU Fan Connector (4-pin)*** 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** 1 x Front Panel Audio Connector 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)* Supports in total up to 12V/3A, 36W LED Strip ** Support in total up to 5V/3A, 15W LED Strip *** CPU_FAN1 supports the fan power up to 1A (12W). **** CPU_FAN2/WP supports the fan power up to 2A (24W). ***** CHA_FAN1~5/WP support the fan power up to 2A (24W). ***** CPU_FAN2/WP and CHA_FAN1~5/WP can auto detect if 3-pin or 4-pin fan is in use |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0″ x 9.6″ |
| Power Pin | 1 x 24 pin ATX Power Connector 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) |
| Windows 11 | Supported |
|---|

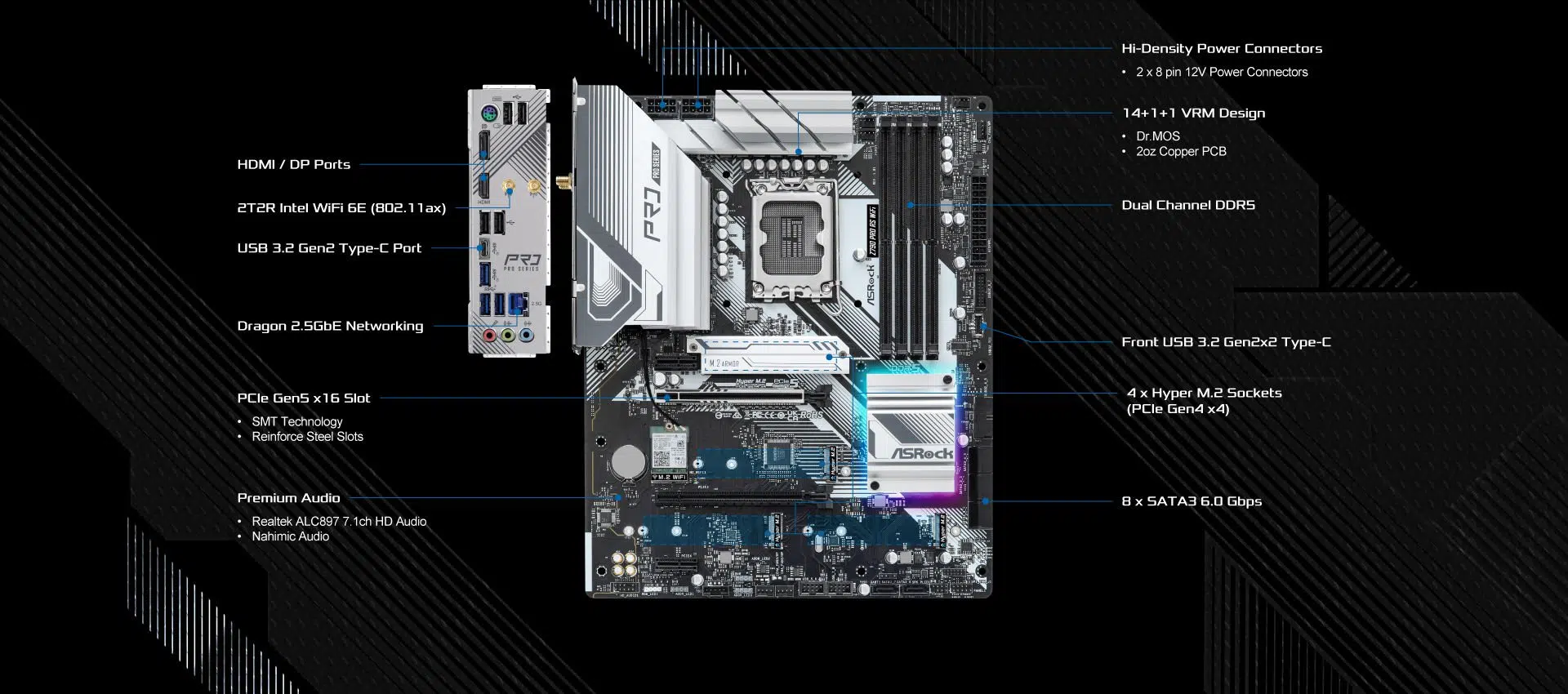

| Features | Superb Productivity – PCIe Gen5 (Graphics) Rock-Solid Durability – 14+1+1 Power Phase, 50A Dr.MOS for VCore+GT with Enlarged Heatsink Armor – Flexible Integrated I/O Shield Ultrafast Connectivity – 2.5G LAN EZ Update – ASRock Auto Driver Installer EZ Troubleshooter – ASRock Post Status Checker |
|---|
| Package Contents | 1 x User Manual 2 x SATA Data Cables 5 x Screws for M.2 Sockets 1 x Standoff for M.2 Socket |
|---|
