Especificaciones:
Model | |
Brand | GIGABYTE |

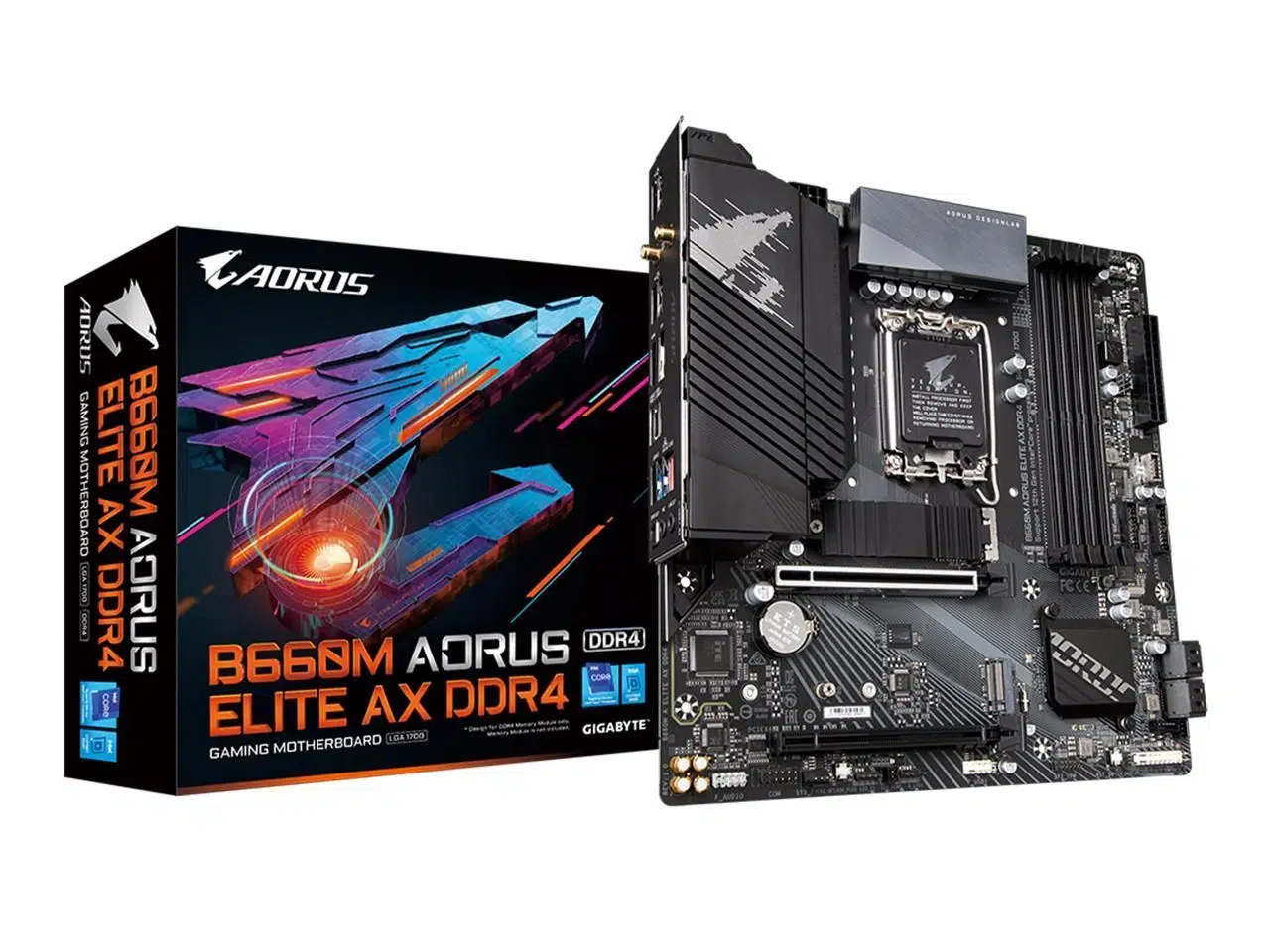

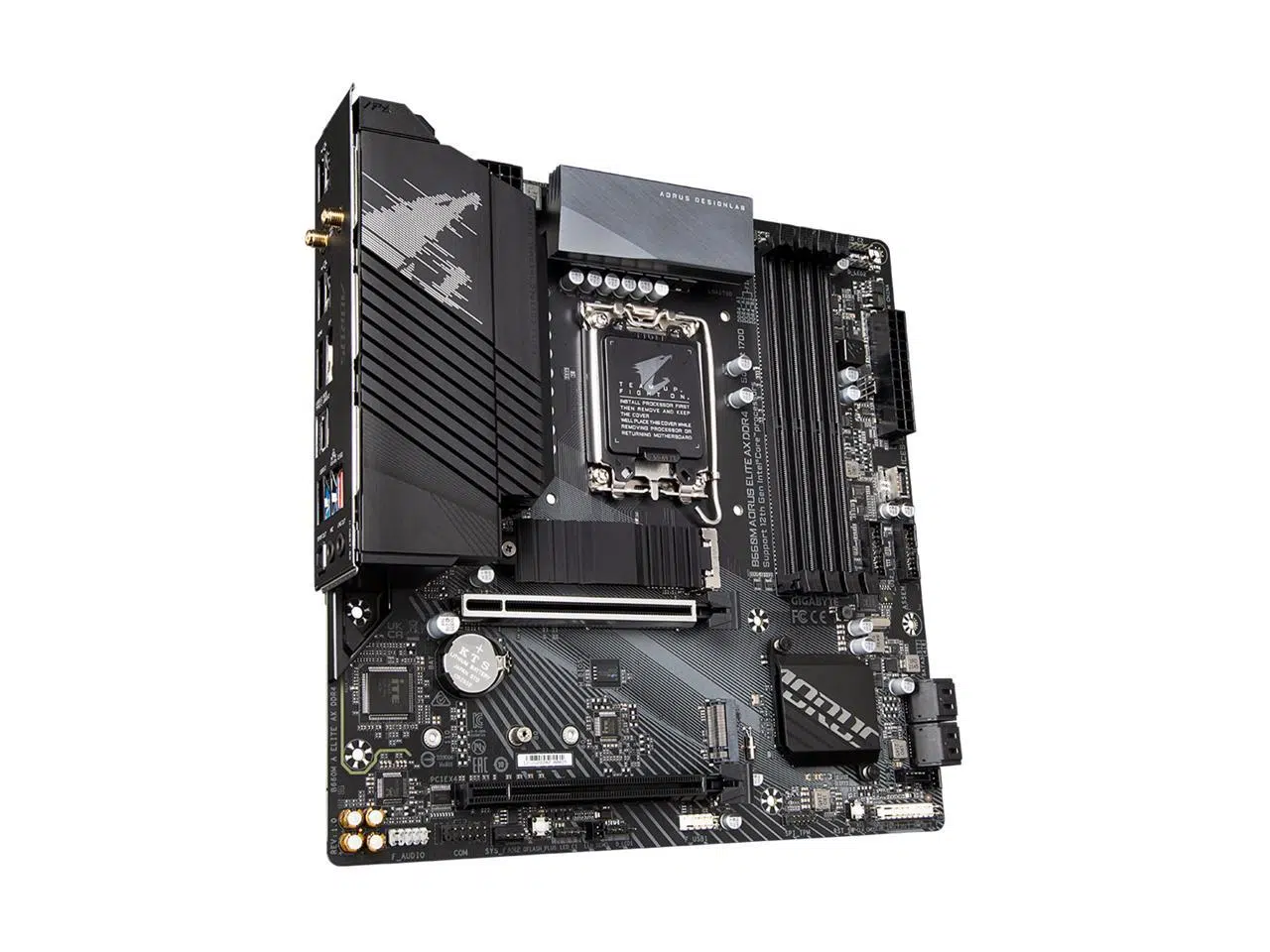

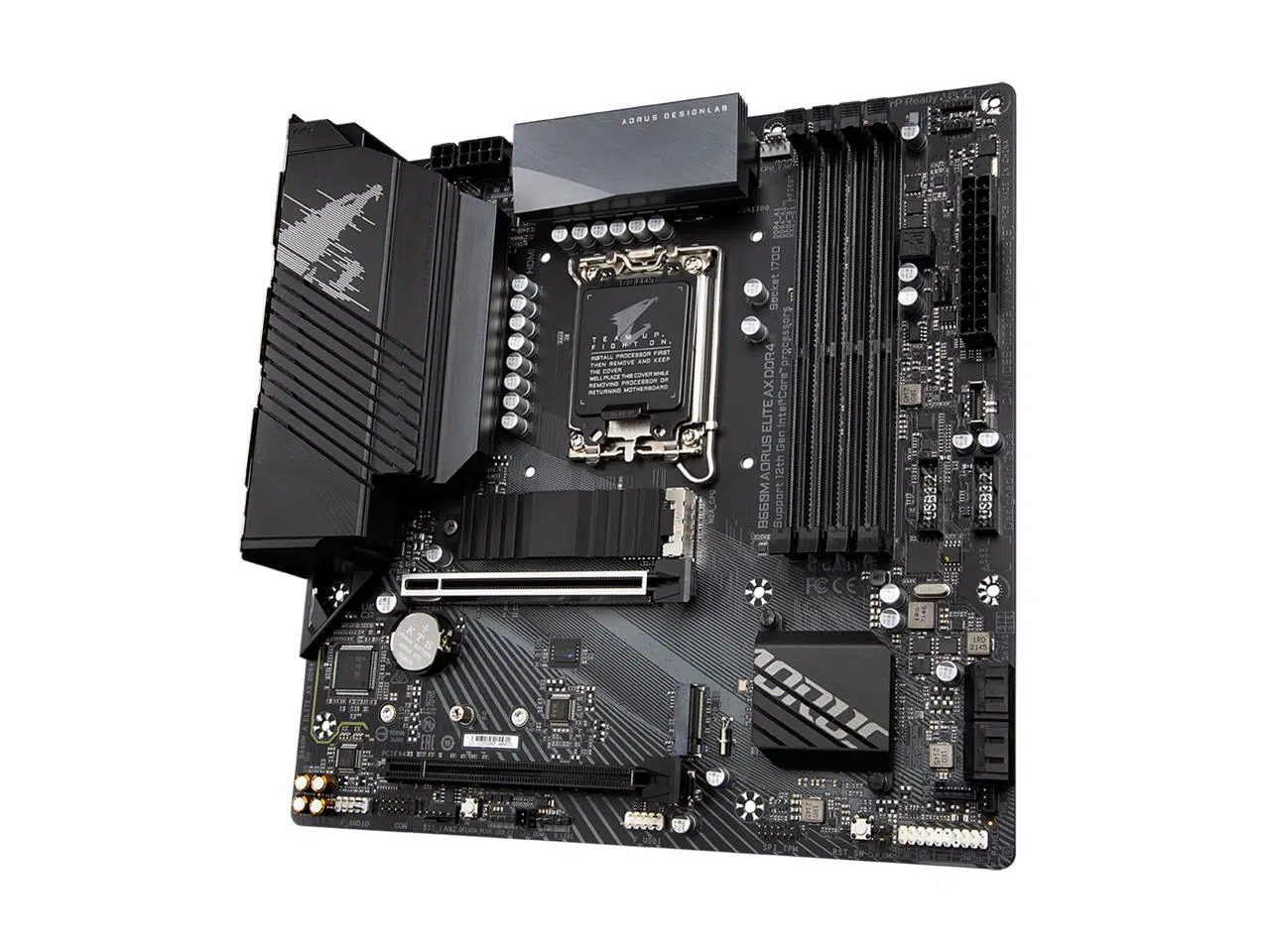

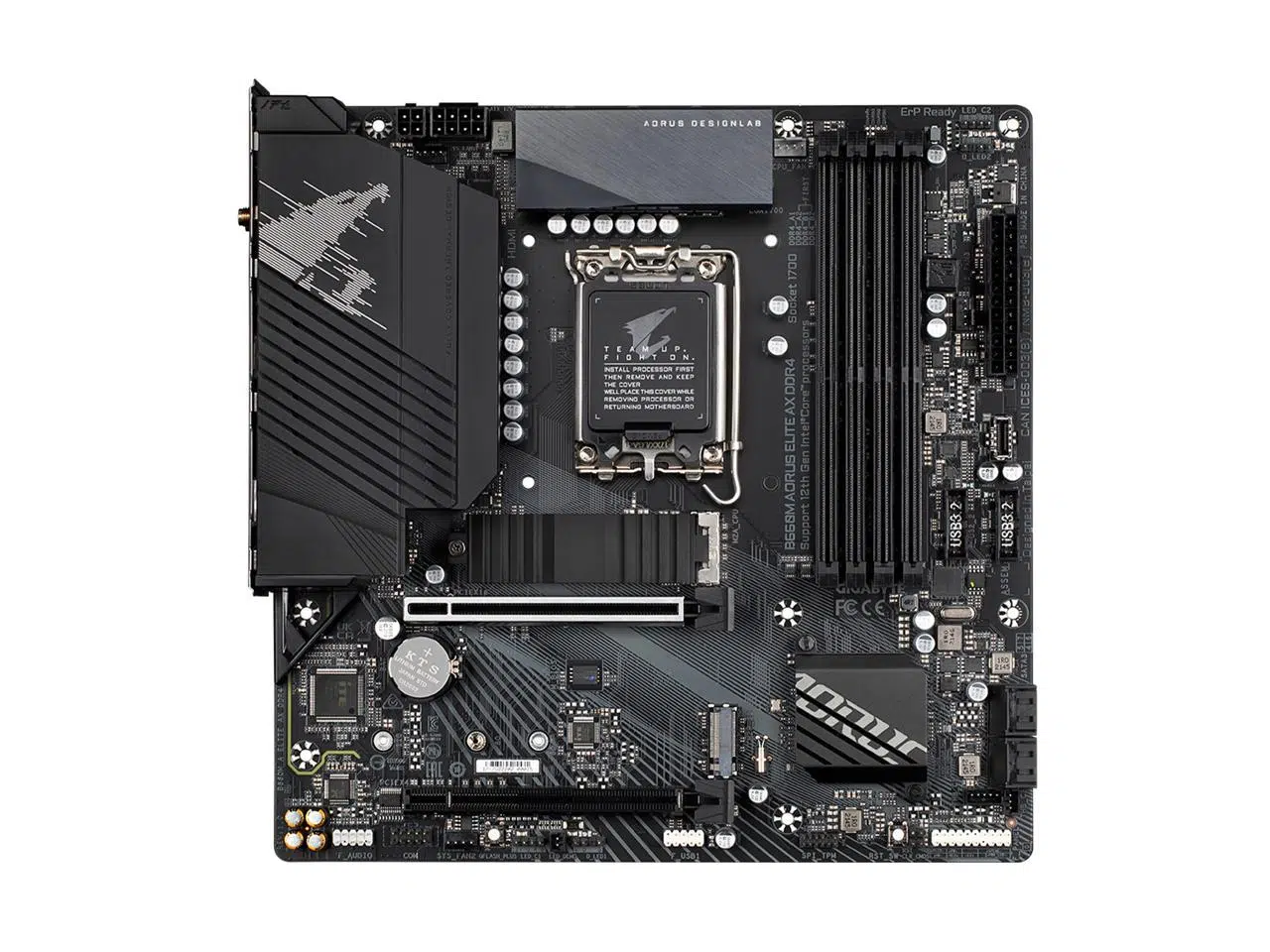

Model | B660M AORUS ELITE AX DDR4 |
Supported CPU | |
CPU Socket Type | LGA 1700 |
CPU Type | Supports 13th / 12th Gen Intel Core, Pentium Gold, Celeron Processors |
Chipsets | |
Chipset | Intel B660 |
Memory | |
Number of Memory Slots | 4x288pin (DDR4) |
Memory Standard | Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules |
Dual channel memory architecture | |
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
Support for Extreme Memory Profile (XMP) memory modules | |
Maximum Memory Supported | 128GB |
Channel Supported | Dual Channel |
Expansion Slots | |
PCI Express 4.0 x16 | 1 x PCI Express x16 slot, running at x16 (PCIEX16) |
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
(The PCIEX16 slot conforms to PCI Express 4.0 standard.) | |
PCI Express 3.0 x16 | 1 x PCI Express x16 slot, running at x4 (PCIEX4) |
(The PCI Express x4 slot conforms to PCI Express 3.0 standard.) | |
Storage Devices | |
SATA 6Gb/s | 4 x SATA 6Gb/s |
M.2 | CPU: |
1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) | |
Chipset: | |
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB) | |
SATA RAID | 0/1/5/10 |
Onboard Audio | |
Audio Chipset | Realtek Audio CODEC |
High Definition Audio | |
Audio Channels | 7.1 Channels |
Onboard LAN | |
LAN Chipset | Realtek 2.5GbE LAN chip |
Max LAN Speed | 2.5Gbps |
Wireless LAN | Intel Wi-Fi 6E AX211 |
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands | |
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate | |
* Actual data rate may vary depending on environment and equipment. | |
Bluetooth | Bluetooth 5.2 |

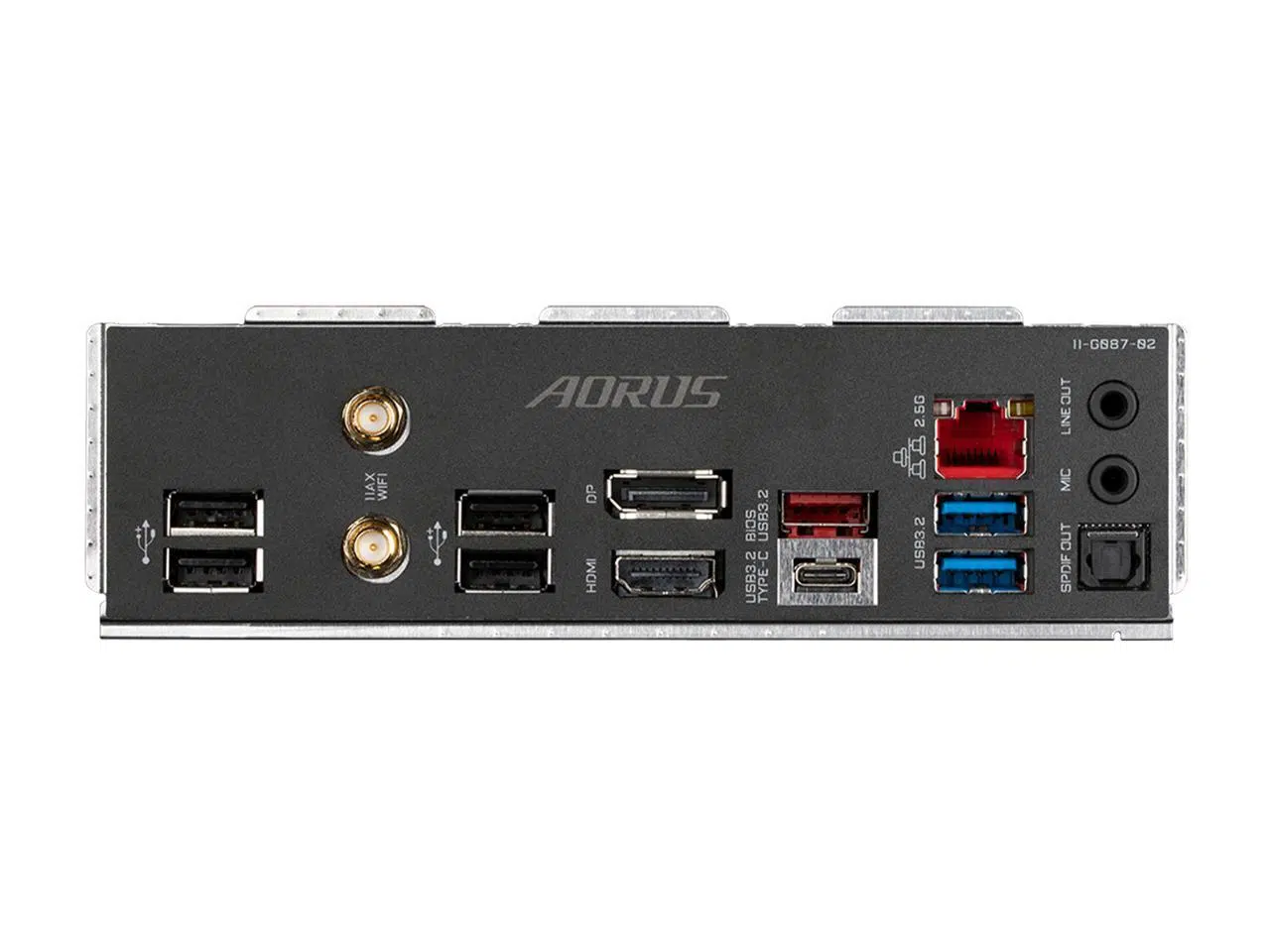

Rear Panel Ports | |
Back I/O Ports | 1 x USB Type-C port, with USB 3.2 Gen 2 support |
1 x USB 3.2 Gen 2 Type-A port (red) | |
2 x USB 3.2 Gen 1 ports | |
4 x USB 2.0/1.1 ports | |
2 x SMA antenna connectors (2T2R) | |
1 x HDMI 2.0 port | |
1 x DisplayPort | |
1 x RJ-45 port | |
1 x optical S/PDIF Out connector | |
2 x audio jacks | |

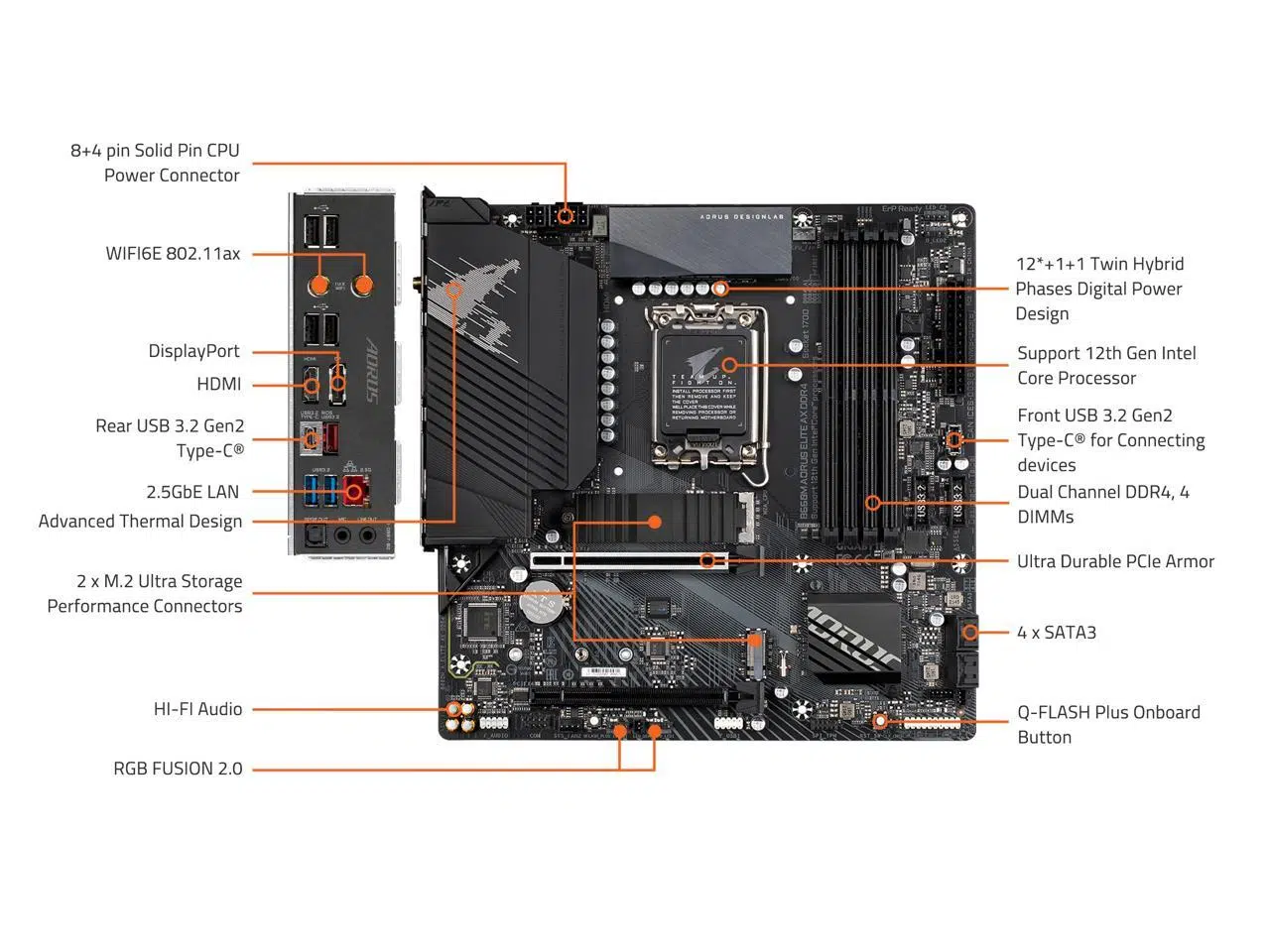

Internal I/O Connectors | |
Onboard USB | 1 x USB Type-C header, with USB 3.2 Gen 2 support |
2 x USB 3.2 Gen 1 headers | |
1 x USB 2.0/1.1 header | |
Other Connectors | 1 x CPU fan header |
3 x system fan headers | |
2 x addressable LED strip headers | |
2 x RGB LED strip headers | |
2 x M.2 Socket 3 connectors | |
4 x SATA 6Gb/s connectors | |
1 x front panel header | |
1 x front panel audio header | |
2 x Thunderbolt add-in card connectors | |
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
1 x serial port header | |
1 x reset button | |
1 x Q-Flash Plus button | |
1 x reset jumper | |
1 x Clear CMOS jumper | |
Physical Spec | |
Form Factor | Micro ATX |
Dimensions (W x L) | 244 x 244 mm |
Power Pin | 1 x 24-pin ATX main power connector |
1 x 8-pin ATX 12V power connector | |
1 x 4-pin ATX 12V power connector | |
Windows Compatibility | |
Windows 11 | Supported |
