Especificaciones:
| NÚCLEOS | 2560 Units |
| MEMORIA | 12GB GDDR6 |
| MOTOR DE GRÁFICOS | Radeon™ RX 6700 XT |
| NORMA BUS | PCI Express® Gen 4 |
| INTERFAZ DE MEMORIA | 192-bit |
| VELOCIDAD CLOCK NÚCLEO (MHZ) | TBD |
| AFTERBURNER OC | Si |
| VELOCIDAD CLOCK MEMORIA (MHZ) | 16 Gbps |
| MÁXIMO DE PANTALLAS | 4 |
| TECNOLOGÍA MULTI-GPU | Crossfire™, 2-Way (Bridgeless)(DX12) |

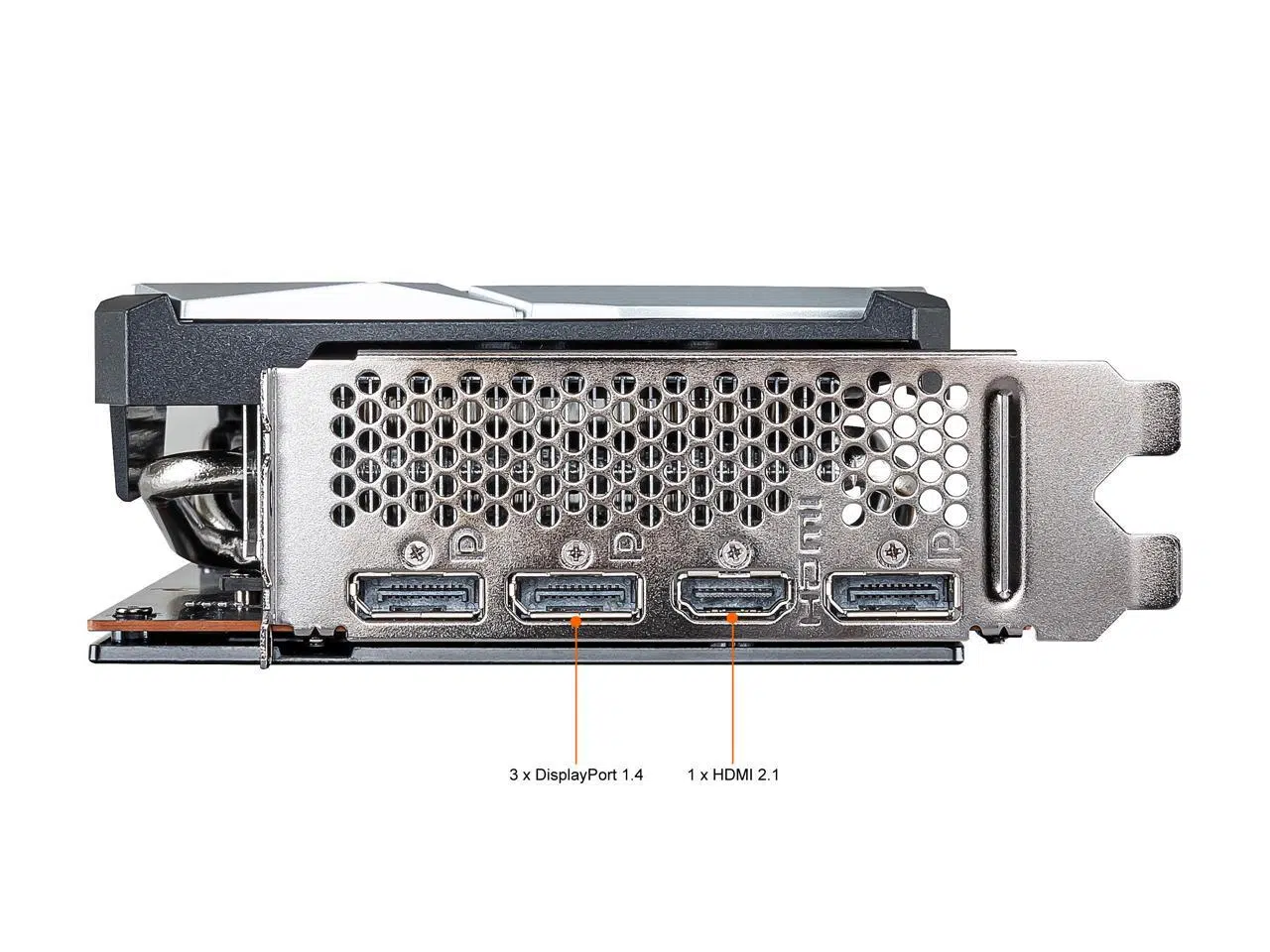

| SALIDA | DisplayPort x 3 (v1.4) / HDMI x 1 (Supports 4K@120Hz/8K@60Hz and VRR as specified in HDMI 2.1) |
| SOPORTE HDCP | Si |
| CONSUMO (W) | TBD |
| ALIMENTACIÓN RECOMENDADA (W) | 650 W |
| VIRTUAL REALITY READY | Si |
| RESOLUCIÓN MÁXIMA DIGITAL | 7680 x 4320 |
| CONECTORES DE ALIMENTACIÓN | 8-pin x 2 |
| SOPORTE DIRECTX VERSIÓN | 12 API |
| SOPORTE OPENGL VERSIÓN | 4.6 |
| DIMENSIONES (MM) | 247 x 131 x 51 mm |
| PESO | 921 g / 1393 g |

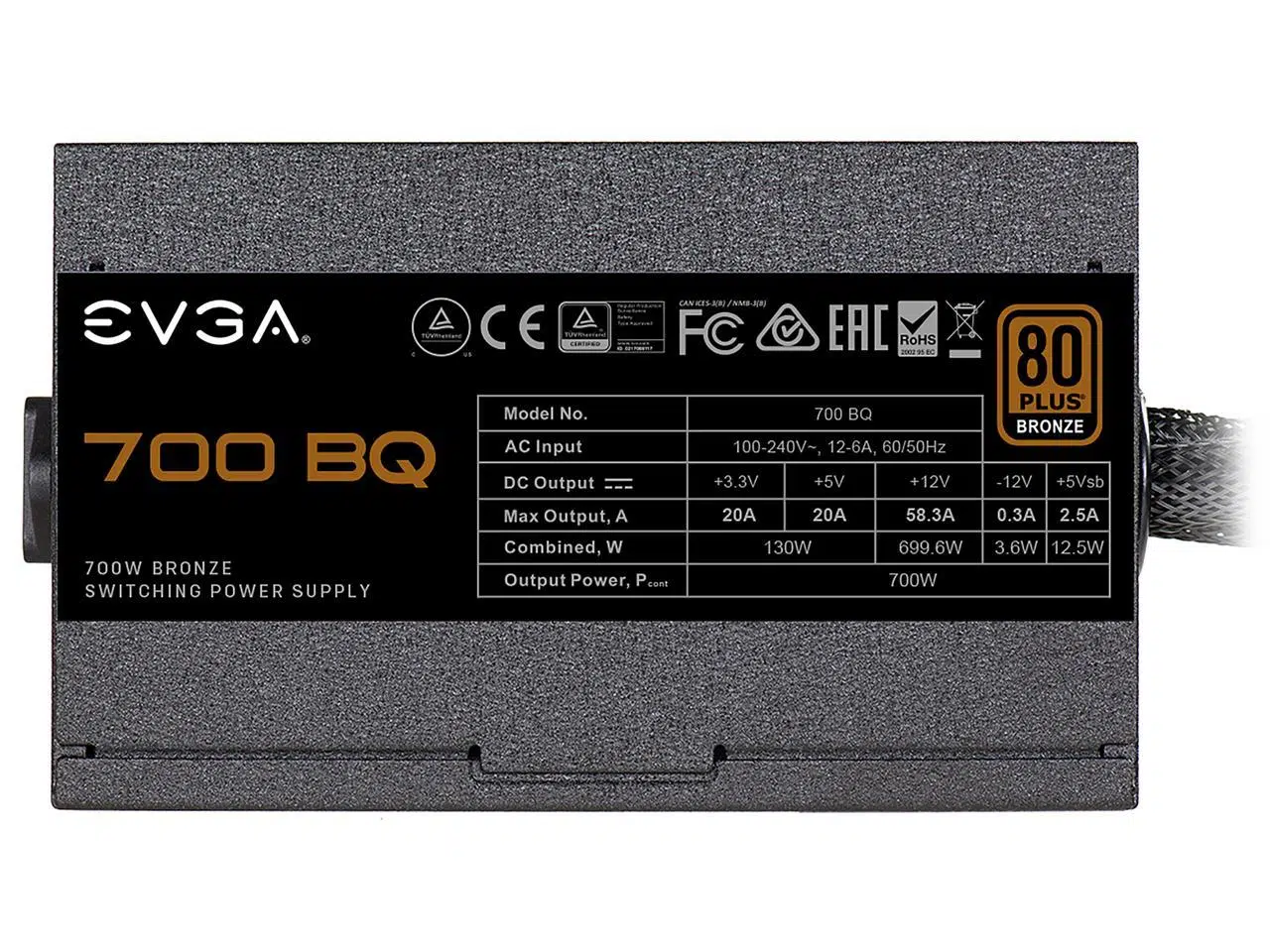

| Brand | EVGA |
|---|---|
| Series | 700 BQ |
| Model | 110-BQ-0700-V1 |
| Type | ATX12V / EPS12V |
|---|---|
| Maximum Power | 700 W |
| Fans | 1 x 120mm Double Ball Bearing Fan |
| PFC | Active |
| Main Connector | 20+4Pin |
| +12V Rails | Single |
| PCI-Express Connector | 4 x 6+2-Pin |
| SATA Power Connector | 6 |
| Haswell Support | Yes |

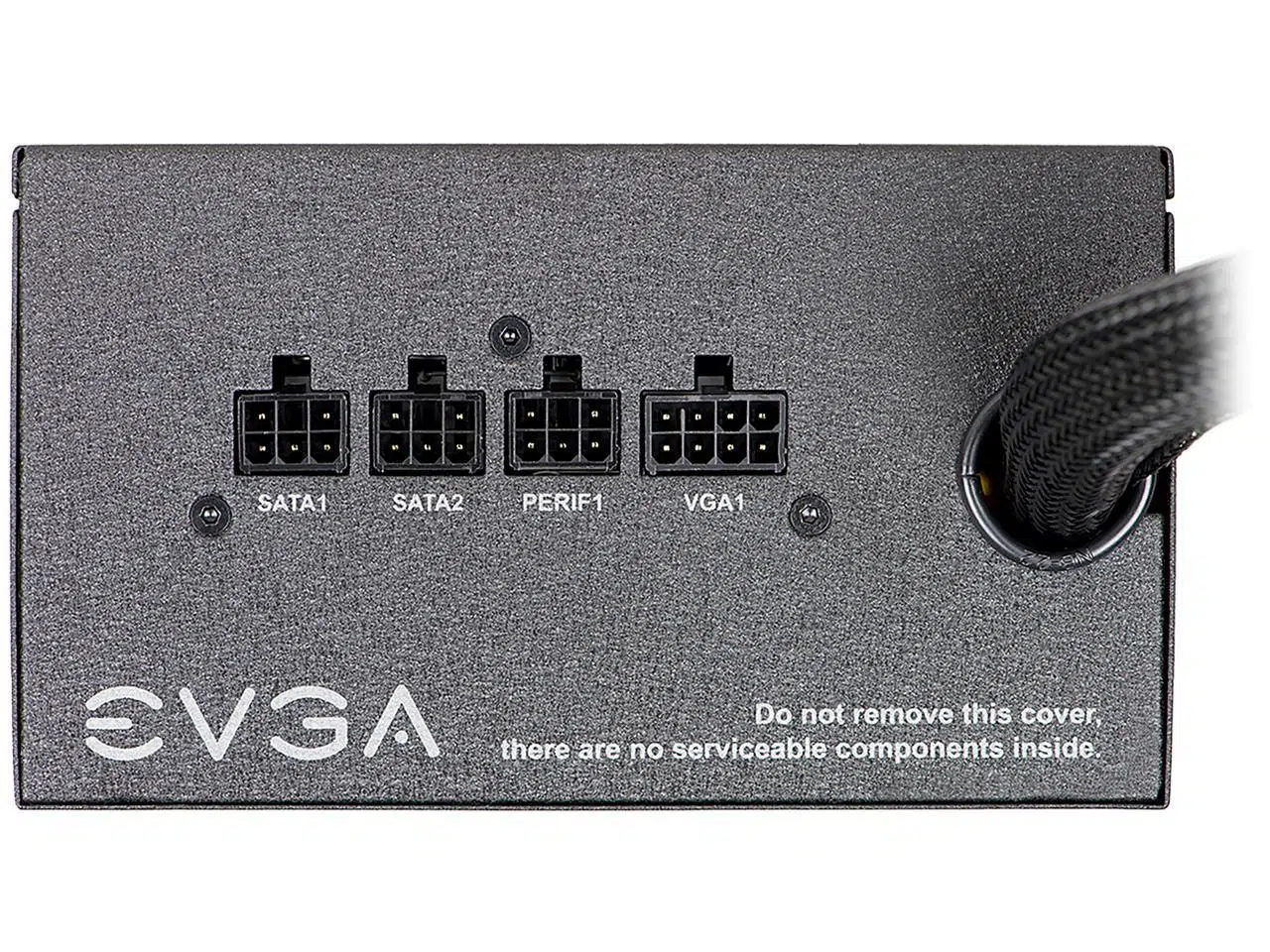

| Modular | Semi-Modular |
| Efficiency | 85% (under typical load) |
| Energy-Efficient | 80 PLUS BRONZE Certified |
| Over Voltage Protection | Yes |
| Input Voltage | 100 – 240 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 12 – 6A |
| Output | +3.3V@20A, +5V@20A, +12V@58.3A, -12V@0.3A, +5Vsb@2.5A |
| MTBF | 100,000 Hours |
| Approvals | TUV, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement |
| Max PSU Length | 140 mm |

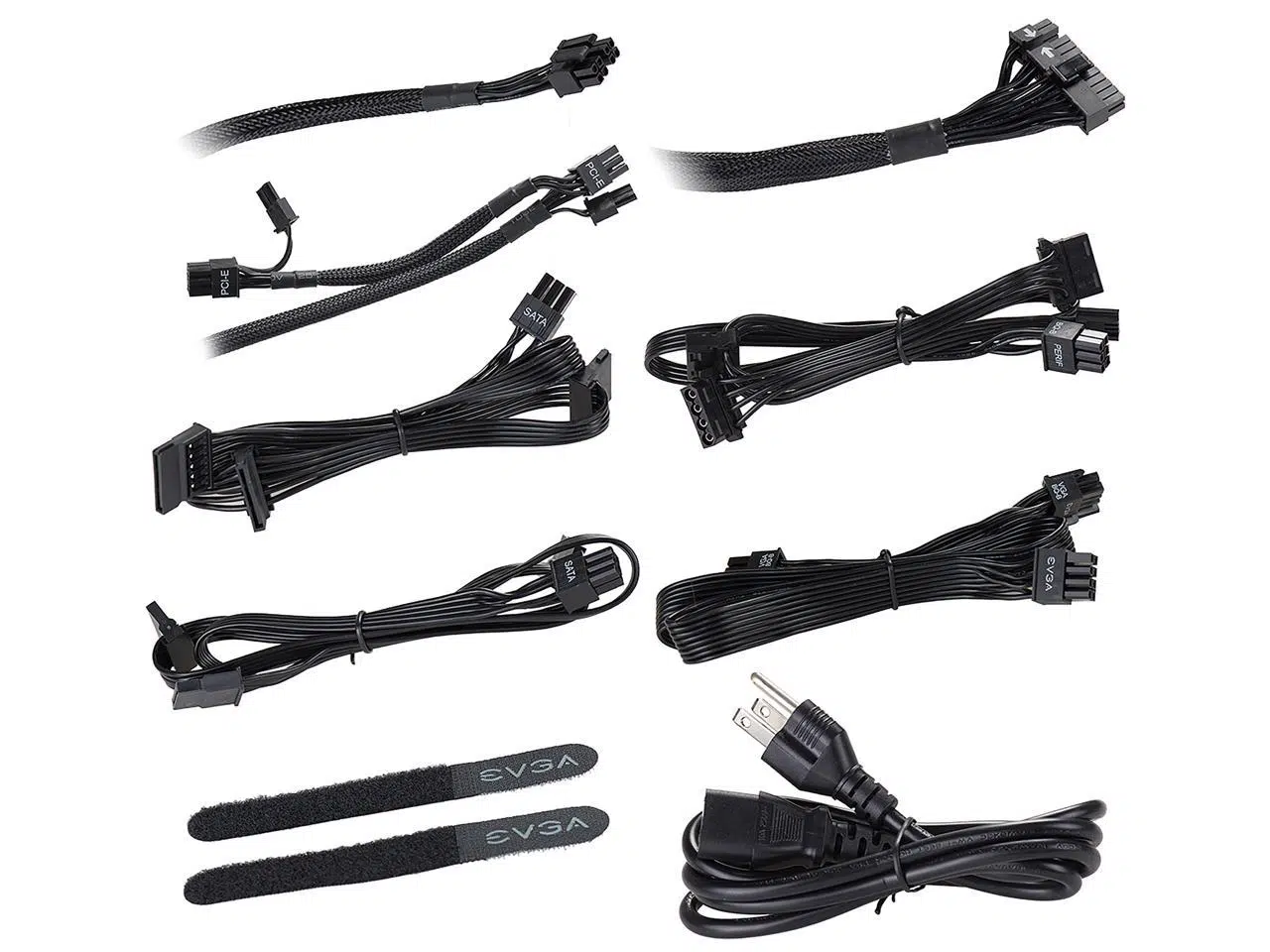

| Connectors | 1 x 24 Pin ATX (20+4) 1 x 8 Pin EPS (4+4) 4 x 8 Pin PCIe (6+2) 6 x SATA 3 x Four-Pin Peripheral 1 x Floppy |
| Cable Spec | 20+4Pin MB: One cable (600mm) 4+4Pin CPU: Two cables (600mm) 2 x PCI-E 6+2Pin: Two cables (600+100mm) 3 x SATA: Two cables (450+120+120mm) 3 x Molex + 1 x FDD: One cable (450+120+120+120mm) |
