Name: MSI MPG Z690 Force WiFi DDR5 Intel LGA 1700 ATX
Brand: MSI
SKU: 11607
Price: 259990 CLP
Availability: OutOfStock

MSI MPG Z690 Force WiFi DDR5 Intel LGA 1700 ATX

Iva Inc

Precios según método de pago

Transferencia Bancaria Directa.

$259.990

El precio más bajo
Flow. Tarjetas de Débito/Crédito y Otros

$280.789

hasta 6 cuotas sin interés de $46.798
Mercado Pago. Tarjetas de Crédito

$296.389

hasta 12 cuotas sin interés de $24.699

Estado: Nueva sellada

Entrega: Entre 24 y 48 horas para Santiago / 1 a 3 días para regiones

Sin existencias

7 ¡La gente está viendo este producto ahora!

Especificaciones:

Model
Brand	MSI
Model	MPG Z690 FORCE WIFI
Supported CPU
CPU Socket Type	LGA 1700

	* Dedicated LGA1700 mounting bracket is required.
CPU Type	Supports 12th Gen Intel Core Processors (LGA1700)
	Supports 13th gen Intel® Core desktop processors.
	May require a BIOS update to boot the 13th gen Intel® Core™ desktop processors.
Chipsets
Chipset	Intel Z690
Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic
Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	DDR5 1R 4800 (by JEDEC & POR)

	Max. overclocking frequency:
	1DPC 1R Max speed up to 6666+
	1DPC 2R Max speed up to 5600+
	2DPC 1R Max speed up to 4000+
	2DPC 2R Max speed up to 4000+
Maximum Memory Supported	192GB
Channel Supported	Dual Channel
Expansion Slots
PCI Express 5.0 x16	2 x PCI Express 5.0 x16

	* Support x16/x0, x8/x8.
	* Actual support may vary by CPU.
PCI Express 3.0 x16	1 x PCI Express 3.0 x16

	* Supports PCIe 3.0 x4.
Storage Devices
SATA 6Gb/s	6 x SATA 6Gb/s
M.2	5 x M.2 slots (Key M):

	M2_1 slot (From CPU)
	Supports PCIe 4.0 x4
	Supports 2260/ 2280/ 22110 storage devices

	M2_2 slot (From Z690 Chipset)
	Supports PCIe 4.0 x4
	Supports 2260/ 2280 storage devices

	M2_3 slot (From Z690 Chipset)
	Supports PCIe 4.0 x4
	Supports 2242/ 2260/ 2280/ 22110 storage devices

	M2_4 slot (From Z690 Chipset)*
	Supports PCIe 3.0 x4
	Supports SATA 6Gb/s
	Supports 2242/ 2260/ 2280 storage devices

	M2_5 slot (From Z690 Chipset)
	Supports PCIe 4.0 x4
	Supports SATA 6Gb/s
	Supports 2260/ 2280 storage devices

	* SATA7 will be unavailable when installing M.2 SATA SSD in the M2_4 slot.
Intel Optane Ready	M2_2~5 support Intel Optane Memory
SATA RAID	0/1/10
Onboard Audio
Audio Chipset	Realtek ALC4080
Audio Channels	7.1 Channels
Onboard LAN
LAN Chipset	Intel I225-V
Max LAN Speed	2.5Gbps
Wireless LAN	Intel WIFI 6E
Wireless LAN	802.11 a/b/g/n/ac/ax
Bluetooth	Bluetooth 5.2
Rear Panel Ports
Back I/O Ports	1 x DisplayPort
	1 x HDMI
	1 x Flash BIOS Button
	1 x Optical S/PDIF Out
	5 x Audio Jacks
	2 x Antenna Bracket
	1 x LAN (RJ45)
	1 x USB 3.2 Gen 2×2 Type-C
	5 x USB 3.2 Gen 2 Type-A
	4 x USB 2.0/1.1
Internal I/O Connectors
Onboard USB	1 x USB 3.2 Gen 2 10Gbps Type-C connector
	1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
	2 x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)
Other Connectors	1 x 4-pin CPU fan connector
	1 x 4-pin water-pump fan connector
	6 x 4-pin system fan connectors
	1 x Front panel audio connector
	2 x System panel connectors
	1 x Chassis Intrusion connector
	1 x Clear CMOS jumper
	1 x TPM module connector
	1 x TBT connector (supports RTD3)
	1 x Tuning Controller connector
	1 x EZ LED Control switch
	4 x EZ Debug LED
	1 x 2-Digit Debug Code LED
	1 x 4-pin RGB LED connector
	2 x 3-pin RAINBOW LED connectors
	1 x 3-pin CORSAIR LED connector
Physical Spec
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	305 x 244 mm
Power Pin	1 x 24-pin ATX main power connector
Power Pin	2 x 8-pin ATX 12V power connectors

Nota: Para usar procesadores de 13a Generación, es probable que deba actualizar la BIOS de la placa, esto se puede realizar fácilmente mediante puerto USB ubicado en el panel trasero de la placa.

-13%

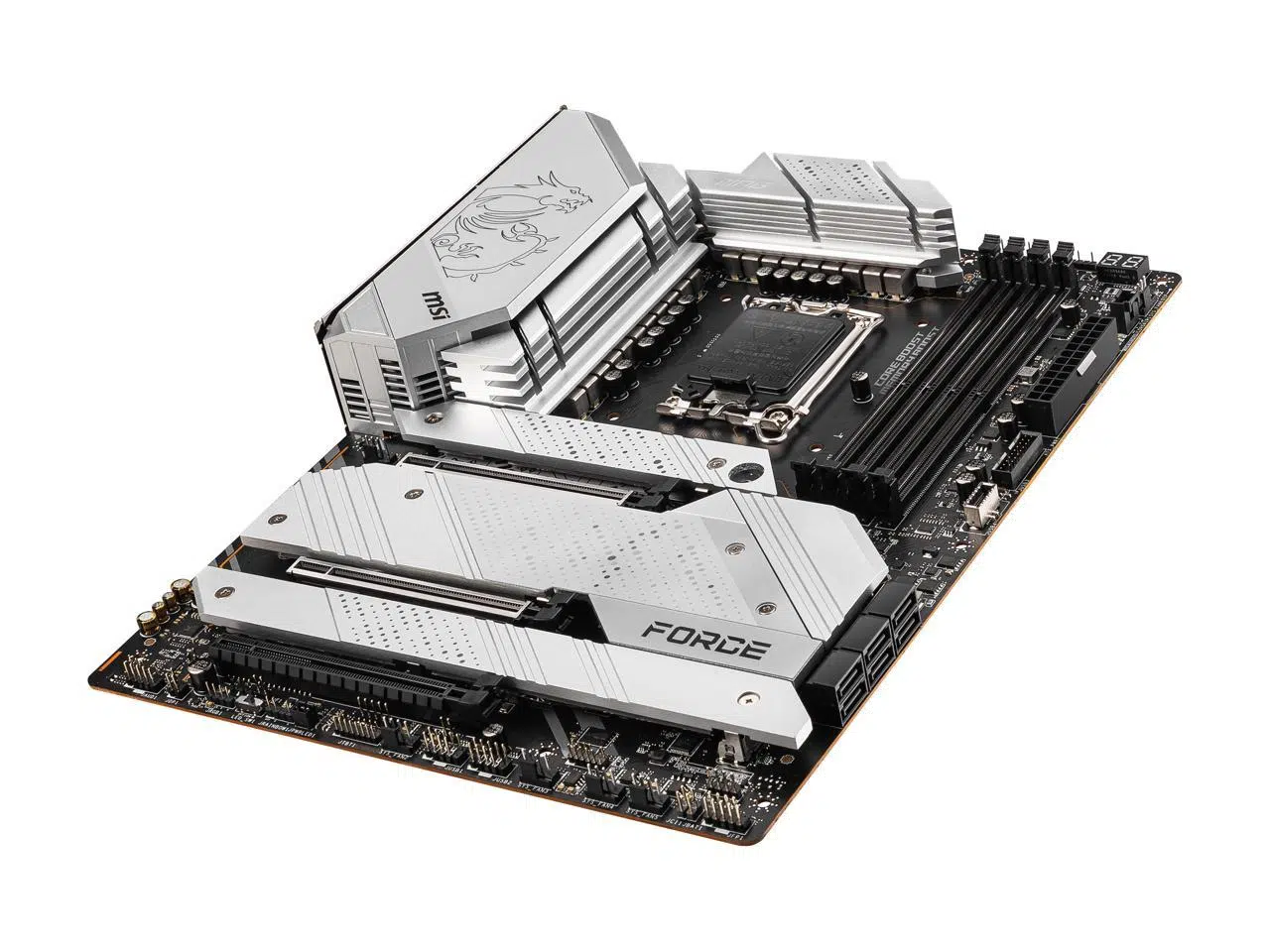

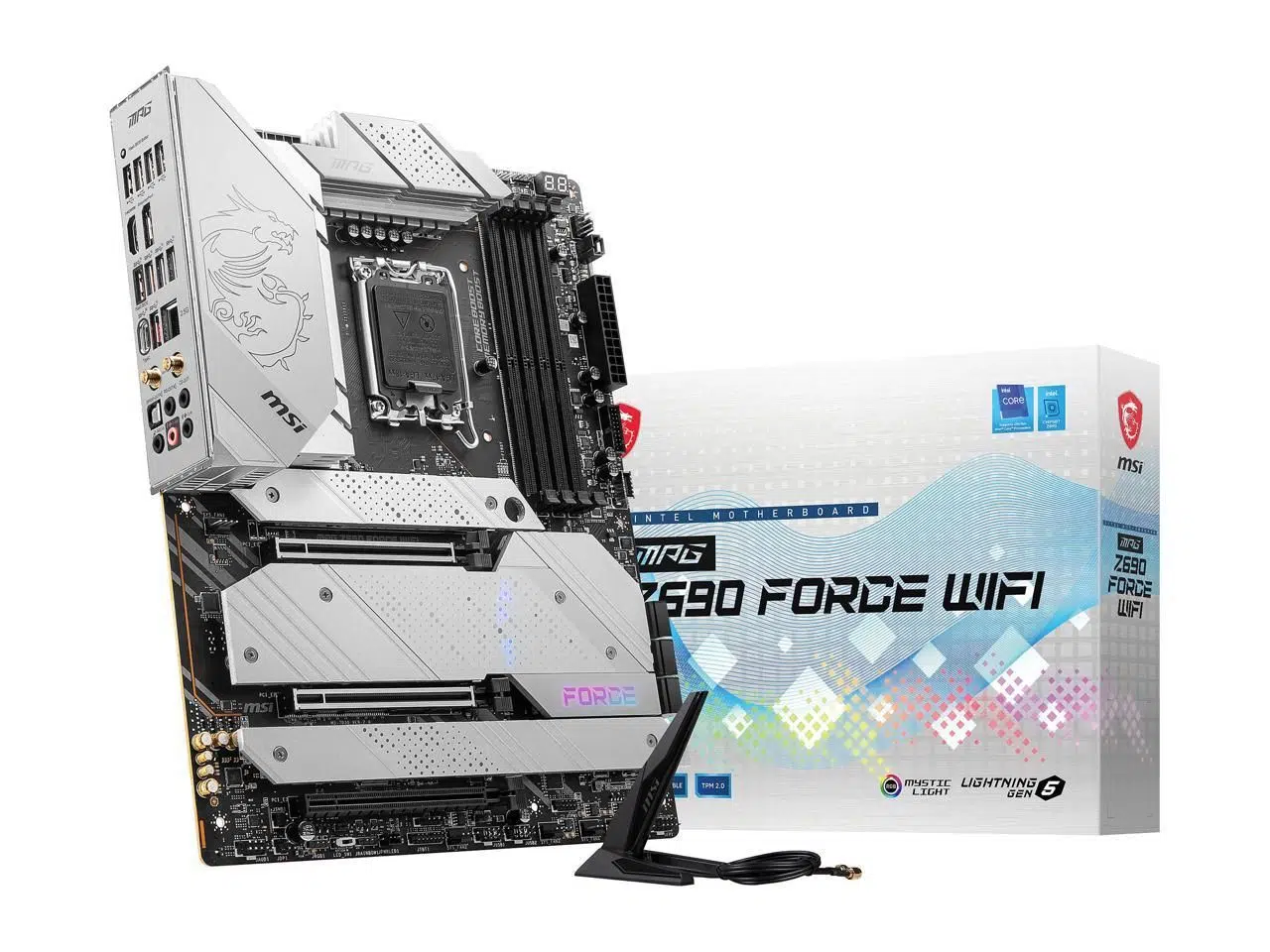

MSI MPG Z690 Force WiFi DDR5 Intel LGA 1700 ATX - Imagen 1

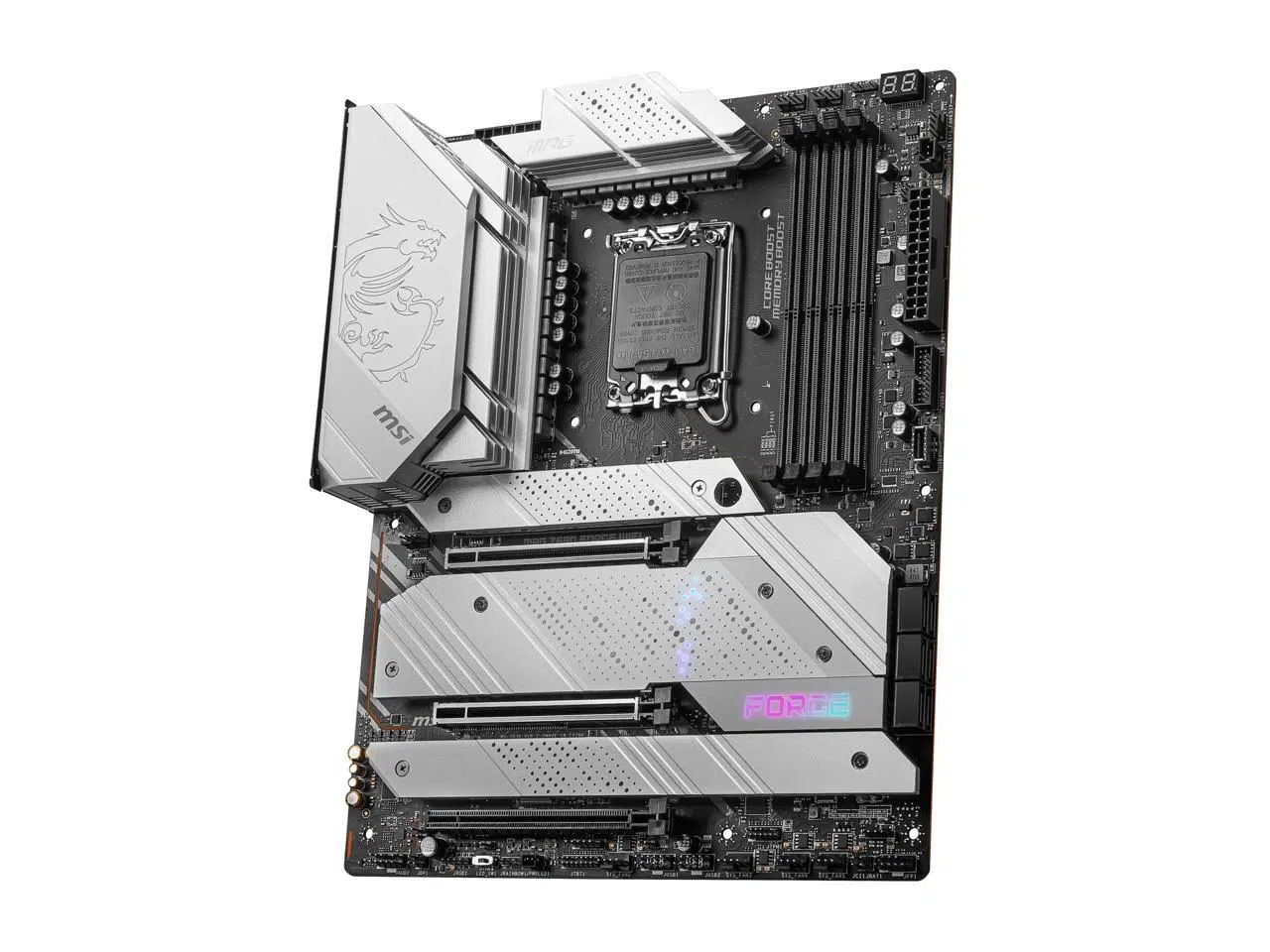

MSI MPG Z690 Force WiFi DDR5 Intel LGA 1700 ATX - Imagen 2

Clic para ampliar

El precio original era: $299.990.El precio actual es: $259.990. Iva Inc

Descripción
Valoraciones (0)

Descripción

Model
Brand	MSI
Model	MPG Z690 FORCE WIFI
Supported CPU
CPU Socket Type	LGA 1700

	* Dedicated LGA1700 mounting bracket is required.
CPU Type	Supports 12th Gen Intel Core Processors (LGA1700)
	Supports 13th gen Intel® Core desktop processors.
	May require a BIOS update to boot the 13th gen Intel® Core™ desktop processors.
Chipsets
Chipset	Intel Z690
Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic
Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	DDR5 1R 4800 (by JEDEC & POR)

	Max. overclocking frequency:
	1DPC 1R Max speed up to 6666+
	1DPC 2R Max speed up to 5600+
	2DPC 1R Max speed up to 4000+
	2DPC 2R Max speed up to 4000+
Maximum Memory Supported	192GB
Channel Supported	Dual Channel
Expansion Slots
PCI Express 5.0 x16	2 x PCI Express 5.0 x16

	* Support x16/x0, x8/x8.
	* Actual support may vary by CPU.
PCI Express 3.0 x16	1 x PCI Express 3.0 x16

	* Supports PCIe 3.0 x4.
Storage Devices
SATA 6Gb/s	6 x SATA 6Gb/s
M.2	5 x M.2 slots (Key M):

	M2_1 slot (From CPU)
	Supports PCIe 4.0 x4
	Supports 2260/ 2280/ 22110 storage devices

	M2_2 slot (From Z690 Chipset)
	Supports PCIe 4.0 x4
	Supports 2260/ 2280 storage devices

	M2_3 slot (From Z690 Chipset)
	Supports PCIe 4.0 x4
	Supports 2242/ 2260/ 2280/ 22110 storage devices

	M2_4 slot (From Z690 Chipset)*
	Supports PCIe 3.0 x4
	Supports SATA 6Gb/s
	Supports 2242/ 2260/ 2280 storage devices

	M2_5 slot (From Z690 Chipset)
	Supports PCIe 4.0 x4
	Supports SATA 6Gb/s
	Supports 2260/ 2280 storage devices

	* SATA7 will be unavailable when installing M.2 SATA SSD in the M2_4 slot.
Intel Optane Ready	M2_2~5 support Intel Optane Memory
SATA RAID	0/1/10
Onboard Audio
Audio Chipset	Realtek ALC4080
Audio Channels	7.1 Channels
Onboard LAN
LAN Chipset	Intel I225-V
Max LAN Speed	2.5Gbps
Wireless LAN	Intel WIFI 6E
Wireless LAN	802.11 a/b/g/n/ac/ax
Bluetooth	Bluetooth 5.2
Rear Panel Ports
Back I/O Ports	1 x DisplayPort
	1 x HDMI
	1 x Flash BIOS Button
	1 x Optical S/PDIF Out
	5 x Audio Jacks
	2 x Antenna Bracket
	1 x LAN (RJ45)
	1 x USB 3.2 Gen 2×2 Type-C
	5 x USB 3.2 Gen 2 Type-A
	4 x USB 2.0/1.1
Internal I/O Connectors
Onboard USB	1 x USB 3.2 Gen 2 10Gbps Type-C connector
	1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
	2 x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)
Other Connectors	1 x 4-pin CPU fan connector
	1 x 4-pin water-pump fan connector
	6 x 4-pin system fan connectors
	1 x Front panel audio connector
	2 x System panel connectors
	1 x Chassis Intrusion connector
	1 x Clear CMOS jumper
	1 x TPM module connector
	1 x TBT connector (supports RTD3)
	1 x Tuning Controller connector
	1 x EZ LED Control switch
	4 x EZ Debug LED
	1 x 2-Digit Debug Code LED
	1 x 4-pin RGB LED connector
	2 x 3-pin RAINBOW LED connectors
	1 x 3-pin CORSAIR LED connector
Physical Spec
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	305 x 244 mm
Power Pin	1 x 24-pin ATX main power connector
Power Pin	2 x 8-pin ATX 12V power connectors
