Name: Placa Madre AMD AM4 ASUS ROG Strix B550-F Gaming DDR4 ATX
SKU: 0305003A14N
Price: 199990 CLP
Availability: OutOfStock

Placa Madre AMD AM4 ASUS ROG Strix B550-F Gaming DDR4 ATX

SKU: 0305003A14N

Iva Inc

Precios según método de pago

Transferencia Bancaria Directa.

$199.990

El precio más bajo
Flow. Tarjetas de Débito/Crédito y Otros

$215.989

hasta 6 cuotas sin interés de $35.998
Mercado Pago. Tarjetas de Crédito

$227.989

hasta 12 cuotas sin interés de $18.999

Estado: Nuevo
Entrega: 1-2 días para Stgo / 2-3 días para regiones.

Sin existencias

7 ¡La gente está viendo este producto ahora!

Especificaciones:

Model
Brand	ASUS
Series	ROG Strix
Model	STRIX B550-F GAMING
Supported CPU
CPU Socket Type	AM4
CPU Type	Supports AMD Ryzen 5000 / 3000 Series Processors*
	Supports AMD Ryzen 5000 / 4000 G-Series Processors*

	* Refer to www.asus.com for CPU support list.
Chipsets
Chipset	AMD B550
Memory
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 5100(OC) / 4866(OC) / 4600(OC) / 4466(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3600(OC) / 3466(OC) / 3200 / 3000 / 2800 / 2666 / 2400 / 2133 (AMD Ryzen 5000 and 4000 G-Series Processors) *

	DDR4 4800(OC) / 4666(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 (AMD Ryzen 5000 and 3000 Series Processors) *

	* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported	128GB
Channel Supported	Dual Channel
ECC Supported	ECC Memory (ECC mode) support varies by CPU.
Buffer Supported	Un-buffered
Expansion Slots
PCI Express 4.0 x16	1 x PCI Express 4.0 x16
PCI Express 3.0 x16	1 x PCI Express 3.0 x16*

	* Supports x4 mode.
	* Share bandwidth with PCIe3.0 x1_1, PCIe3.0 x1_2, PCIe3.0 x1_3.
PCI Express x1	3 x PCIe 3.0 x1
Storage Devices
SATA 6Gb/s	6 x SATA 6Gb/s
M.2	AMD Ryzen 5000 and 3000 Series / 5000 and 4000 G-Series Desktop Processors:
	M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)

	AMD B550 Chipset:
	M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)*

	* When the M.2_2 Slot is populated , SATA6G_5/6 ports will be disabled.
SATA RAID	0/1/10
Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic
Onboard Audio
Audio Chipset	ROG SupremeFX High Definition Audio CODEC S1220A
Audio Channels	7.1 Channels
Onboard LAN
LAN Chipset	Intel I225-V
Max LAN Speed	10/100/1000/2500Mbps
Wireless LAN	No
Wireless LAN
Bluetooth	No

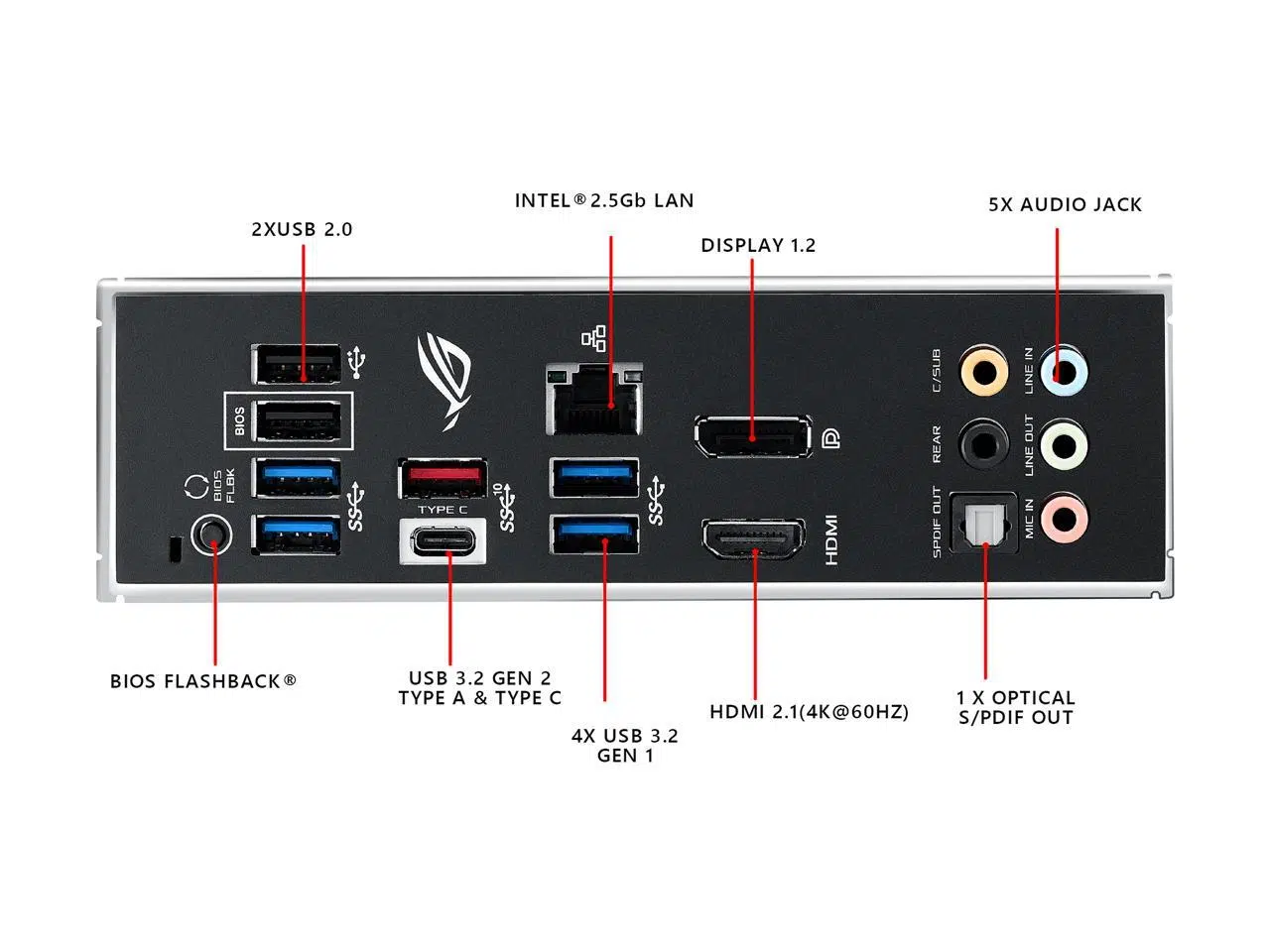

Rear Panel Ports
Back I/O Ports	2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C)
	4 x USB 3.2 Gen 1 ports (4 x Type-A)
	2 x USB 2.0 ports

	1 x DisplayPort
	1 x HDMI port
	1 x Intel I225-V 2.5G Ethernet
	1 x Optical S/PDIF out
	5 x Audio jacks
	1 x BIOS FlashBack button
Internal I/O Connectors
Onboard USB	1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
Onboard USB	2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other Connectors	Fan and cooling related
	1 x 4-Pin AIO_Pump header
	1 x 4-Pin CPU fan header
	1 x 4-Pin CPU_OPT fan header
	3 x 4-Pin Chassis fan headers
	Miscellaneous
	1 x Addressable Gen 2 header
	2 x AURA RGB headers
	1 x Clear CMOS header
	1 x Front panel audio header (AAFP)
	1 x 20-3 pin System Panel header with Chassis intrude function
	1 x Thermal sensor header
	1 x Thunderbolt header
Physical Spec
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0″ x 9.6″
Power Pin	1 x 24-pin EATX Power connector(s)
	1 x 8-pin ATX 12V Power connector(s)
	1 x 4-pin ATX 12V Power connector(s)
Windows 11 Compatibility
Windows 11	Supported
Features
Features	Special Features:
	ASUS Q-Design
	– ASUS Q-DIMM
	– ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green)
	– ASUS Q-Slot
	ASUS Thermal Solution
	– M.2 heatsink
	AURA Sync
	– AURA RGB headers
	– Addressable Gen 2 RGB headers
	ASUS EZ DIY
	– BIOS FlashBack button
	– BIOS FlashBack LED
	– Clear CMOS header
	– ProCool
	– Pre-mounted I/O shield
	– SafeSlot
	Software Features:
	ROG Exclusive Software
	– RAMCache III
	– ROG CPU-Z
	– GameFirst VI
	– Sonic Studio III + Sonic Studio Virtual Mixer
	– Sonic Radar III
	– DTS Sound Unbound
	– Overwolf
	– Anti-virus software
	ASUS Exclusive Software Features
	Armoury Crate
	– AIDA64 Extreme (60 days free trial)
	– Aura Creator
	– Aura Sync
	– Two-Way AI Noise Cancelation
	AI Suite 3:
	– Performance And Power Saving Utility
	EPU
	DIGI+ VRM
	Fan Xpert 4
	TurboV EVO
	– EZ update
	WinRAR
	DAEMON Tools
	Norton Anti-virus software (Free Trial version)
	UEFI BIOS
	ASUS EZ DIY
	– ASUS CrashFree BIOS 3
	– ASUS EZ Flash 3
	– ASUS UEFI BIOS EZ Mode
	BIOS:
	256 Mb Flash ROM, UEFI AMI BIOS
	Manageability:
	WOL by PME, PXE
	Operating System:
	Windows 10 64-bit, Windows 11 64-bit

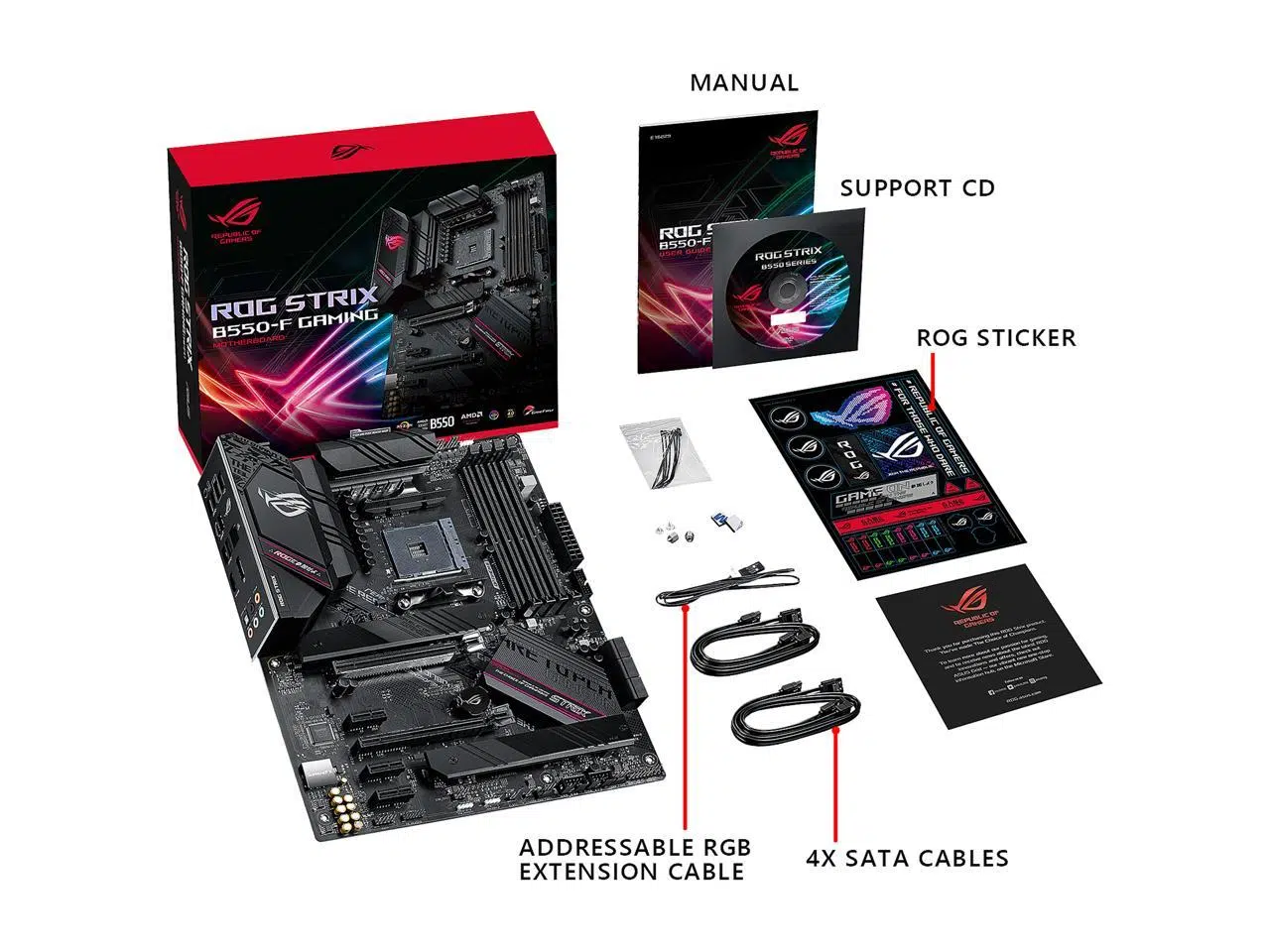

Packaging
Package Contents	Cables
	1 x Addressable RGB extension cable
	4 x SATA 6Gb/s cables
	Miscellaneous

	1 x Cable ties pack
	1 x M.2 Rubber Package
	1 x M.2 SSD screw package
	1 x ROG key chain
	1 x ROG Strix stickers
	1 x ROG Strix thank you card
	Installation Media
	1 x Support DVD
	Documentation
	1 x User manual

-26%

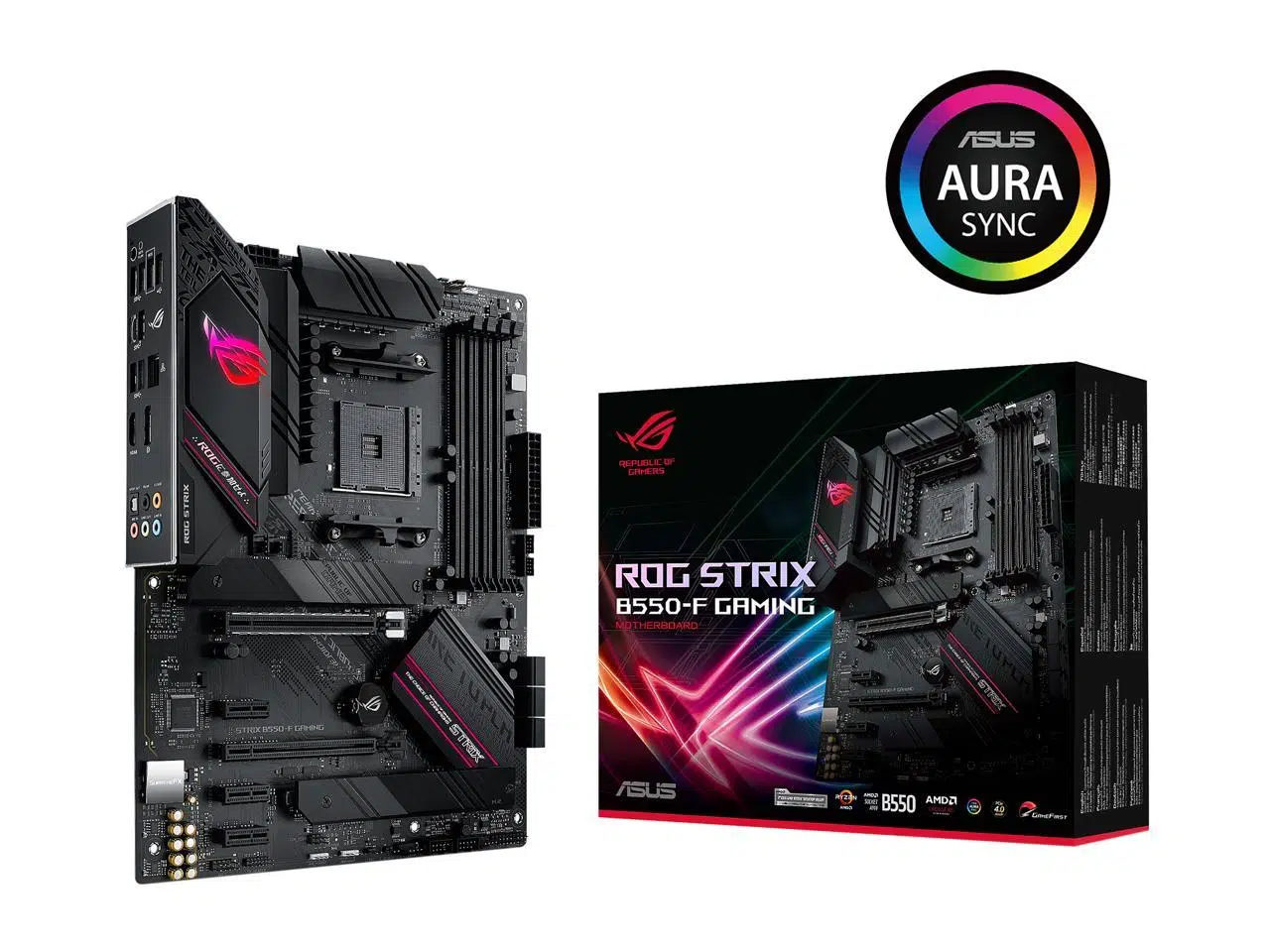

Placa Madre AMD AM4 ASUS ROG Strix B550-F Gaming DDR4 ATX - Imagen 1

Placa Madre AMD AM4 ASUS ROG Strix B550-F Gaming DDR4 ATX - Imagen 2

Clic para ampliar

El precio original era: $269.990.El precio actual es: $199.990. Iva Inc
