Especificaciones:
Model | |
Brand | ASRock |

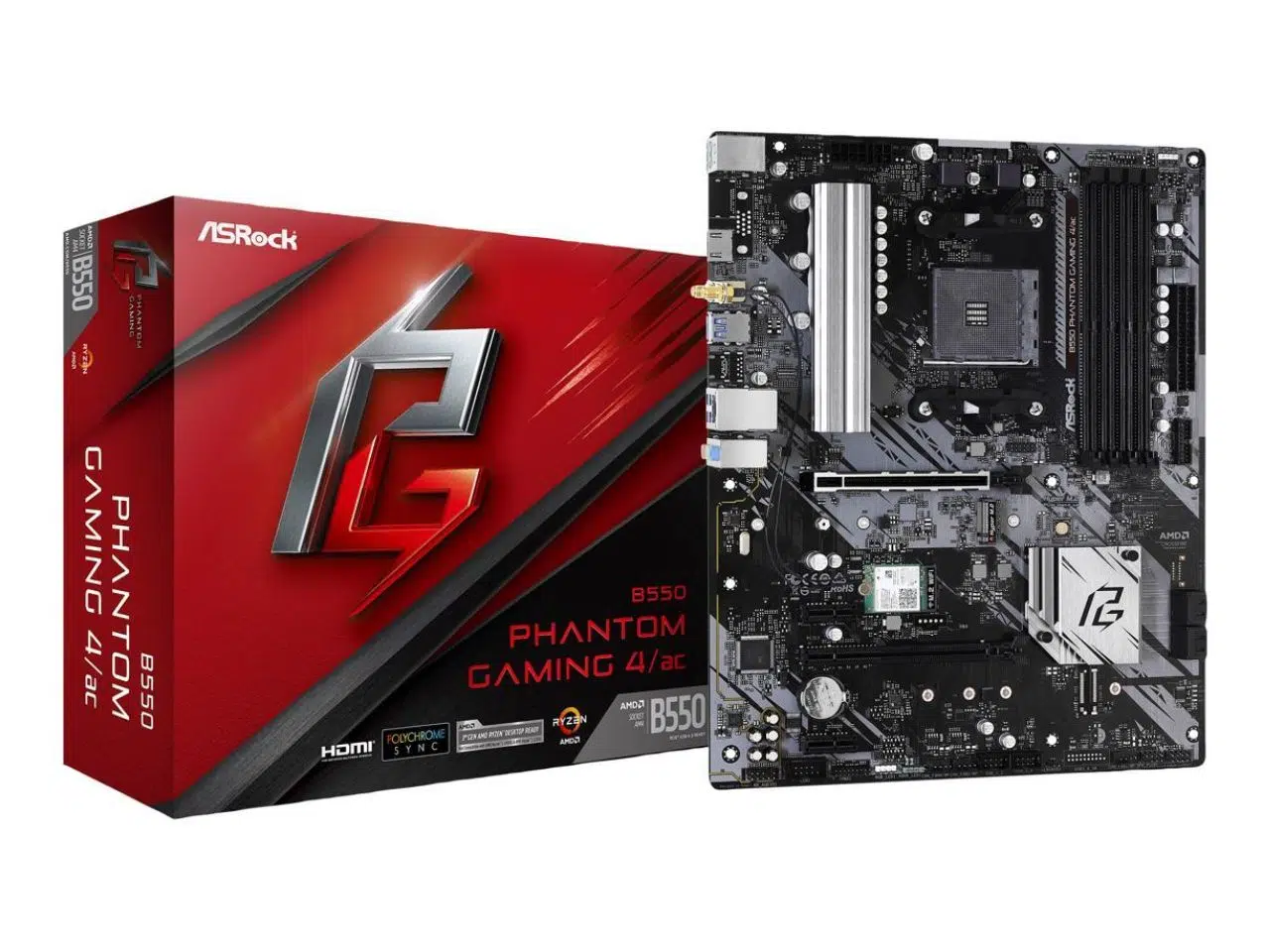

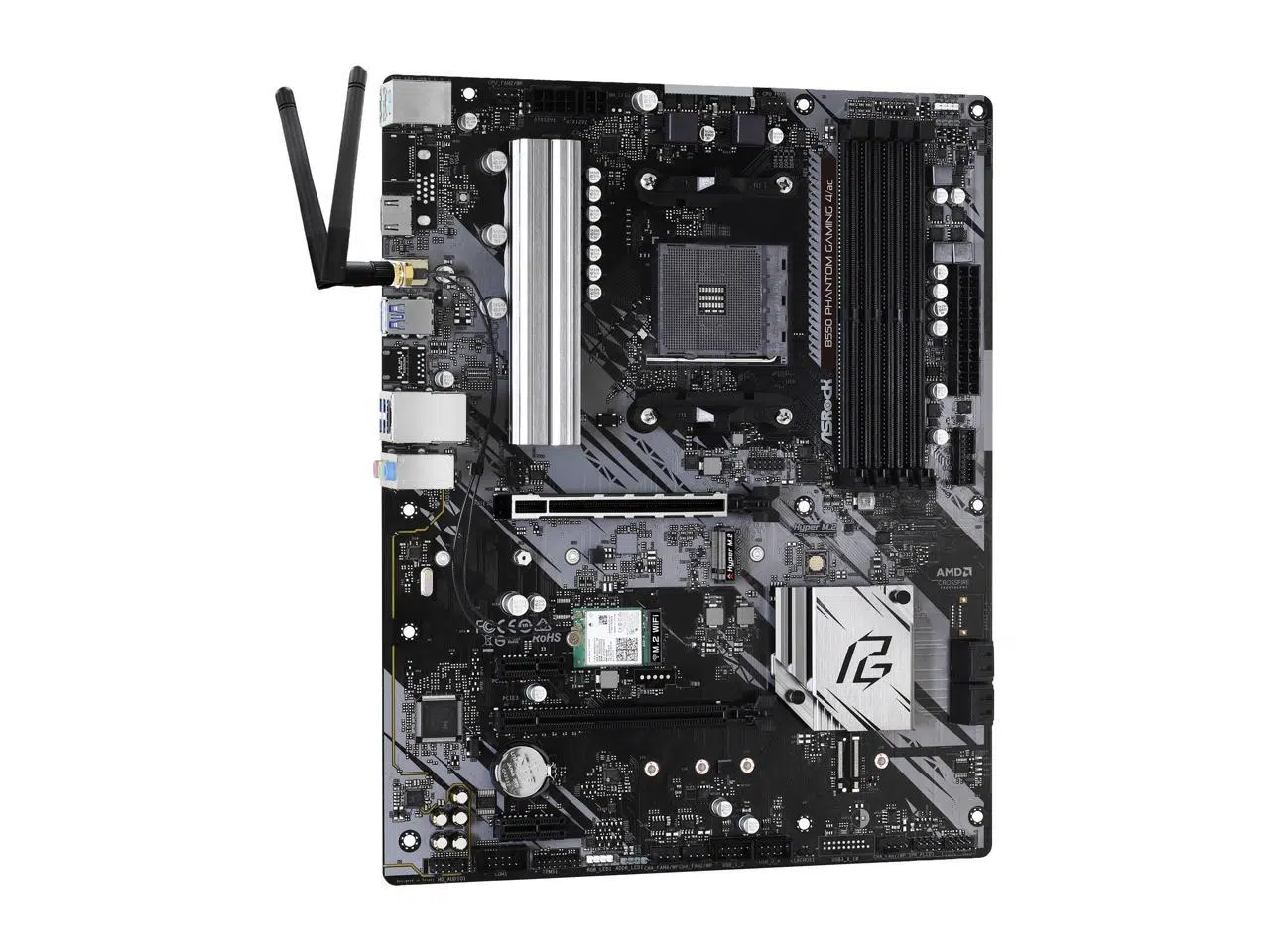

Model | B550 Phantom Gaming 4/ac |
Supported CPU | |

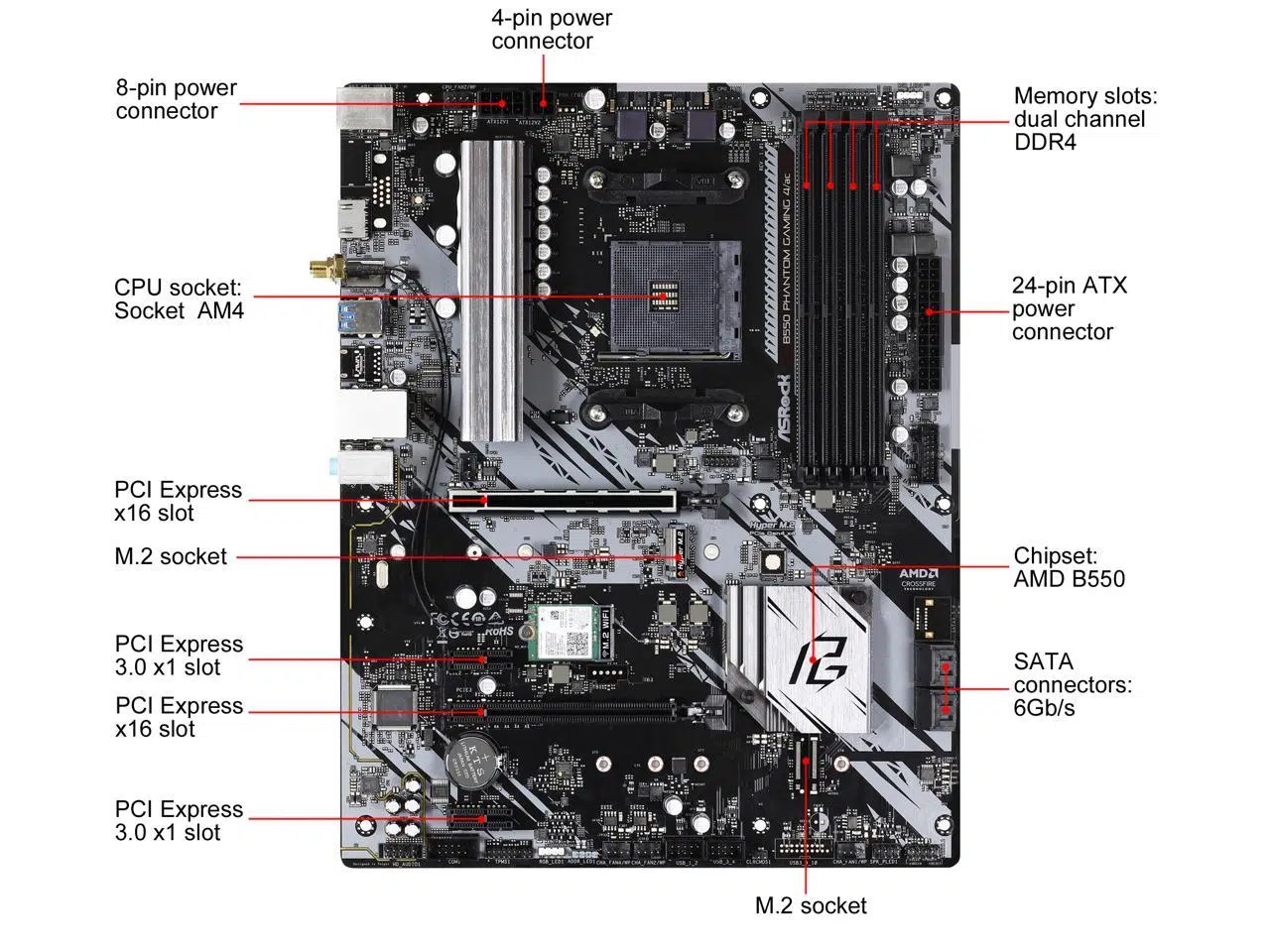

CPU Socket Type | AM4 |
CPU Type | Supports AMD Ryzen 5000 Series / 4000 G-Series / 3000 Series Processors* |
* Not compatible with AMD Ryzen 5 3400G and Ryzen 3 3200G. | |
* BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU. Refer to ASRock website for CPU support list. | |
Chipsets | |
Chipset | AMD B550 |
Memory | |
Number of Memory Slots | 4x288pin (DDR4) |
Memory Standard | DDR4 4733(OC)+ / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 (AMD Ryzen series APUs (Renoir)) |
DDR4 4533(OC)+ / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 (AMD Ryzen series CPUs (Matisse)) | |
Maximum Memory Supported | 128GB |
Channel Supported | Dual Channel |
ECC Supported | Yes |
Buffer Supported | Un-buffered |
Expansion Slots | |
PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16* |
* Actual support may vary by CPU. | |
* Supports NVMe SSD as boot disks. | |
PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16* |
* Supports NVMe SSD as boot disks. | |
PCI Express x1 | 2 x PCI Express 3.0 x1 |
Other Slots | 1 x M.2 Socket (Key E) with the bundled WiFi-802.11ac module |
Storage Devices | |
SATA 6Gb/s | 4 x SATA 6Gb/s |
M.2 | 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280/22110 M.2 PCI Express module up to Gen4x4 (64Gb/s) (with Matisse) or Gen3x4 (32Gb/s) (with Renoir)* |
* Supports NVMe SSD as boot disks. | |
* Supports ASRock U.2 Kit. | |
SATA RAID | 0/1/10 |
Onboard Video | |
Onboard Video Chipset | Supported only by CPU with integrated graphic |
Onboard Audio | |
Audio Chipset | Realtek ALC1200 |
Audio Channels | 7.1 Channels |
Onboard LAN | |
LAN Chipset | Realtek RTL8111H |
Max LAN Speed | 1Gbps |
Wireless LAN | Intel 802.11ac WiFi Module |
IEEE 802.11a/b/g/n/ac | |
Bluetooth | Bluetooth 4.2 |
Rear Panel Ports | |
Back I/O Ports | 2 x Antenna Ports |
1 x PS/2 Mouse/Keyboard Port | |
1 x HDMI Port | |
6 x USB 3.2 Gen1 Ports (Supports ESD Protection) | |
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) | |
HD Audio Jacks: Line in / Front Speaker / Microphone | |
Internal I/O Connectors | |
Onboard USB | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) |
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) | |
Other Connectors | 1 x COM Port Header |
1 x SPI TPM Header | |
1 x Power LED and Speaker Header | |
2 x RGB LED Headers* | |
2 x Addressable LED Headers** | |
1 x CPU Fan Connector (4-pin)*** | |
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) | |
4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**** | |
1 x Front Panel Audio Connector | |
* Support in total up to 12V/3A, 36W LED Strip. | |
** Support in total up to 5V/3A, 15W LED Strip. | |
*** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. | |
**** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. | |
**** CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP and CHA_FAN4/WP can auto detect if 3-pin or 4-pin fan is in use. | |
Physical Spec | |
Form Factor | ATX |
LED Lighting | RGB |
Dimensions (W x L) | 305 x 244 mm |
Power Pin | 1 x 24-pin ATX Power Connector |
1 x 8-pin 12V Power Connector | |
1 x 4-pin 12V Power Connector | |
Windows 11 Compatibility | |
Windows 11 | Supported |
Packaging | |
Package Contents | Accessories: |
– Quick Installation Guide, Support CD, I/O Shield | |
– 2 x SATA Data Cables | |
– 2 x ASRock WiFi 2.4/5 GHz Antennas | |
– 1 x Screw for M.2 Socket |
