***Producto Open Box con garantía de 12 meses***
***Su estado estético puede presentar signos de uso muy leves, ya que el componente pudo haber sido usado para testeos o exhibición***
***Producto se envía con embalaje genérico***
Especificaciones:
Model | |
Brand | GIGABYTE |
Series | AORUS |
Model | X670 AORUS ELITE AX |
Part Number | X670 AORUS ELITE AX |
Supported CPU | |
CPU Socket Type | AM5 |
CPU Type | support for: AMD Ryzen™ 7000 Series Processors |
Chipsets | |
Chipset | AMD X670 |
Memory | |
Number of Memory Slots | 4x288pin (DDR5) |
Memory Standard | Support for DDR5 5200/4800/4400 MHz memory modules |
Maximum Memory Supported | Up to 128 GB (32 GB single DIMM capacity) |
Channel Supported | Dual Channel |
ECC Supported | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
Expansion Slots | |
PCI Express 4.0 x16 | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) |
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
Other Slots | Chipset: |
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) | |
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2) | |
Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4) | |
Storage Devices | |
SATA 6Gb/s | 4 x SATA 6Gb/s |
M.2 | 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB, M2D_SB) |
SATA RAID | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices |
RAID 0, RAID 1, and RAID 10 support for SATA storage devices | |
Onboard Audio | |
Audio Chipset | Realtek® Audio CODEC |
Audio Channels | High Definition Audio |
2/4/5.1/7.1-channel | |
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |
Onboard LAN | |
Max LAN Speed | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
Wireless LAN | AMD Wi-Fi 6E RZ616 (MT7922A22M) |
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands | |
BLUETOOTH 5.2 | |
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate | |
(Actual data rate may vary depending on environment and equipment.) | |

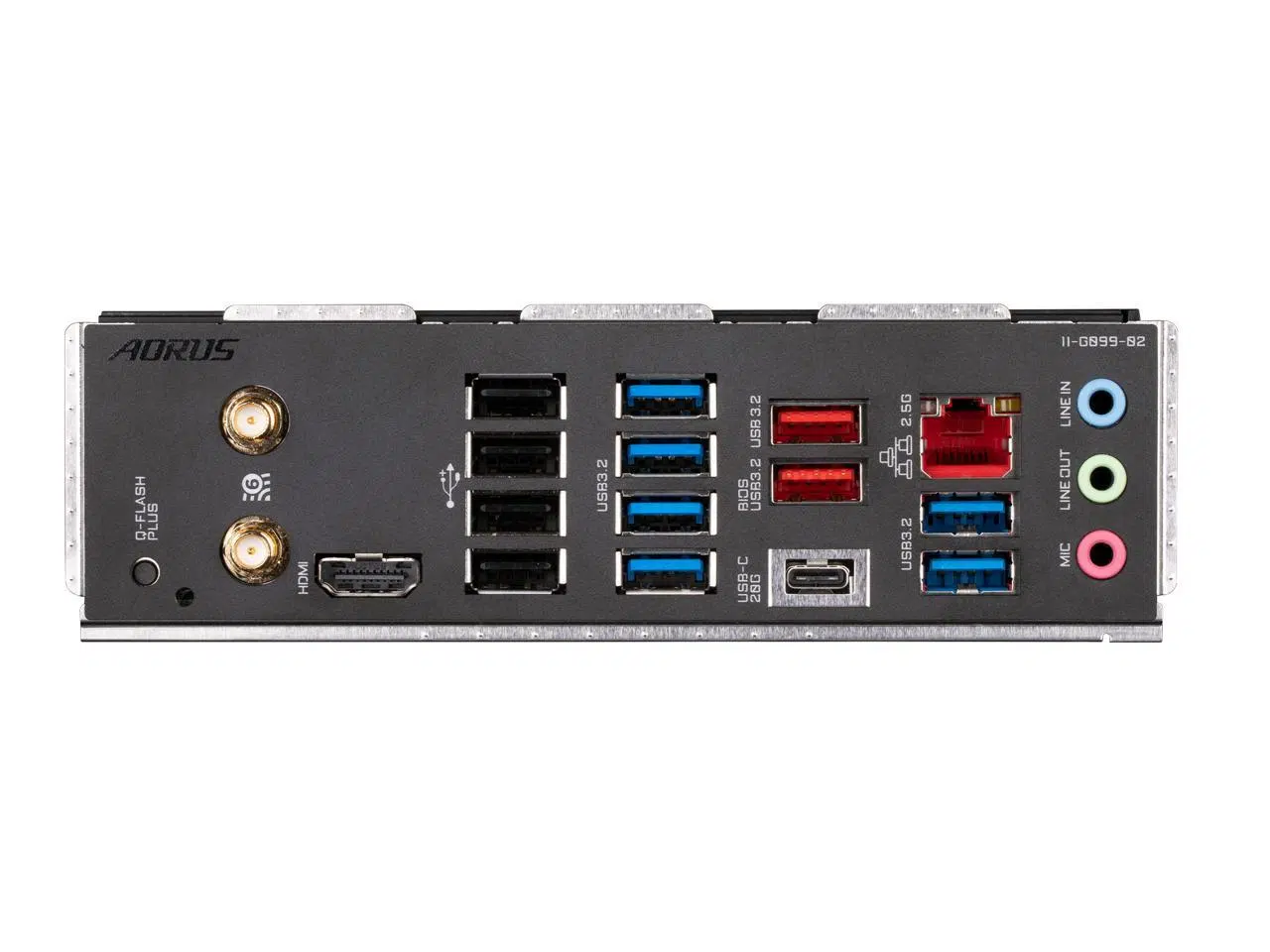

Rear Panel Ports | |
Back I/O Ports | 1 x Q-Flash Plus button |
2 x SMA antenna connectors (2T2R) | |
1 x HDMI 2.0 port | |
6 x USB 3.2 Gen 1 ports | |
4 x USB 2.0/1.1 ports | |
2 x USB 3.2 Gen 2 Type-A ports (red) | |
1 x USB Type-C® port, with USB 3.2 Gen 2×2 support | |
1 x RJ-45 port | |
3 x audio jacks | |
Internal I/O Connectors | |
Other Connectors | 1 x 24-pin ATX main power connector |
2 x 8-pin ATX 12V power connectors | |
1 x CPU fan header | |
1 x water cooling CPU fan header | |
3 x system fan headers | |
1 x CPU cooler LED strip/RGB LED strip header | |
2 x addressable LED strip headers | |
2 x RGB LED strip headers | |
4 x SATA 6Gb/s connectors | |
4 x M.2 Socket 3 connectors | |
1 x front panel header | |
1 x front panel audio header | |
1 x USB Type-C® header, with USB 3.2 Gen 2×2 support | |
2 x USB 3.2 Gen 1 headers | |
2 x USB 2.0/1.1 headers | |
1 x THB_U4 add-in card connector | |
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
1 x power button | |
1 x reset button | |
1 x Clear CMOS button | |
1 x reset jumper | |
1 x Clear CMOS jumper | |
Physical Spec | |
Form Factor | ATX |
LED Lighting | 30.5cm x 24.4cm |
Windows 11 Compatibility | |
Windows 11 | Support for Windows 11 64-bit |
Support for Windows 10 64-bit |
