Especificaciones:

Model
Brand	ASRock
Model	Z590 EXTREME
Supported CPU
CPU Socket Type	LGA 1200
CPU Type	Supports 10th Gen Intel Core Processors Supports 11th Gen Intel Core Processors Turbo Boost Technology 3.0
Chipsets
Chipset	Intel Z590
Onboard Video
Onboard Video Chipset	11th Gen Intel Core Processors support Intel Xe Graphics Architecture (Gen 12). 10th Gen Intel Core Processors support Gen 9 Graphics Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1 Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, UHD/HDR Blu-ray Disc Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096×2304) @ 60Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required) Supports HDCP 2.3 with HDMI 2.0 and DisplayPort 1.4 Ports Supports 4K Ultra HD (UHD) playback with HDMI 2.0 and DisplayPort 1.4 Ports** * Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. ** 11th Gen Intel Core Processors support HDMI 2.0. 10th Gen Intel Core Processors support HDMI 1.4.
Memory
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)* 10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4666+(OC)* * 11th Gen Intel Core (i9/i7/i5) support DDR4 up to 3200; Core (i3), Pentium and Celeron support DDR4 up to 2666. * 10th Gen Intel Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666.
Maximum Memory Supported	128GB
Channel Supported	Dual Channel
Expansion Slots
PCI Express 4.0 x16	11th Gen Intel Core Processors – 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x4 (PCIE3))* 10th Gen Intel Core Processors – 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen3x16 (PCIE1); dual at Gen3x16 (PCIE1) / Gen3x4 (PCIE3))*
PCI Express x1	3 x PCI Express 3.0 x1 Slots
Storage Devices
SATA 6Gb/s	6 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug* * If M2_2 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled. * If M2_3 is occupied, SATA3_4 and SATA3_5 will be disabled. SATA RAID: 0/1/5/10
M.2	CPU & Chipset:
M.2	1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64Gb/s) (Only supported with 11th Gen Intel Core Processors) 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s) 1 x Ultra M.2 Socket (M2_3), supports M Key type 2260/2280/22110 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s) Supports Intel Optane Technology Supports NVMe SSD as boot disks Supports ASRock U.2 Kit
Intel Optane Ready	Yes
Intel Optane Ready
Onboard Audio
Audio Chipset	Realtek ALC1220
Audio Channels	7.1-channel digital signals
Audio Channels
Onboard LAN
Max LAN Speed	10/100/1000/2500Mbps + 10/100/1000Mbps
LAN Chipset	Dragon RTL8125BG
Second LAN Chipset	Intel I219V
Wireless LAN	No
Bluetooth	No

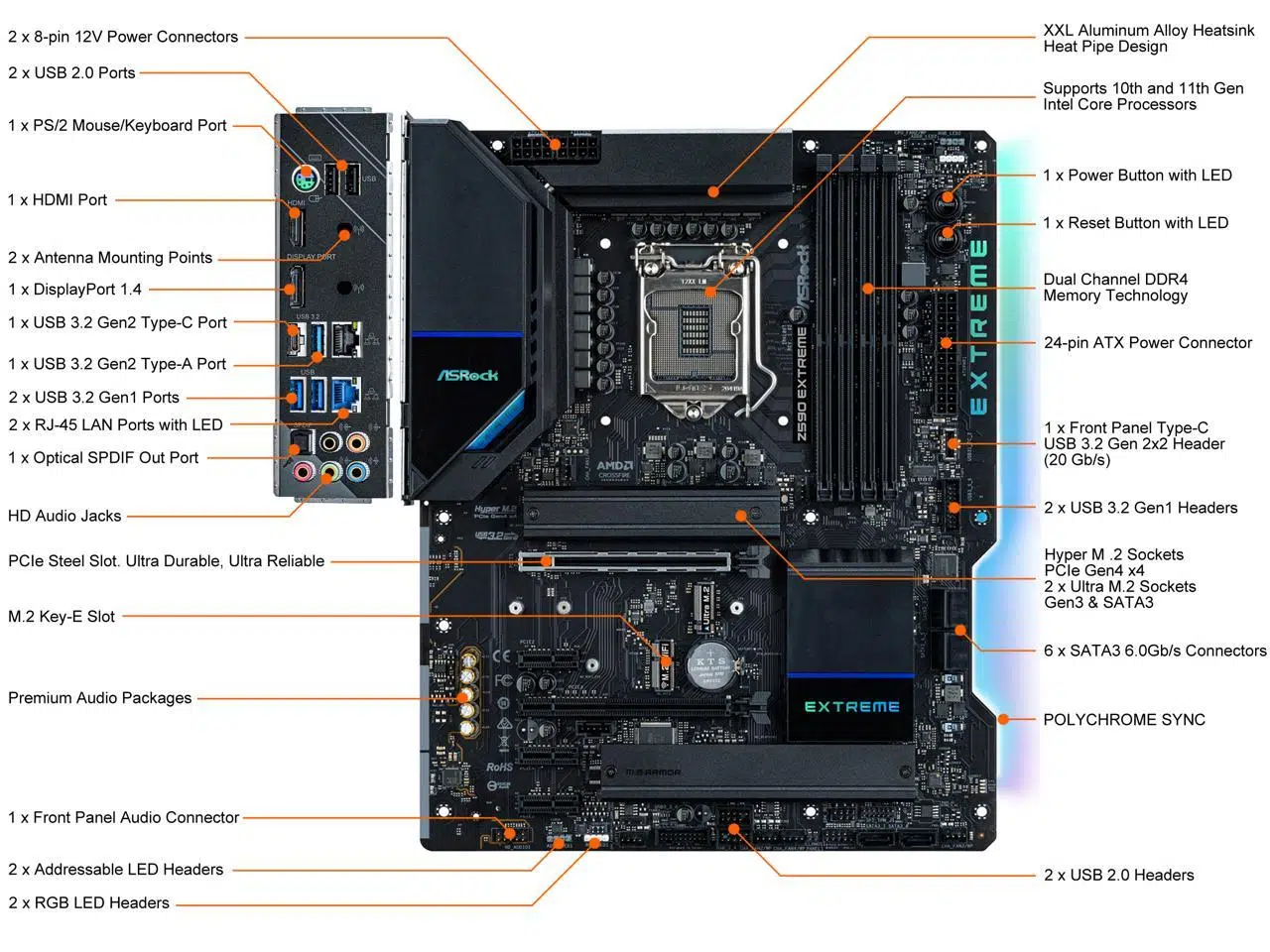

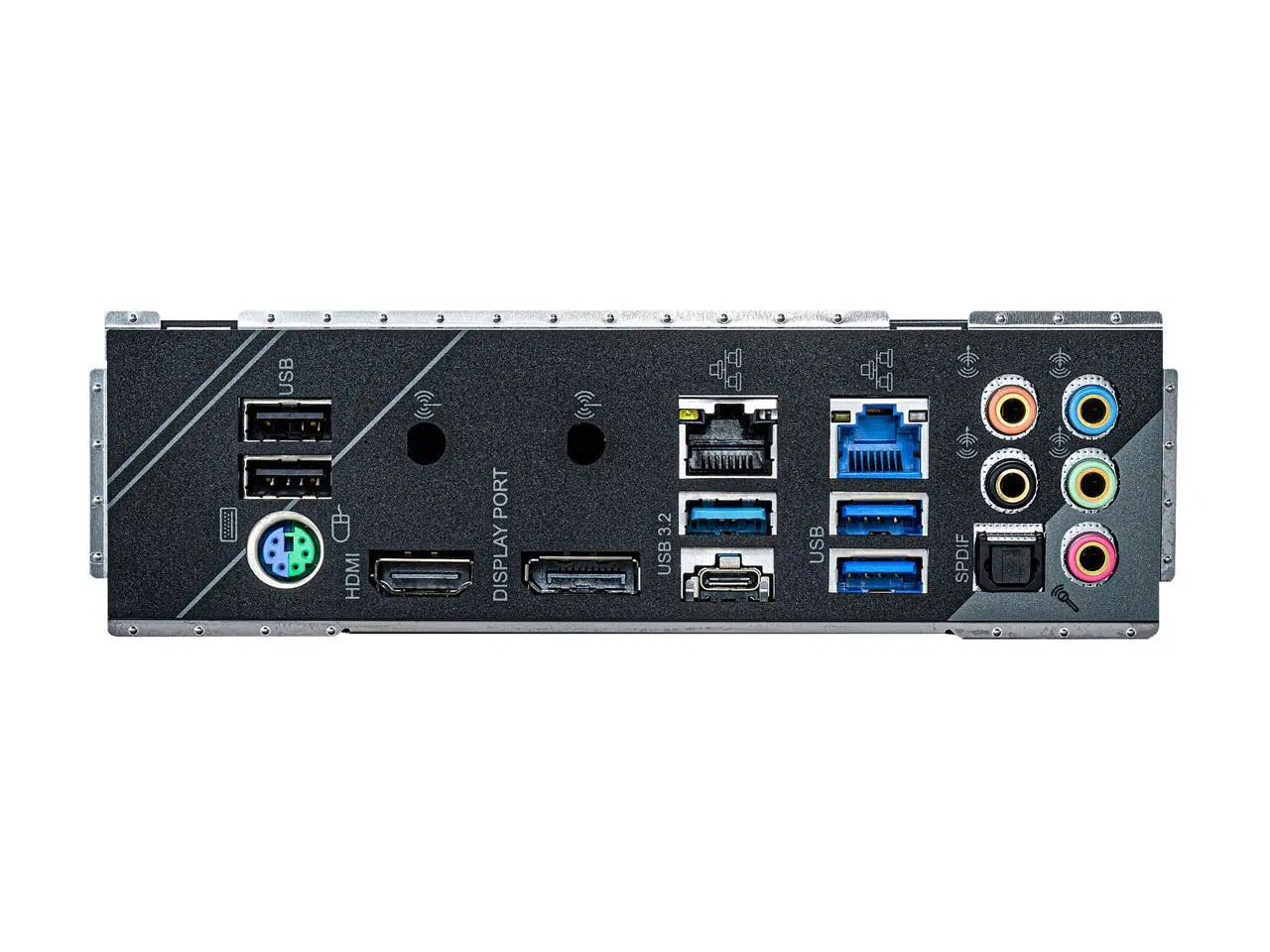

Rear Panel Ports
Back I/O Ports	2 x Antenna Mounting Points 1 x PS/2 Mouse/Keyboard Port 1 x HDMI Port 1 x DisplayPort 1.4 1 x Optical SPDIF Out Port 1 x USB 3.2 Gen2 Type-A Port (10Gb/s) (ReDriver) (Supports ESD Protection)* 1 x USB 3.2 Gen2 Type-C Port (10Gb/s) (ReDriver) (Supports ESD Protection)* 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)* 2 x USB 2.0 Ports (Supports ESD Protection) 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) * Ultra USB Power is supported on USB3_12 ports. * ACPI wake-up function is not supported on USB3_12 ports.
Internal I/O Connectors
Onboard USB	1 x Front Panel Type C USB 3.2 Gen2x2 Header (20Gb/s) (Supports ESD Protection) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
Other Connectors	1 x SPI TPM Header 1 x Power LED and Speaker Header 2 x RGB LED Headers* 2 x Addressable LED Headers 1 x CPU Fan Connector (4-pin)* 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** 1 x Front Panel Audio Connector (15µ Gold Audio Connector) 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) 1 x Power Button with LED 1 x Reset Button with LED * Support in total up to 12V/3A, 36W LED Strip. Support in total up to 5V/3A, 15W LED Strip. * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ** The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. * The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. *** CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP, CHA_FAN4/WP and CHA_FAN5/WP can auto detect if 3-pin or 4-pin fan is in use.
Physical Spec
Form Factor	ATX
LED Lighting	RGB

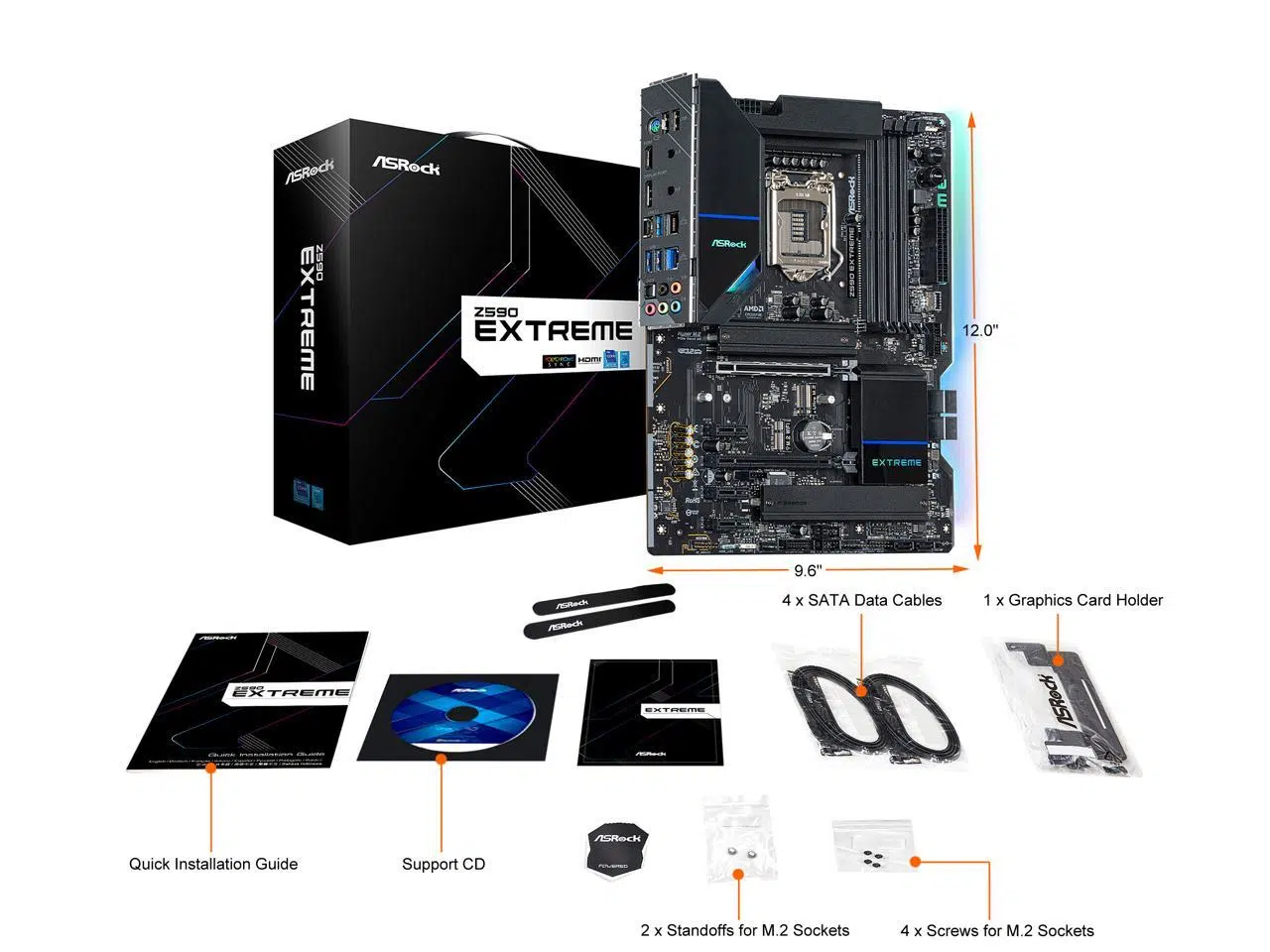

Dimensions (W x L)	305 x 244 mm
Power Pin	1 x 24-pin ATX Power Connector (Hi-Density Power Connector) 2 x 8-pin 12V Power Connectors (Hi-Density Power Connector)
Windows Compatibility
Windows 11	Supported

-50%

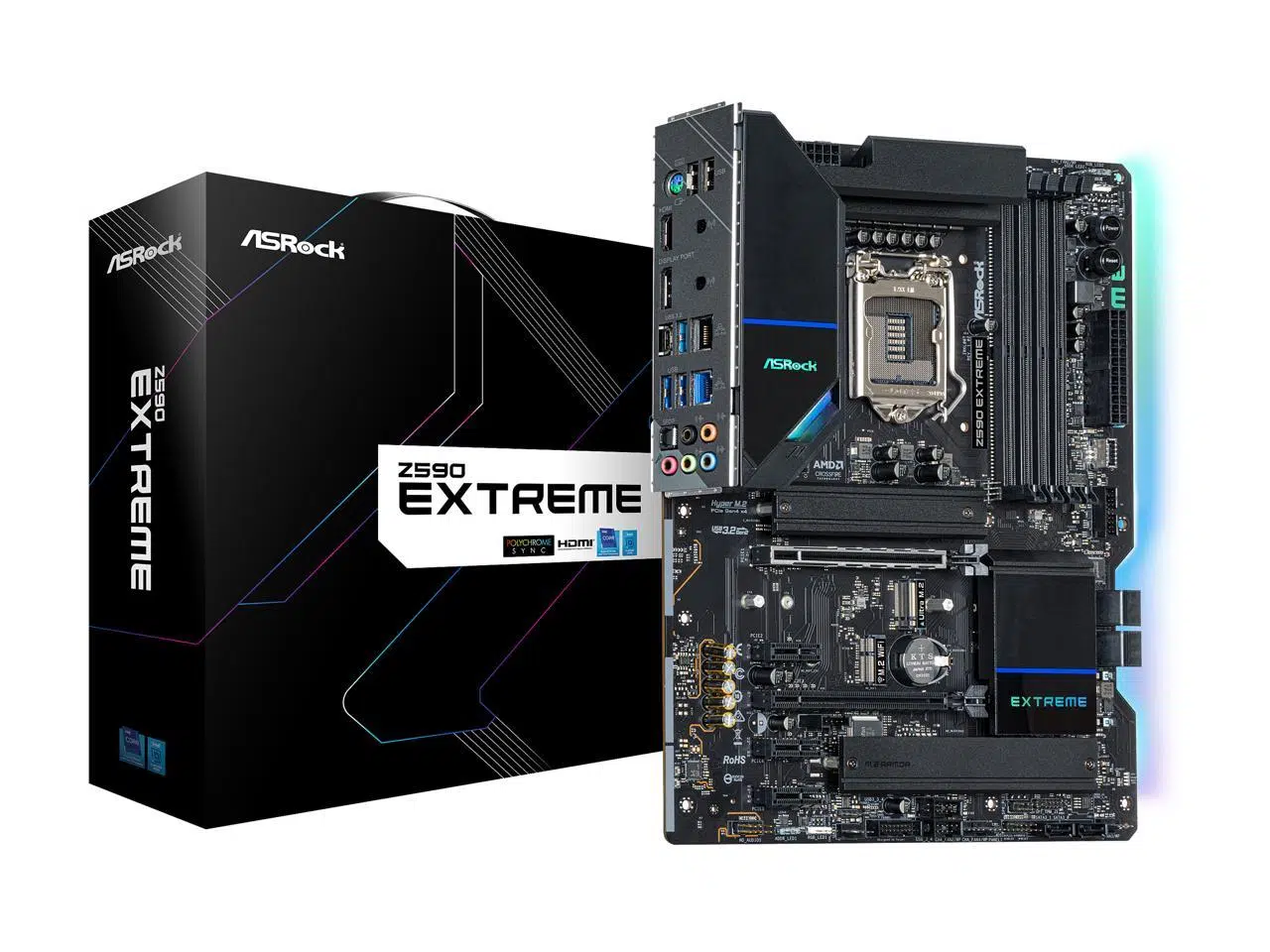

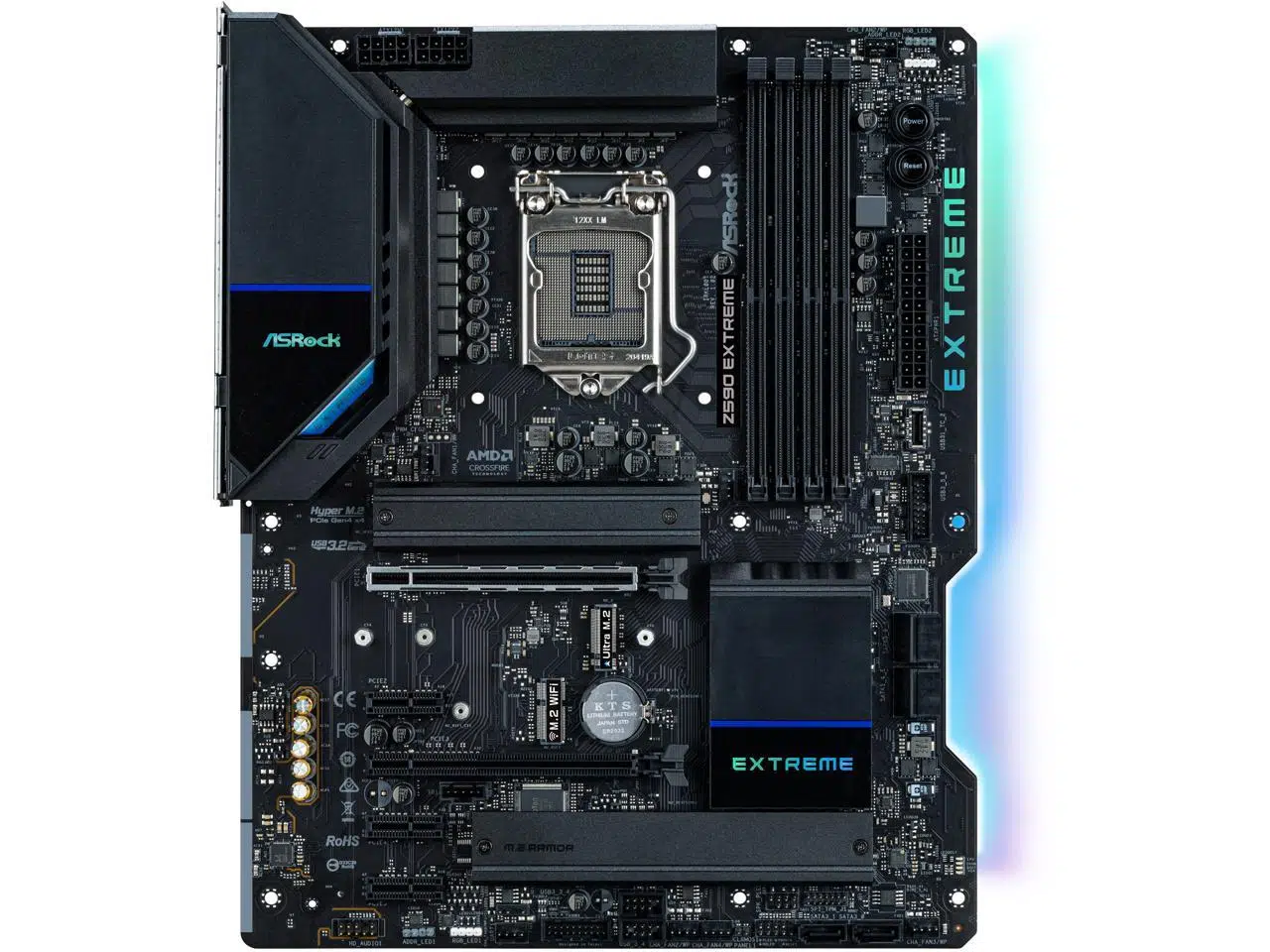

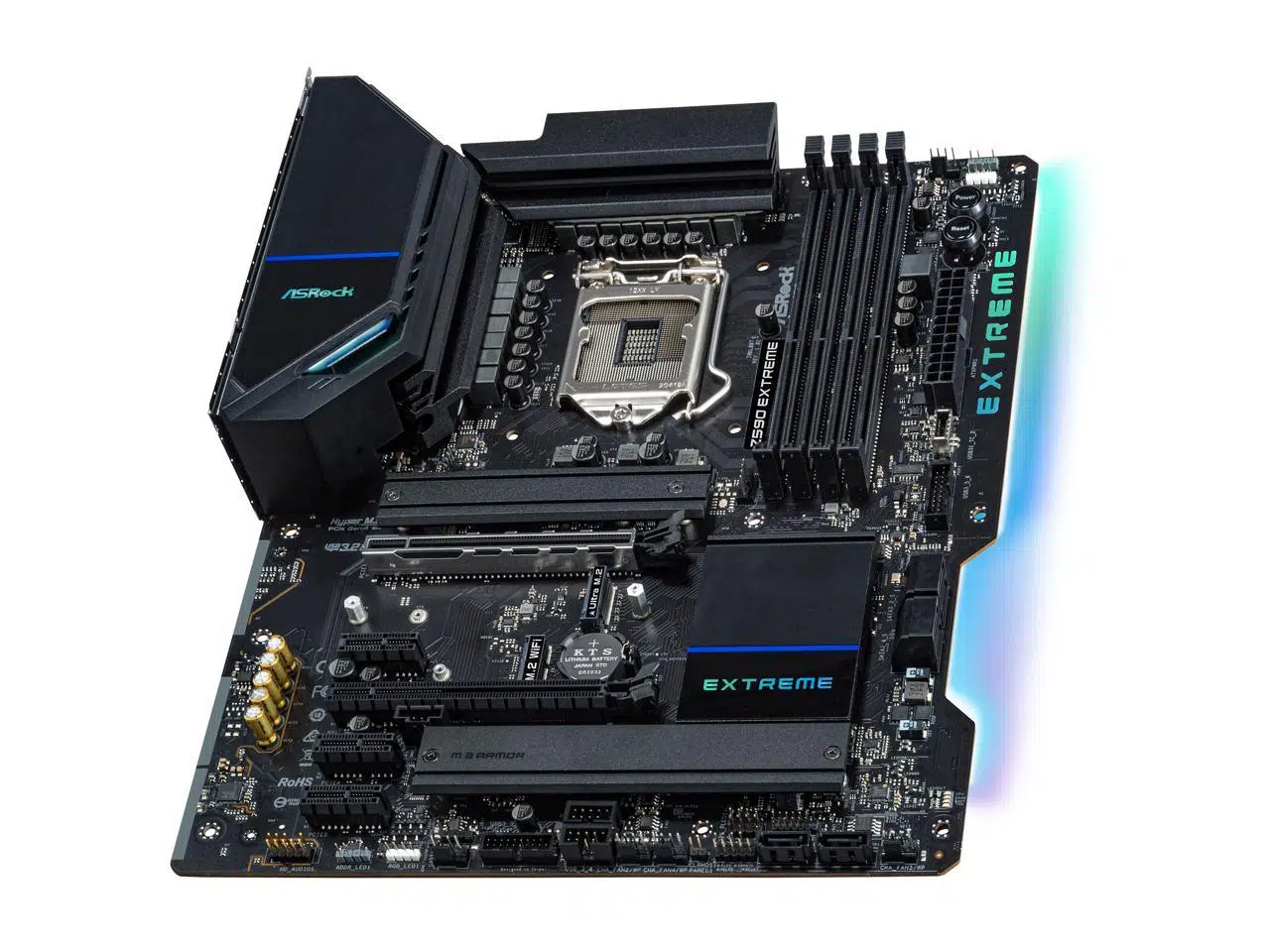

Placa Madre AsRock Extreme Z590, Socket Intel LGA 1200, ATX.

El precio original era: $299.990.El precio actual es: $149.990. Iva Inc

Precios según método de pago

Transferencia Bancaria Directa.

$149.990

El precio más bajo
Flow. Tarjetas de Débito/Crédito y Otros

$161.989

hasta 6 cuotas sin interés de $26.998
Mercado Pago. Tarjetas de Crédito

$170.989

hasta 12 cuotas sin interés de $14.249

Estado: Nuevo
Marca: ASROCK
Modelo: Z590 EXTREME
Despacho: Menos de 24h dentro de Stgo. Envios a todo Chile mediante Fedex/Chilexpress.

Sin existencias

5 ¡La gente está viendo este producto ahora!

Descripción
Valoraciones (0)

Descripción

Model
Brand	ASRock
Model	Z590 EXTREME
Supported CPU
CPU Socket Type	LGA 1200
CPU Type	Supports 10th Gen Intel Core Processors Supports 11th Gen Intel Core Processors Turbo Boost Technology 3.0
Chipsets
Chipset	Intel Z590
Onboard Video
Onboard Video Chipset	11th Gen Intel Core Processors support Intel Xe Graphics Architecture (Gen 12). 10th Gen Intel Core Processors support Gen 9 Graphics Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1 Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, UHD/HDR Blu-ray Disc Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096×2304) @ 60Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required) Supports HDCP 2.3 with HDMI 2.0 and DisplayPort 1.4 Ports Supports 4K Ultra HD (UHD) playback with HDMI 2.0 and DisplayPort 1.4 Ports** * Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. ** 11th Gen Intel Core Processors support HDMI 2.0. 10th Gen Intel Core Processors support HDMI 1.4.
Memory
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)* 10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4666+(OC)* * 11th Gen Intel Core (i9/i7/i5) support DDR4 up to 3200; Core (i3), Pentium and Celeron support DDR4 up to 2666. * 10th Gen Intel Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666.
Maximum Memory Supported	128GB
Channel Supported	Dual Channel
Expansion Slots
PCI Express 4.0 x16	11th Gen Intel Core Processors – 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x4 (PCIE3))* 10th Gen Intel Core Processors – 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen3x16 (PCIE1); dual at Gen3x16 (PCIE1) / Gen3x4 (PCIE3))*
PCI Express x1	3 x PCI Express 3.0 x1 Slots
Storage Devices
SATA 6Gb/s	6 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug* * If M2_2 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled. * If M2_3 is occupied, SATA3_4 and SATA3_5 will be disabled. SATA RAID: 0/1/5/10
M.2	CPU & Chipset:
M.2	1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64Gb/s) (Only supported with 11th Gen Intel Core Processors) 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s) 1 x Ultra M.2 Socket (M2_3), supports M Key type 2260/2280/22110 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s) Supports Intel Optane Technology Supports NVMe SSD as boot disks Supports ASRock U.2 Kit
Intel Optane Ready	Yes
Intel Optane Ready
Onboard Audio
Audio Chipset	Realtek ALC1220
Audio Channels	7.1-channel digital signals
Audio Channels
Onboard LAN
Max LAN Speed	10/100/1000/2500Mbps + 10/100/1000Mbps
LAN Chipset	Dragon RTL8125BG
Second LAN Chipset	Intel I219V
Wireless LAN	No
Bluetooth	No
Rear Panel Ports
Back I/O Ports	2 x Antenna Mounting Points 1 x PS/2 Mouse/Keyboard Port 1 x HDMI Port 1 x DisplayPort 1.4 1 x Optical SPDIF Out Port 1 x USB 3.2 Gen2 Type-A Port (10Gb/s) (ReDriver) (Supports ESD Protection)* 1 x USB 3.2 Gen2 Type-C Port (10Gb/s) (ReDriver) (Supports ESD Protection)* 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)* 2 x USB 2.0 Ports (Supports ESD Protection) 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) * Ultra USB Power is supported on USB3_12 ports. * ACPI wake-up function is not supported on USB3_12 ports.
Internal I/O Connectors
Onboard USB	1 x Front Panel Type C USB 3.2 Gen2x2 Header (20Gb/s) (Supports ESD Protection) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
Other Connectors	1 x SPI TPM Header 1 x Power LED and Speaker Header 2 x RGB LED Headers* 2 x Addressable LED Headers 1 x CPU Fan Connector (4-pin)* 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** 1 x Front Panel Audio Connector (15µ Gold Audio Connector) 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) 1 x Power Button with LED 1 x Reset Button with LED * Support in total up to 12V/3A, 36W LED Strip. Support in total up to 5V/3A, 15W LED Strip. * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ** The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. * The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. *** CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP, CHA_FAN4/WP and CHA_FAN5/WP can auto detect if 3-pin or 4-pin fan is in use.
Physical Spec
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	305 x 244 mm
Power Pin	1 x 24-pin ATX Power Connector (Hi-Density Power Connector) 2 x 8-pin 12V Power Connectors (Hi-Density Power Connector)
Windows Compatibility
Windows 11	Supported
