El diseño del Dr. MOS incorpora la última tecnología SPS (Smart Power Stage). Está optimizado para monitorizar la corriente y temperatura de cada fase, proporcionando así una alimentación más suave y más limpia a la CPU con mayor rendimiento y capacidad OC.
EL PCB de grado servidor con baja pérdida de señal mejora la integridad de la misma, permitiendo a la placa soportar el nuevo PCIe 5.0 tanto para tarjetas gráficas como M.2 SSD. También mejora el potencial de OC de memoria que proporciona el rendimiento más extremo de la memoria.
Debido a la arquitectura eléctrica única de DDR5 DIMM, existe un alto riesgo de dañar el módulo de memoria si la alimentación de CA no se desconecta correctamente durante la extracción o instalación. Para evitar esto, ASRock ha implementado un circuito de protección sin problemas en cada placa base DDR5, lo que reduce el riesgo de dañar el módulo de memoria.
Especificaciones:
Model | |
Brand | ASRock |

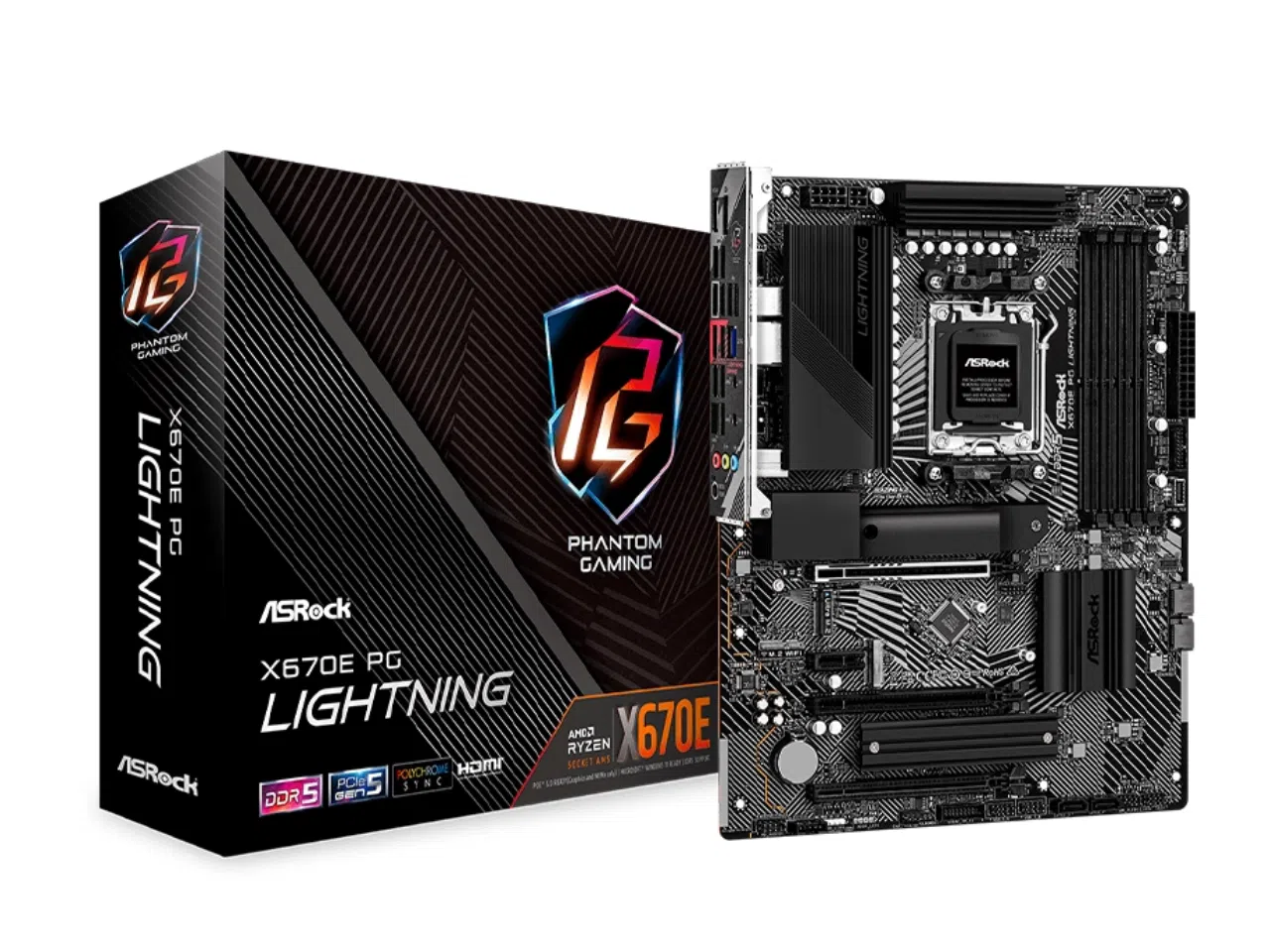

Model | X670E PG Lightning |
Supported CPU | |
CPU Socket Type | AM5 |
CPU Type | Supports AMD Ryzen 7000 Series Processors |
Chipsets | |
Chipset | AMD X670E |
Memory | |
Number of Memory Slots | 4x288pin (DDR5) |
Memory Standard | DDR5 6600+ (OC)* |
* Please refer to Memory Support List on ASRock’s website for more information. (http://www.asrock.com/) | |
Maximum Memory Supported | 128GB |
Channel Supported | Dual Channel |
ECC Supported | Non-ECC |
Buffer Supported | Un-buffered |
Expansion Slots | |
PCI Express 5.0 x16 | 1 x PCI Express 5.0 x16* |
* Supports NVMe SSD as boot disks. | |
* Actual support may vary by CPU. | |
PCI Express 4.0 x16 | 2 x PCI Express 4.0 x16* |
* PCIE3 supports x4 mode, Actual support may vary by CPU. | |
* PCIE4 supports x1 mode. | |
* Supports NVMe SSD as boot disks. | |
PCI Express x1 | 1 x PCI Express 4.0 x1 |
* Supports NVMe SSD as boot disks. | |
Other Slots | 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
Storage Devices | |
SATA 6Gb/s | 4 x SATA 6Gb/s |
M.2 | CPU: |
– 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* | |
Chipset: | |
– 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes* | |
– 1 x M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x2 (32 Gb/s) mode* | |
– 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* | |
* Supports NVMe SSD as boot disks. | |
* Supports ASRock U.2 Kit. | |
SATA RAID | 0/1/10 |
Onboard Video | |
Onboard Video Chipset | Supported only by CPU with integrated graphic |
Onboard Audio | |
Audio Chipset | Realtek ALC897 |
Audio Channels | 7.1 Channels |
Onboard LAN | |
LAN Chipset | Dragon RTL8125BG |
Max LAN Speed | 2.5Gbps |
Rear Panel Ports | |
Back I/O Ports | 2 x Antenna Mounting Points |
1 x HDMI Port | |
1 x DisplayPort 1.4 | |
1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) | |
1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) | |
6 x USB 3.2 Gen1 Ports (USB32_34 are Lightning Gaming Ports) | |
4 x USB 2.0 Ports | |
1 x RJ-45 LAN Port | |
1 x BIOS Flashback Button | |
HD Audio Jacks: Line in / Front Speaker / Microphone | |
Internal I/O Connectors | |
Onboard USB | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) |
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) | |
1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (ReDriver) | |
Other Connectors | 1 x SPI TPM Header |
1 x Power LED and Speaker Header | |
1 x RGB LED Header* | |
3 x Addressable LED Headers** | |
1 x CPU Fan Connector (4-pin)*** | |
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** | |
4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** | |
1 x Front Panel Audio Connector | |
1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) | |
* Supports in total up to 12V/3A, 36W LED Strip. | |
** Support in total up to 5V/3A, 15W LED Strip. | |
*** CPU_FAN1 supports the fan power up to 1A (12W). | |
**** CPU_FAN2/WP supports the fan power up to 2A (24W). | |
***** CHA_FAN1~4/WP support the fan power up to 2A (24W). | |
***** CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use. | |
Physical Spec | |
Form Factor | ATX |
LED Lighting | RGB |
Dimensions (W x L) | 305 x 245 mm |
Power Pin | 1 x 24 pin ATX Power Connector |
1 x 8 pin 12V Power Connector (Hi-Density Power Connector) | |
1 x 4 pin 12V Power Connector (Hi-Density Power Connector) | |
Windows 11 Compatibility | |
Windows 11 | Supported |
Features | |
Features | Unique Feature: |
Superb Productivity | |
– PCIe Gen5 (Graphics, M.2) | |
– Dual Channel DDR5 | |
Rock-Solid Durability | |
– Server-Grade Low-Loss PCB | |
– 14+2+1 Power Phase, 70A SPS | |
– Pre-Installed I/O Shield | |
Ultrafast Connectivity | |
– 2.5G LAN | |
– ASRock Lightning Gaming Ports | |
EZ Update | |
– BIOS Flashback Button | |
– ASRock Auto Driver Installer | |
BIOS Feature: | |
– 256Mb AMI UEFI Legal BIOS with GUI support | |
Software and UEFI: | |
Software | |
– ASRock Motherboard Utility (Phantom Gaming Tuning) | |
– ASRock Phantom Gaming LAN Software | |
– ASRock Polychrome SYNC | |
* These utilities can be downloaded from ASRock Live Update & APP Shop. | |
UEFI | |
– ASRock Full HD UEFI | |
– ASRock Auto Driver Installer | |
– ASRock Instant Flash | |
OS: | |
– Microsoft Windows 11 64-bit | |
Certifications: | |
– FCC, CE | |
– ErP/EuP ready (ErP/EuP ready power supply is required) | |
Packaging | |
Package Contents | Accessories: |
– 1 x User Manual | |
– 2 x SATA Data Cables | |
– 4 x Screws for M.2 Sockets | |
– 1 x Standoff for M.2 Socket |
