Name: Placa Madre ASRock Z690 Pro RS, DDR4, Intel LGA 1700, ATX
Brand: Asrock
SKU: 10115
Price: 199990 CLP
Availability: OutOfStock

Placa Madre ASRock Z690 Pro RS, DDR4, Intel LGA 1700, ATX

Iva Inc

Precios según método de pago

Transferencia Bancaria Directa.

$199.990

El precio más bajo
Flow. Tarjetas de Débito/Crédito y Otros

$215.989

hasta 6 cuotas sin interés de $35.998
Mercado Pago. Tarjetas de Crédito

$227.989

hasta 12 cuotas sin interés de $18.999

Estado: Nuevo – Sellado

Sin existencias

9 ¡La gente está viendo este producto ahora!

Especificaciones:

Model
Brand	ASRock
Model	Z690 Pro RS
Supported CPU
CPU Socket Type	LGA 1700

	* Dedicated LGA1700 mounting bracket is required.
CPU Type	Supports 13th / 12th Gen Intel Core Processors, Intel Pentium Gold, Celeron Processors
CPU Type	May require a BIOS update to boot the 13th gen Intel® Core™ desktop processors.
Supported CPU Technologies	Turbo Boost Technology 3.0
Chipsets
Chipset	Intel Z690
Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic
Memory
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 5000+(OC)*

	* Supports DDR4 3200 natively.
	* Please refer to Memory Support List on ASRock’s website for more information. (http://www.asrock.com/)
Maximum Memory Supported	128GB
Channel Supported	Dual Channel
Expansion Slots
PCI Express 5.0 x16	3 x PCIe x16 Slots (PCIE2/PCIE3/PCIE5: single at Gen5x16 (PCIE2); dual at Gen5x16 (PCIE2) / Gen4x4 (PCIE3); triple at Gen5x16 (PCIE2) / Gen4x4 (PCIE3) / Gen3x4 (PCIE5))*

	* Supports NVMe SSD as boot disks.
PCI Express x1	2 x PCIe Gen3 x1
Other Slots	1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi (Integrated WiFi/BT)
Storage Devices
SATA 6Gb/s	8 x SATA 6Gb/s

	* If M2_2 is occupied by a SATA-type M.2 device, SATA3_7 will be disabled.

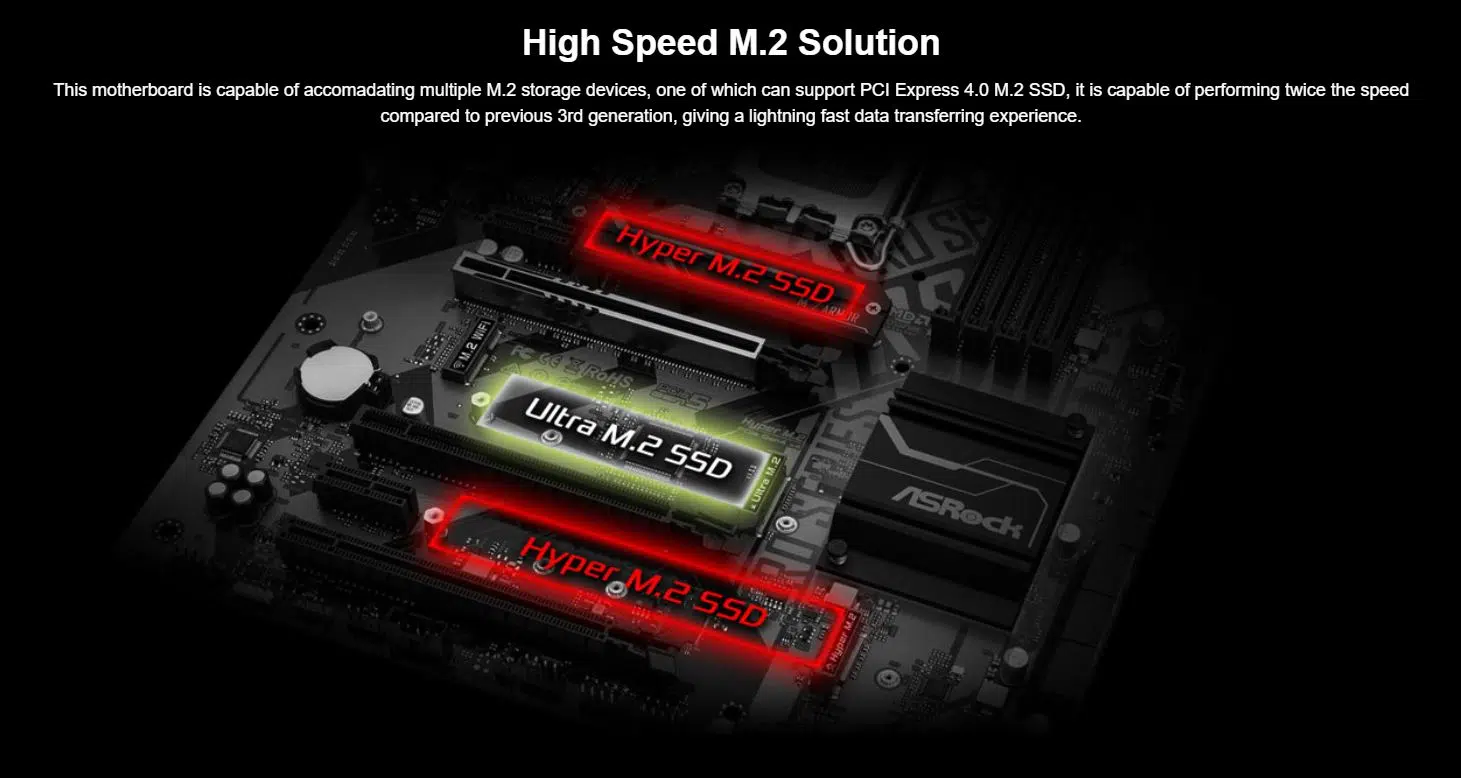

M.2	1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

	1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*

	1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280/22110 PCIe Gen4x4 (64 Gb/s) mode*

	* Supports Intel Optane Technology.
	* Supports Intel Volume Management Device (VMD).
	* Supports NVMe SSD as boot disks.
	* Supports ASRock U.2 Kit.
Intel Optane Ready	Yes
SATA RAID	0/1/5/10
Onboard Audio
Audio Chipset	Realtek ALC897
Audio Channels	7.1 Channels
Onboard LAN
LAN Chipset	Dragon RTL8125BG
Max LAN Speed	2.5Gbps

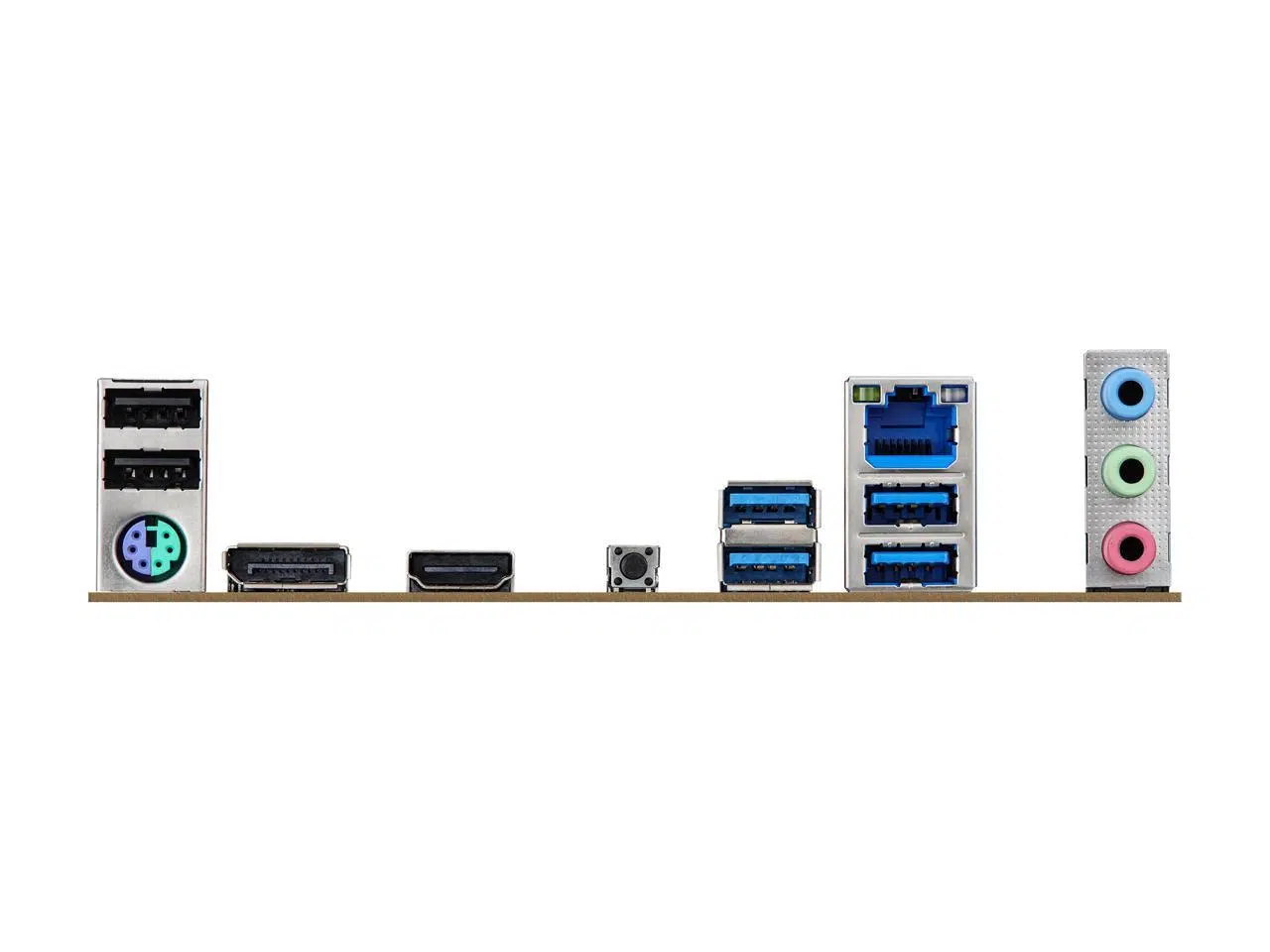

Rear Panel Ports
Back I/O Ports	3 x Antenna Mounting Points
	1 x PS/2 Mouse/Keyboard Port
	1 x HDMI Port
	1 x DisplayPort 1.4
	2 x USB 3.2 Gen2 Ports (10 Gb/s) (ReDriver) (Supports ESD Protection)
	2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
	2 x USB 2.0 Ports (Supports ESD Protection)
	1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

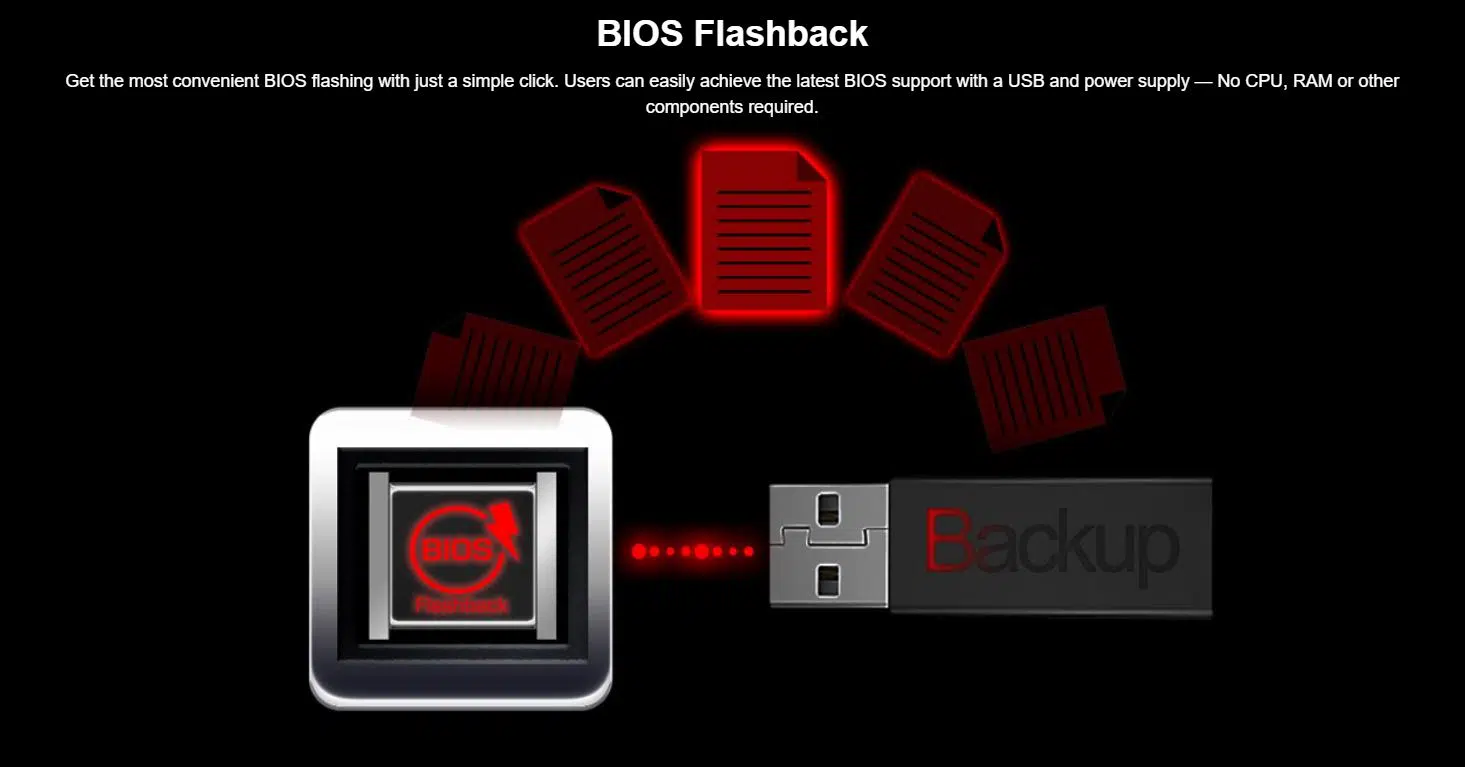

	1 x BIOS Flashback Button
	HD Audio Jacks: Line in / Front Speaker / Microphone
Internal I/O Connectors
Onboard USB	2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
	2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
	1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection
Other Connectors	1 x SPI TPM Header
	1 x Power LED and Speaker Header
	1 x RGB LED Header
	* Supports in total up to 12V/3A, 36W LED Strip.
	3 x Addressable LED Headers
	* Support in total up to 5V/3A, 15W LED Strip.
	1 x CPU Fan Connector (4-pin)
	* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
	1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
	* The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
	4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
	* The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
	* CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.
	1 x Front Panel Audio Connector
	1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)
Physical Spec
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	305 x 244 mm
Power Pin	1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
	1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
	1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
Windows Compatibility
Windows 11	Ready
Features
Features	Unique Feature:
	ASRock USB 3.2 Gen2
	– ASRock Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
	– ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
	ASRock Super Alloy
	– Premium 60A Power Choke
	– 50A Dr.MOS
	– Sapphire Black PCB
	– High Density Glass Fabric PCB
	– 2oz Copper PCB
	2.5G LAN
	ASRock Steel Slot
	ASRock Full Coverage M.2 Heatsink
	ASRock Hyper M.2 (PCIe Gen4x4)
	ASRock POST Status Checker (PSC)
	ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
	ASRock Live Update & APP Shop

	BIOS Feature:
	– 128Mb AMI UEFI Legal BIOS with multilingual GUI support
	– ACPI 6.0 Compliant wake up events
	– SMBIOS 2.7 Support
	– CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH , +1.05V PCH Voltage Multi-adjustment

	UEFI
	– ASRock EZ Mode
	– ASRock Full HD UEFI
	– ASRock My Favorites in UEFI
	– ASRock Instant Flash
	– ASRock Internet Flash
	– ASRock Easy RAID Installer

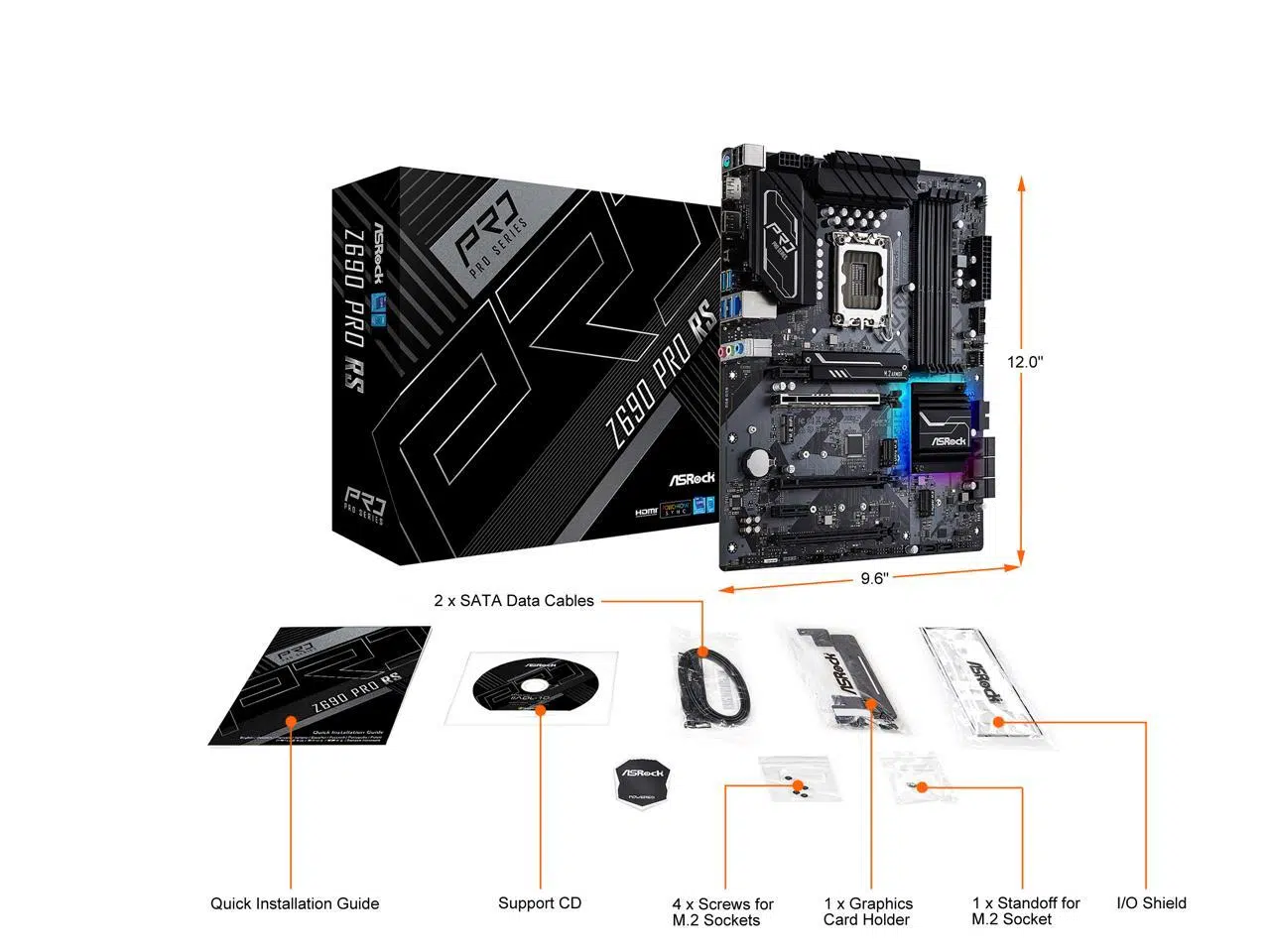

Packaging
Package Contents	Accessories:
	– Quick Installation Guide, Support CD, I/O Shield
	– 2 x SATA Data Cables
	– 4 x Screws for M.2 Sockets
	– 1 x Standoff for M.2 Socket

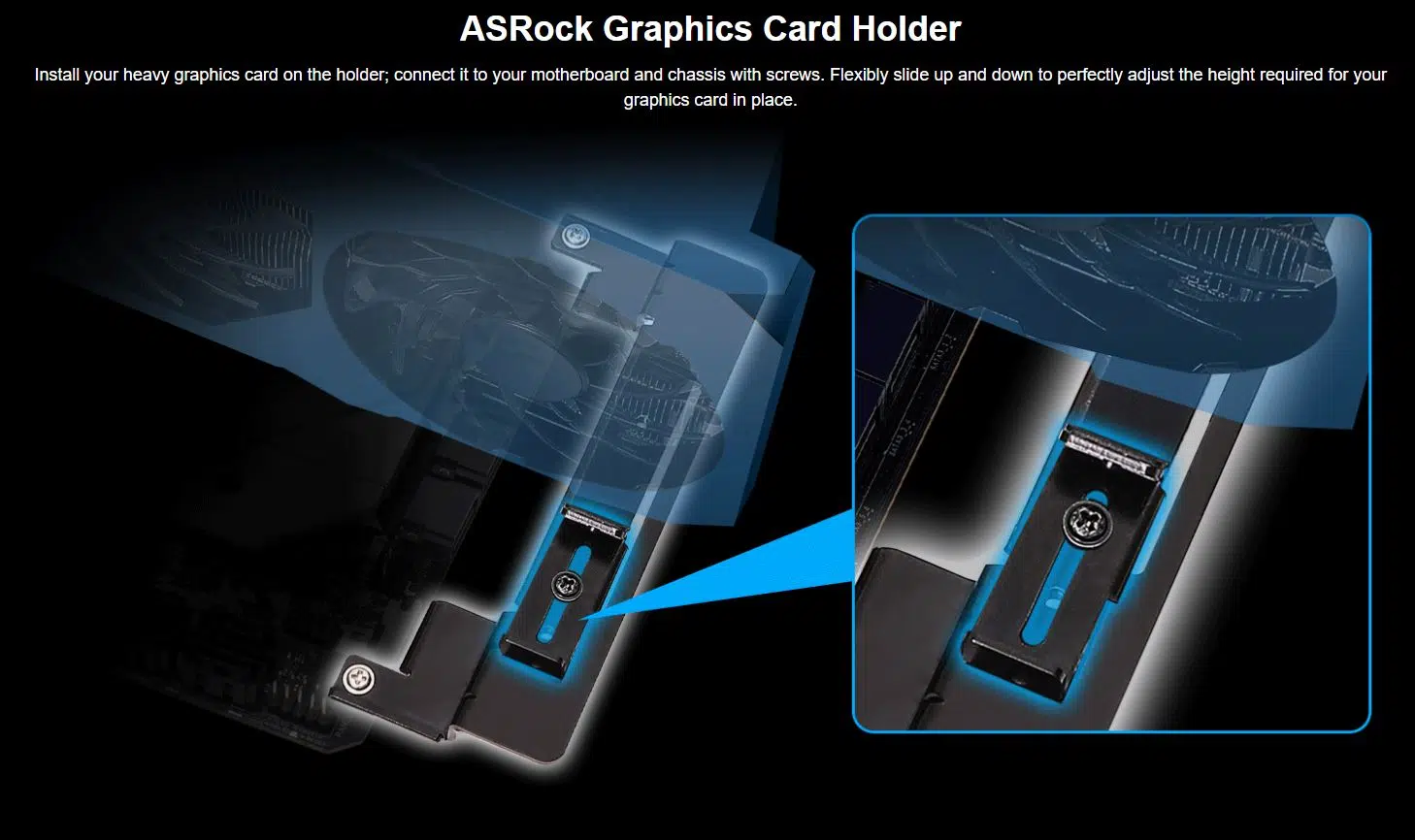

	– 1 x Graphics Card Holder

Nota: Para usar procesadores de 13a Generación, es posible que requiera actualizar la bios de la placa, esto se puede realizar mediante puerto USB ubicado en el panel trasero de la placa.

-20%

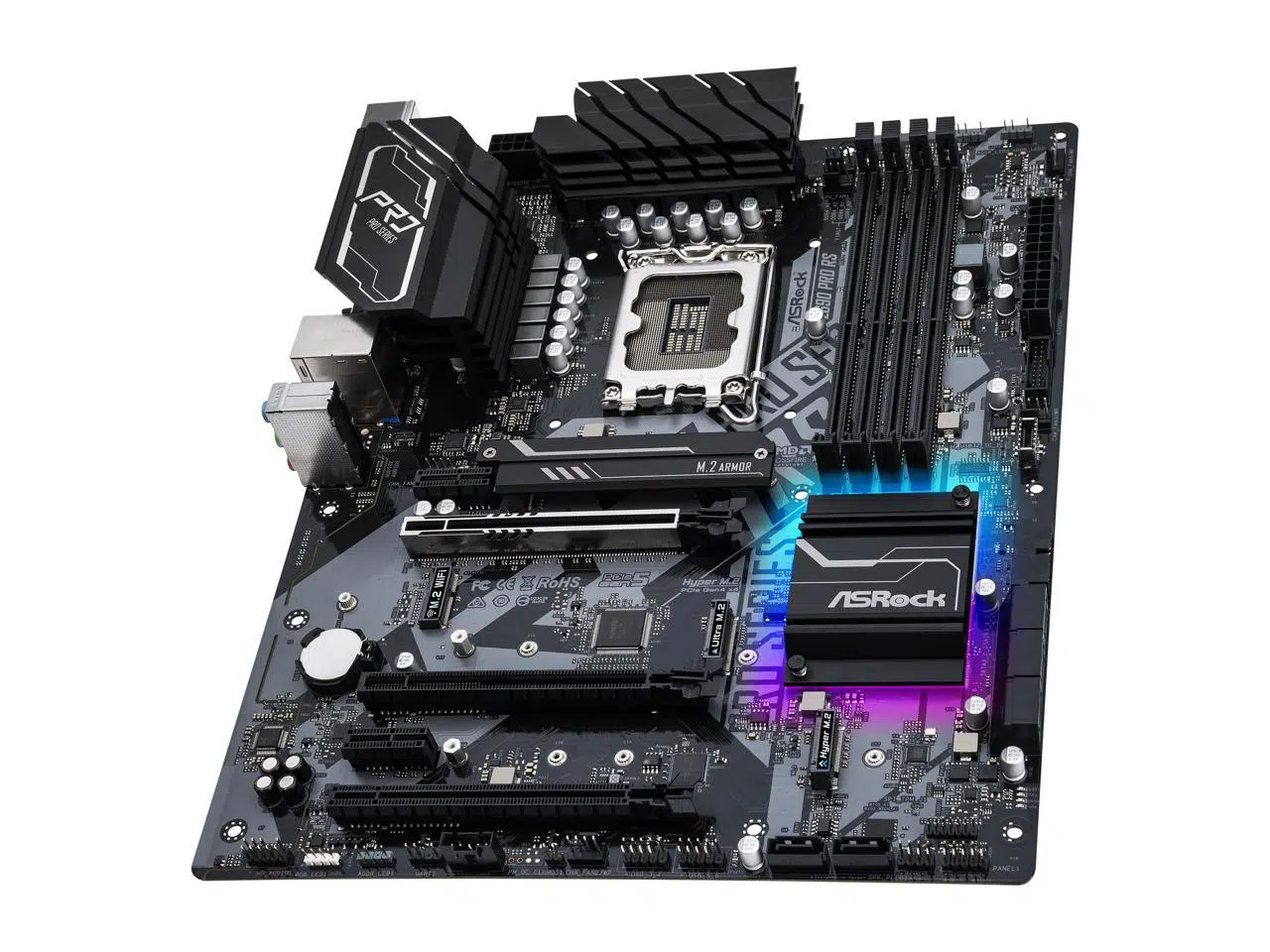

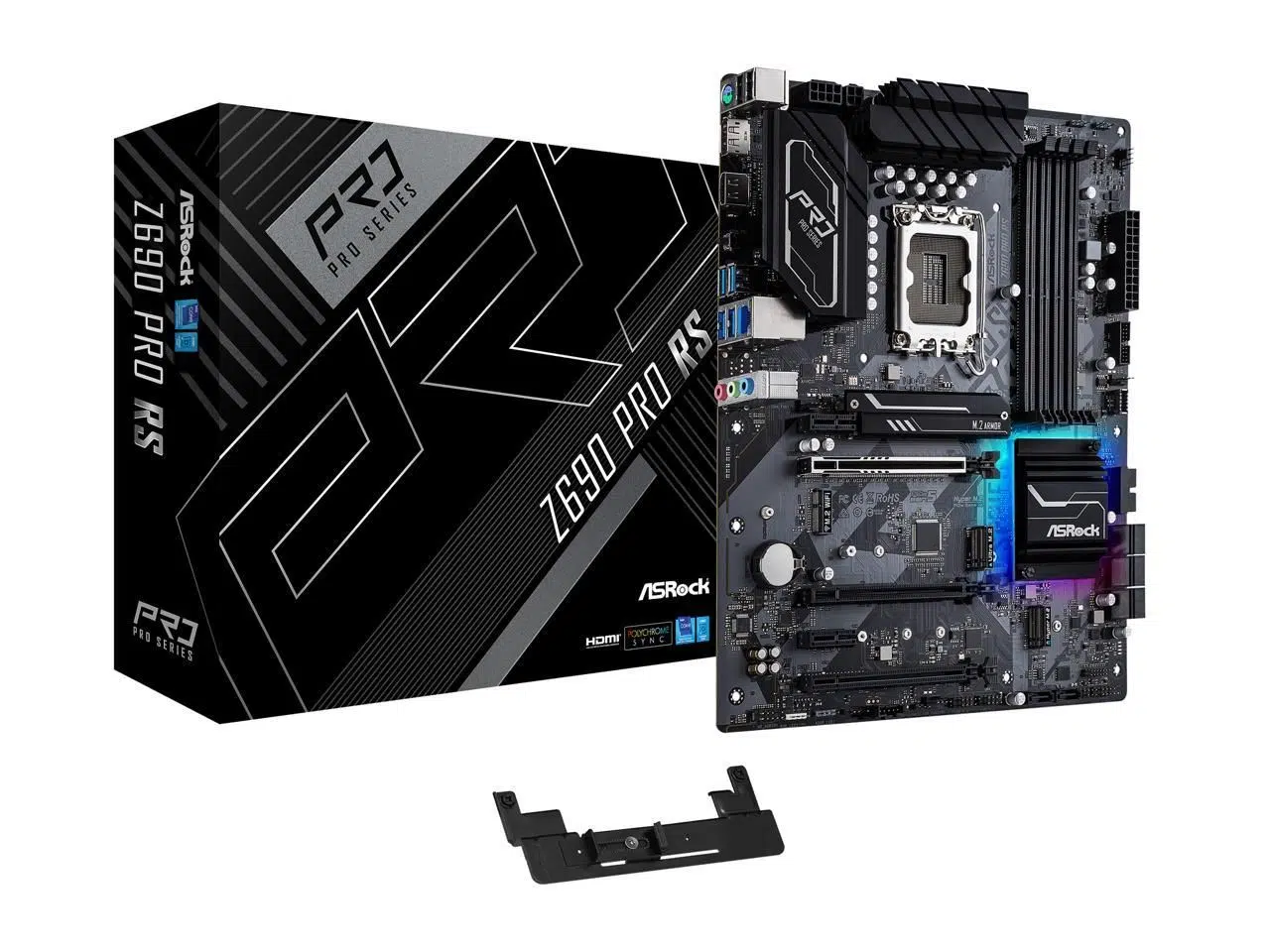

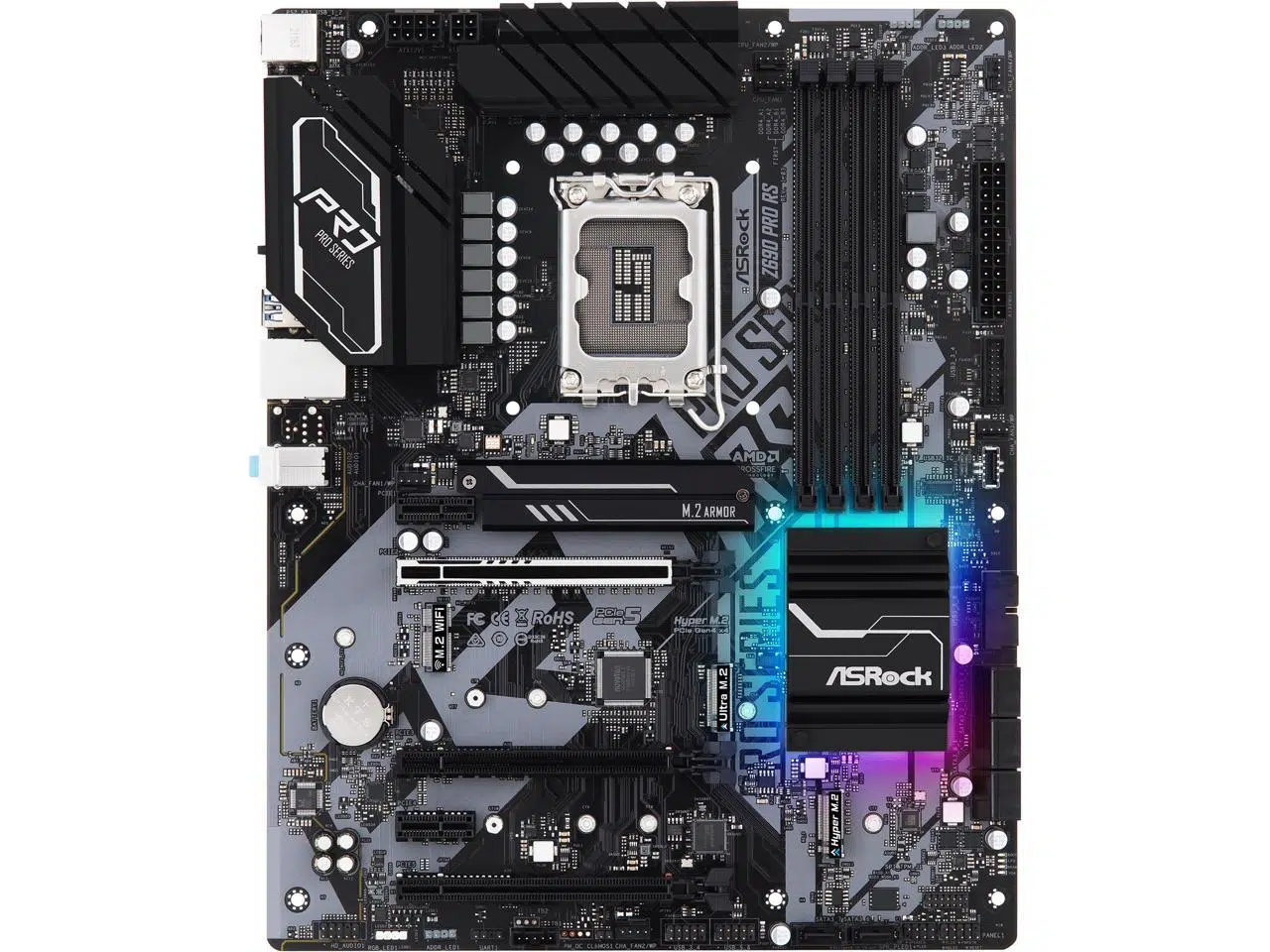

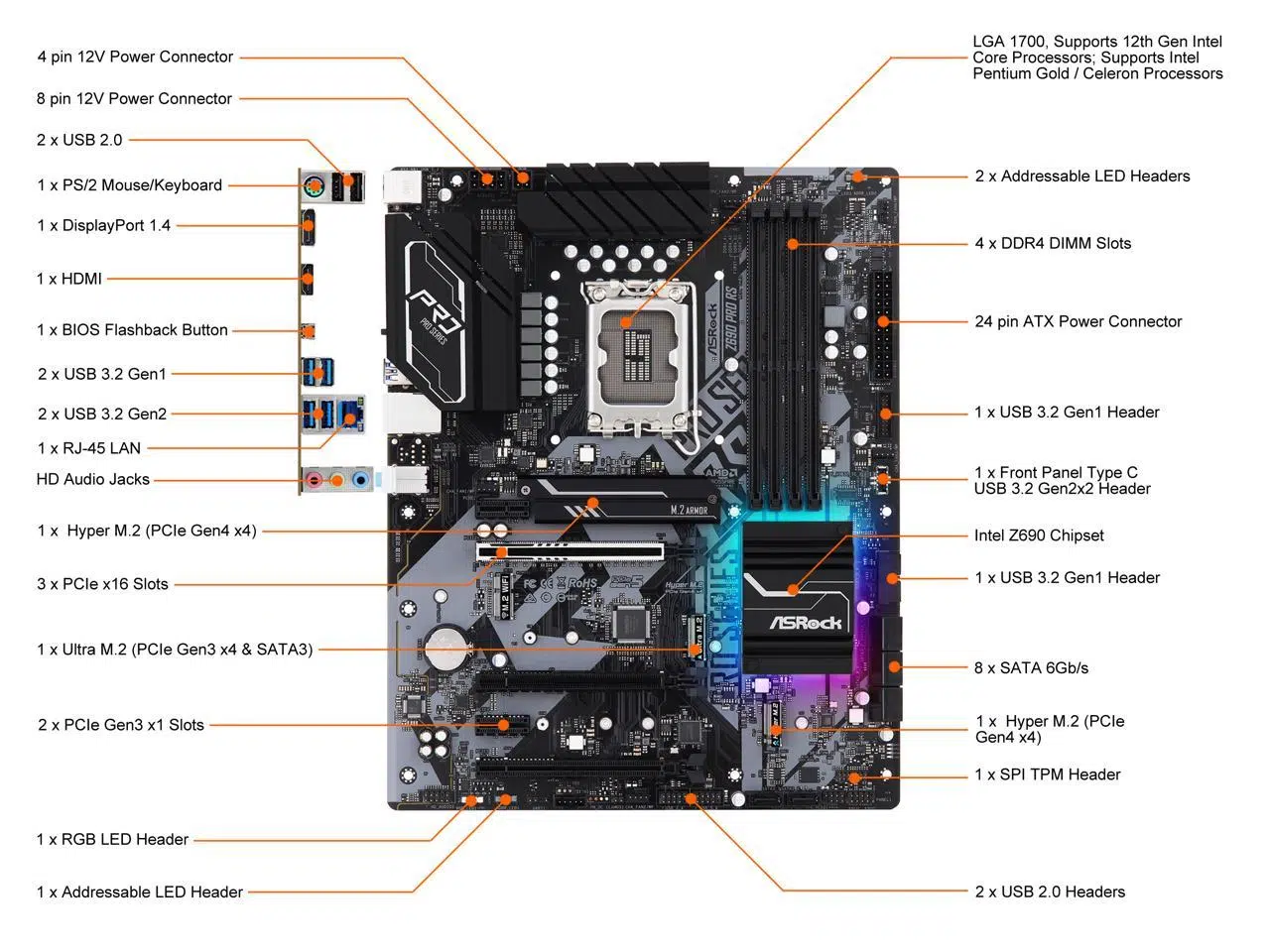

Placa Madre ASRock Z690 Pro RS, DDR4, Intel LGA 1700, ATX - Imagen 1

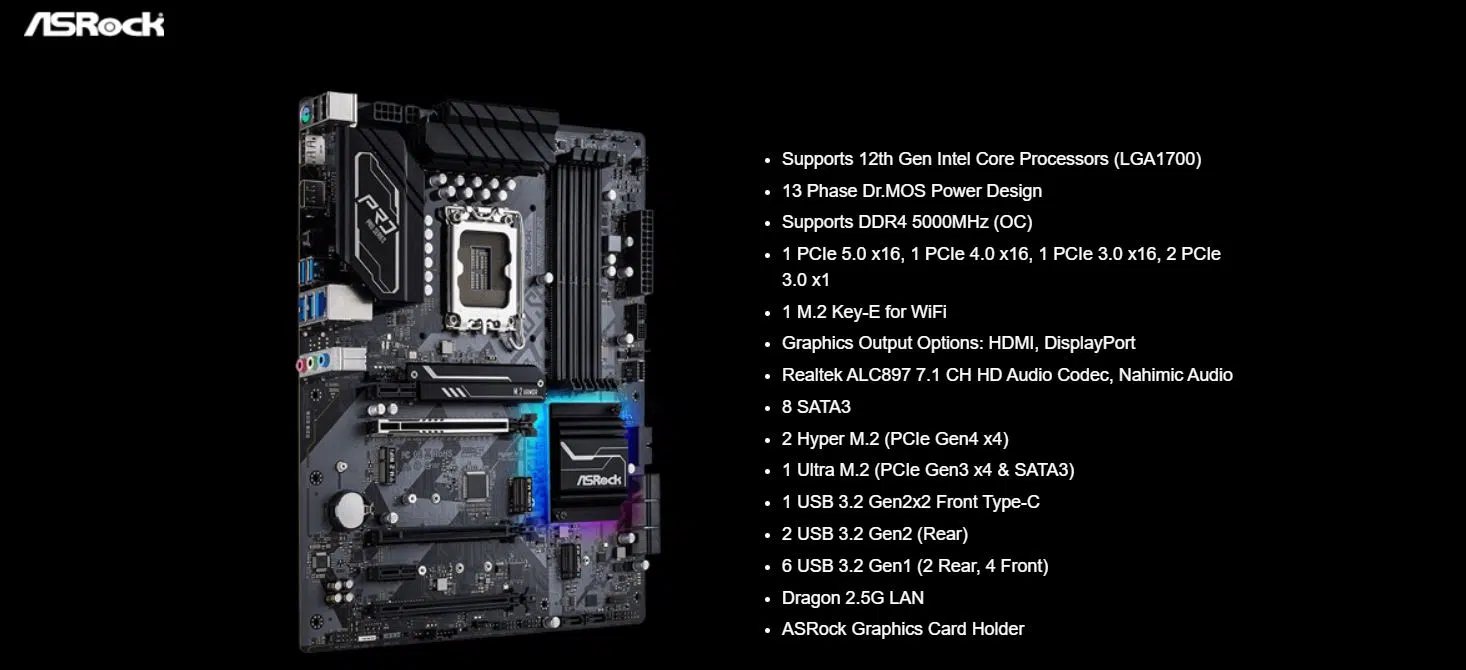

Placa Madre ASRock Z690 Pro RS, DDR4, Intel LGA 1700, ATX - Imagen 2

Clic para ampliar

El precio original era: $249.990.El precio actual es: $199.990. Iva Inc
