Especificaciones:
Model | |
Brand | ASRock |
Model | Z790 PRO RS WiFi |
Supported CPU | |
CPU Socket Type | LGA 1700 |
CPU Type | Supports 13th Gen & 12th Gen Intel Core Processors (LGA1700) |
– Supports Intel Hybrid Technology | |
– Supports Intel Turbo Boost Max 3.0 Technology | |
– Supports Intel Thermal Velocity Boost (TVB) | |
– Supports Intel Adaptive Boost Technology (ABT) | |
Supported CPU Technologies | Turbo Boost Technology 3.0 |
Chipsets | |
Chipset | Intel Z790 |
Memory | |
Number of Memory Slots | 4x288pin (DDR5) |
Memory Standard | Supports DDR5 non-ECC, un-buffered memory up to 6800+(OC)* |
1DPC 1R Up to 6800+ MHz (OC), 4800 MHz Natively. | |
1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively. | |
2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively. | |
2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively. | |
– Max. capacity of system memory: 128GB | |
– Supports Intel® Extreme Memory Profile (XMP) 3.0 | |
* Please refer to Memory Support List on ASRock’s website for more information. | |
(http://www.asrock.com/ | |
Maximum Memory Supported | 128GB |
Channel Supported | Dual Channel |
Expansion Slots | |
PCI Express 5.0 x16 | 1 x PCIe 5.0 x16 Slot (PCIE2), supports x16 mode* |
* Supports NVMe SSD as boot disks | |
– Supports AMD CrossFire | |
PCI Express 4.0 x16 | 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* |
* Supports NVMe SSD as boot disks | |
PCI Express x1 | 2 x PCIe 3.0 x1 Slots (PCIE1 and PCIE4)* |
* Supports NVMe SSD as boot disks | |
Storage Devices | |
SATA 6Gb/s | 8 x SATA 6Gb/s |
M.2 | CPU: |
– 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* | |
Chipset: | |
– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* | |
– 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* | |
– 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode | |
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT) | |
* Supports Intel Volume Management Device (VMD) | |
* Supports NVMe SSD as boot disks | |
SATA RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices | |
Onboard Audio | |
Audio Chipset | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
– Nahimic Audio | |
Audio Channels | 7.1 Channels |
Onboard LAN | |
LAN Chipset | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
Dragon RTL8125BG | |
Supports Dragon 2.5G LAN Software | |
– Smart Auto Adjust Bandwidth Control | |
– Visual User Friendly UI | |
– Visual Network Usage Statistics | |
– Optimized Default Setting for Game, Browser, and Streaming Modes | |
– User Customized Priority Control | |
Max LAN Speed | 2.5Gbps |
Wireless LAN | 802.11ax Wi-Fi 6E Module |
– Supports IEEE 802.11a/b/g/n/ac/ax | |
– Supports Dual-Band 2×2 with extended 6GHz band* support | |
– 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology | |
– Supports Bluetooth + High speed class II | |
– Supports MU-MIMO | |
* Wi-Fi 6E (6GHz band) will be supported by Microsoft Windows 11. The availability will depend on the different regulation status of each country and region. | |
It will be activated (for supported countries) through Windows Update and software updates once available. | |
* A 6GHz compatible router is required for 6E functionality. | |
Bluetooth | Yes |

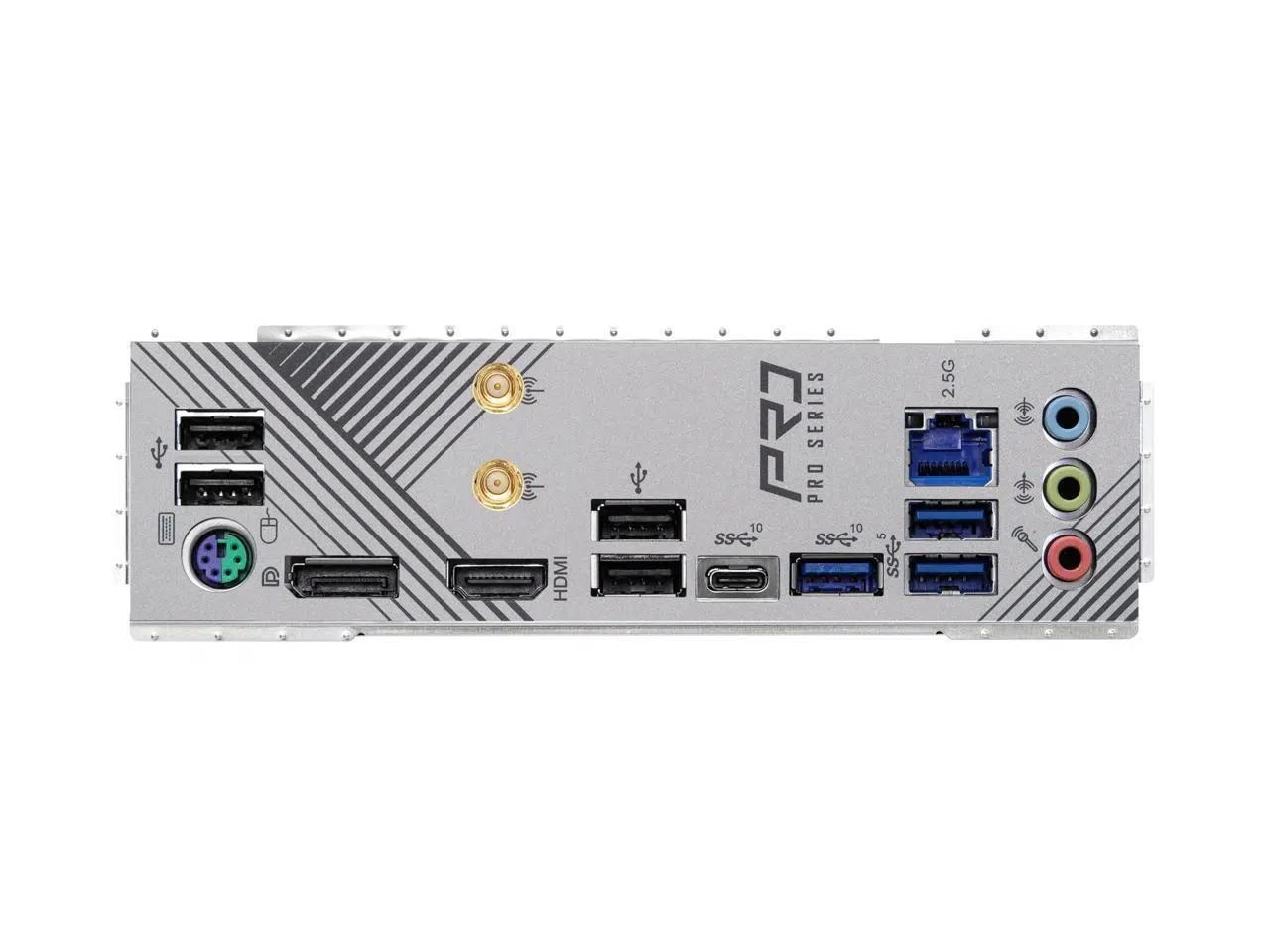

Rear Panel Ports | |
Back I/O Ports | 2 x Antenna Ports |
1 x PS/2 Mouse/Keyboard Port | |
1 x HDMI Port | |
1 x DisplayPort 1.4 | |
1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) | |
1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) | |
2 x USB 3.2 Gen1 Ports | |
4 x USB 2.0 Ports | |
1 x RJ-45 LAN Port | |
HD Audio Jacks: Line in / Front Speaker / Microphone | |
Internal I/O Connectors | |
Onboard USB | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) |
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) | |
1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) | |
Other Connectors | 1 x eDP Signal Connector |
1 x SPI TPM Header | |
1 x Power LED and Speaker Header | |
1 x RGB LED Header* | |
3 x Addressable LED Headers** | |
1 x CPU Fan Connector (4-pin)*** | |
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** | |
5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** | |
1 x Front Panel Audio Connector | |
1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) | |
* Supports in total up to 12V/3A, 36W LED Strip | |
** Support in total up to 5V/3A, 15W LED Strip | |
*** CPU_FAN1 supports the fan power up to 1A (12W). | |
**** CPU_FAN2/WP supports the fan power up to 2A (24W). | |
***** CHA_FAN1~5/WP support the fan power up to 2A (24W). | |
***** CPU_FAN2/WP and CHA_FAN1~5/WP can auto detect if 3-pin or 4-pin fan is in use. | |
Physical Spec | |
Form Factor | ATX |
LED Lighting | RGB |
Dimensions (W x L) | 12.0-in x 9.6-in, 30.5 cm x 24.4 cm |
Power Pin | 1 x 24 pin ATX Power Connector |
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) | |
Windows Compatibility | |
Windows 11 | Microsoft Windows OS 10 64-bit / 11 64-bit |
Features | |
Features | Superb Productivity |
– PCIe Gen5 (Graphics) | |
– Dual Channel DDR5 | |
Rock-Solid Durability | |
– 14+1+1 Power Phase, 50A Dr.MOS for VCore+GT with Enlarged Heatsink Armor | |
– Flexible Integrated I/O Shield | |
Ultrafast Connectivity | |
– 2.5G LAN, 802.11ax Wi-Fi 6E Module | |
EZ Update | |
– ASRock Auto Driver Installer | |
EZ Troubleshooter | |
– ASRock Post Status Checker | |

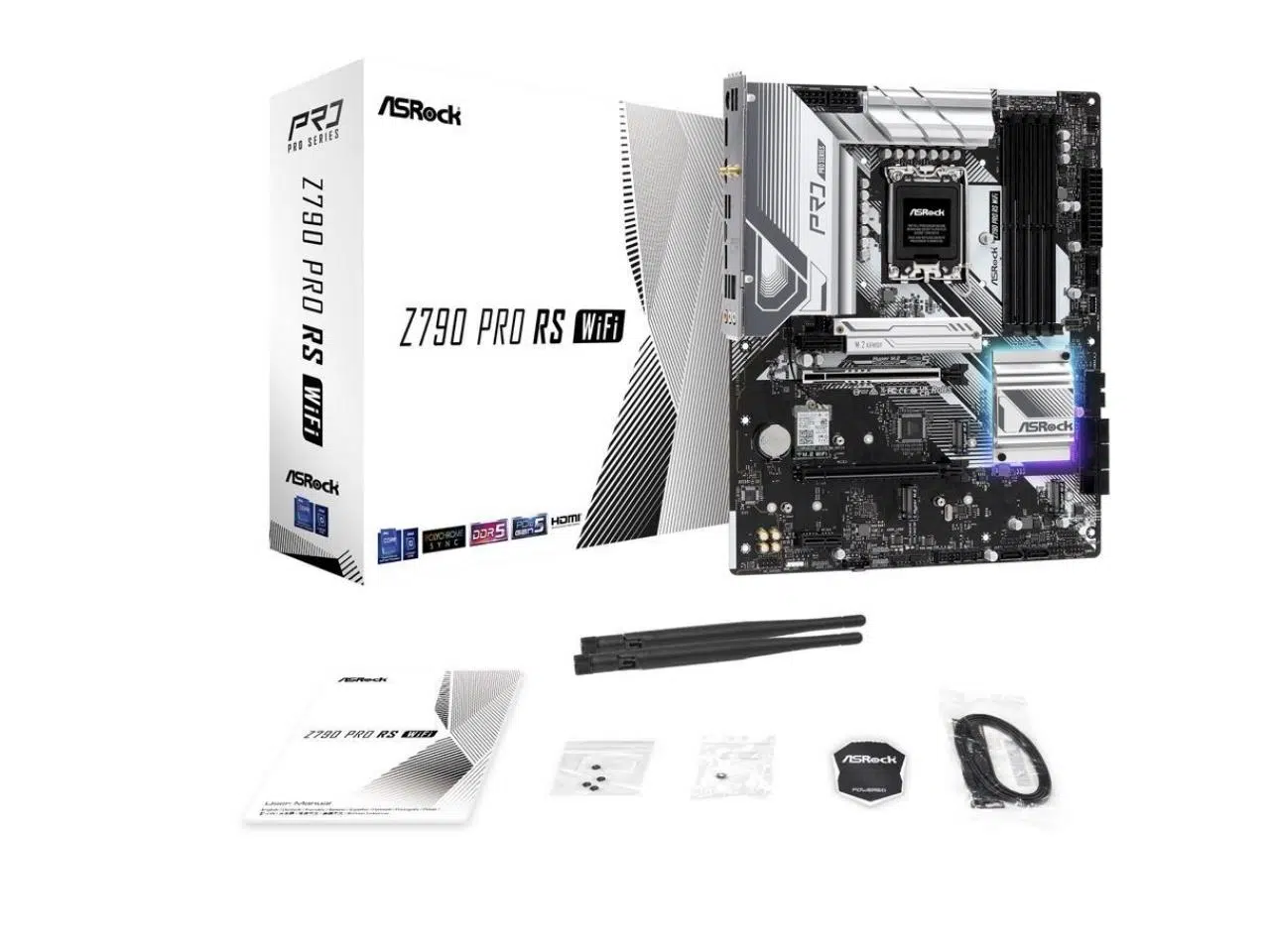

Packaging | |
Package Contents | 1 x User Manual |
2 x SATA Data Cables | |
2 x ASRock WiFi 2.4/5/6 GHz Antennas | |
4 x Screws for M.2 Sockets | |
1 x Standoff for M.2 Socket |
