***Producto disponible para reserva, disponible a partir del 8 de Marzo de 2023***
Especificaciones:
| Model | |
| Brand | ASUS |
| Series | ROG |
| Model | STRIX B550-A GAMING |
| Supported CPU | |
| CPU Socket Type | AM4 |
| CPU Type | Supports AMD Ryzen 5000 Series / 4000 G-Series / 3000 Series Processors |
| * Refer to www.asus.com for CPU support list. | |
| * BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU. | |
| Chipsets | |
| Chipset | AMD B550 |
| Memory | |
| Number of Memory Slots | 4x288pin (DDR4) |
| Memory Standard | DDR4 5100(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3600(OC) / 3466(OC) / 3200 / 3000 / 2800 / 2666 / 2400 / 2133 (AMD Ryzen 4000 G-Series Processors) |
| DDR4 4600(OC) / 4400(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3600(OC) / 3466(OC) / 3200 / 3000 / 2800 / 2666 / 2400 / 2133 | |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| ECC Supported | ECC Memory (ECC mode) support varies by CPU. |
| Buffer Supported | Un-buffered |
| Expansion Slots | |
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16* |
| * Actual support may vary by CPU. | |
| PCI Express 3.0 x16 | 1 x PCIe 3.0 x16* |
| * Supports x4 mode. | |
| * PCIEX16_2 shares bandwidth with PCIE x1_1, PCIE x1_2, and PCIE x1_3. | |
| PCI Express x1 | 3 x PCIe 3.0 x1 |
| Storage Devices | |
| SATA 6Gb/s | 6 x SATA 6Gb/s |
| M.2 | 3rd Gen AMD Ryzen Processors: |
| 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIe 4.0 x4 mode) | |
| AMD B550 Chipset: | |
| 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x4 mode)* | |
| * When the M.2_2 Socket 3 is populated, SATA6G_5/6 ports will be disabled. | |
| SATA RAID | 0/1/10 |
| Onboard Video | |
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
| Onboard Audio | |

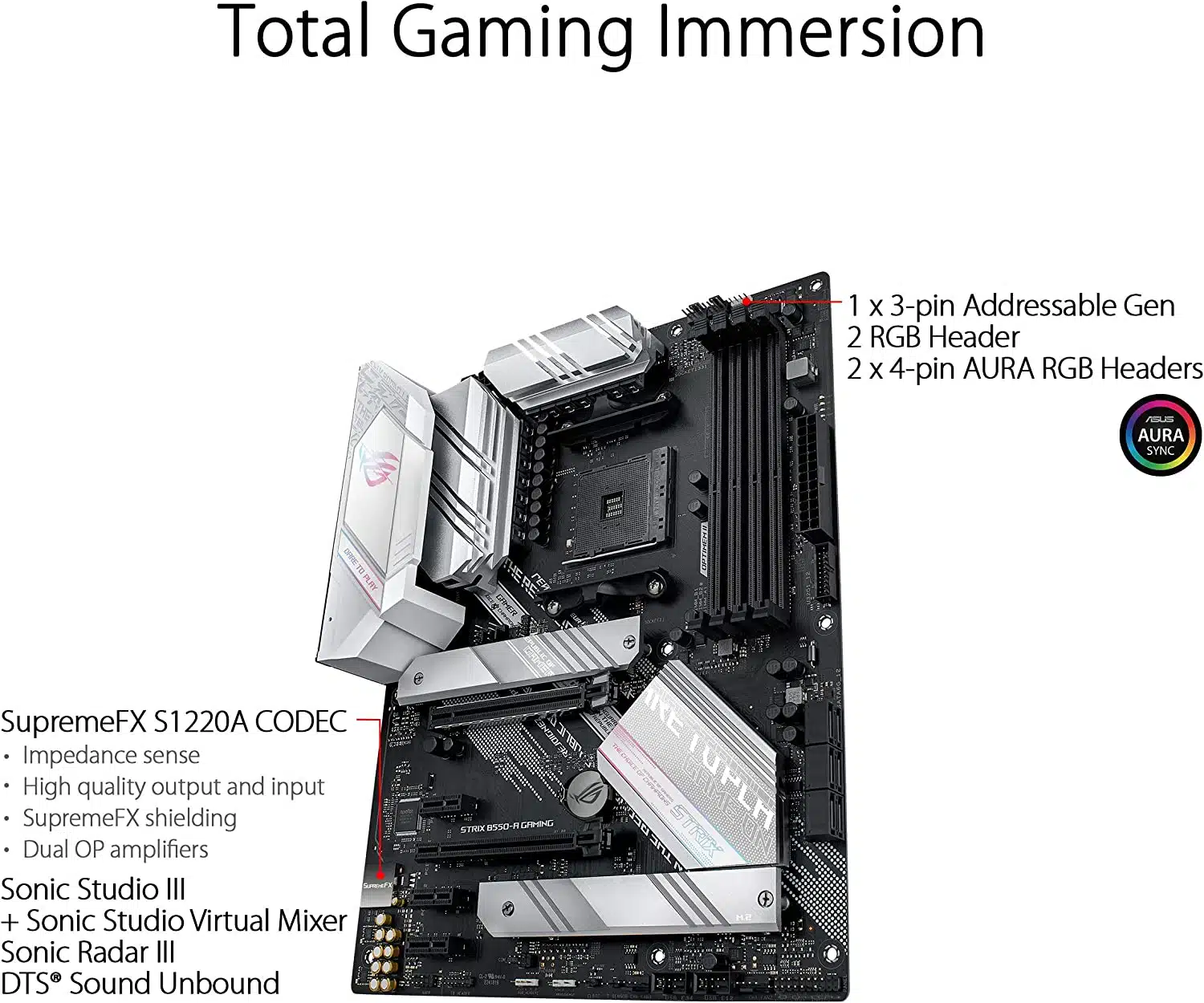

| Audio Chipset | ROG SupremeFX High Definition Audio CODEC S1220A |
| Audio Channels | 8 Channels* |
| * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. | |
| Onboard LAN | |
| LAN Chipset | Intel I225-V |
| Max LAN Speed | 10/100/1000/2500Mbps |
| Rear Panel Ports | |
| Back I/O Ports | 1 x Intel I225-V 2.5Gb Ethernet |
| 1 x DisplayPort | |
| 1 x HDMI | |
| 2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C) | |
| 4 x USB 3.2 Gen 1 | |
| 2 x USB 2.0 | |
| 1 x Optical S/PDIF out | |

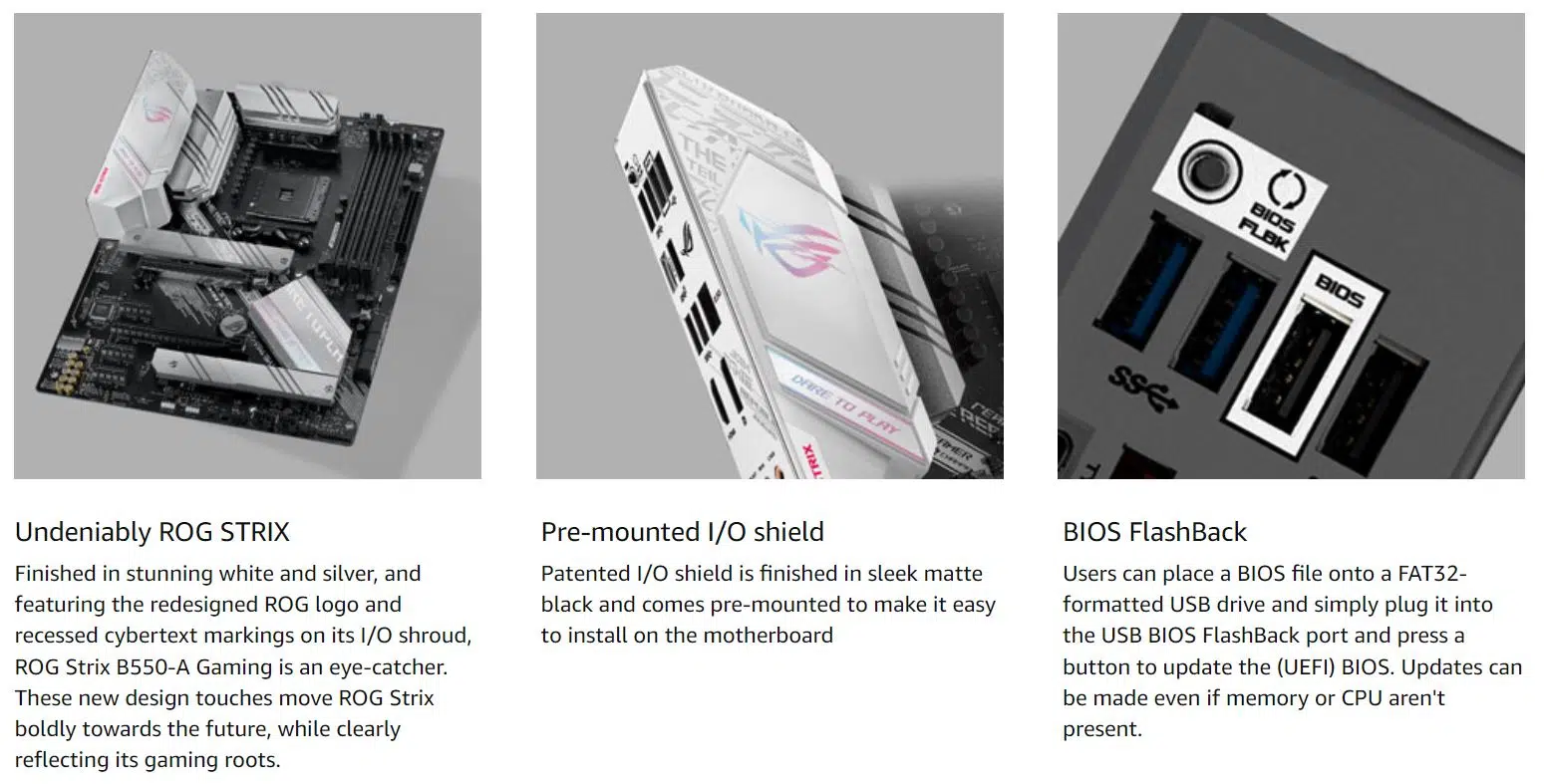

| 1 x BIOS FlashBack Button(s) | |
| 5 x Gold-plated audio jacks | |
| Internal I/O Connectors | |
| Onboard USB | 1 x USB 3.2 Gen 1 (up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) |
| 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) | |
| Other Connectors | 1 x CPU Fan connector(s) |
| 1 x CPU OPT Fan connector(s) | |
| 3 x Chassis Fan connector(s) | |
| 1 x AIO_PUMP connector | |
| 1 x AAFP connector | |
| 2 x Aura RGB Strip Header(s) | |
| 1 x Addressable Gen 2 header(s) | |
| 1 x Thunderbolt header(s) | |
| 1 x System panel(s) | |
| 1 x Thermal sensor connector(s) | |
| 1 x Clear CMOS jumper(s) | |
| Physical Spec | |
| Form Factor | ATX |
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0″ x 9.6″ |
| Power Pin | 1 x 24-pin EATX Power connector(s) |
| 1 x 8-pin ATX 12V Power connector(s) | |
| 1 x 4-pin ATX 12V Power connector(s) | |
| Windows 11 Compatibility | |
| Windows 11 | Supported |
| Packaging | |

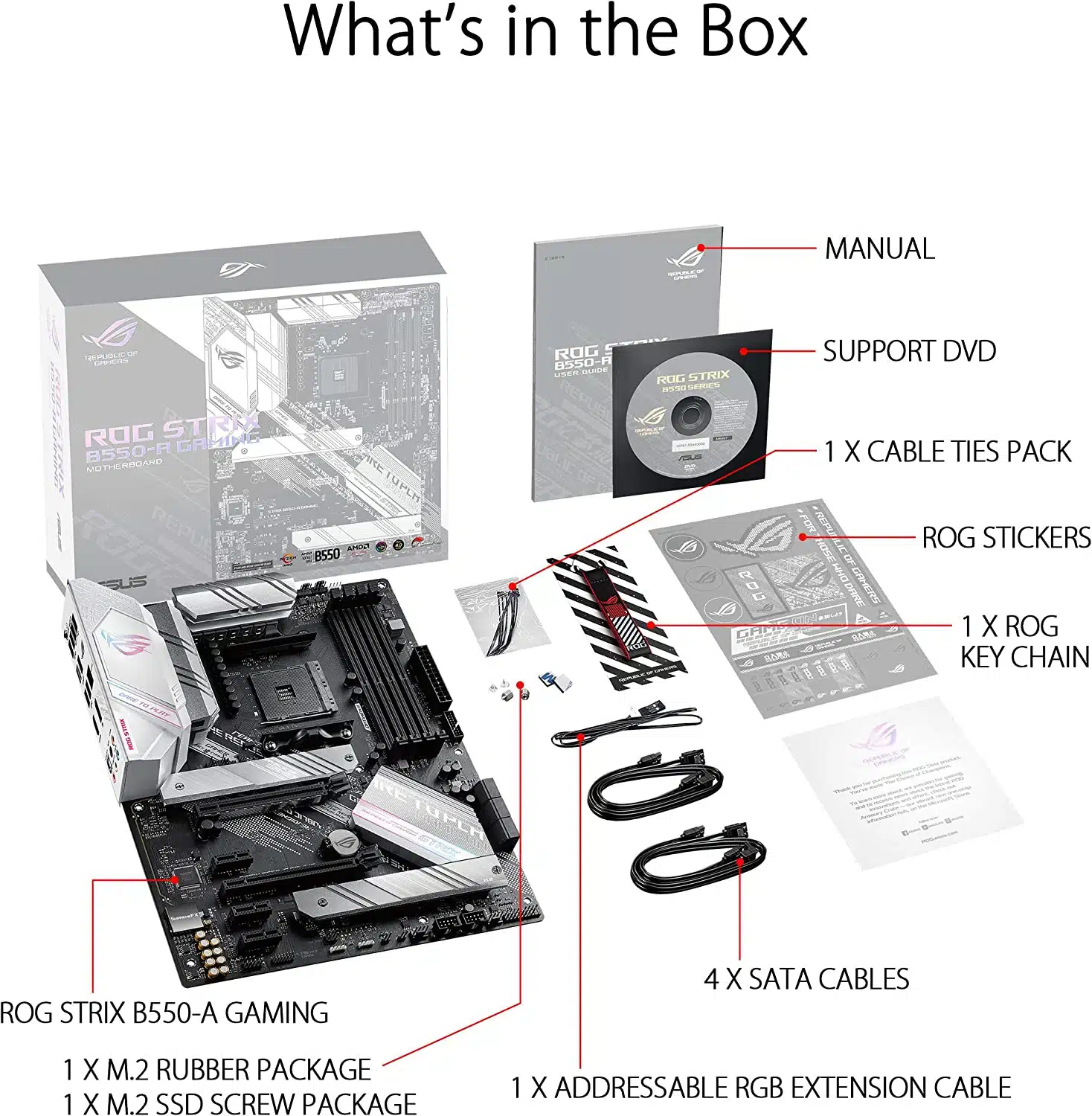

| Package Contents | Accessories: |
| User’s manual | |
| 4 x SATA 6Gb/s cable(s) | |
| 1 x Supporting DVD | |
| 1 x ROG Strix stickers | |
| 1 x Cable ties pack(s) | |
| 1 x Extension cable for Addressable LED | |
| 1 x ROG Thank you card | |
| 1 x M.2 SSD screw package(s) | |
| 1 x M.2 Rubber Package(s) | |
