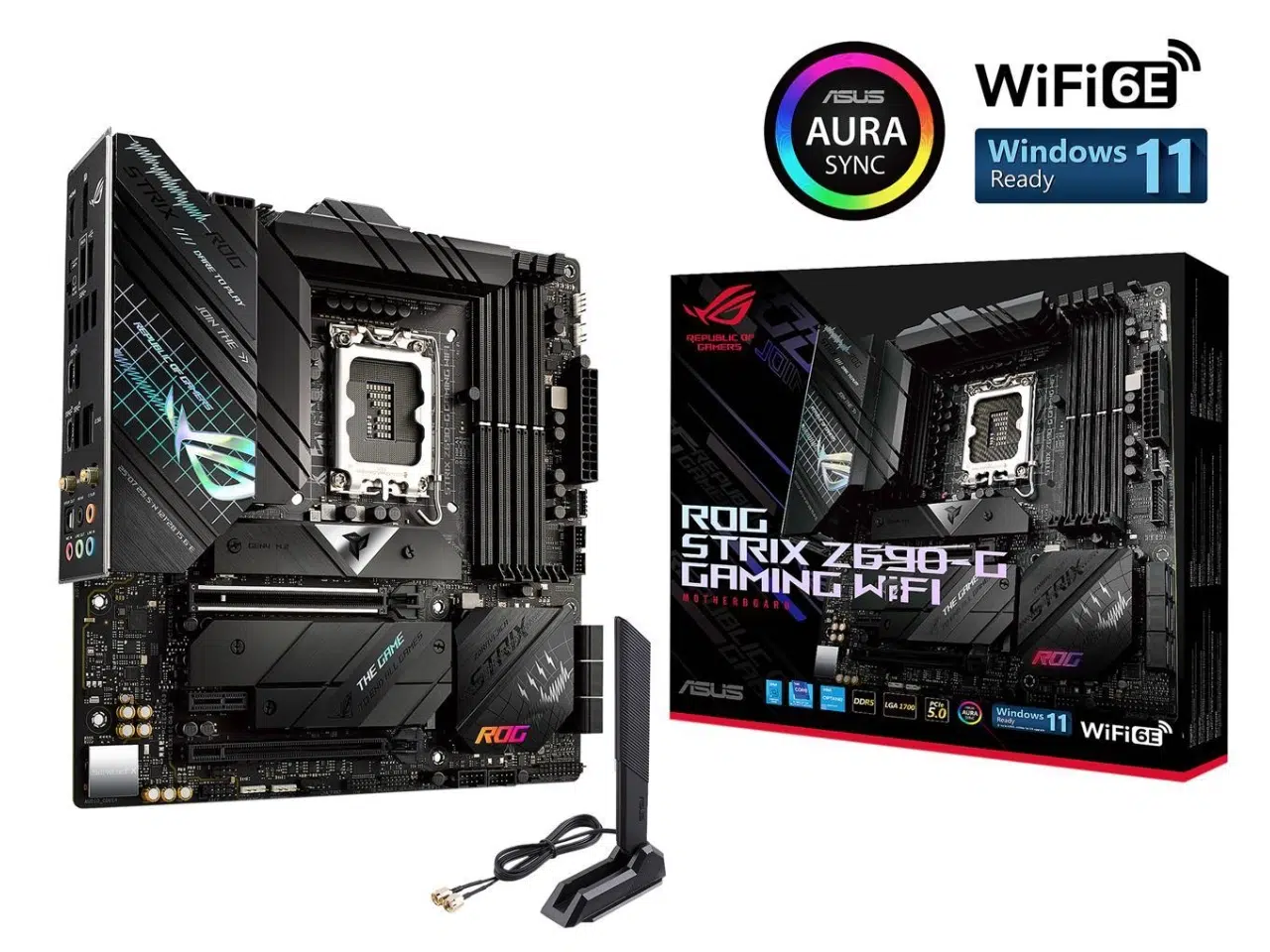

Name: Placa Madre ASUS ROG Strix Z690-G Gaming WiFi, Chipset Z690, Intel LGA 1700, DDR5, WiFi 6E, Thunderbolt 4, Micro ATX.
Brand: Asus
SKU: 9832
Price: 299990 CLP
Availability: OutOfStock

Placa Madre ASUS ROG Strix Z690-G Gaming WiFi, Chipset Z690, Intel LGA 1700, DDR5, WiFi 6E, Thunderbolt 4, Micro ATX.

$299.990 Iva Inc

Precios según método de pago

Transferencia Bancaria Directa.

$299.990

El precio más bajo
Flow. Tarjetas de Débito/Crédito y Otros

$323.989

hasta 6 cuotas sin interés de $53.998
Mercado Pago. Tarjetas de Crédito

$341.989

hasta 12 cuotas sin interés de $28.499

Estado: Nuevo – Sellado

Sin existencias

5 ¡La gente está viendo este producto ahora!

Especificaciones:

Model
Brand	ASUS
Series	ROG
Model	STRIX Z690-G GAMING WIFI
Part Number	90MB19G0-M0AAY0

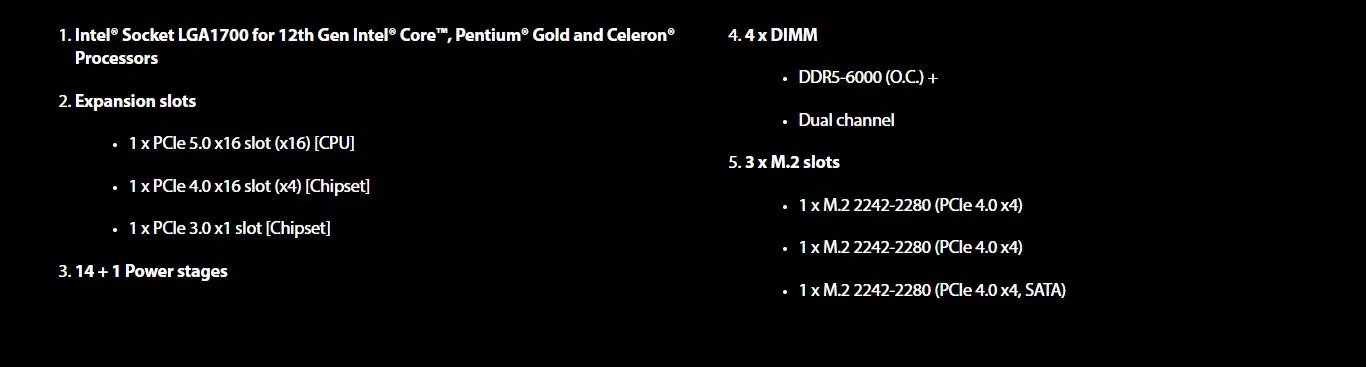

Supported CPU
CPU Socket Type	LGA 1700

	* Designed with dual mounting holes compatible with both Intel LGA1700 and LGA1200 cooling brackets.
CPU Type	Supports 13th / 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors*
	*May require a BIOS update to boot the 13th gen Intel® Core™ desktop processors. Visit: https://www.asus.com/news/oujwh1old5n6oglf/
	* Refer to www.asus.com for CPU support list.
Supported CPU Technologies	Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*

	* Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipsets
Chipset	Intel Z690
Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic
Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	DDR5 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800

	* Actual Memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

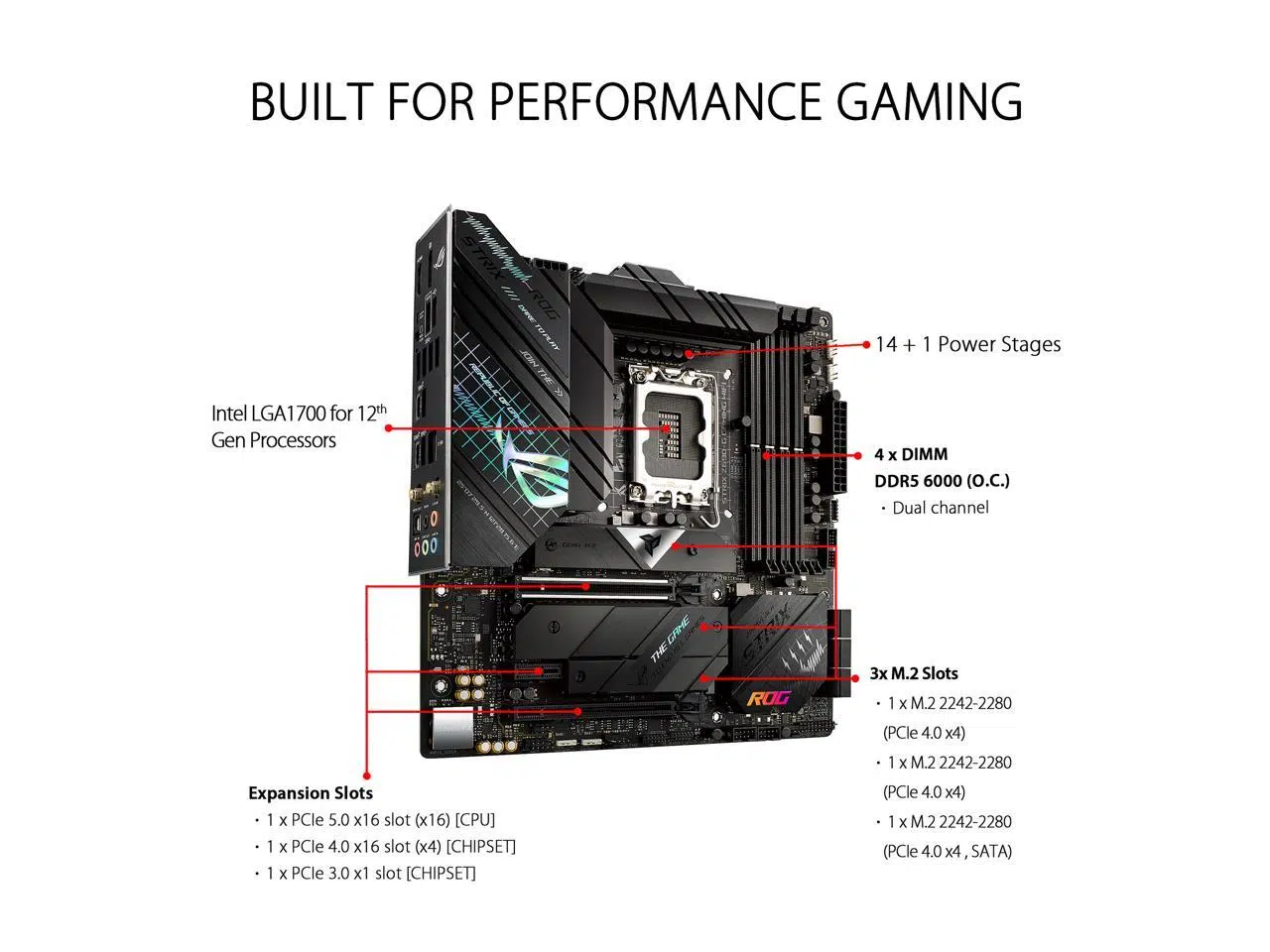

Expansion Slots
PCI Express 5.0 x16	1 x PCI Express 5.0 x16

	* Actual support may vary by CPU.
PCI Express 4.0 x16	1 x PCI Express 4.0 x16

	* Supports x4 mode.
PCI Express x1	1 x PCIe 3.0 x1
Storage Devices
SATA 6Gb/s	6 x SATA 6Gb/s

	* RAID configuration and optical disc drives are not supported on the SATA6G_E1-2 ports.
M.2	Intel 12th Gen Processors:
	M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

	Intel Z690 Chipset:*
	M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
	M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

	* Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.
Intel Optane Ready	Yes
SATA RAID	0/1/5/10

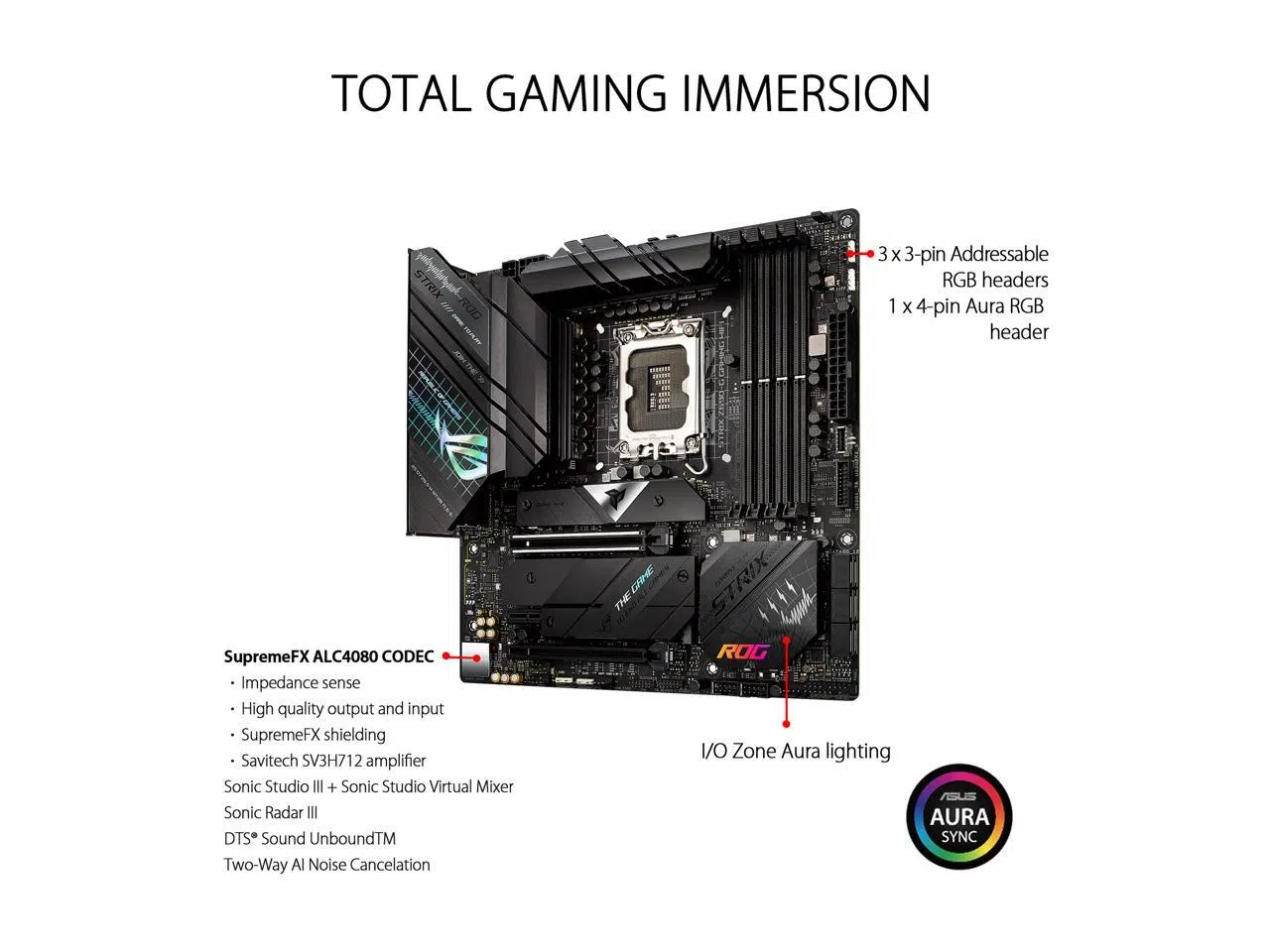

Onboard Audio
Audio Chipset	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
Audio Channels	7.1 Channels
Onboard LAN
Max LAN Speed	2.5Gbps
Wireless LAN	Wi-Fi 6E
Wireless LAN	802.11 a/b/g/n/ac/ax
Bluetooth	Bluetooth 5.2

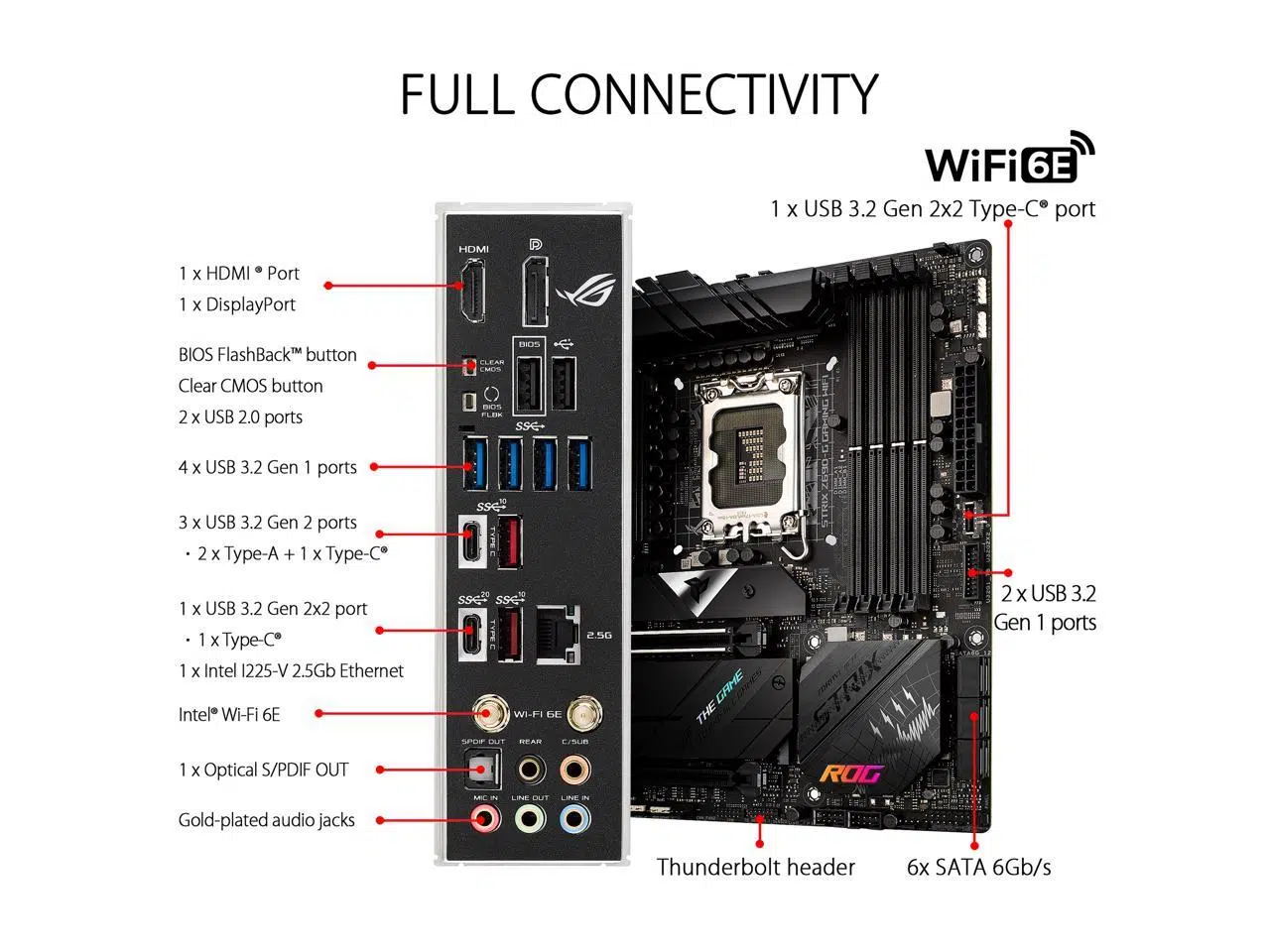

Rear Panel Ports
Back I/O Ports	1 x USB 3.2 Gen 2×2 port (1 x USB Type-C)
	3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C)
	4 x USB 3.2 Gen 1 ports (4 x Type-A)
	2 x USB 2.0 ports (2 x Type-A)
	1 x DisplayPort
	1 x HDMI port
	1 x Wi-Fi Module
	1 x Intel 2.5Gb Ethernet port
	5 x Gold-plated audio jacks
	1 x Optical S/PDIF out port
	1 x BIOS FlashBack button
	1 x Clear CMOS button
Internal I/O Connectors
Onboard USB	1 x USB 3.2 Gen 2×2 connector (supports USB Type-C)
	1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
	2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other Connectors	Fan and Cooling related
	1 x 4-pin CPU Fan header
	1 x 4-pin CPU OPT Fan header
	1 x 4-pin AIO Pump header
	3 x 4-pin Chassis Fan headers
	Miscellaneous
	3 x Addressable Gen 2 headers
	1 x AURA RGB header
	1 x CPU Over Voltage jumper
	1 x Front Panel Audio header (AAFP)
	1 x SPI TPM header (14-1pin)
	1 x 20-5 pin System Panel header
	1 x Thermal Sensor header
	1 x Thunderbolt header
Physical Spec
Form Factor	Micro ATX
LED Lighting	RGB
Dimensions (W x L)	9.6″ x 9.6″
Power Pin	1 x 24-pin Main Power connector
	1 x 8-pin +12V Power connector
	1 x 4-pin +12V Power connector
Windows Compatibility
Windows 11	Windows® 10 64-bit, Windows® 11 64-bit
Features
Features	Special Features:
	Extreme Engine Digi+
	– 5K Black Metallic Capacitors
	ASUS Q-Design
	– M.2 Q-Latch
	– Q-DIMM
	– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
	– Q-Slot

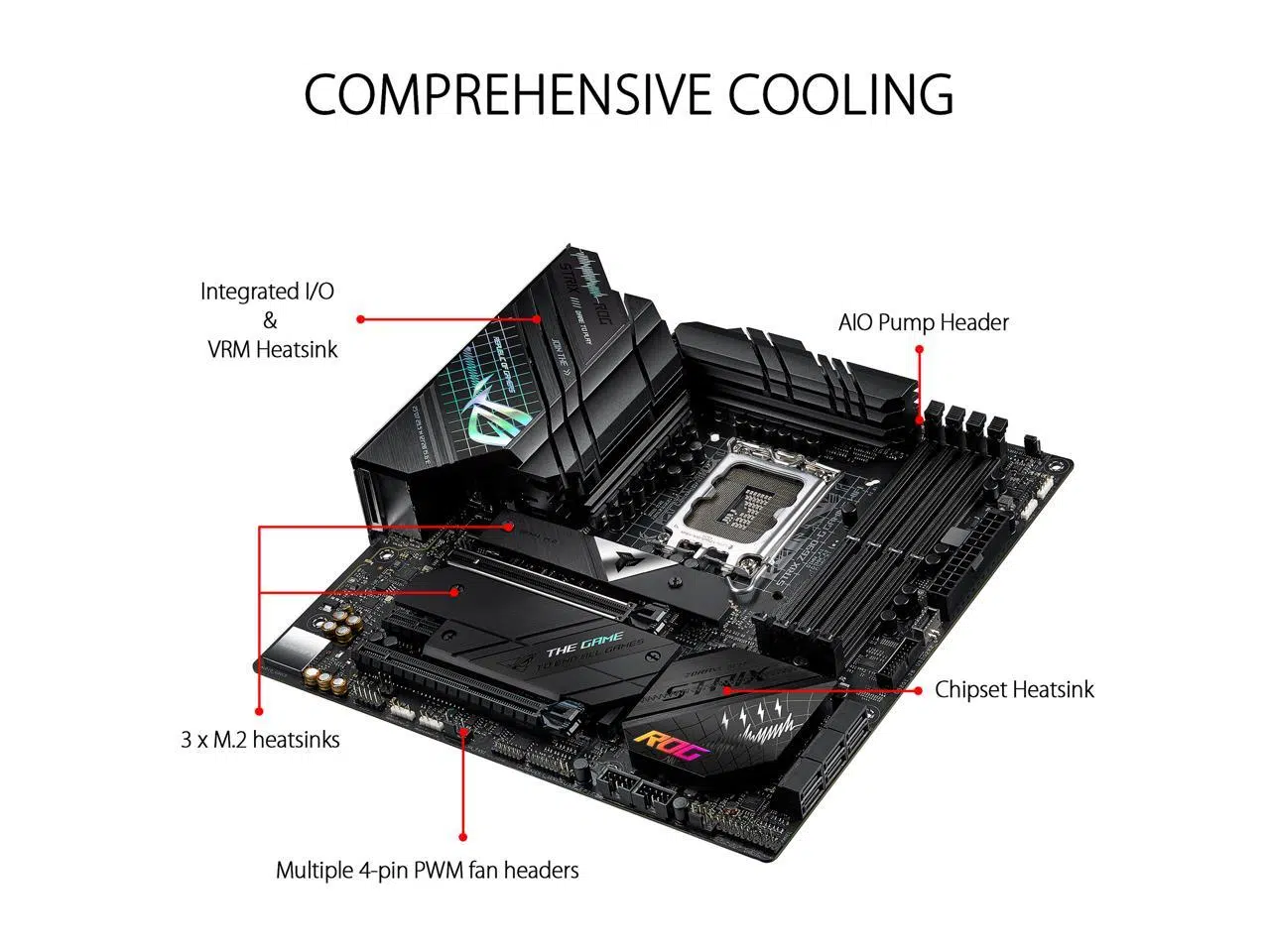

	ASUS Thermal Solution
	– M.2 heatsink backplate
	– M.2 heatsink
	ASUS EZ DIY
	– BIOS FlashBack button
	– BIOS FlashBack LED
	– CPU Socket lever protector
	– Clear CMOS button
	– ProCool II
	– Pre-mounted I/O shield
	– SafeSlot
	– SafeDIMM
	AURA Sync
	– AURA RGB header
	– Addressable Gen 2 RGB headers

	Software Features:
	ROG Exclusive Software
	– GameFirst VI
	– ROG CPU-Z
	– Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
	– Sonic Radar III
	– DTS Sound Unbound
	– Anti-virus software
	ASUS Exclusive Software
	Armoury Crate
	– AIDA64 Extreme (60 days free trial)
	– AURA Creator
	– AURA Sync
	– Fan Xpert 4

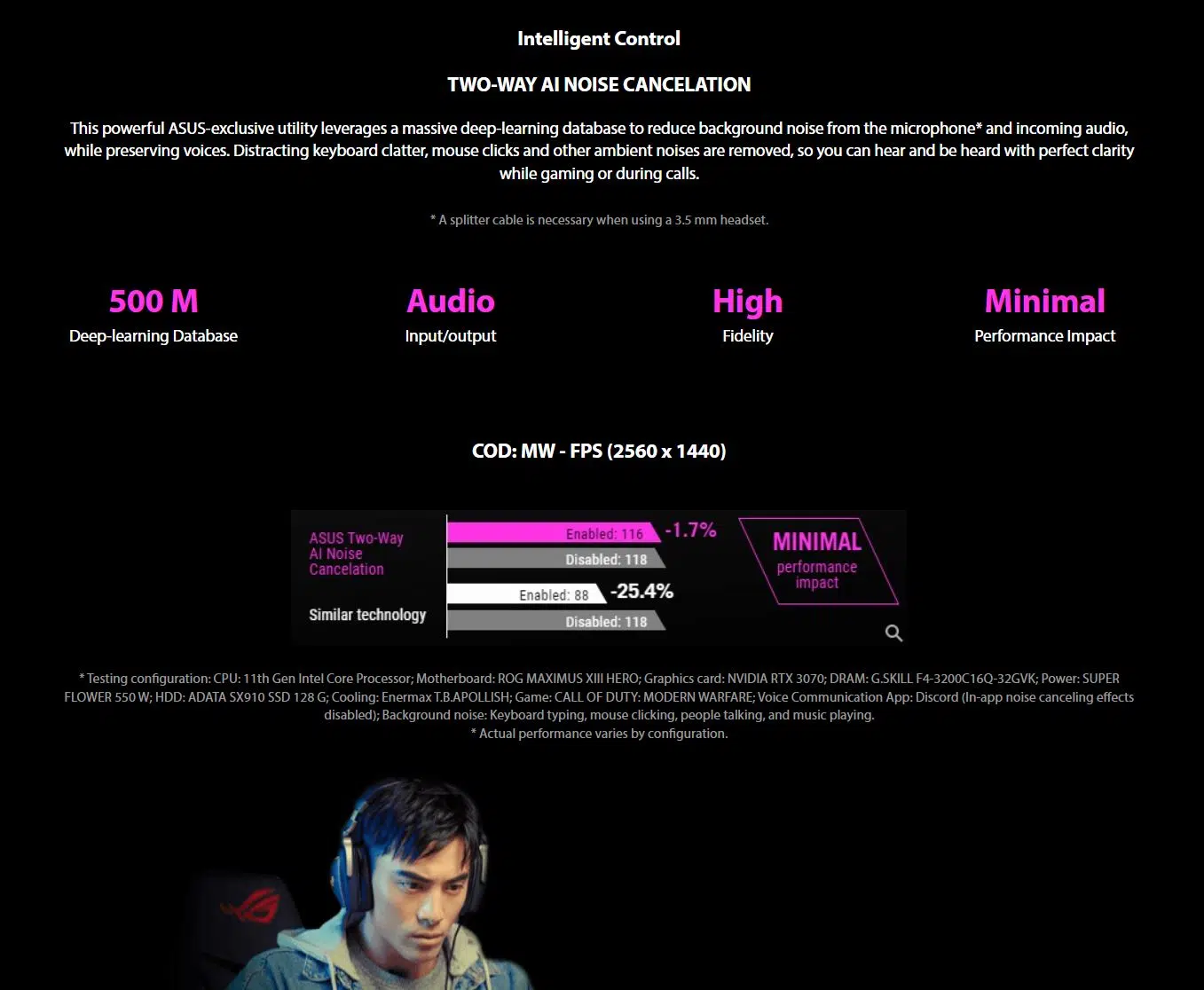

	– Two-Way AI Noise Cancelation
	AI Suite 3
	– 5-Way Optimization with AI Overclocking
	TPU
	EPU
	DIGI+ VRM
	Turbo app
	MyAsus
	WinRAR
	UEFI BIOS
	AI Overclocking Guide
	ASUS EZ DIY
	– ASUS CrashFree BIOS 3
	– ASUS EZ Flash 3
	– ASUS UEFI BIOS EZ Mode
	FlexKey
	MemTest86

	BIOS:
	256 Mb Flash ROM, UEFI AMI BIOS

	Manageability:
	WOL by PME, PXE

	Operating System:
	Windows 10 64-bit, Windows 11 64-bit

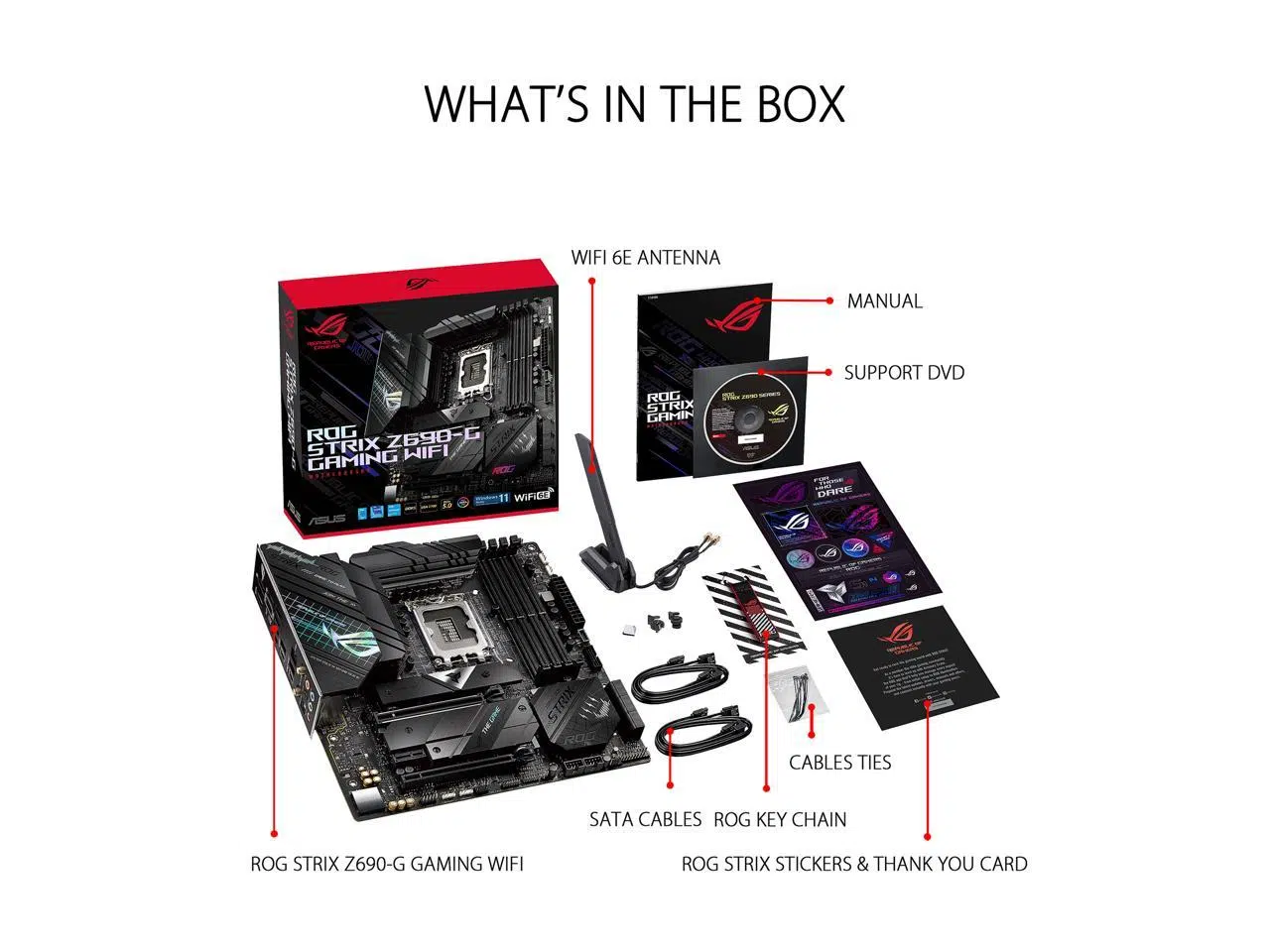

Packaging
Package Contents	Accessories:
	Cables
	4 x SATA 6Gb/s cables
	Miscellaneous
	1 x ASUS Wi-Fi moving antennas
	1 x Cable ties pack
	1 x M.2 Rubber Package
	1 x M.2 Q-Latch package
	1 x M.2 Q-Latch package for M.2 backplate
	1 x ROG key chain
	1 x ROG Strix stickers
	1 x ROG Strix thank you card
	Installation Media
	1 x Support DVD
	Documentation
	1 x User manual

Nota: Para usar procesadores de 13a Generación, se debe actualizar la bios de la placa, esto se puede realizar mediante puerto USB ubicado en el panel trasero de la placa.

Placa Madre ASUS ROG Strix Z690-G Gaming WiFi, Chipset Z690, Intel LGA 1700, DDR5, WiFi 6E, Thunderbolt 4, Micro ATX. - Imagen 1

Placa Madre ASUS ROG Strix Z690-G Gaming WiFi, Chipset Z690, Intel LGA 1700, DDR5, WiFi 6E, Thunderbolt 4, Micro ATX. - Imagen 2

Clic para ampliar

Descripción
Valoraciones (0)

Descripción

Model
Brand	ASUS
Series	ROG
Model	STRIX Z690-G GAMING WIFI
Part Number	90MB19G0-M0AAY0
Supported CPU
CPU Socket Type	LGA 1700

	* Designed with dual mounting holes compatible with both Intel LGA1700 and LGA1200 cooling brackets.
CPU Type	Supports 13th / 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors*
	*May require a BIOS update to boot the 13th gen Intel® Core™ desktop processors. Visit: https://www.asus.com/news/oujwh1old5n6oglf/
	* Refer to www.asus.com for CPU support list.
Supported CPU Technologies	Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*

	* Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipsets
Chipset	Intel Z690
Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic
Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	DDR5 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800

	* Actual Memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported	128GB
Channel Supported	Dual Channel
Expansion Slots
PCI Express 5.0 x16	1 x PCI Express 5.0 x16

	* Actual support may vary by CPU.
PCI Express 4.0 x16	1 x PCI Express 4.0 x16

	* Supports x4 mode.
PCI Express x1	1 x PCIe 3.0 x1
Storage Devices
SATA 6Gb/s	6 x SATA 6Gb/s

	* RAID configuration and optical disc drives are not supported on the SATA6G_E1-2 ports.
M.2	Intel 12th Gen Processors:
	M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

	Intel Z690 Chipset:*
	M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
	M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

	* Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.
Intel Optane Ready	Yes
SATA RAID	0/1/5/10
Onboard Audio
Audio Chipset	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
Audio Channels	7.1 Channels
Onboard LAN
Max LAN Speed	2.5Gbps
Wireless LAN	Wi-Fi 6E
Wireless LAN	802.11 a/b/g/n/ac/ax
Bluetooth	Bluetooth 5.2
Rear Panel Ports
Back I/O Ports	1 x USB 3.2 Gen 2×2 port (1 x USB Type-C)
	3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C)
	4 x USB 3.2 Gen 1 ports (4 x Type-A)
	2 x USB 2.0 ports (2 x Type-A)
	1 x DisplayPort
	1 x HDMI port
	1 x Wi-Fi Module
	1 x Intel 2.5Gb Ethernet port
	5 x Gold-plated audio jacks
	1 x Optical S/PDIF out port
	1 x BIOS FlashBack button
	1 x Clear CMOS button
Internal I/O Connectors
Onboard USB	1 x USB 3.2 Gen 2×2 connector (supports USB Type-C)
	1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
	2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other Connectors	Fan and Cooling related
	1 x 4-pin CPU Fan header
	1 x 4-pin CPU OPT Fan header
	1 x 4-pin AIO Pump header
	3 x 4-pin Chassis Fan headers
	Miscellaneous
	3 x Addressable Gen 2 headers
	1 x AURA RGB header
	1 x CPU Over Voltage jumper
	1 x Front Panel Audio header (AAFP)
	1 x SPI TPM header (14-1pin)
	1 x 20-5 pin System Panel header
	1 x Thermal Sensor header
	1 x Thunderbolt header
Physical Spec
Form Factor	Micro ATX
LED Lighting	RGB
Dimensions (W x L)	9.6″ x 9.6″
Power Pin	1 x 24-pin Main Power connector
	1 x 8-pin +12V Power connector
	1 x 4-pin +12V Power connector
Windows Compatibility
Windows 11	Windows® 10 64-bit, Windows® 11 64-bit
Features
Features	Special Features:
	Extreme Engine Digi+
	– 5K Black Metallic Capacitors
	ASUS Q-Design
	– M.2 Q-Latch
	– Q-DIMM
	– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
	– Q-Slot
	ASUS Thermal Solution
	– M.2 heatsink backplate
	– M.2 heatsink
	ASUS EZ DIY
	– BIOS FlashBack button
	– BIOS FlashBack LED
	– CPU Socket lever protector
	– Clear CMOS button
	– ProCool II
	– Pre-mounted I/O shield
	– SafeSlot
	– SafeDIMM
	AURA Sync
	– AURA RGB header
	– Addressable Gen 2 RGB headers

	Software Features:
	ROG Exclusive Software
	– GameFirst VI
	– ROG CPU-Z
	– Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
	– Sonic Radar III
	– DTS Sound Unbound
	– Anti-virus software
	ASUS Exclusive Software
	Armoury Crate
	– AIDA64 Extreme (60 days free trial)
	– AURA Creator
	– AURA Sync
	– Fan Xpert 4
	– Two-Way AI Noise Cancelation
	AI Suite 3
	– 5-Way Optimization with AI Overclocking
	TPU
	EPU
	DIGI+ VRM
	Turbo app
	MyAsus
	WinRAR
	UEFI BIOS
	AI Overclocking Guide
	ASUS EZ DIY
	– ASUS CrashFree BIOS 3
	– ASUS EZ Flash 3
	– ASUS UEFI BIOS EZ Mode
	FlexKey
	MemTest86

	BIOS:
	256 Mb Flash ROM, UEFI AMI BIOS

	Manageability:
	WOL by PME, PXE

	Operating System:
	Windows 10 64-bit, Windows 11 64-bit
Packaging
Package Contents	Accessories:
	Cables
	4 x SATA 6Gb/s cables
	Miscellaneous
	1 x ASUS Wi-Fi moving antennas
	1 x Cable ties pack
	1 x M.2 Rubber Package
	1 x M.2 Q-Latch package
	1 x M.2 Q-Latch package for M.2 backplate
	1 x ROG key chain
	1 x ROG Strix stickers
	1 x ROG Strix thank you card
	Installation Media
	1 x Support DVD
	Documentation
	1 x User manual

Valoraciones (0)

Valorado con 0 de 5

0 revisiones

Valorado con 5 de 5

Valorado con 4 de 5

Valorado con 3 de 5

Valorado con 2 de 5

Valorado con 1 de 5

Valoraciones

Limpiar filtros

No hay valoraciones aún.

Solo los usuarios registrados que hayan comprado este producto pueden hacer una valoración.

Estado de mi Pedido

Placa Madre ASUS ROG Strix Z690-G Gaming WiFi, Chipset Z690, Intel LGA 1700, DDR5, WiFi 6E, Thunderbolt 4, Micro ATX.

Precios según método de pago

Especificaciones:

Valoraciones

Licencia Digital para Activación de Windows 11 Pro

Almacenamiento MSI Spatium M450, 1TB, PCIe 4.0, NVMe M.2

Nvidia RTX 5070 | 12GB GDDR7 | MSI Ventus 3X OC

Placa Madre AMD AM5 Aorus X870 Elite WiFi7 Ice ATX

Procesador AMD Ryzen 5 5500 | 6 Núcleos 12 Hilos | Socket AM4

Procesador AMD Ryzen 5 9600X | 6 Núcleos 12 Hilos | 32MB Caché L3

SSD 1TB | Kingston KC3000 | PCIe 4.0 NVMe M.2

Unidad de Estado Sólido 1TB Kingston NV3 PCIe 4.0 NVMe M.2

Estado de mi Pedido

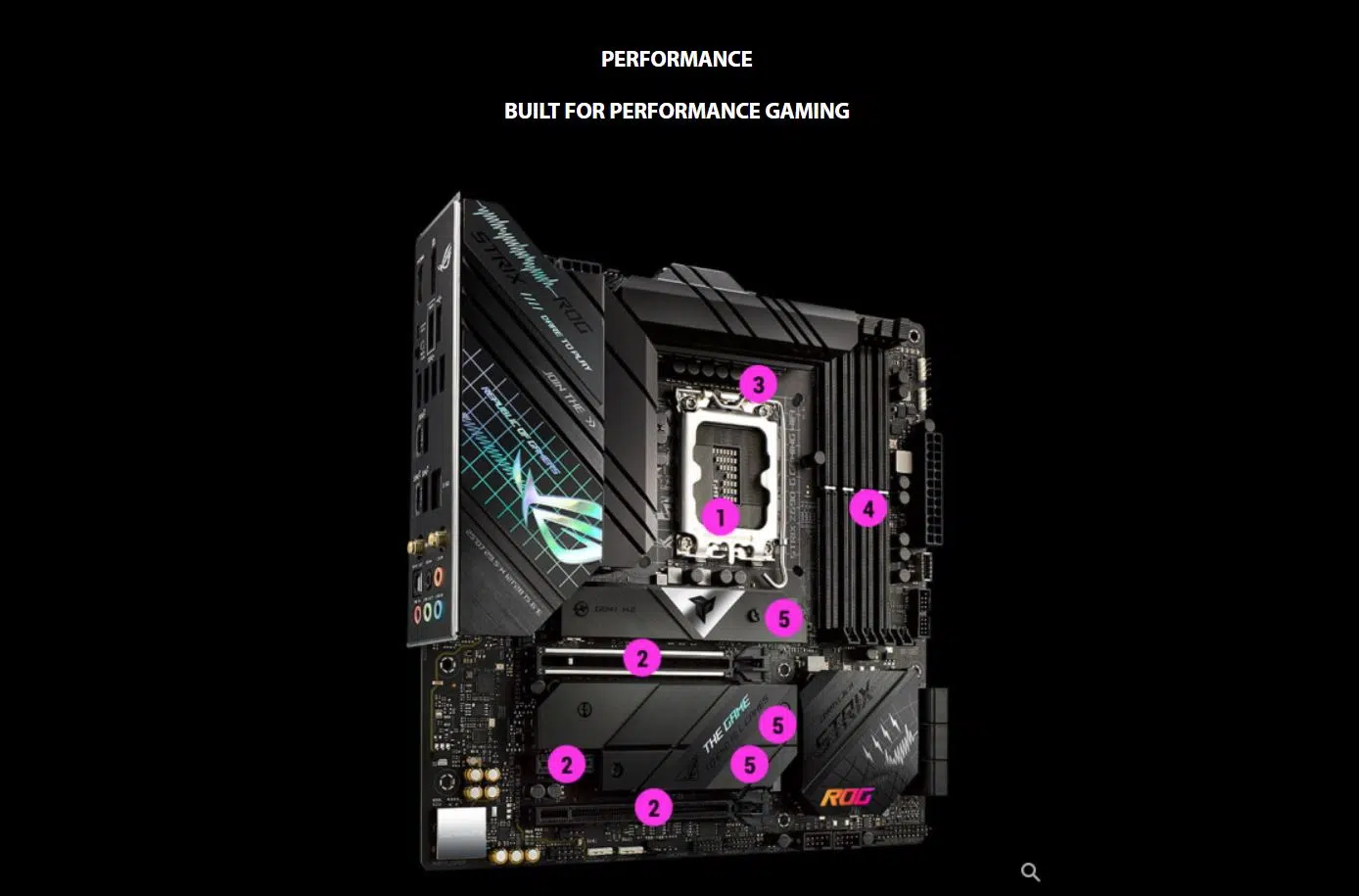

Placa Madre ASUS ROG Strix Z690-G Gaming WiFi, Chipset Z690, Intel LGA 1700, DDR5, WiFi 6E, Thunderbolt 4, Micro ATX.

Precios según método de pago

Especificaciones:

Valoraciones

Productos relacionados
