Name: Placa madre ASUS TUF Gaming Z690-Plus WiFi, DDR5, Intel LGA 1700, ATX
Brand: Asus
SKU: 10580
Price: 239990 CLP
Availability: OutOfStock

Placa madre ASUS TUF Gaming Z690-Plus WiFi, DDR5, Intel LGA 1700, ATX

Iva Inc

Precios según método de pago

Transferencia Bancaria Directa.

$239.990

El precio más bajo
Flow. Tarjetas de Débito/Crédito y Otros

$259.189

hasta 6 cuotas sin interés de $43.198
Mercado Pago. Tarjetas de Crédito

$273.589

hasta 12 cuotas sin interés de $22.799

Estado: Nuevo – Sellado

Sin existencias

8 ¡La gente está viendo este producto ahora!

Especificaciones:

Model
Brand	ASUS
Series	TUF
Model	GAMING Z690-PLUS WIFI
Part Number	90MB1AW0-MVAAY0
Supported CPU
CPU Socket Type	LGA 1700

	* Designed with dual mounting holes compatible with both Intel LGA1700 and LGA1200 cooling brackets.
CPU Type	Supports 13th / 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors*
	*May require a BIOS update to boot the 13th gen Intel® Core™ desktop processors. Visit: https://www.asus.com/news/oujwh1old5n6oglf/
	* Refer to www.asus.com for CPU support list.
Supported CPU Technologies	Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*

	* Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipsets
Chipset	Intel Z690
Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic
Memory

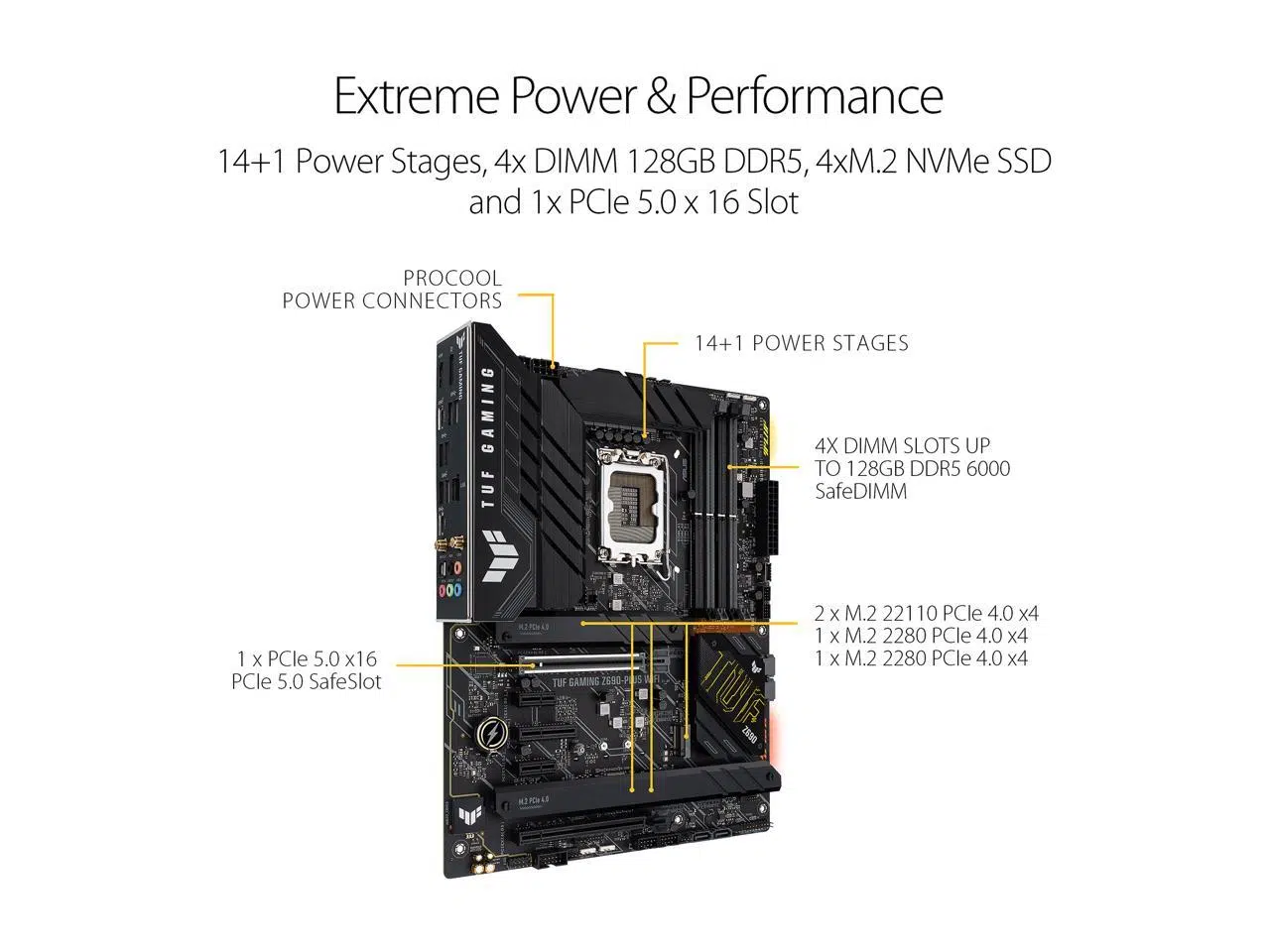

Number of Memory Slots	4x288pin (DDR5)
Memory Standard	DDR5 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800

	* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
Maximum Memory Supported	128GB
Channel Supported	Dual Channel
Expansion Slots

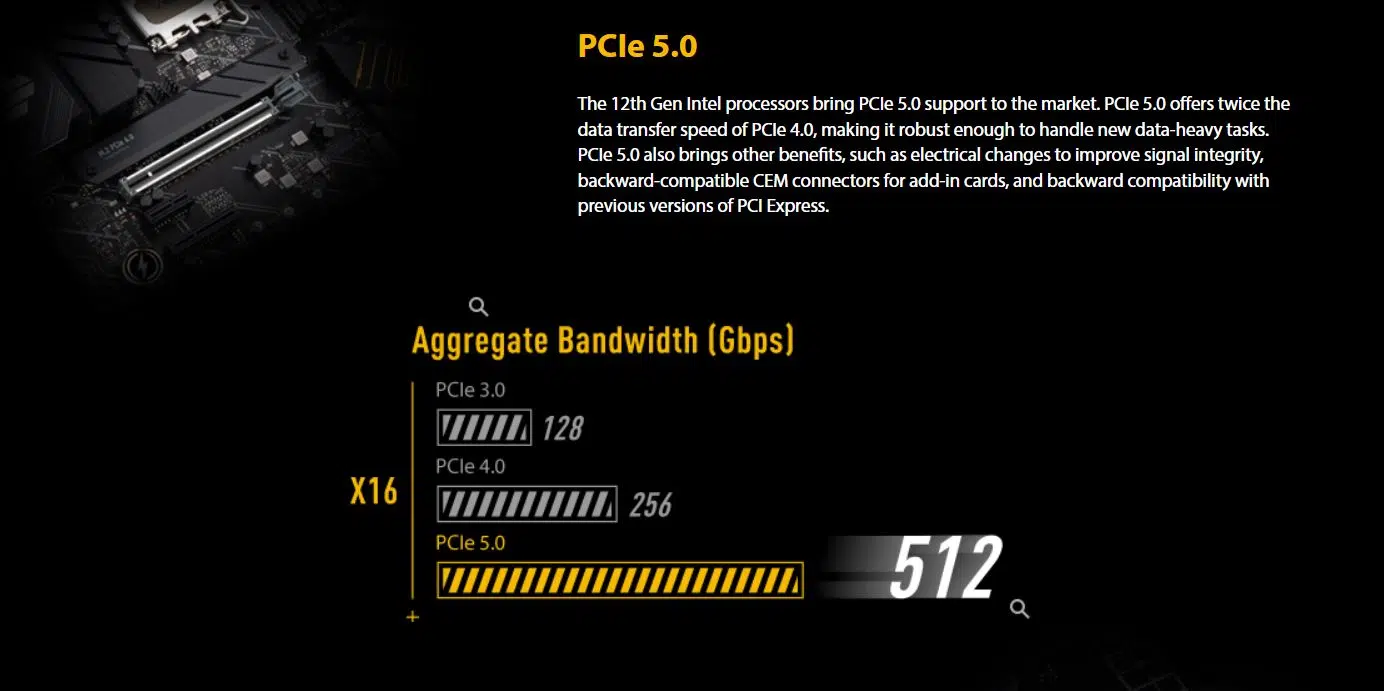

PCI Express 5.0 x16	1 x PCI Express 5.0 x16

	* Actual support may vary by CPU.
	* Please check PCIe bifurcation table in support site.
PCI Express 3.0 x16	1 x PCI Express 3.0 x16

	* Supports x4 mode.
PCI Express x4	1 x PCI Express 3.0 x4
PCI Express x1	2 x PCIe 3.0 x1
Storage Devices
SATA 6Gb/s	4 x SATA 6Gb/s

	* Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.

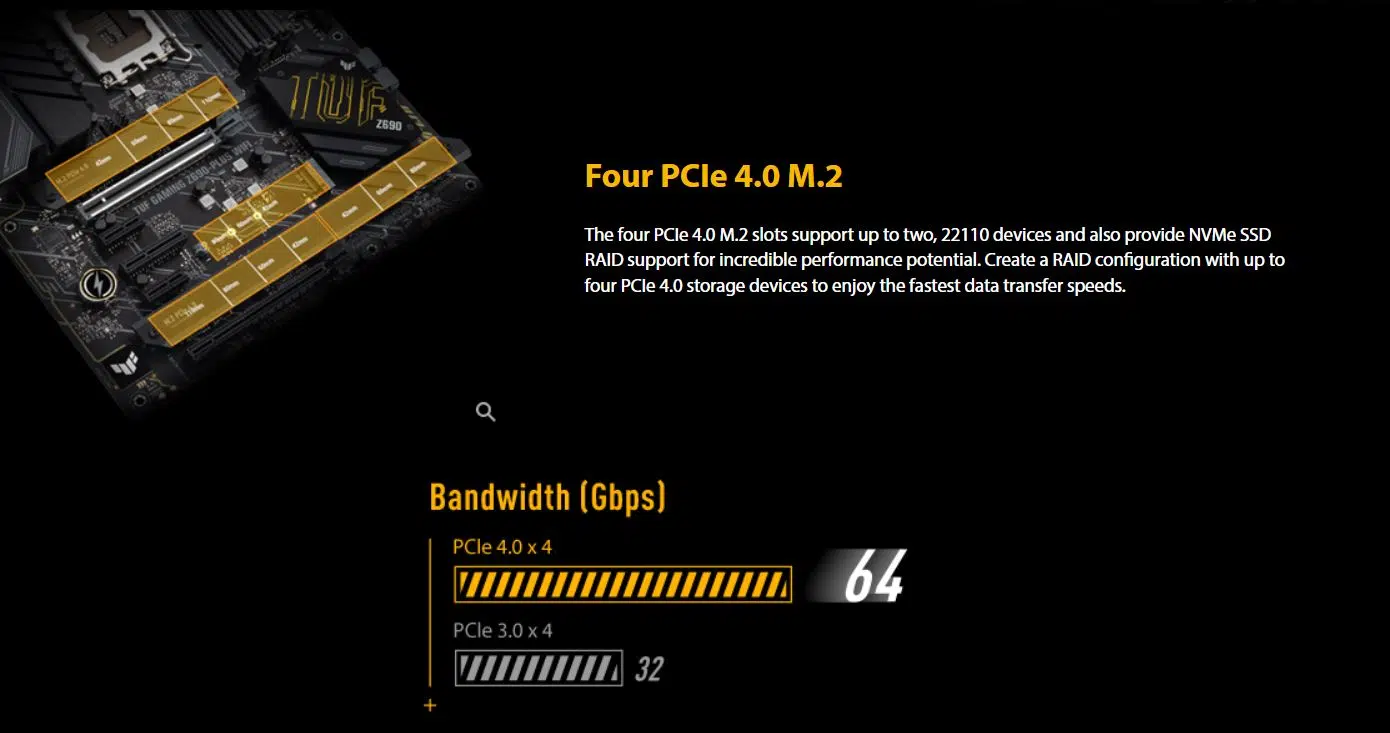

M.2	Intel 12th Gen Processors:
	M.2_1 slot (Key M), type 2242/2260/2280/22110
	– Intel 12th Gen processors support PCIe 4.0 x4 mode

	Intel Z690 Chipset:*
	M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
	M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
	M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

	* Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.
Intel Optane Ready	Yes
Onboard Audio

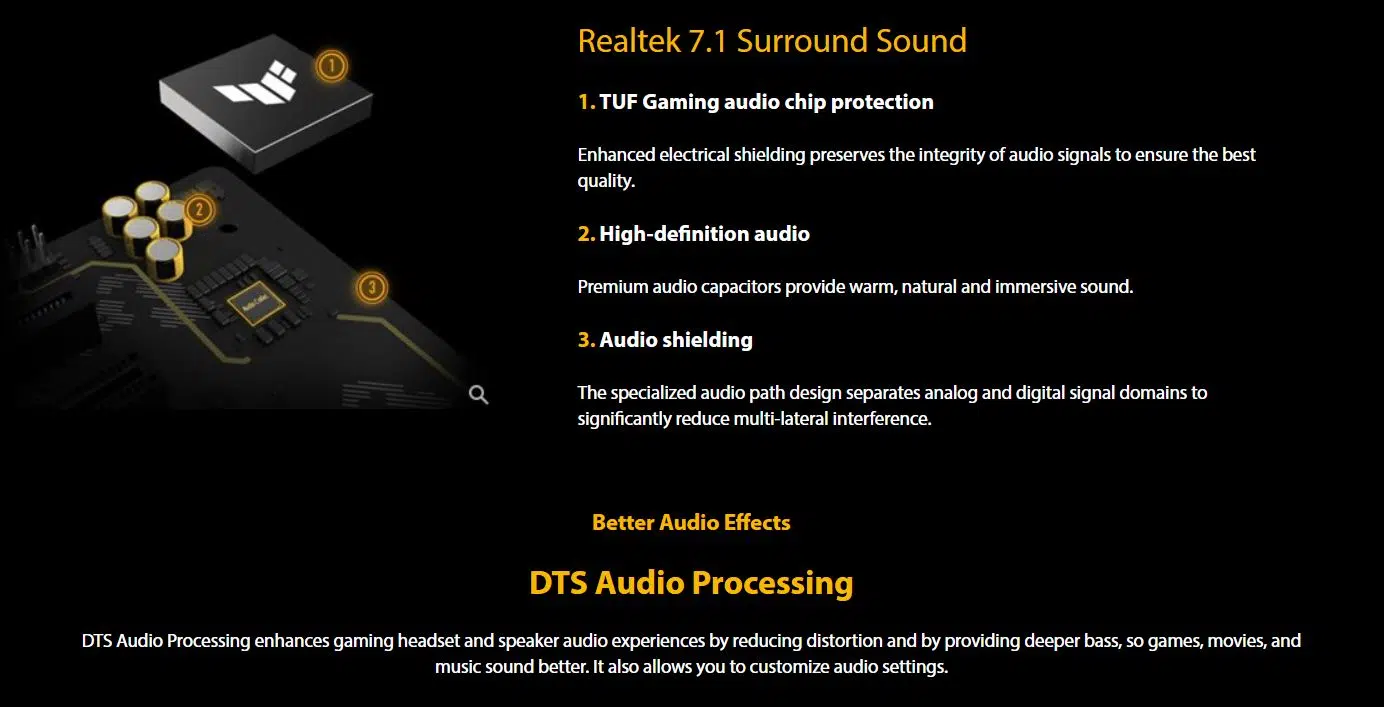

Audio Channels	7.1 Channels
Onboard LAN

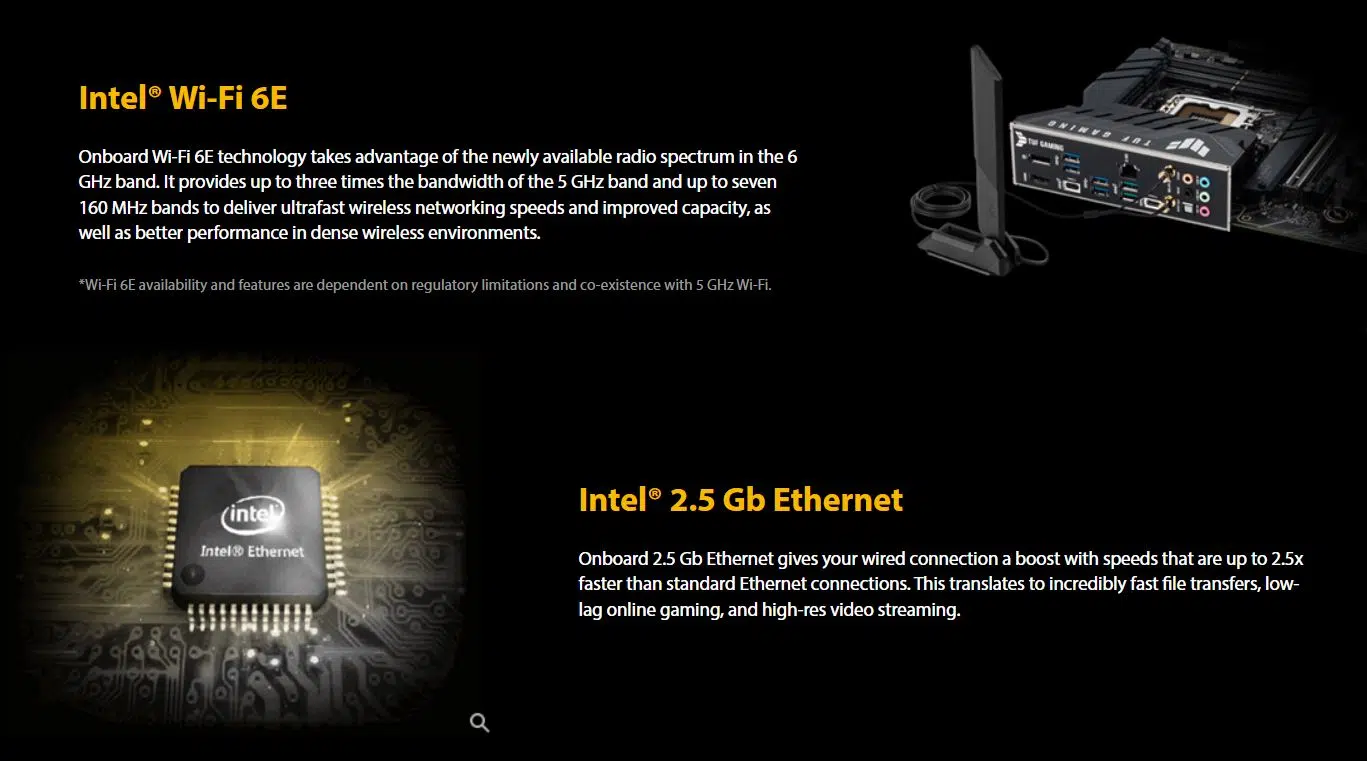

LAN Chipset	Intel 2.5Gb Ethernet
Max LAN Speed	2.5Gbps
Wireless LAN	Wi-Fi 6E
Wireless LAN	802.11a/b/g/n/ac/ax
Bluetooth	Bluetooth 5.2
Rear Panel Ports

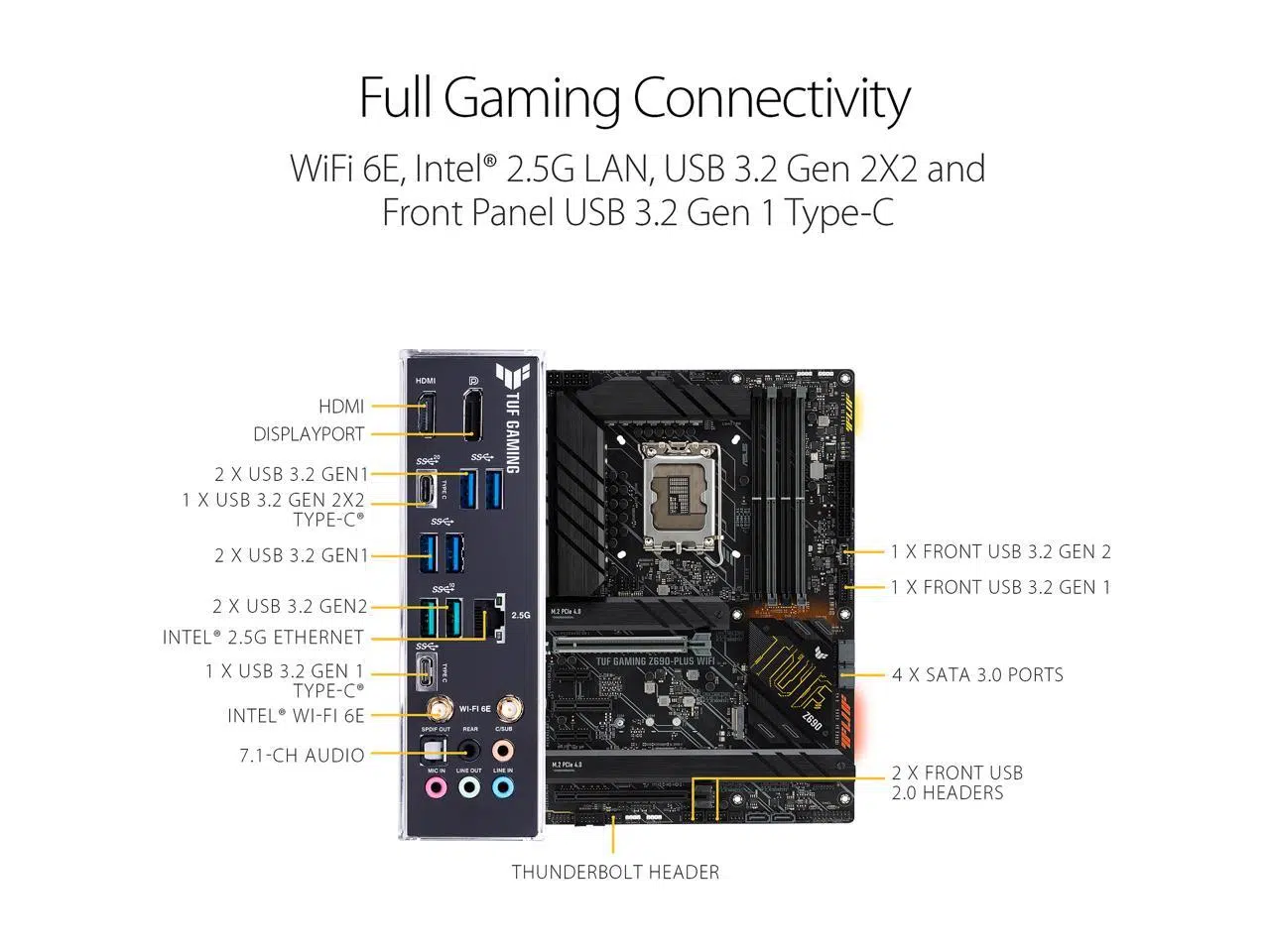

Back I/O Ports	1 x USB 3.2 Gen 2×2 port (1 x USB Type-C)
	2 x USB 3.2 Gen 2 ports (2 x Type-A)
	5 x USB 3.2 Gen 1 ports (4 x Type-A + 1 x USB Type-C)
	1 x DisplayPort
	1 x HDMI port
	1 x Wi-Fi Module
	1 x Intel 2.5Gb Ethernet port
	5 x Audio jacks
	1 x Optical S/PDIF out port
Internal I/O Connectors
Onboard USB	1 x USB 3.2 Gen 2 connector (supports USB Type-C)
	1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
	2 x USB 2.0 headers support additional 4 USB 2.0 ports

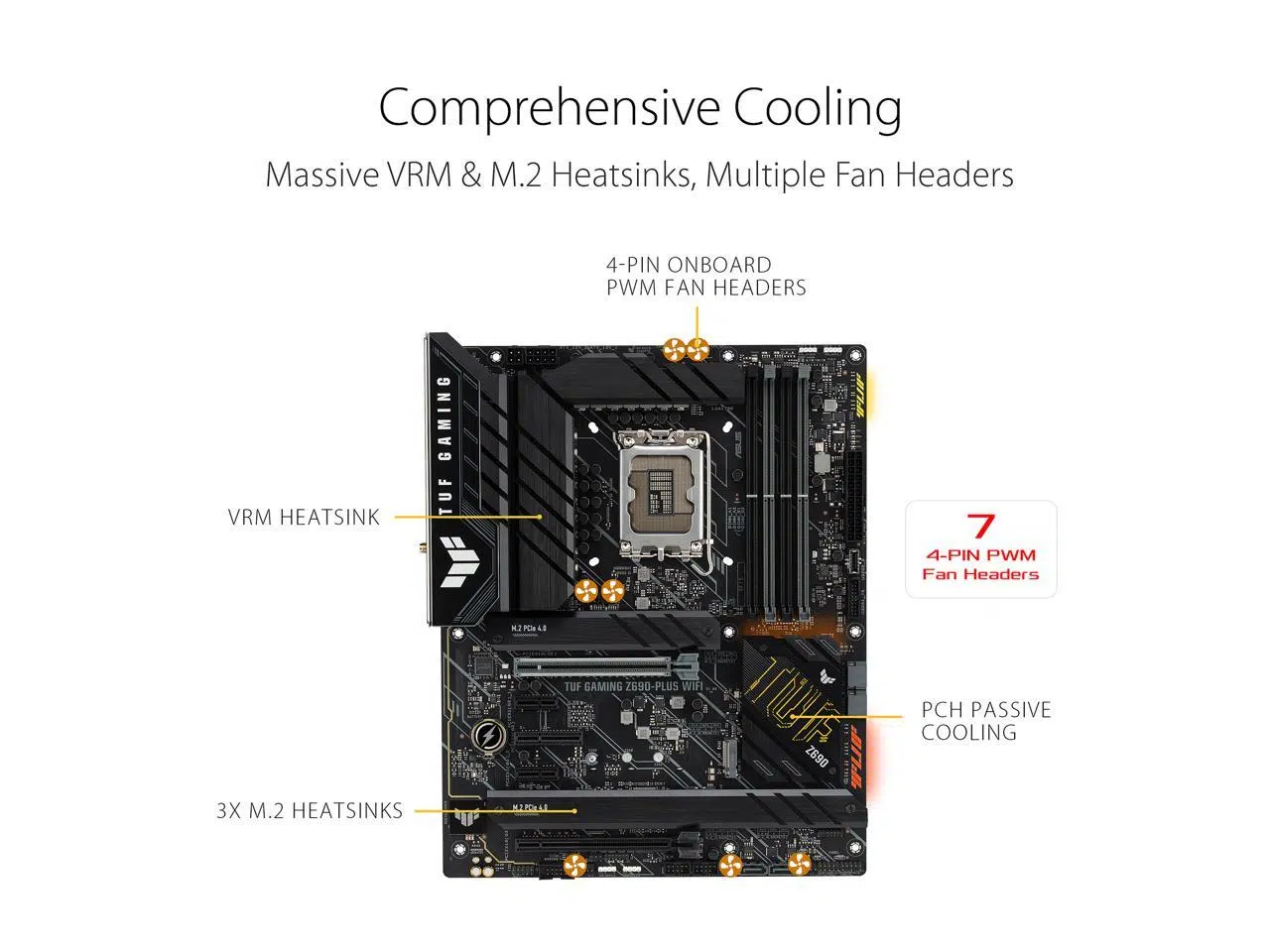

Other Connectors	Fan and Cooling related
	1 x 4-pin CPU Fan header
	1 x 4-pin CPU OPT Fan header
	1 x 4-pin AIO Pump header
	4 x 4-pin Chassis Fan headers
	Miscellaneous

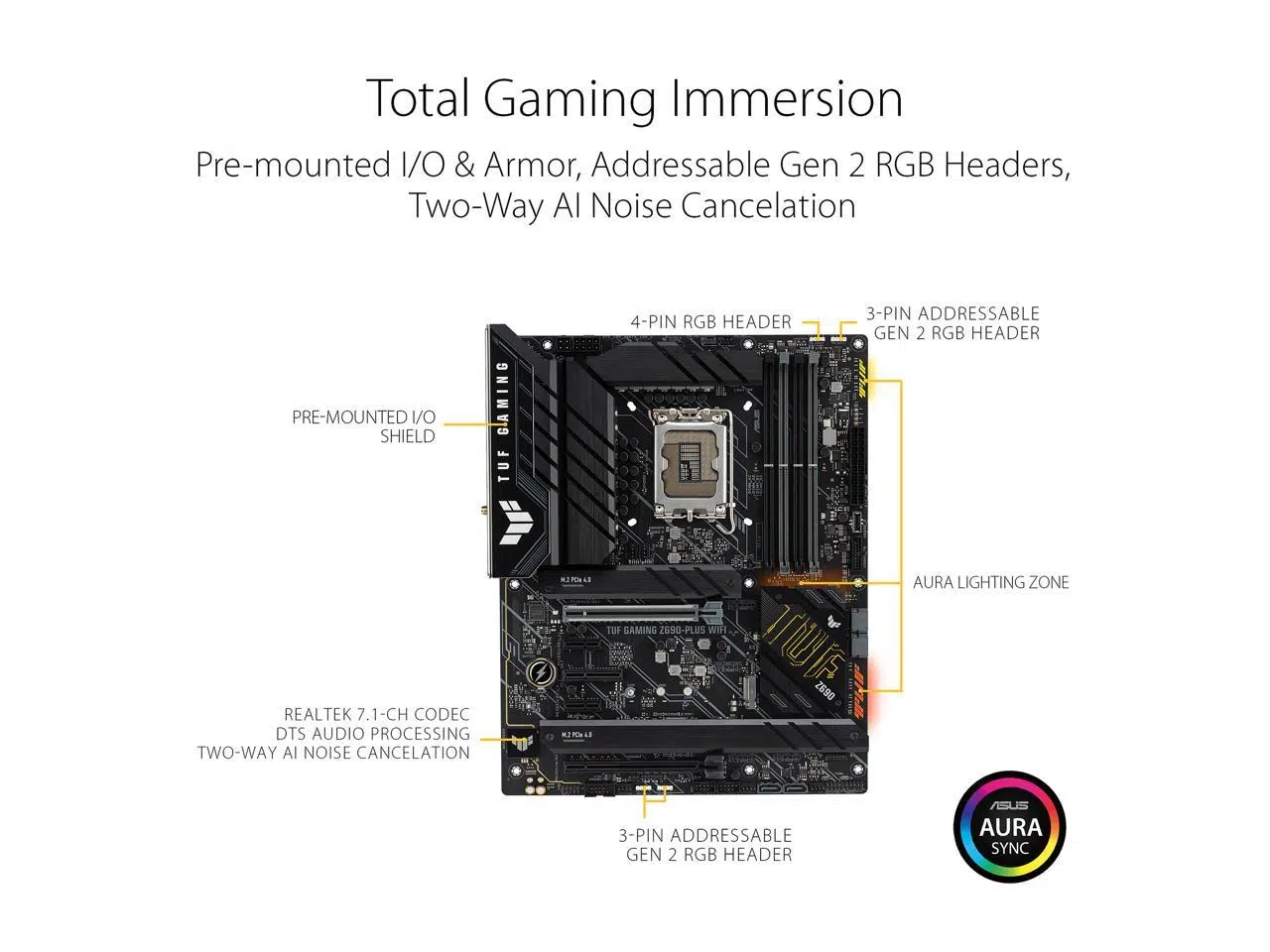

	3 x Addressable Gen 2 headers
	1 x AURA RGB header
	1 x Clear CMOS header
	1 x COM Port header
	1 x Front Panel Audio header (AAFP)
	1 x 20-3 pin System Panel header with Chassis intrude function
	1 x Thunderbolt header
Physical Spec
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	305 x 244 mm
Power Pin	1 x 24-pin Main Power connector
	1 x 8-pin +12V Power connector
	1 x 4-pin +12V Power connector
Windows Compatibility
Windows 11	Ready
Packaging

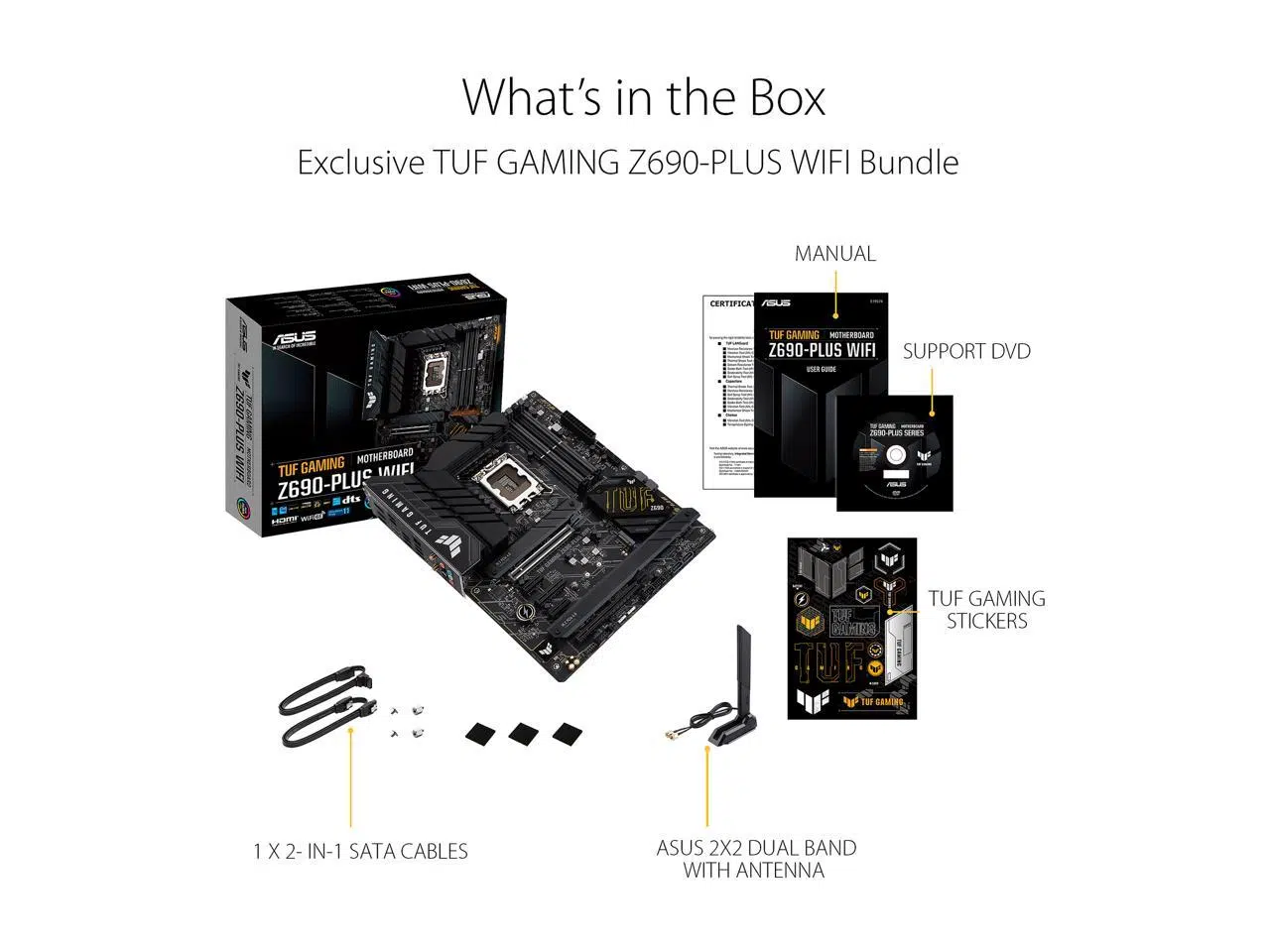

Package Contents	Accessories:
	Cables
	2 x SATA 6Gb/s cables
	Miscellaneous
	1 x ASUS Wi-Fi moving antenna
	2 x M.2 Rubber Packages
	1 x M.2 SSD screw package
	1 x TUF GAMING sticker
	Installation Media
	1 x Support DVD
	Documentation
	1 x TUF Certification card
	1 x User guide

Nota: Para usar procesadores de 13a Generación, es probable que se requiera actualizar la BIOS de la placa.

-20%

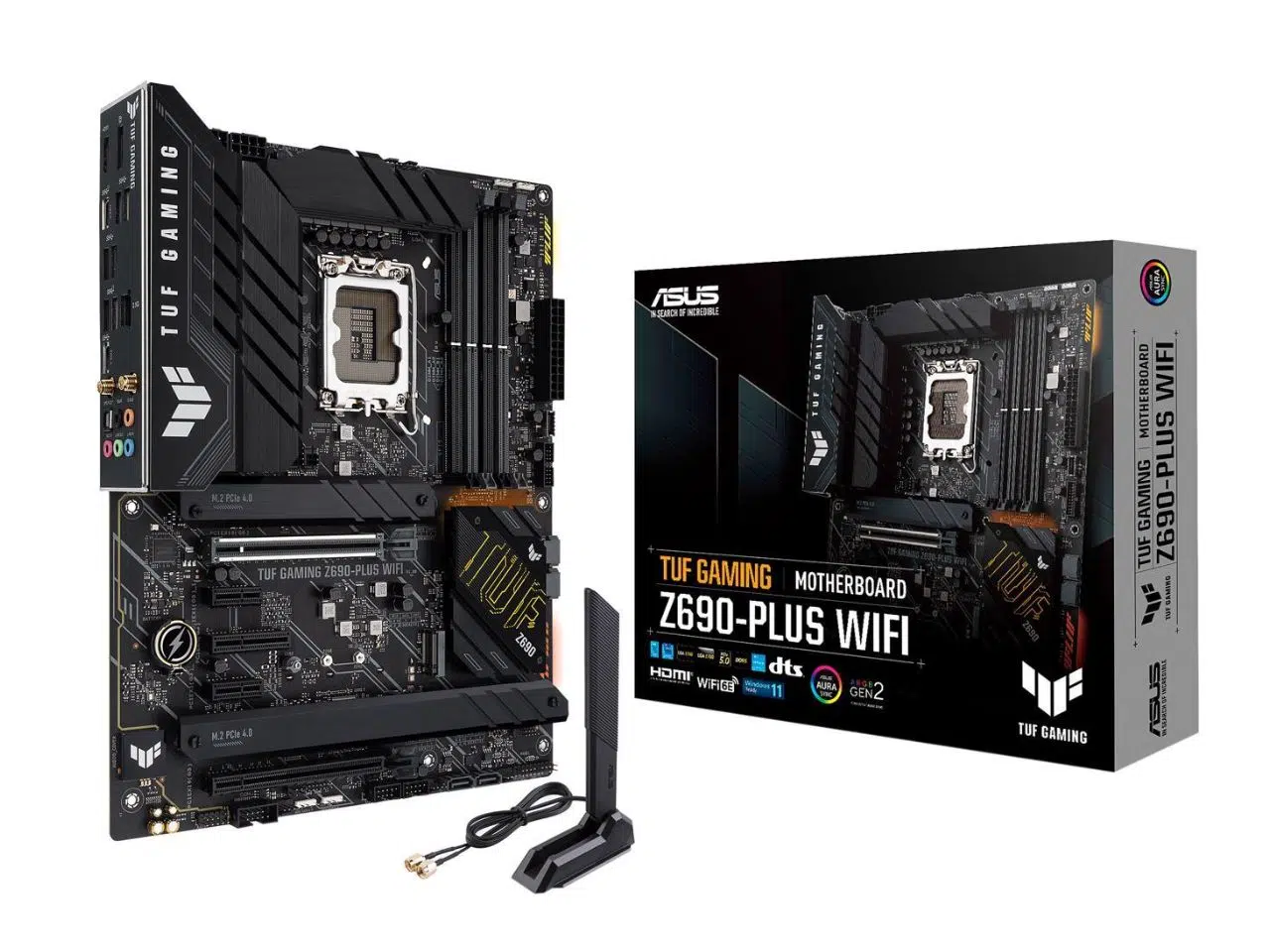

Placa madre ASUS TUF Gaming Z690-Plus WiFi, DDR5, Intel LGA 1700, ATX - Imagen 1
