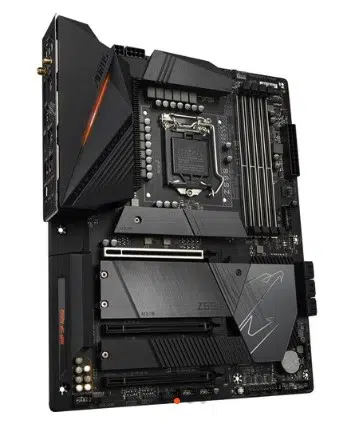

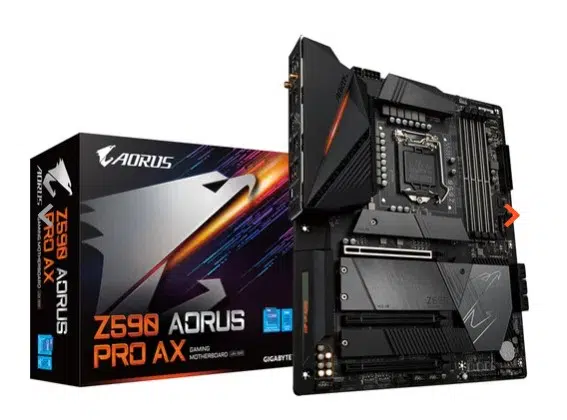

Placa Madre Gigabyte Z590 Aorus Pro AX, Socket LGA 1200 (Incluye WiFi y Bluetooth)

Especificaciones:

• • LGA 1200:

    1. 11th Generation Intel^® Core™ i9 processors / Intel^® Core™ i7 processors / Intel^® Core™ i5 processors
    2. 10th Generation Intel^® Core™ i9 processors / Intel^® Core™ i7 processors / Intel^® Core™ i5 processors / Intel^® Core™ i3 processors/ Intel^® Pentium^® processors / Intel^® Celeron^® processors*
       * Limited to processors with 4 MB Intel^® Smart Cache, Intel^® Celeron^® G5xx5 family.
    3. L3 cache varies with CPU

    (Please refer to «CPU Support List» for more information.)

  • Chipset
    1. Intel^® Z590 Express Chipset
  • Memoria
    1. 11th Generation Intel^® Core™ i9/i7/i5 processors:
       Support for DDR4 5400 (O.C) / DDR4 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) /4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
    2. 10th Generation Intel^® Core™ i9/i7 processors:
       Support for DDR4 2933/2666/2400/2133 MHz memory modules
    3. 10th Generation Intel^® Core™ i5/i3 /Pentium^®/Celeron^® processors:
       Support for DDR4 2666/2400/2133 MHz memory modules
    4. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    5. Dual channel memory architecture
    6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    8. Support for Extreme Memory Profile (XMP) memory modules

    (Please refer «Memory Support List» for more information.)

  • Gráficos Integrados
    Integrated Graphics Processor-Intel^® HD Graphics support:

    1. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
       * Support for DisplayPort 1.2 version and HDCP 2.3

    (Graphics specifications may vary depending on CPU support.)

  • Audio
    1. Realtek^® ALC4080 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for S/PDIF Out
  • LAN
    1. Intel^® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
  • Wireless Communication module
    Intel^® Wi-Fi 6 AX200

    1. WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
    2. BLUETOOTH 5.1
    3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
       * Actual data rate may vary depending on environment and equipment.
  • Puertos de Expansión
    1. 1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
          * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
          * The PCIEX16 slot shares bandwidth with the M2B_CPU and M2C_CPU connectors.
          * The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2B_CPU or M2C_CPU connector.

       (The PCIEX16 slot conforms to PCI Express 4.0 standard.)*

    1. *Supported by 11th Generation processors only.

    1. 2 x PCI Express x16 slots, running at x4 (PCIEX4_1/PCIEX4_2)
       (PCIEX4_1 and PCIEX4_2 slots conform to PCI Express 3.0 standard.)
  • Tecnología Multi-Gráficos
    1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
  • Interfaz de Almacenamiento
    CPU:

    1. 1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) *
       2. 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0* x4/x2 SSD support) (M2B_CPU)(M2C_CPU)

       *Supported by 11th Generation processors only.

    Chipset:

    1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB)
    2. 6 x SATA 6Gb/s connectors

    Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to «1-7 Internal Connectors,» for the installation notices for the M.2 and SATA connectors.
    Intel^® Optane™ Memory Ready

  • USB
    Chipset:

    1. 1 x USB Type-C^® port on the back panel, with USB 3.2 Gen 2×2 support
    2. 1 x USB Type-C^® port with USB 3.2 Gen 2 support, available through the internal USB header
    3. 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    4. 2 x USB 3.2 Gen 1 ports available through the internal USB header)

    Chipset+USB 3.2 Gen1 Hubs:

    1. 4 x USB 3.2 Gen1 ports on the back panel

    Chipset+2 USB 2.0 Hubs:

    1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

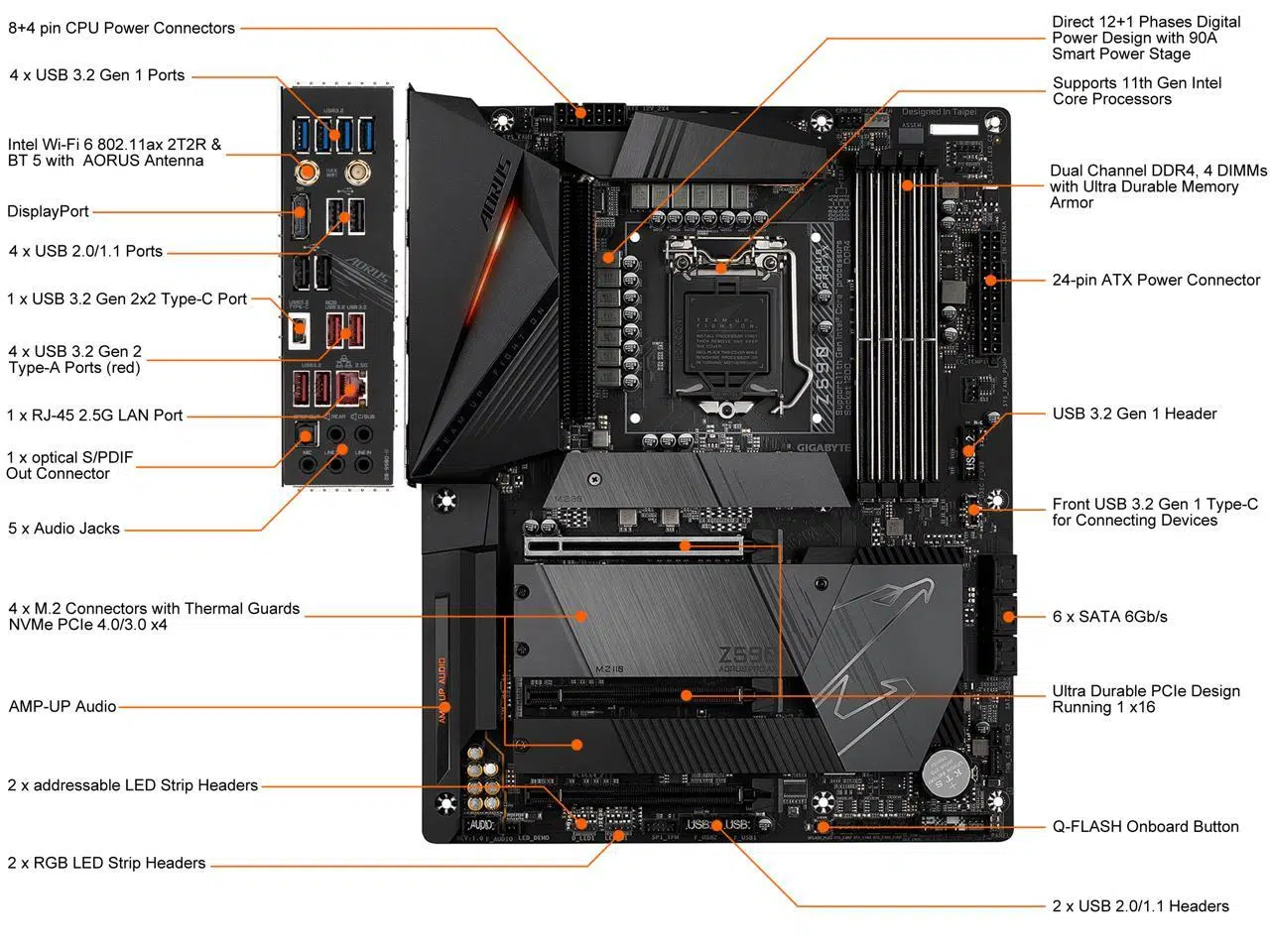

  • Conectores Internos de E/S
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x 4-pin ATX 12V power connector
    4. 1 x CPU fan header
    5. 1 x water cooling CPU fan header
    6. 4 x system fan headers
    7. 2 x system fan/water cooling pump headers
    8. 2 x addressable LED strip headers
    9. 2 x RGB LED strip headers
    10. 6 x SATA 6Gb/s connectors
    11. 4 x M.2 Socket 3 connectors
    12. 1 x front panel header
    13. 1 x front panel audio header
    14. 1 x USB Type-C^® header, with USB 3.2 Gen2 support
    15. 1 x USB 3.2 Gen1 header
    16. 2 x USB 2.0/1.1 headers
    17. 2 x Thunderbolt™ add-in card connectors
    18. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    19. 1 x Clear CMOS jumper
    20. 2 x temperature sensor headers
    21. 1 x Q-Flash Plus button

    ＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

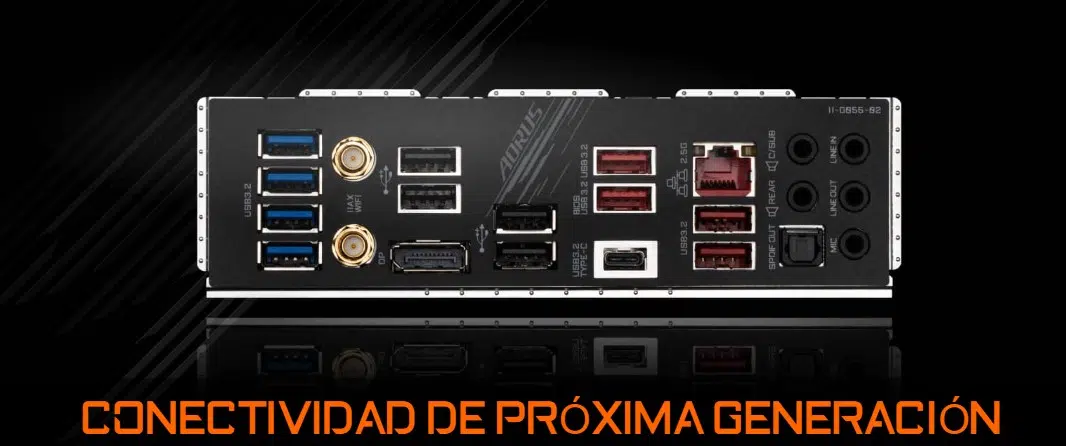

  • Conectores del Panel Trasero
    1. 1 x USB Type-C^® port, with USB 3.2 Gen 2×2 support
    2. 4 x USB 3.2 Gen 2 Type-A ports (red)
    3. 4 x USB 3.2 Gen 1 ports
    4. 4 x USB 2.0/1.1 ports
    5. 2 x SMA antenna connectors (2T2R)
    6. 1 x DisplayPort
    7. 1 x RJ-45 port
    8. 1 x optical S/PDIF Out connector
    9. 5 x audio jacks
  • Controlador de E/S
    1. iTE^® I/O Controller Chip
  • Monitorización H/W
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Water cooling flow rate detection
    5. Fan fail warning
    6. Fan speed control
       * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
  • BIOS
    1. 1 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Características Únicas
    1. Support for APP Center
       * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
       @BIOS
       EasyTune
       Fast Boot
       Game Boost
       ON/OFF Charge
       RGB Fusion
       Smart Backup
       System Information Viewer
    2. Support for Q-Flash Plus
    3. Support for Q-Flash
    4. Support for Xpress Install
  • Software Incluido
    1. Norton^® Internet Security (OEM version)
    2. cFosSpeed
  • Sistema Operativo
    1. Support for Windows 10 64-bit
  • Diseño
    1. ATX Form Factor; 30.5cm x 24.4cm
