- 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
- 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*
* Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family. - Caché L3 varía según la CPULGA1200 package:
- Chipset
- Intel® Z590 Express Chipset
- Memoria
- 11th Generation Intel® Core™ i9/i7/i5 processors:
Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) /4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz - 10th Generation Intel® Core™ i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules - 10th Generation Intel® Core™ i5/i3 /Pentium®/Celeron® processors:
Support for DDR4 2666/2400/2133 MHz memory modules - 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
- Arquitectura de memoria Dual Channel
- Soporte para módulos de memoria ECC Un-buffered UDIMM 1Rx8/2Rx8 (operando en modo no-ECC)
- Soporte para módulos de memoria non-ECC Un-buffered DIMM 1Rx8/2Rx8
- Soporte para módulos de memoria Extreme Memory Profile (XMP)
- 11th Generation Intel® Core™ i9/i7/i5 processors:
- Gráfica Integrada
Procesador gráfico integrado – Soporte Intel® HD Graphics
- 1 x DisplayPort, soporta una resolución máxima de 4096×2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3.
(Graphics specifications may vary depending on CPU support.)
- 1 x DisplayPort, soporta una resolución máxima de 4096×2304@60 Hz
- Audio
- Realtek® audio codec
- Audio de alta definición
- 2/4/5.1/7.1-channel
- * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software.
- Soporte para salida S / PDIF
- LAN
- Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
- Módulo de comunicaciones inalámbricas
Intel® Wi-Fi AC 9462
- Intel® CNVi interface 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
- BLUETOOTH 5.1
- Support for 1×1 11ac wireless standard and up to 433 Mbps data rate
* La tasa de datos real puede variar según el equipo y el entorno.
- Zócalos de Expansión
- 1 x PCI Express x16, a x16 (PCIEx16)
- * Para un rendimiento óptimo, aunque sea con una única tarjeta gráfica PCI Express instalada, asegúrese de conectarla en la ranura PCIEx16.
- (The PCIEX16 slot conforms to PCI Express 4.0 standard.) (Nota)
- 1 x PCI Express x16, a x4 (PCIEX4)
- 2 x PCI Express x1 slots
- (PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)
- Interfaz de almacenamiento
CPU
- 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4 SSD support) (M2P_CPU) (Note)
Chipset
- 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)
- 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 3.0 x4/x2 SSD support) (M2M_SB)
- 5 x SATA 6Gb/s connectors
- Soporta RAID 0, RAID 1, RAID 5, y RAID 10
- * Consulte «1-7 Conectores internos» para obtener los avisos de instalación de los conectores M.2 y SATA.
Memoria Intel® Optane™
- Tecnología Multi Gráfica
- Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
- USB
Chipset
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
Chipset+2 USB 2.0 Hubs
- 6 x puerto USB 2.0/1.1 (2 puertos en el panel posterior, 4 puertos disponibles a través de los conectores USB internos)
- Conectores Internos E/S
- 1 x conector de alimentación principal ATX 24-pin
- 1 x conector de alimentación ATX 12V 8-pin
- 1 x 4-pin ATX 12V power connector
- 1 x conector del ventilador de la CPU
- 4 x conector para ventilador del sistema
- 2 x Addressable LED strip headers
- 2 x RGB LED strip headers
- 1 x Q-Flash Plus button
- 5 x SATA 6Gb/s connectors
- 3 x M.2 Socket 3 connectors
- 1 x conector del panel frontal
- 1 x conector de audio en el panel frontal
- 1 x S/PDIF Out header
- 1 x USB 3.2 Gen 1 header
- 1 x USB Type-C® header, with USB 3.2 Gen 1 support
- 2 x conectores USB 2.0/1.1
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
La función TPM es opcional según las diferentes políticas locales - 2 x Thunderbolt™ add-in card connectors
- 1 x serial port headers
- 1 x Clear CMOS jumper
* All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

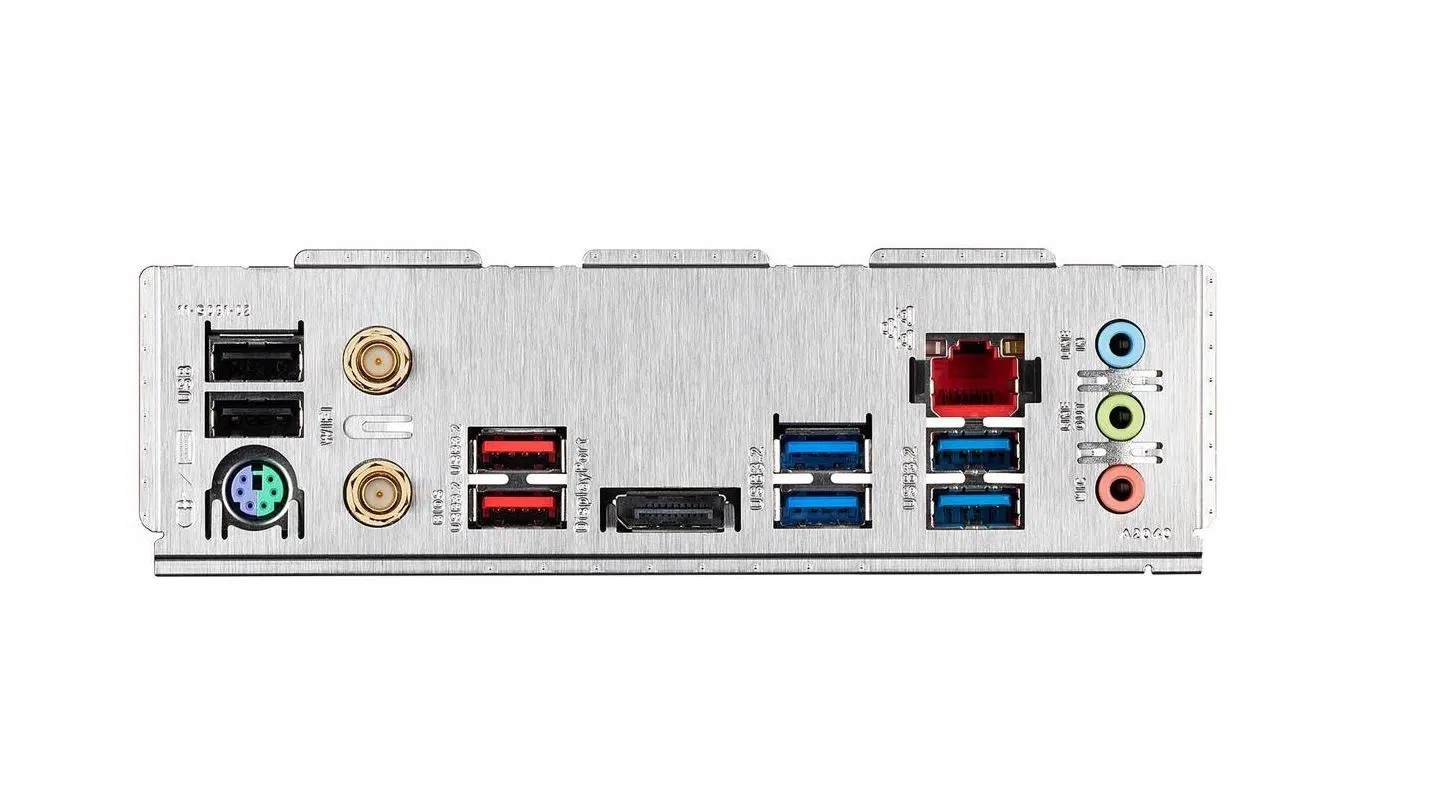

- Panel E/S Trasero
- 1 x puerto teclado / ratón PS / 2
- 2 x SMA antenna connectors (1T1R)
- 1 x DisplayPort
- 2 x USB 3.2 Gen 2 Type-A ports (red)
- 4 x USB 3.2 Gen 1 ports
- 2 x puerto USB 2.0/1.1
- 1 x Puerto RJ-45
- 3 x audio jacks
- Controlador E/S
- Chip controlador E/S iTE®
- Monitorización Hardware
- Detección de voltaje
- Detección de temperatura
- Detección de la velocidad del ventilador
- Aviso en caso de fallo en el ventilador
- Control de la velocidad del ventilador
- * La ventilación instalada por el usuario determinará la función de control de velocidad de la misma.
- BIOS
- 1 x 256 Mbit flash
- Licencia para uso de UEFI BIOS de AMI
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Otras Características
- Soporte para APP Center
* Las aplicaciones disponibles en la App Center pueden variar según el modelo de placa base. Las funciones compatibles de cada aplicación también pueden variar dependiendo de las especificaciones de la placa base.
@ BIOS ™
EasyTune
Fast Boot
Boost en los juegos
Soporta ON/OFF Charge
RGB Fusion
Smart Backup
Visor de información del sistema - Soporte Q-Flash Plus
- Soporte para Q-Flash
- Soporta Xpress Install
- Soporte para APP Center
- Bundled Software
- Norton® Internet Security (versión OEM)
- Realtek® 8125 Gaming LAN Bandwidth Control Utility
- Sistema Operativo
- Support for Windows 10 64-bit
- Formato
- Factor de forma ATX, 30.5cm x 24.4cm

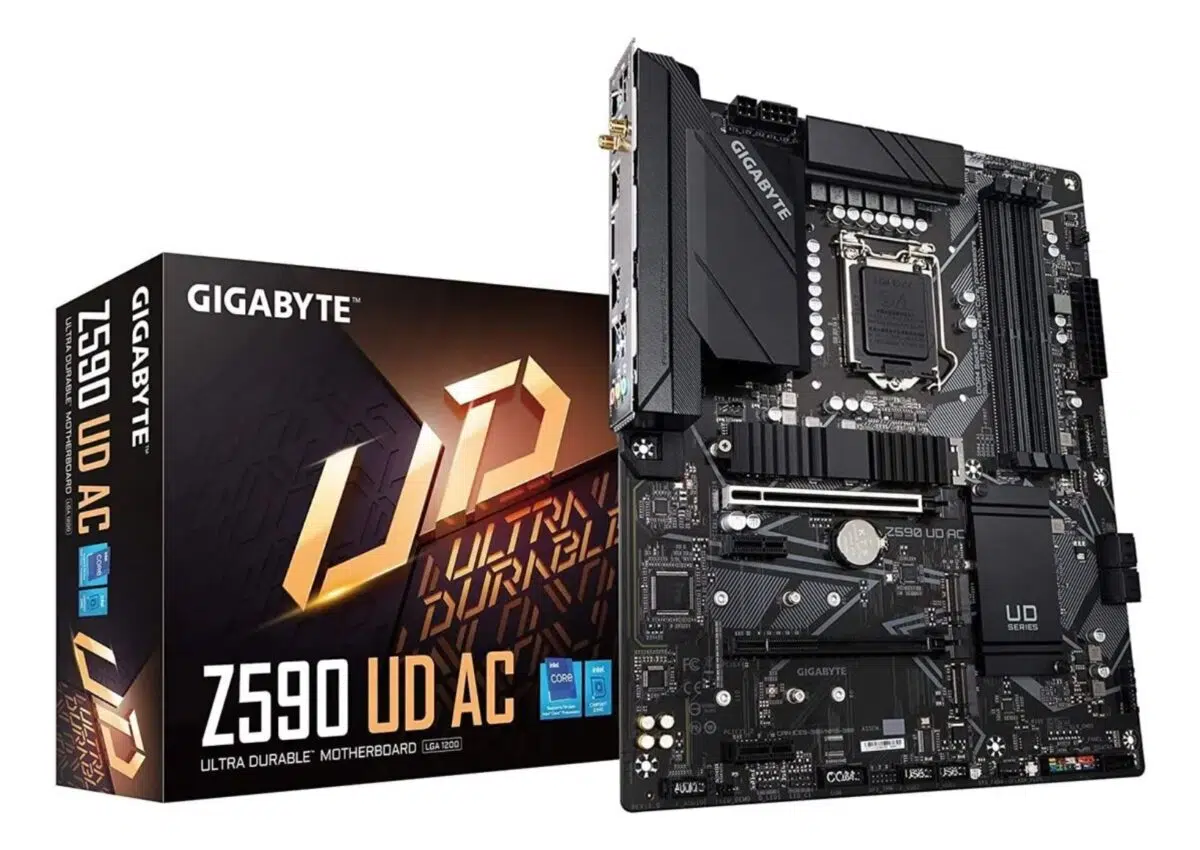

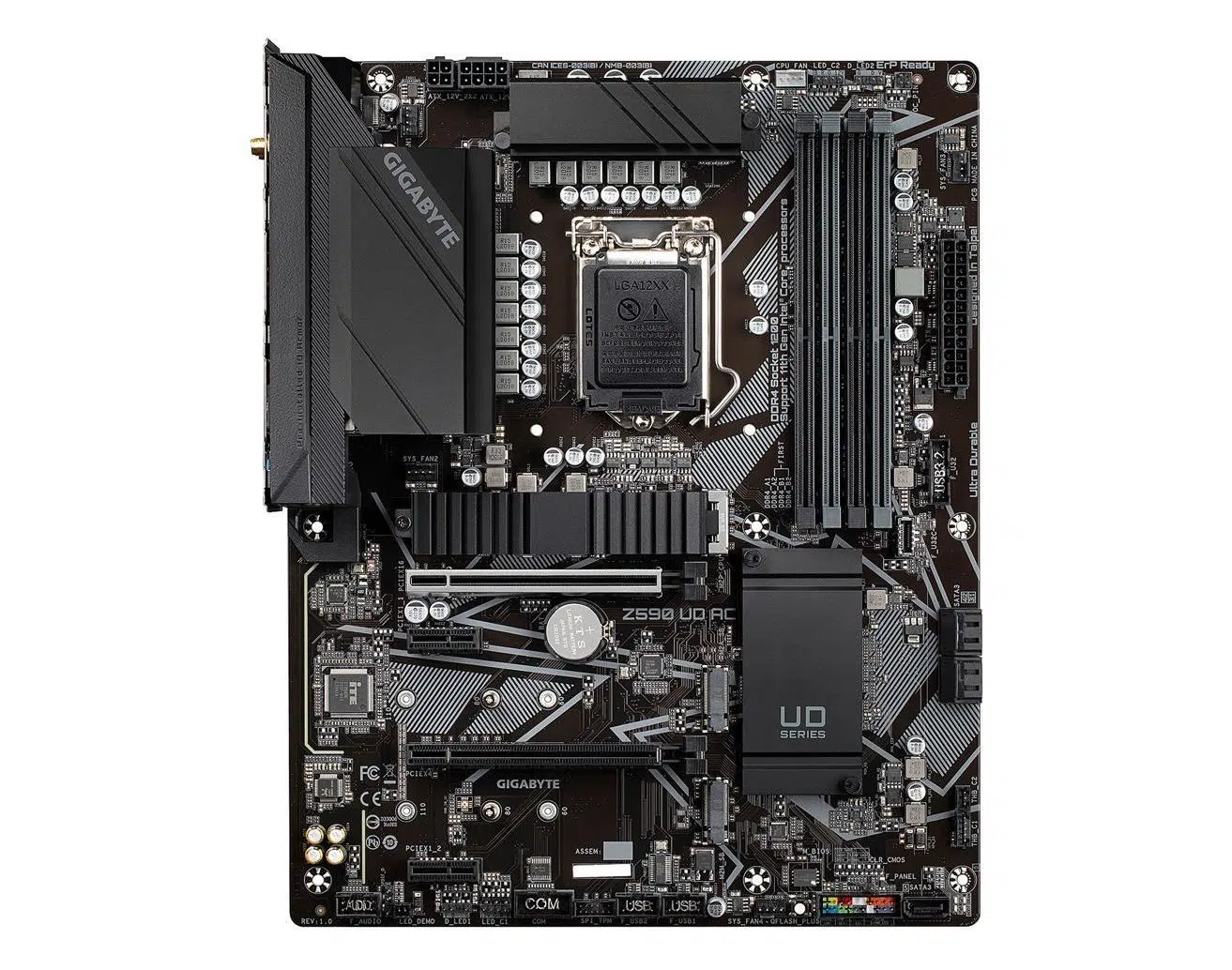

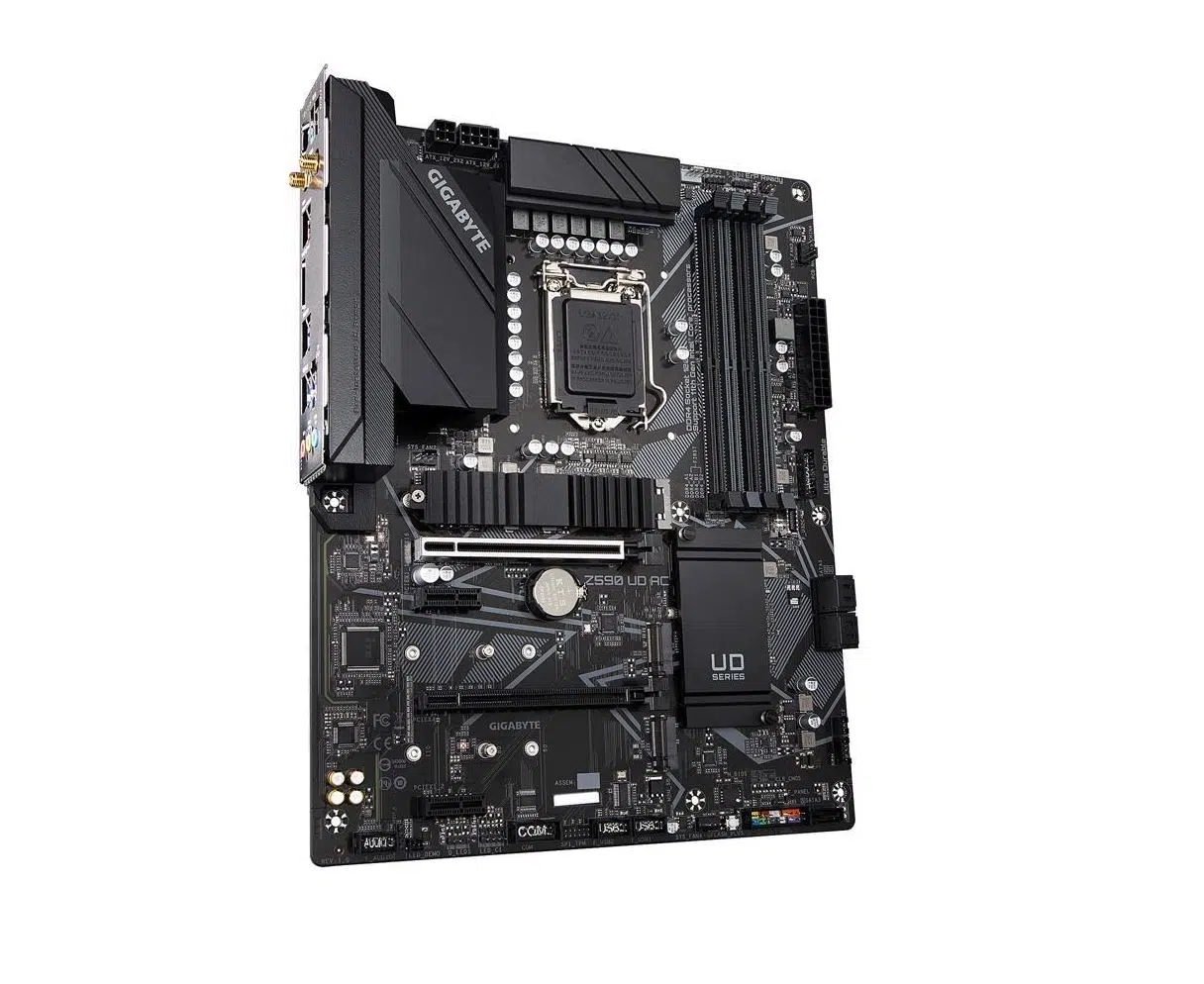

Placa Madre Gigabyte Z590 UD AC, Intel LGA 1200, WiFi
$259.990 $129.990 Iva Inc
Estado: Nueva sellada
Marca: Gigabyte
Modelo: Z590 UD AC
Entrega Inmediata
Quedan 1 en stock
Categoría: Placas madres
Descripción
Información adicional
Peso | 4 kg |
---|---|
Dimensiones | 30 × 30 × 10 cm |
