| Model |
| Brand | GIGABYTE |
| Series | AORUS |
| Model | Z690 AORUS ULTRA |
| Supported CPU |
| CPU Socket Type | LGA 1700 |
|
| * Dedicated LGA1700 mounting bracket is required. |
| CPU Type | Supports 13th / 12th Gen Intel Core, Pentium Gold, Celeron Processors |
| Chipsets |
| Chipset | Intel Z690 |
| Onboard Video |
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
| Memory |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | DDR5 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 4800 / 4000 |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| Expansion Slots |
| PCI Express 5.0 x16 | 1 x PCI Express 5.0 x16 |
|
| * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
| PCI Express 3.0 x16 | 2 x PCI Express 3.0 x16, running at x4 (PCIEX4_1, PCIEX4_2) |
| Storage Devices |
| SATA 6Gb/s | 6 x SATA 6Gb/s |
| M.2 | CPU: |
| 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) |
|
| Chipset: |
| 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2C_SB) |
| 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) |
| Intel Optane Ready | Yes |
|
| * System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset. |
| SATA RAID | 0/1/5/10 |
| Onboard Audio |
| Audio Chipset | Realtek ALC4080 |
| Audio Channels | 2-channel analog output |
| 7.1-channel digital signals |
|
| * Actual output of digital signals may vary depending on the playback content and software used, and an external DAC is required. |
| Onboard LAN |
| LAN Chipset | Intel 2.5GbE LAN chip |
| Max LAN Speed | 10/100/1000/2500Mbps |
| Wireless LAN | Intel Wi-Fi 6 AX200 |
| WIFI a/b/g/n/ac/ax |
| Bluetooth | Bluetooth 5.2 |

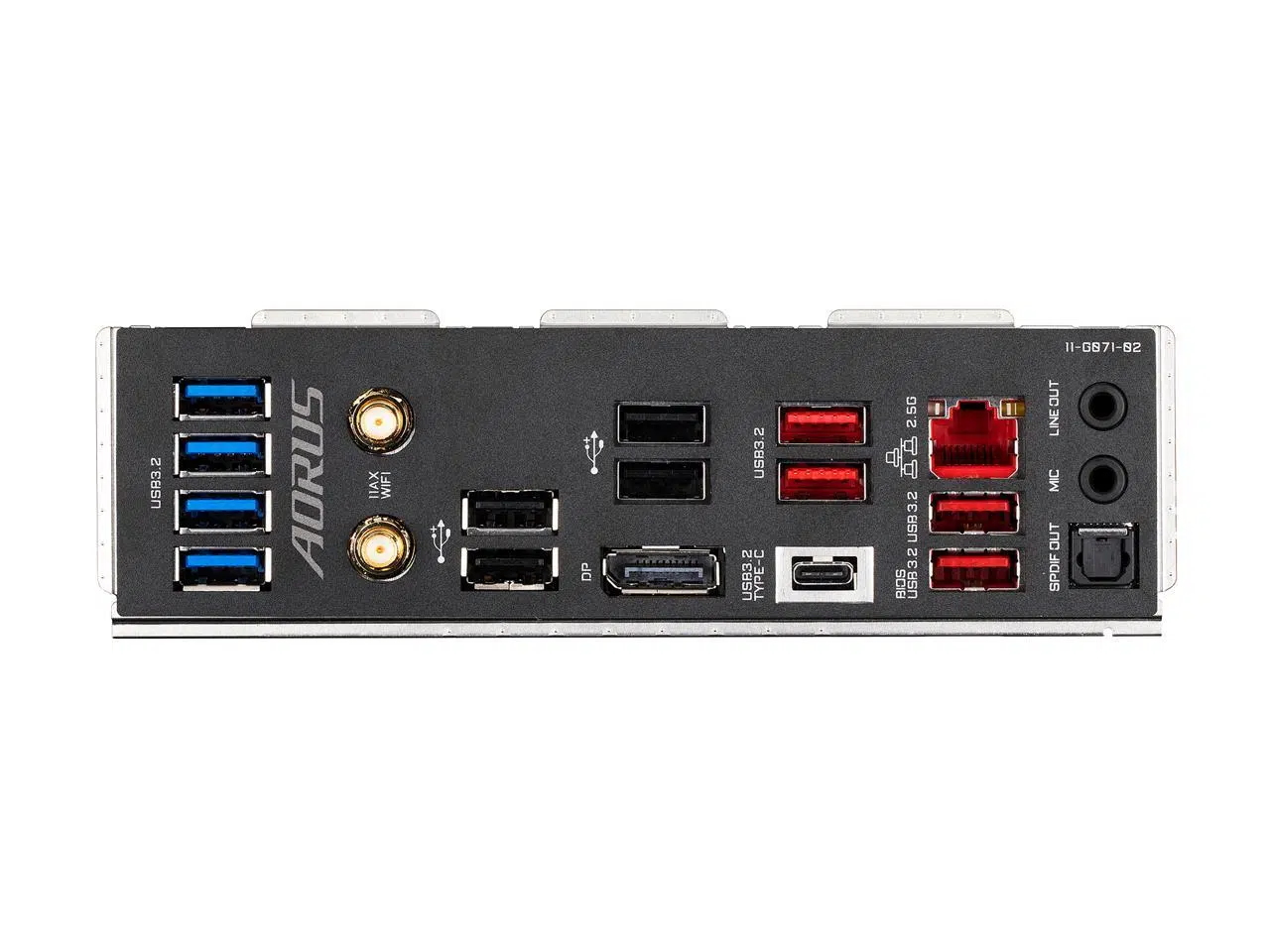

| Rear Panel Ports |
| Back I/O Ports | 2 x SMA antenna connectors (2T2R) |
| 1 x USB Type-C port, with USB 3.2 Gen 2×2 support |
| 4 x USB 3.2 Gen 2 Type-A ports (red) |
| 4 x USB 3.2 Gen 1 ports |
| 4 x USB 2.0/1.1 ports |
| 1 x DisplayPort |
| 1 x RJ-45 port |
| 1 x optical S/PDIF Out connector |
| 2 x audio jacks |
| Internal I/O Connectors |
| Onboard USB | 1 x USB Type-C header, with USB 3.2 Gen 2×2 support |
| 1 x USB 3.2 Gen 1 header |
| 2 x USB 2.0/1.1 headers |
| Other Connectors | 1 x CPU fan header |
| 1 x water cooling CPU fan header |
| 4 x system fan headers |
| 2 x system fan/water cooling pump headers |
| 2 x addressable LED strip headers |
| 2 x RGB LED strip headers |
| 1 x front panel header |
| 1 x front panel audio header |
| 1 x noise detection header |
| 2 x Thunderbolt add-in card connectors |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| 1 x power button |
| 1 x Q-Flash Plus button |
| 1 x reset button |
| 1 x reset jumper |
| 1 x Clear CMOS jumper |
| 2 x temperature sensor headers |
| Physical Spec |
| Form Factor | ATX |
| LED Lighting | RGB |

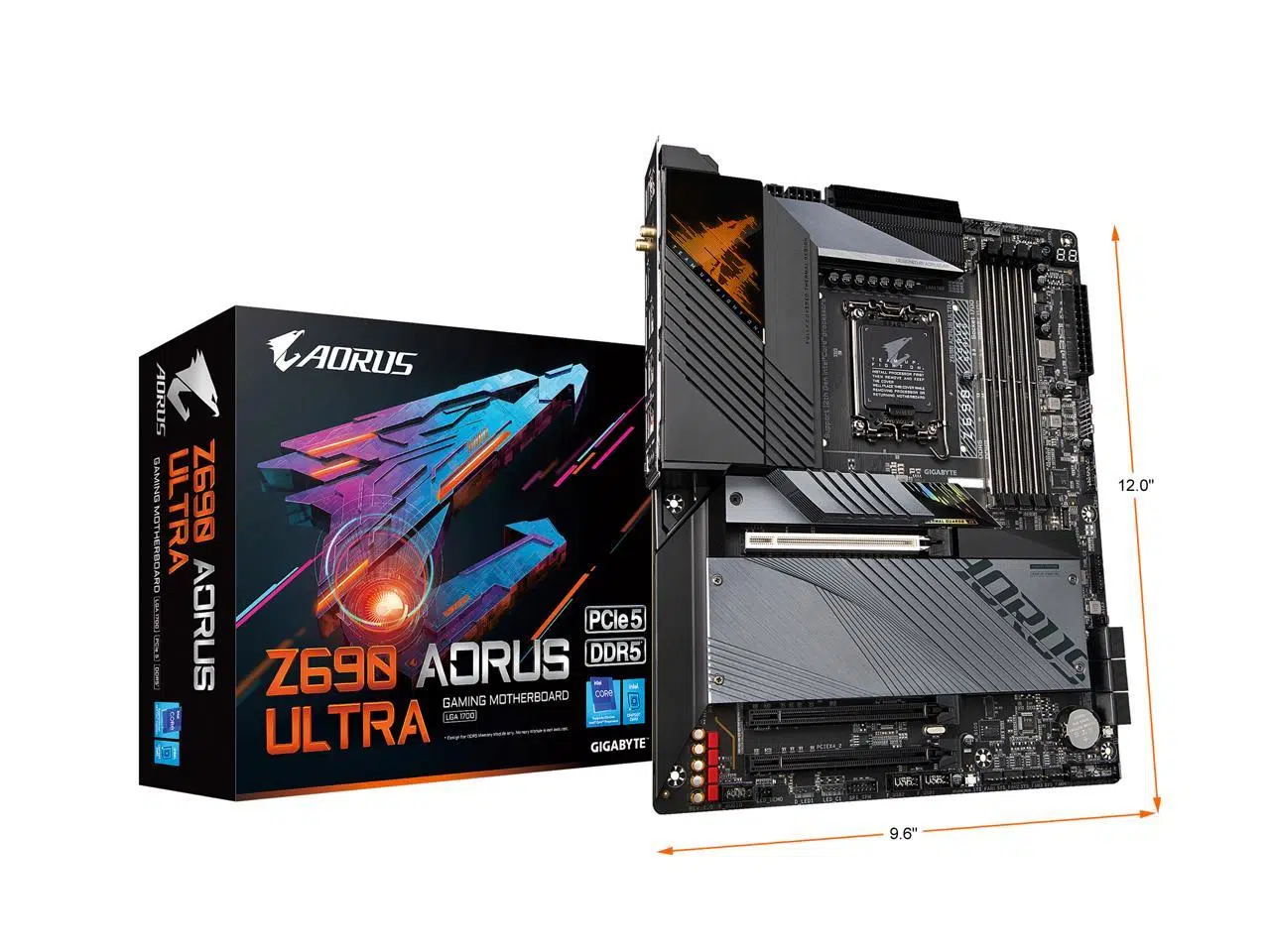

| Dimensions (W x L) | 12.0″ x 9.6″ |
| Power Pin | 1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector |
| 1 x 4-pin ATX 12V power connector |
| Windows Compatibility |
| Windows 11 | Supported |
| Features |
| Features | Multi-Graphics Technology: |
| Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies |
|
| I/O Controller: |
| iTE I/O Controller Chip |
|
| H/W Monitoring: |
| Voltage detection |
| Temperature detection |
| Fan speed detection |
| Water cooling flow rate detection |
| Fan fail warning |
| Fan speed control |
| * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. |
| Noise detection |
|
| BIOS: |
| 1 x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Unique Features: |
| Support for APP Center |
| * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. |
| @BIOS |
| EasyTune |
| Fast Boot |
| Game Boost |
| ON/OFF Charge |
| RGB Fusion |
| Smart Backup |
| System Information Viewer |
| Support for Q-Flash Plus |
| Support for Q-Flash |
| Support for Xpress Install |
|
| Bundled Software: |
| Norton Internet Security (OEM version) |
| cFosSpeed |
|
| Operating System: |
| Support for Windows 10 64-bit |
