| Model |
| Brand | ASRock |

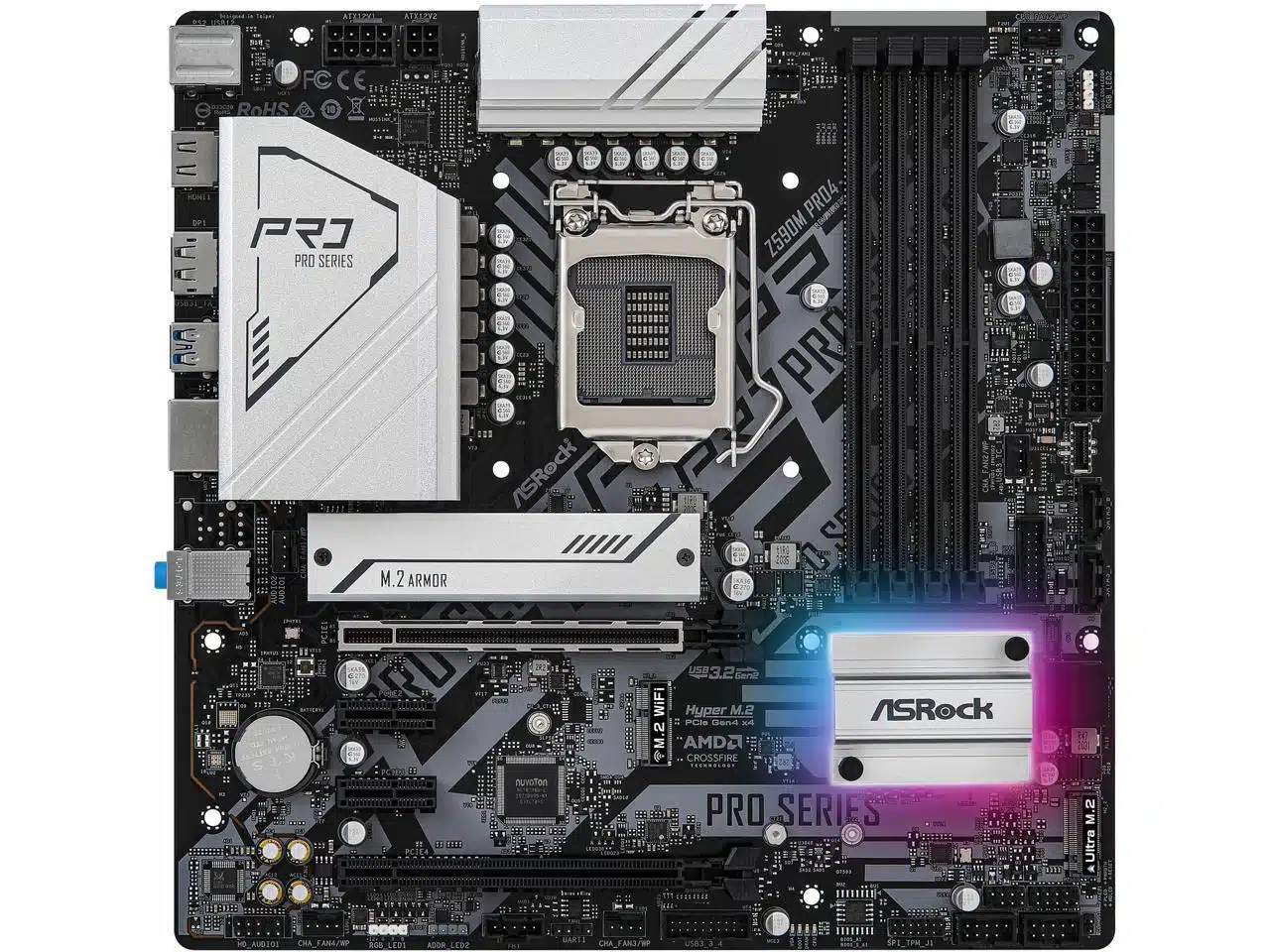

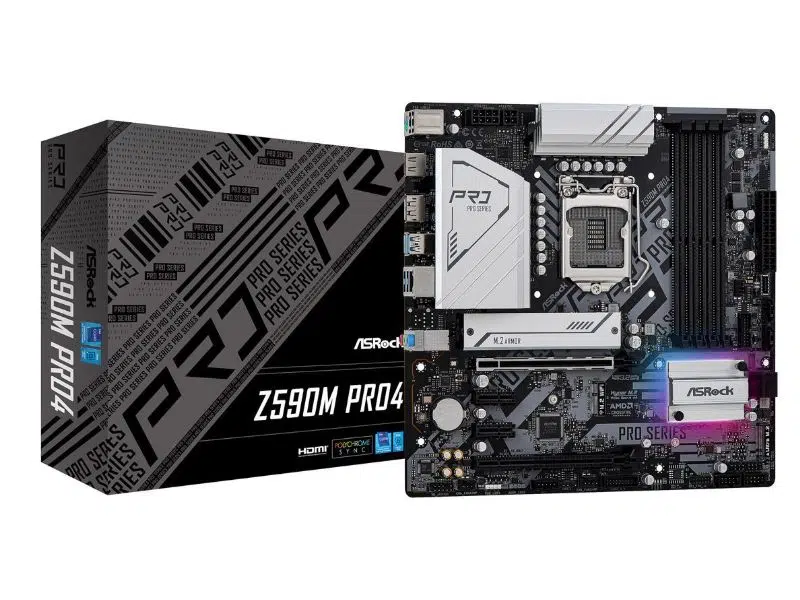

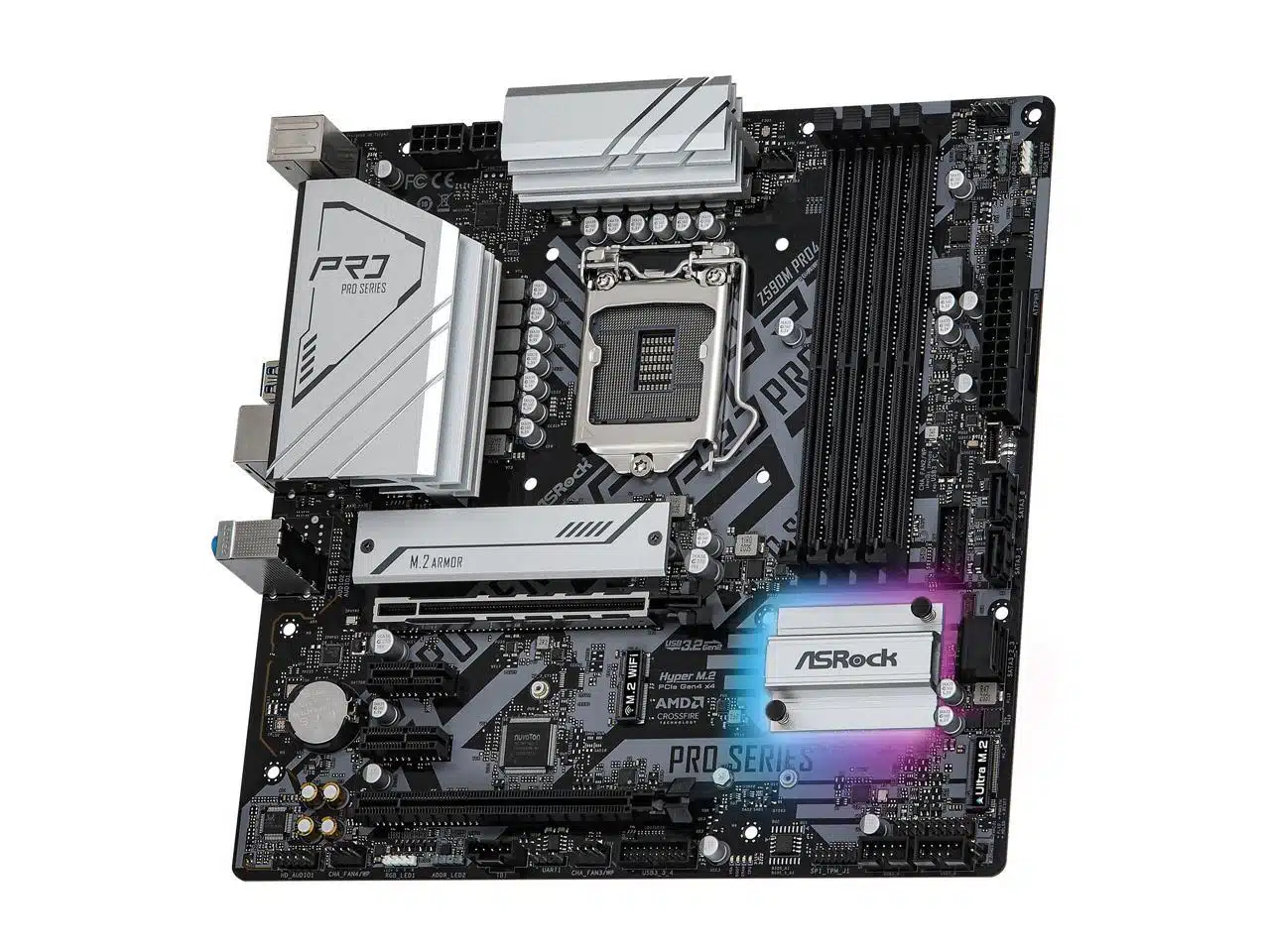

| Model | Z590M PRO4 |
| Supported CPU |
| CPU Socket Type | LGA 1200 |
| CPU Type | Supports 11th / 10th Gen Intel Core Processors |
| Supported CPU Technologies | Turbo Boost Technology 3.0 |
| Chipsets |
| Chipset | Intel Z590 |
| Onboard Video |
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
| Memory |
| Number of Memory Slots | 4x288pin (DDR4) |
| Memory Standard | DDR4 4800(OC)+ (11th Gen Intel Core Processors support)* |
| DDR4 4666(OC)+ (10th Gen Intel Core Processors support)* |
|
| * 11th Gen Intel Core (i9/i7/i5) support DDR4 3200 natively; Core (i3), Pentium and Celeron support DDR4 2666 natively. |
| * 10th Gen Intel Core (i9/i7) support DDR4 2933 natively; Core (i5/i3), Pentium and Celeron support DDR4 2666 natively. |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| Expansion Slots |
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16* |
|
| * Actual support may vary by CPU. |
| * Supports NVMe SSD as boot disks. |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16* |
|
| * Run at x4 max. |
| * Supports NVMe SSD as boot disks. |
| PCI Express x1 | 2 x PCI Express 3.0 x1 |
| Other Slots | 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and Intel CNVi (Integrated WiFi/BT) |
| Storage Devices |
| SATA 6Gb/s | 4 x SATA 6Gb/s |
| M.2 | 1 x Hyper M.2 Socket (M2_1)*, supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with 11th Gen Intel Core Processors) or Gen3x4 (32 Gb/s) (with 10th Gen Intel Core Processors)** |
|
| 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)** |
|
| * If M2_1 is occupied by a SATA-type M.2 device, SATA3_3 will be disabled. |
| ** Supports Intel Optane Technology. |
| ** Supports NVMe SSD as boot disks. |
| ** Supports ASRock U.2 Kit. |
| Intel Optane Ready | Yes |
| SATA RAID | 0/1/5/10 |
| Onboard Audio |
| Audio Chipset | Realtek ALC897 |
| Audio Channels | 7.1 Channels |
| Onboard LAN |
| LAN Chipset | Intel I219-V |
| Max LAN Speed | 10/100/1000Mbps |

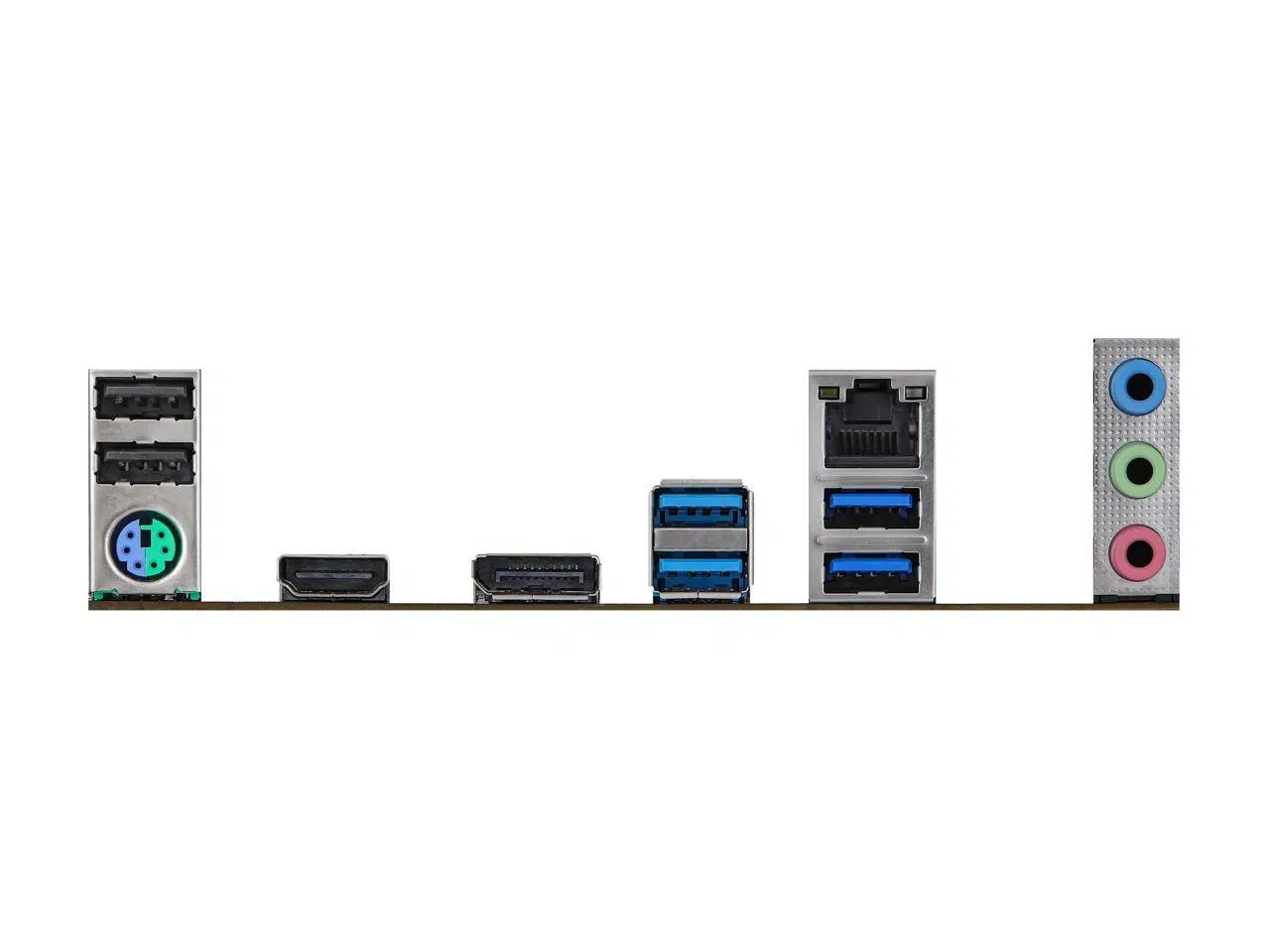

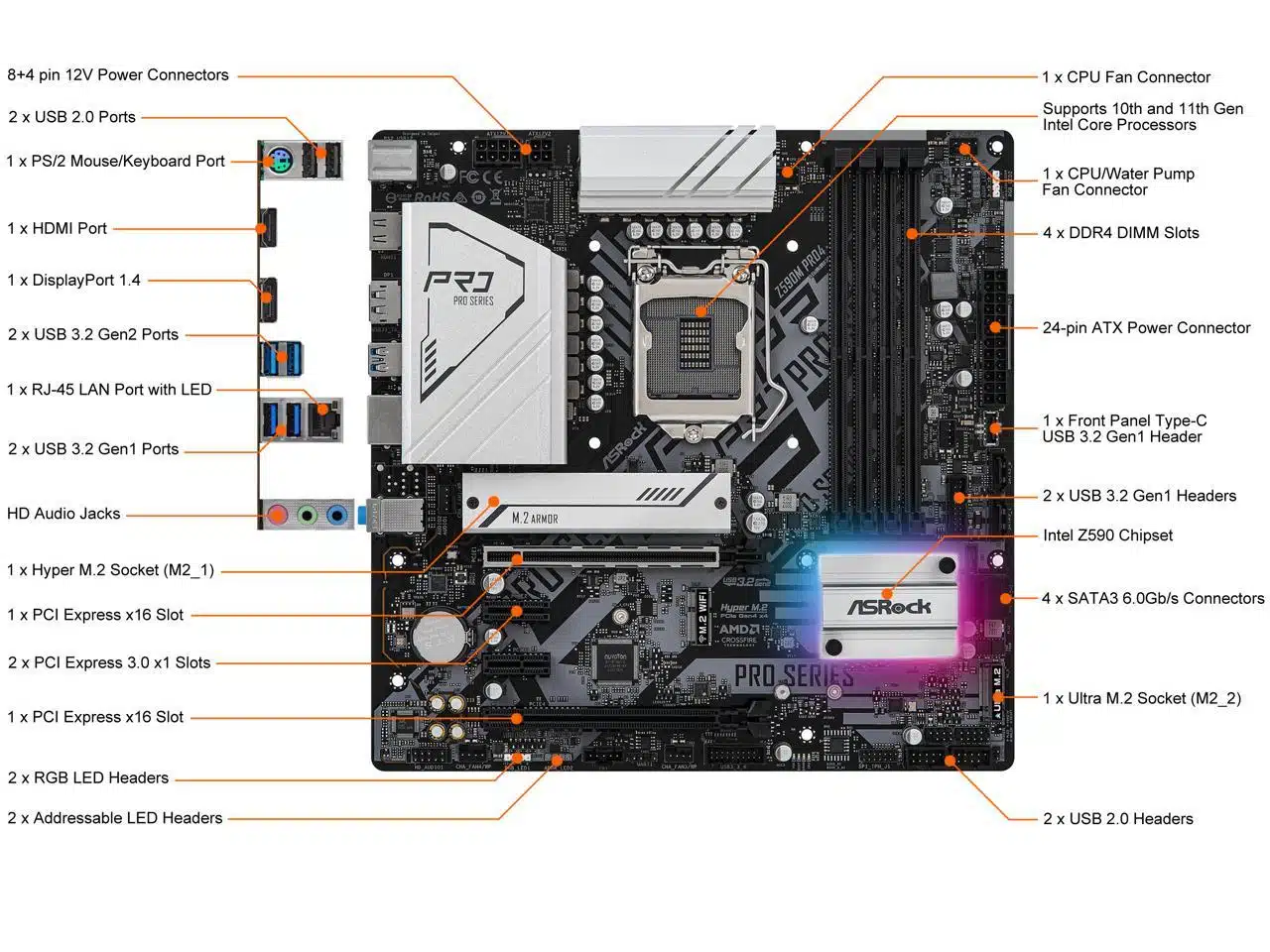

| Rear Panel Ports |
| Back I/O Ports | 1 x PS/2 Mouse/Keyboard Port |
| 1 x HDMI Port |
| 1 x DisplayPort 1.4 |
| 2 x USB 3.2 Gen2 Ports (10Gb/s) (ReDriver) (Supports ESD Protection) |
| 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) |
| 2 x USB 2.0 Ports (Supports ESD Protection) |
| 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| HD Audio Jacks: Line in / Front Speaker / Microphone |
| Internal I/O Connectors |
| Onboard USB | 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection) |
| 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) |
| 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) |
| Other Connectors | 1 x SPI TPM Header |
| 1 x Chassis Intrusion and Speaker Header |
| 2 x RGB LED Headers* |
| 2 x Addressable LED Headers** |
| 1 x CPU Fan Connector (4-pin)*** |
| 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** |
| 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** |
| 1 x Front Panel Audio Connector |
| 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) |
|
| * Support in total up to 12V/3A, 36W LED Strip. |
| ** Support in total up to 5V/3A, 15W LED Strip. |
| *** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. |
| **** The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. |
| ***** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. |
| ***** CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP and CHA_FAN4/WP can auto detect if 3-pin or 4-pin fan is in use. |
| Physical Spec |
| Form Factor | Micro ATX |
| LED Lighting | RGB |
| Dimensions (W x L) | 9.6″ x 9.6″ |
| Power Pin | 1 x 24-pin ATX Power Connector |
| 1 x 8-pin 12V Power Connector (Hi-Density Power Connector) |
| 1 x 4-pin 12V Power Connector (Hi-Density Power Connector) |
| Windows Compatibility |
| Windows 11 | Supported |
| Packaging |

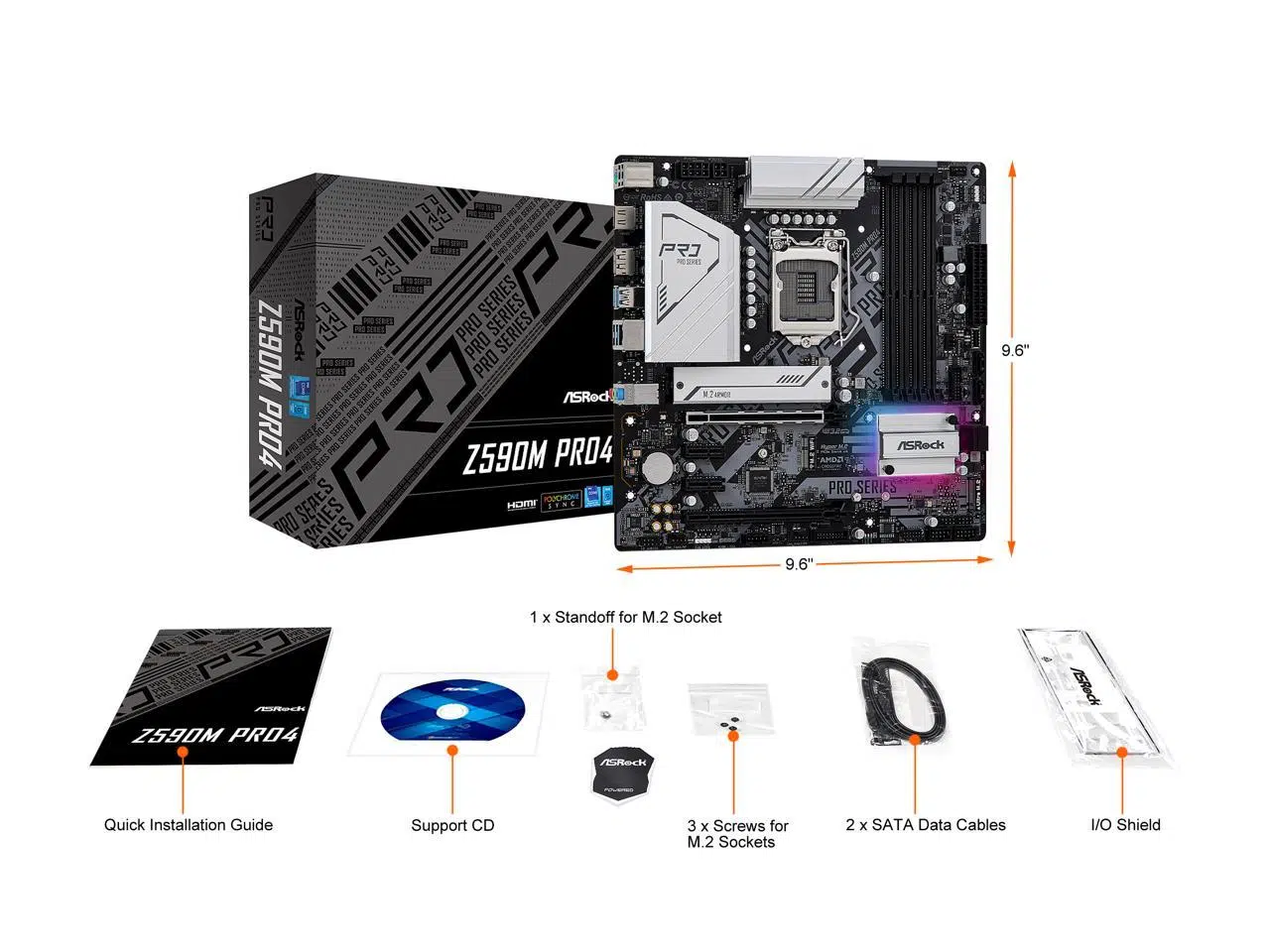

| Package Contents | Accessories: |
| Quick Installation Guide, Support CD, I/O Shield |
| 2 x SATA Data Cables |
| 3 x Screws for M.2 Sockets |
| 1 x Standoff for M.2 Socket |
