Especificaciones:
Model | |
Brand | ASUS |
Series | Prime |

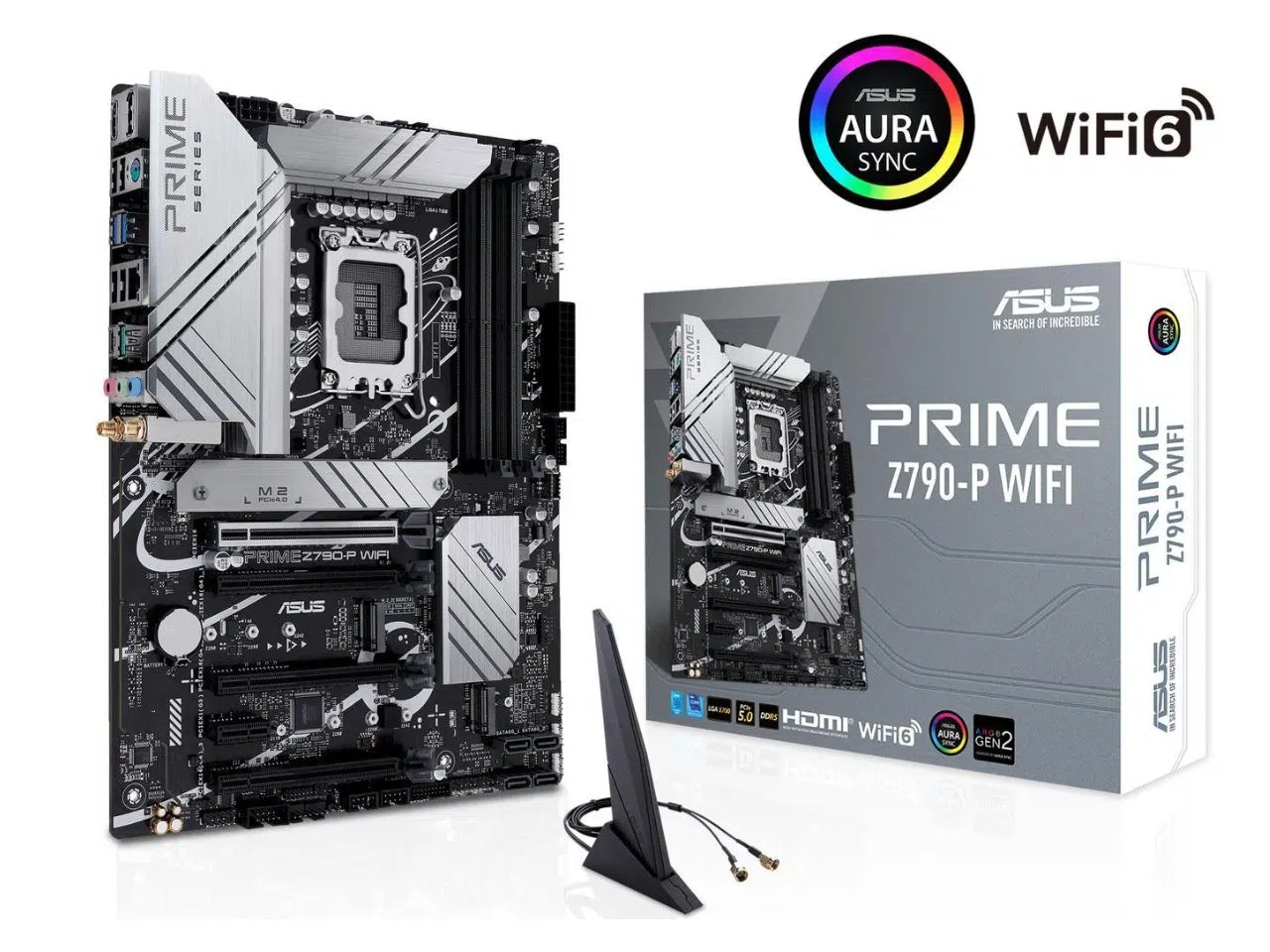

Model | PRIME Z790-P WIFI |
Part Number | 90MB1CJ0-M0AAY0 |
Supported CPU | |
CPU Socket Type | LGA 1700 |
CPU Type | Intel® Socket LGA1700 for 14th & 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* |
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** | |
* Refer to www.asus.com for CPU support list. | |
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. | |
Supported CPU Technologies | Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** |
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. | |
Chipsets | |
Chipset | Intel Z790 |
Memory | |
Number of Memory Slots | 4x288pin (DDR5) |
Memory Standard | 4 x DIMM, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* |
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. | |
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. | |
Maximum Memory Supported | 256GB |
Channel Supported | Dual Channel |
Memory Performance Profile | Intel XMP 3.0 |
Memory Feature | Dual Channel Memory Architecture |
Supports Intel Extreme Memory Profile (XMP) | |
OptiMem II | |
Expansion Slots | |

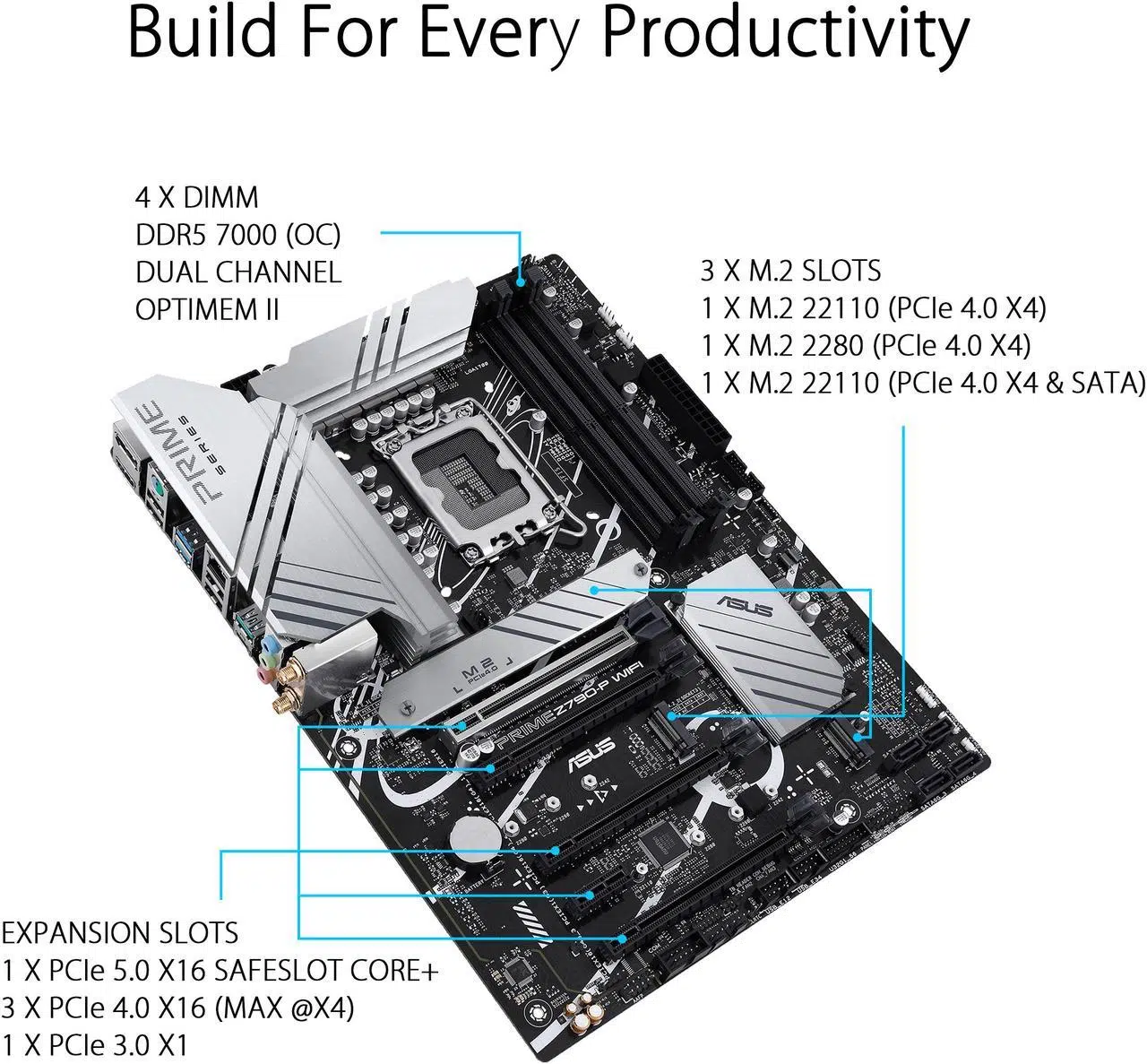

PCI Express 5.0 x16 | Intel® 14th, 13th & 12th Gen Processors* |
1 x PCIe 5.0 x16 slot | |
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). | |
PCI Express 4.0 x16 | 3 x PCIe 4.0 x16 slots (support x4 mode) |
PCI Express x1 | 1 x PCIe 3.0 x1 slot |
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). | |
Storage Devices | |
SATA 6Gb/s | 4 x SATA 6Gb/s |
M.2 | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* |
Intel® 14th, 13th & 12th Gen Processors | |
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) | |
Intel® Z790 Chipset | |
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) | |
4 x SATA 6Gb/s ports | |
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. | |
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. | |
SATA RAID | 0/1/5/10 |
Onboard Audio | |
Audio Chipset | Realtek 7.1 Surround Sound High Definition Audio CODEC* |
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
– Supports up to 24-Bit/192 kHz playback | |
Audio Features | |
– Audio Shielding | |
– Premium audio capacitors | |
– Dedicated audio PCB layers | |
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. | |
Audio Channels | 7.1 Channels |
Onboard LAN | |
LAN Chipset | 1 x Realtek 2.5Gb Ethernet |
Max LAN Speed | 2.5Gbps |
Wireless LAN | Wi-Fi 6 |
2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) | |
Supports 2.4/5GHz frequency band | |
Bluetooth | Bluetooth v5.2 |

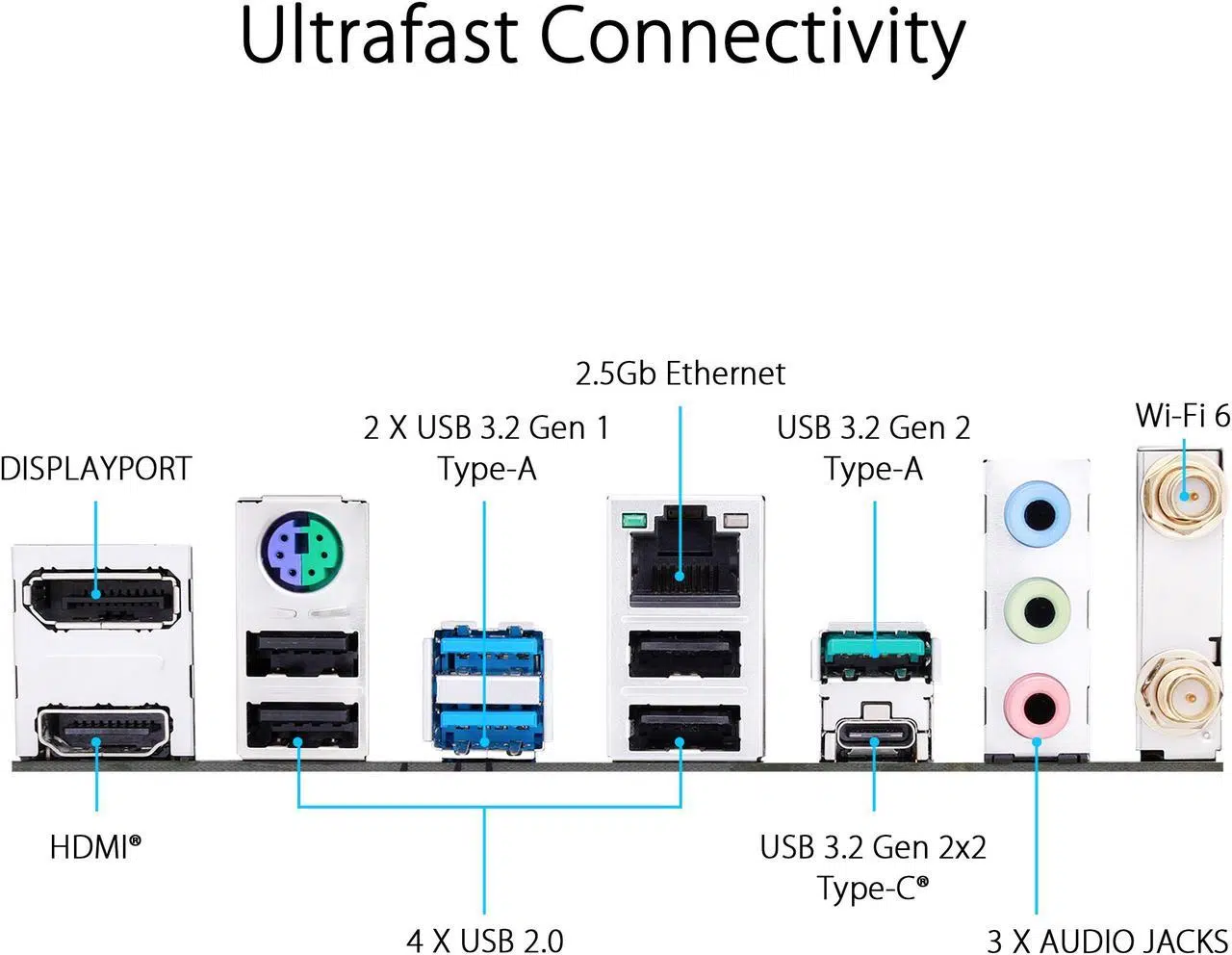

Rear Panel Ports | |
Back I/O Ports | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C) |
1 x USB 3.2 Gen 2 port (1 x Type-A) | |
2 x USB 3.2 Gen 1 ports (2 x Type-A) | |
4 x USB 2.0 ports (4 x Type-A) | |
1 x DisplayPort | |
1 x HDMI port | |
1 x Wi-Fi Module | |
1 x Realtek 2.5Gb Ethernet port | |
3 x Audio jacks | |
1 x PS/2 Keyboard/Mouse combo port | |
Internal I/O Connectors | |
Onboard USB | 1 x USB 3.2 Gen 2 connector (supports USB Type-C) |
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports | |
2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
* USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth. | |
* USB_E5 port, USB_E6 port, USB_E7 port and USB_E8 port share the bandwidth. | |

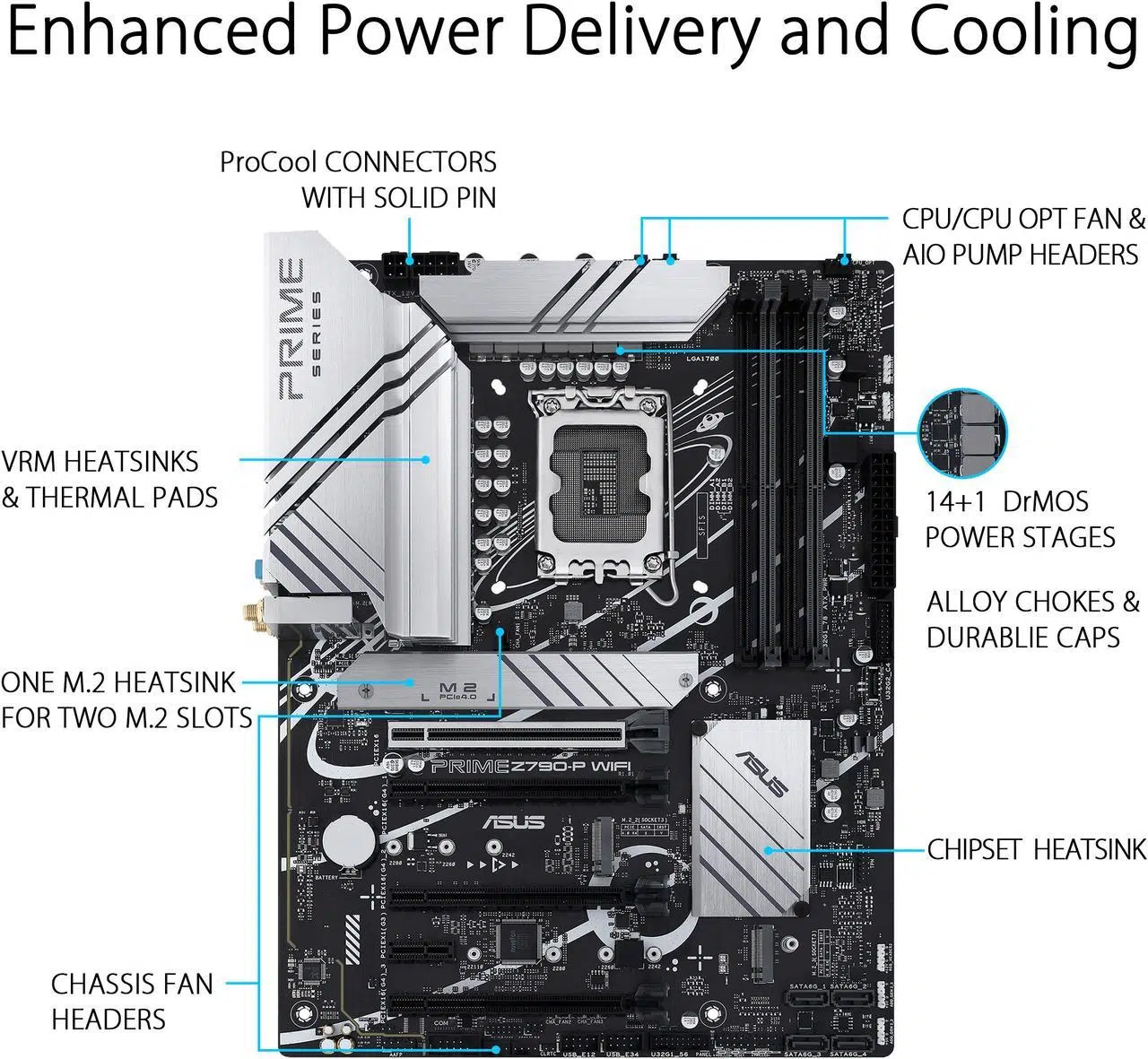

Other Connectors | Fan and Cooling related |
1 x 4-pin CPU Fan header | |
1 x 4-pin CPU OPT Fan header | |
1 x 4-pin AIO Pump header | |
3 x 4-pin Chassis Fan headers | |
Storage related | |
3 x M.2 slots (Key M) | |
4 x SATA 6Gb/s ports | |
Miscellaneous | |

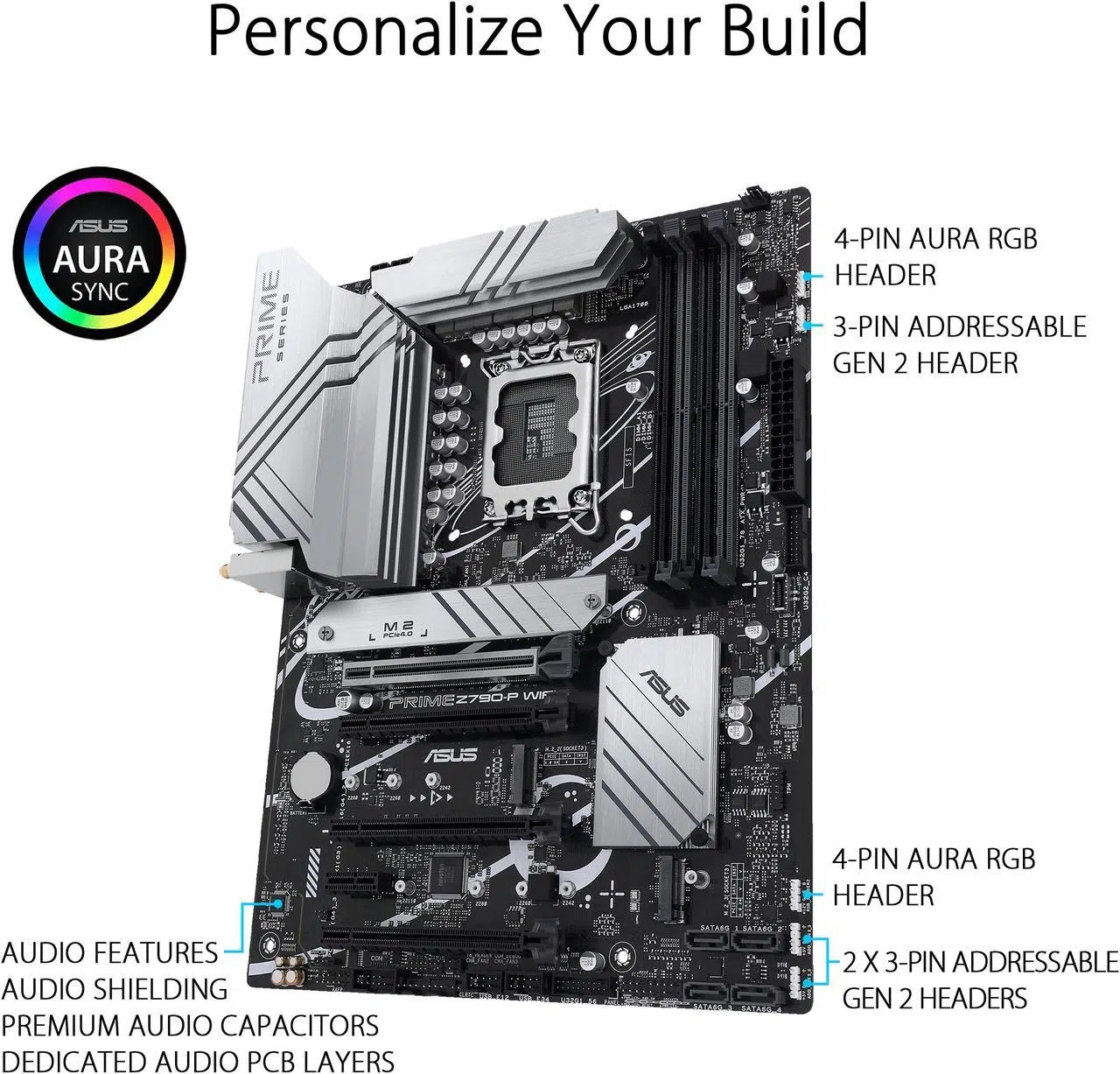

3 x Addressable Gen 2 headers | |
2 x Aura RGB headers | |
1 x Clear CMOS header | |
1 x COM Port header | |
1 x Front Panel Audio header (AAFP) | |
1 x S/PDIF Out header | |
1 x SPI TPM header (14-1pin) | |
1 x 20-5pin System Panel header | |
1 x Thunderbolt header | |
Physical Spec | |
Form Factor | ATX |
LED Lighting | RGB |
Dimensions (W x L) | 305 x 244 mm |
Power Pin | 1 x 24-pin Main Power connector |
1 x 8-pin +12V Power connector | |
1 x 4-pin +12V Power connector | |
Windows Compatibility | |
Windows 11 | Supported |
