***Producto Open Box con garantía de 6 meses***
***Su estado estético puede presentar signos de uso muy leves, ya que el componente pudo haber sido usado para testeos o exhibición***
***Producto se envía con embalaje genérico***

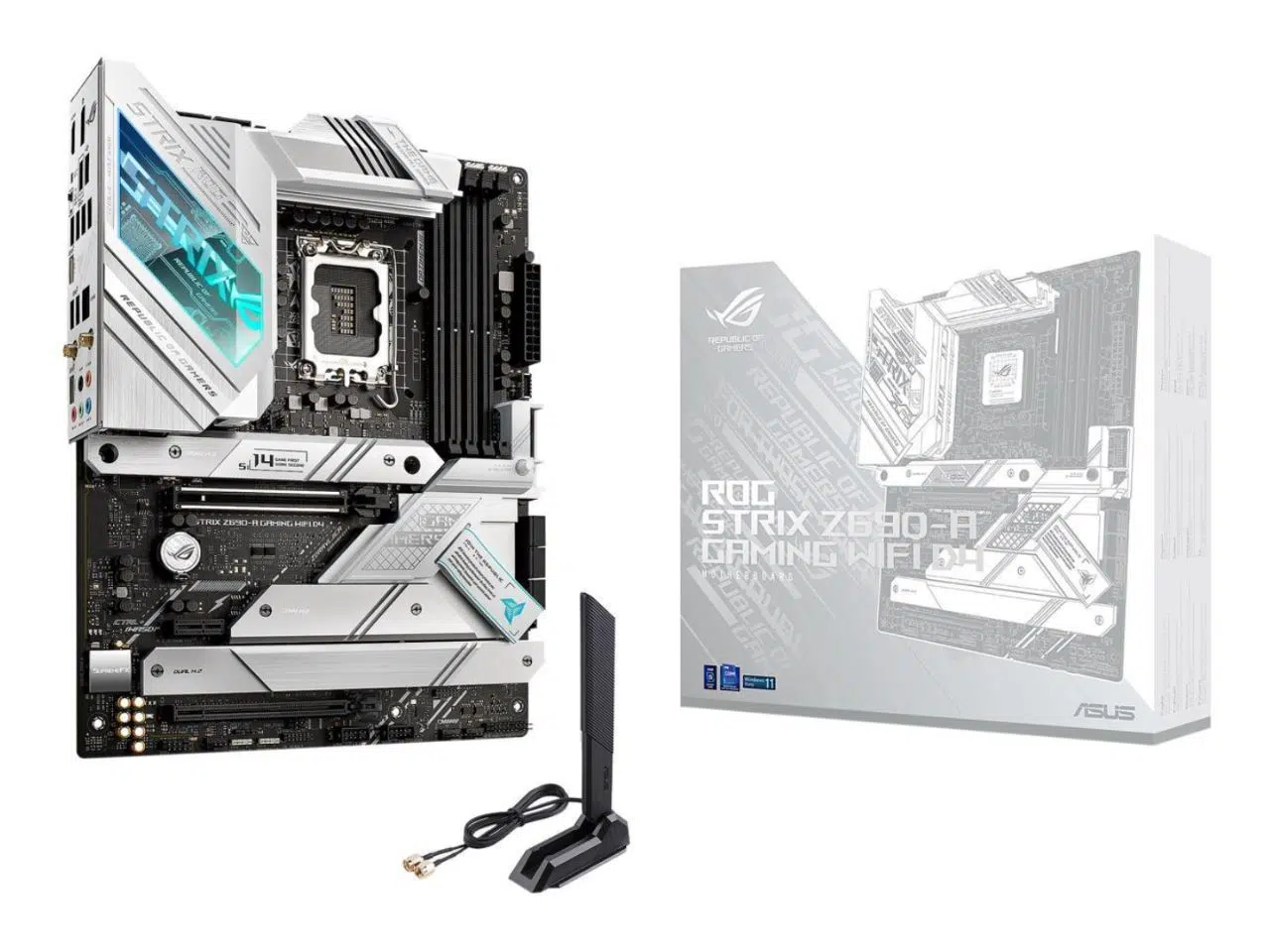

***Accesorios incluidos: Antenas WiFi ***
Especificaciones:
Model | |
Brand | ASUS |
Series | ROG |
Model | STRIX Z690-A GAMING WIFI D4 |
Part Number | 90MB18K0-M0AAY0 |
Supported CPU | |
CPU Socket Type | LGA 1700 |
* Designed with dual mounting holes compatible with both Intel LGA1700 and LGA1200 cooling brackets. | |
CPU Type | Supports 13th / 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors* |
*May require a BIOS update to boot the 13th gen Intel® Core™ desktop processors. Visit: https://www.asus.com/news/oujwh1old5n6oglf/ | |
* Refer to www.asus.com for CPU support list. | |
Supported CPU Technologies | Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0* |
* Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. | |
Chipsets | |
Chipset | Intel Z690 |
Onboard Video | |
Onboard Video Chipset | Supported only by CPU with integrated graphic |
Memory | |
Number of Memory Slots | 4x288pin (DDR4) |
Memory Standard | DDR4 5333(OC) / 5000(OC) / 4800(OC) / 4700(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 |
*Actual Memory frequency support depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). | |
Maximum Memory Supported | 128GB |
Channel Supported | Dual Channel |

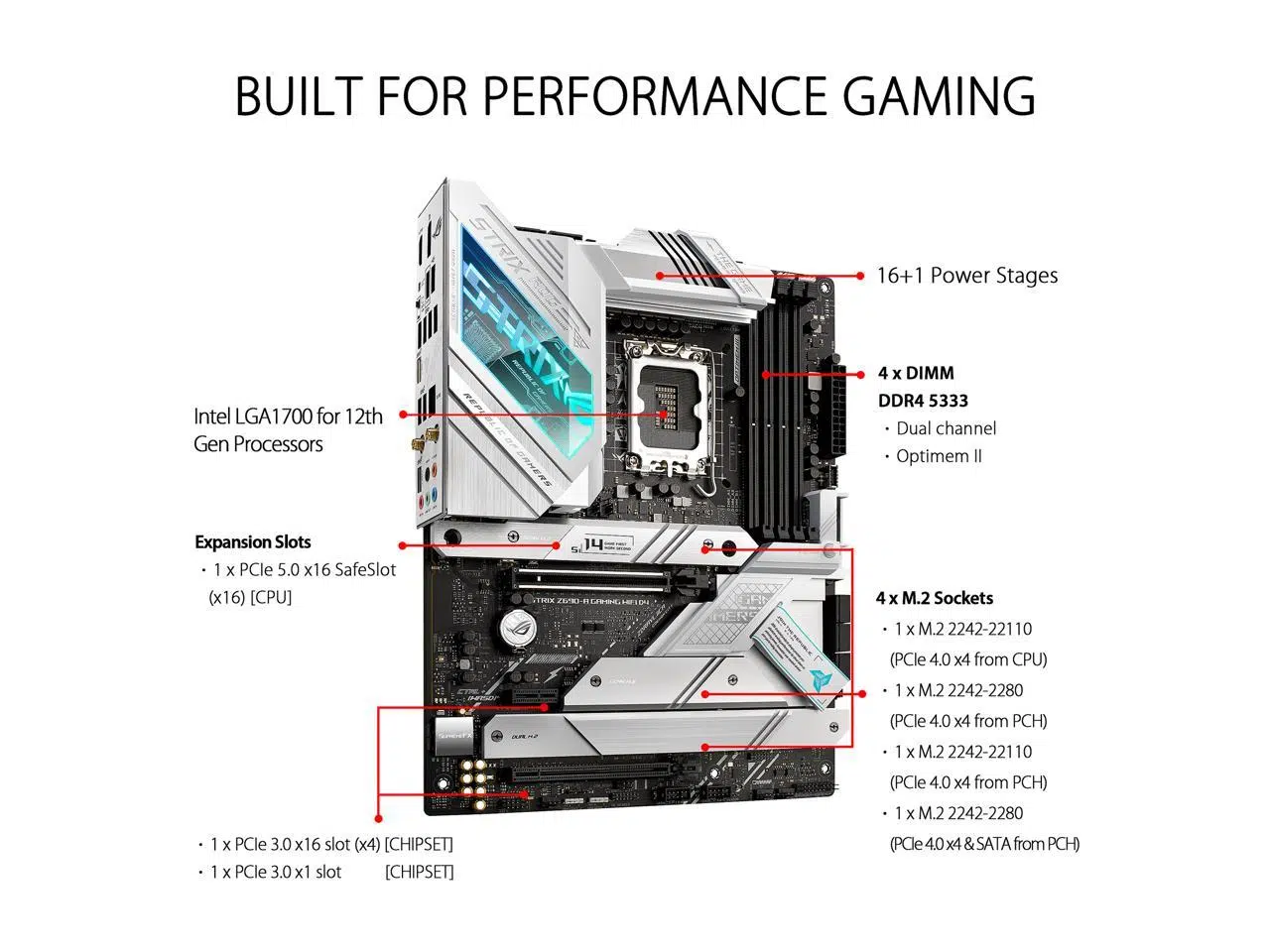

Expansion Slots | |
PCI Express 5.0 x16 | 1 x PCI Express 5.0 x16 |
* Actual support may vary by CPU. | |
* Please check PCIe bifurcation table in support site. | |
PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 |
* Supports x4 mode. | |
PCI Express x1 | 1 x PCIe 3.0 x1 |
Storage Devices | |
SATA 6Gb/s | 6 x SATA 6Gb/s |
M.2 | Intel 12th Gen Processors: |
M.2_1 slot (Key M), type 2242/2260/2280/22110 | |
– Intel 12th Gen processors support PCIe 4.0 x4 mode. | |
Intel Z690 Chipset: | |
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4) | |
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)** | |
* Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. | |
** When M.2_4 is operating in SATA mode, SATA6G_2 will be disabled. | |
Intel Optane Ready | Yes |
Onboard Audio | |
Audio Chipset | Realtek ALC4080 |
Audio Channels | 7.1 Channels |
Onboard LAN | |
LAN Chipset | Intel 2.5Gb Ethernet |
Max LAN Speed | 2.5Gbps |
Wireless LAN | Wi-Fi 6 |
802.11a/b/g/n/ac/ax | |
Bluetooth | Bluetooth 5.2 |

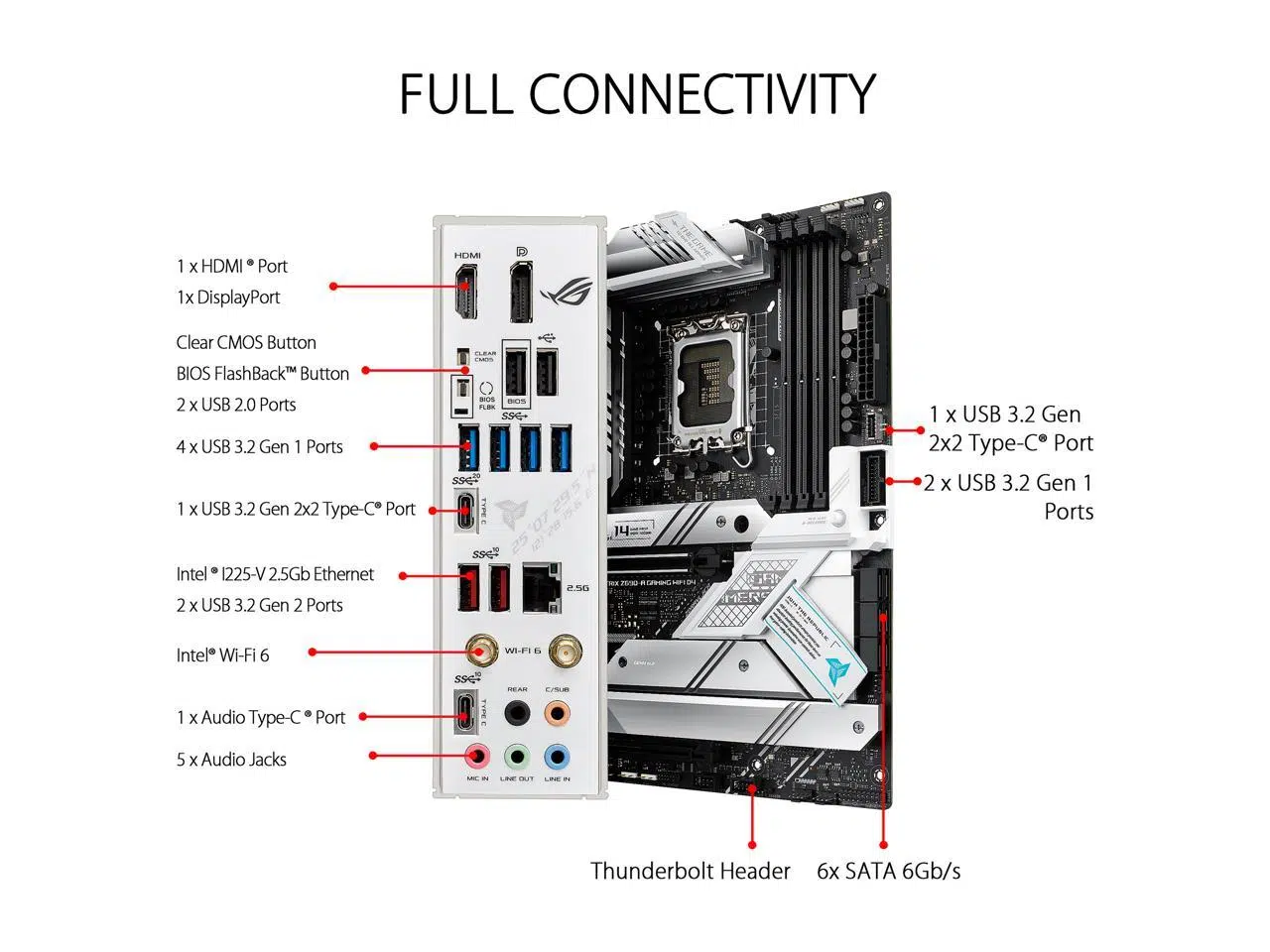

Rear Panel Ports | |
Back I/O Ports | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C) |
3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C) | |
4 x USB 3.2 Gen 1 ports (4 x Type-A) | |
2 x USB 2.0 ports (2 x Type-A) | |
1 x DisplayPort | |
1 x HDMI port | |
1 x Wi-Fi Module | |
1 x Intel 2.5Gb Ethernet port | |
5 x Audio jacks | |
1 x BIOS FlashBack button | |
1 x Clear CMOS button | |
Internal I/O Connectors | |
Onboard USB | 1 x USB 3.2 Gen 2×2 connector (support USB Type-C) |
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
Other Connectors | Fan and Cooling related |
1 x 4-pin CPU Fan header | |
1 x 4-pin CPU OPT Fan header | |
1 x 4-pin AIO Pump header | |
5 x 4-pin Chassis Fan headers | |
Miscellaneous | |

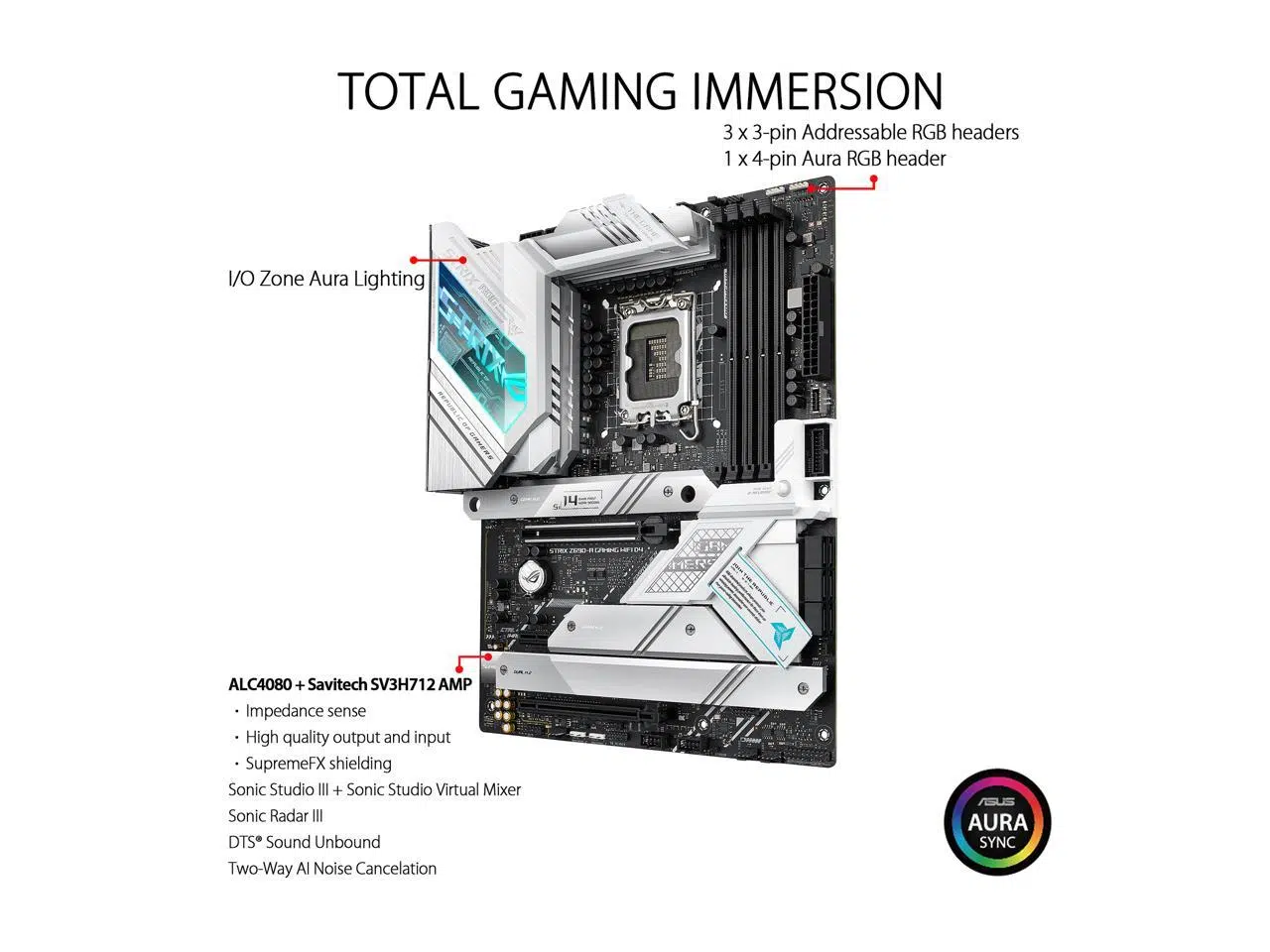

3 x Addressable Gen 2 headers | |
1 x AURA RGB header | |
1 x Clear CMOS header | |
1 x CPU Over Voltage jumper | |
1 x 12-1 pin Front Panel Audio header (AAFP) | |
1 x S/PDIF Out header | |
1 x SPI TPM header (14-1pin) | |
1 x 20-3 pin System Panel header with Chassis intrude function | |
1 x Thermal Sensor header | |
1 x Thunderbolt header | |
Physical Spec | |
Form Factor | ATX |
LED Lighting | RGB |
Dimensions (W x L) | 12.0″ x 9.6″ |
Power Pin | 1 x 24-pin Main Power connector |
2 x 8-pin +12V Power connectors | |
Windows Compatibility | |
Windows 11 | Ready |
