***Producto Open Box con garantía de 12 meses***
***Su estado estético puede presentar signos de uso muy leves, ya que el componente pudo haber sido usado para testeos o exhibición***
***Producto se envía con embalaje genérico***
***Accesorios incluidos: Antenas WiFi ***
Especificaciones
Model | |
Brand | ASUS |
Series | ROG |

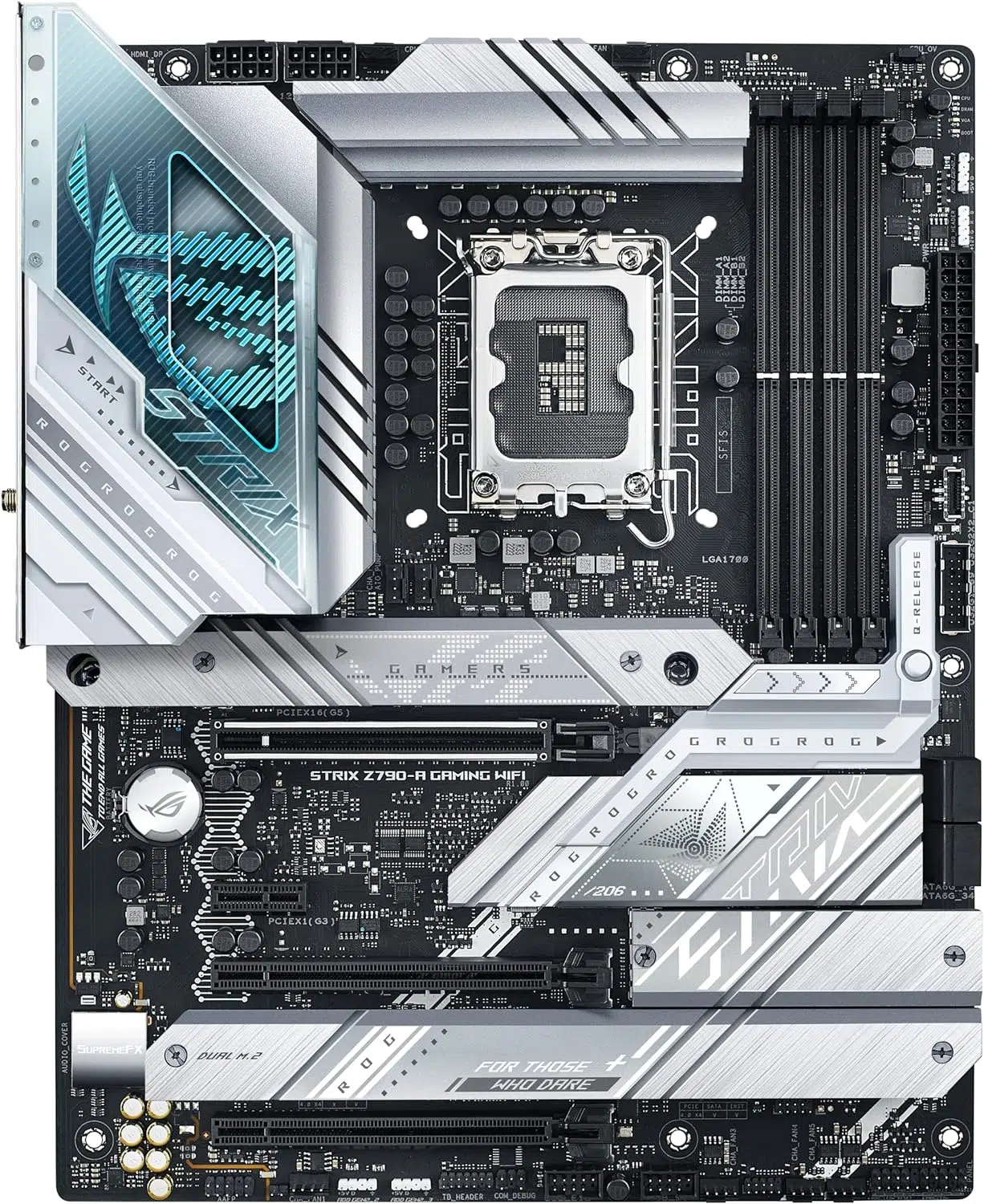

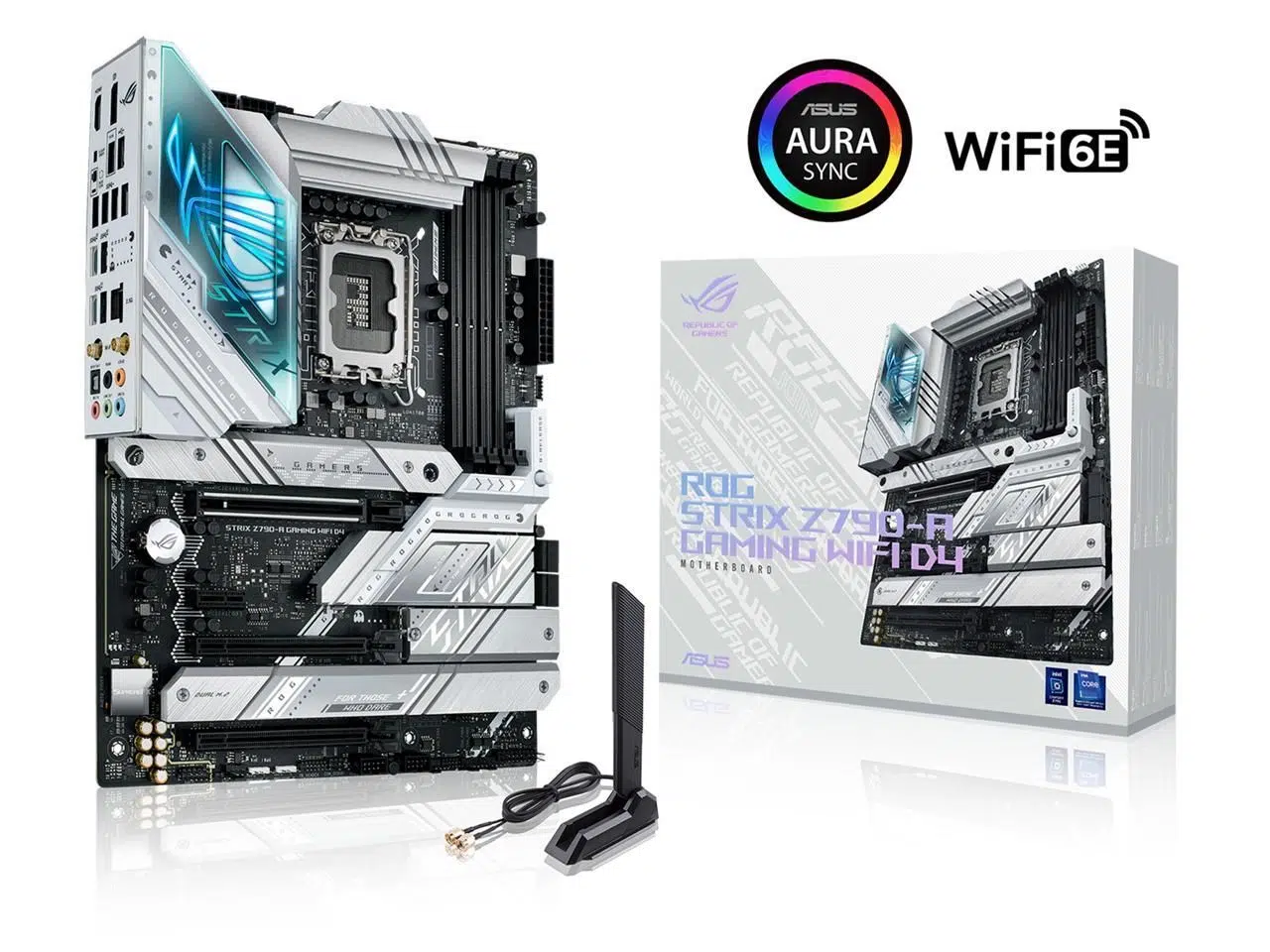

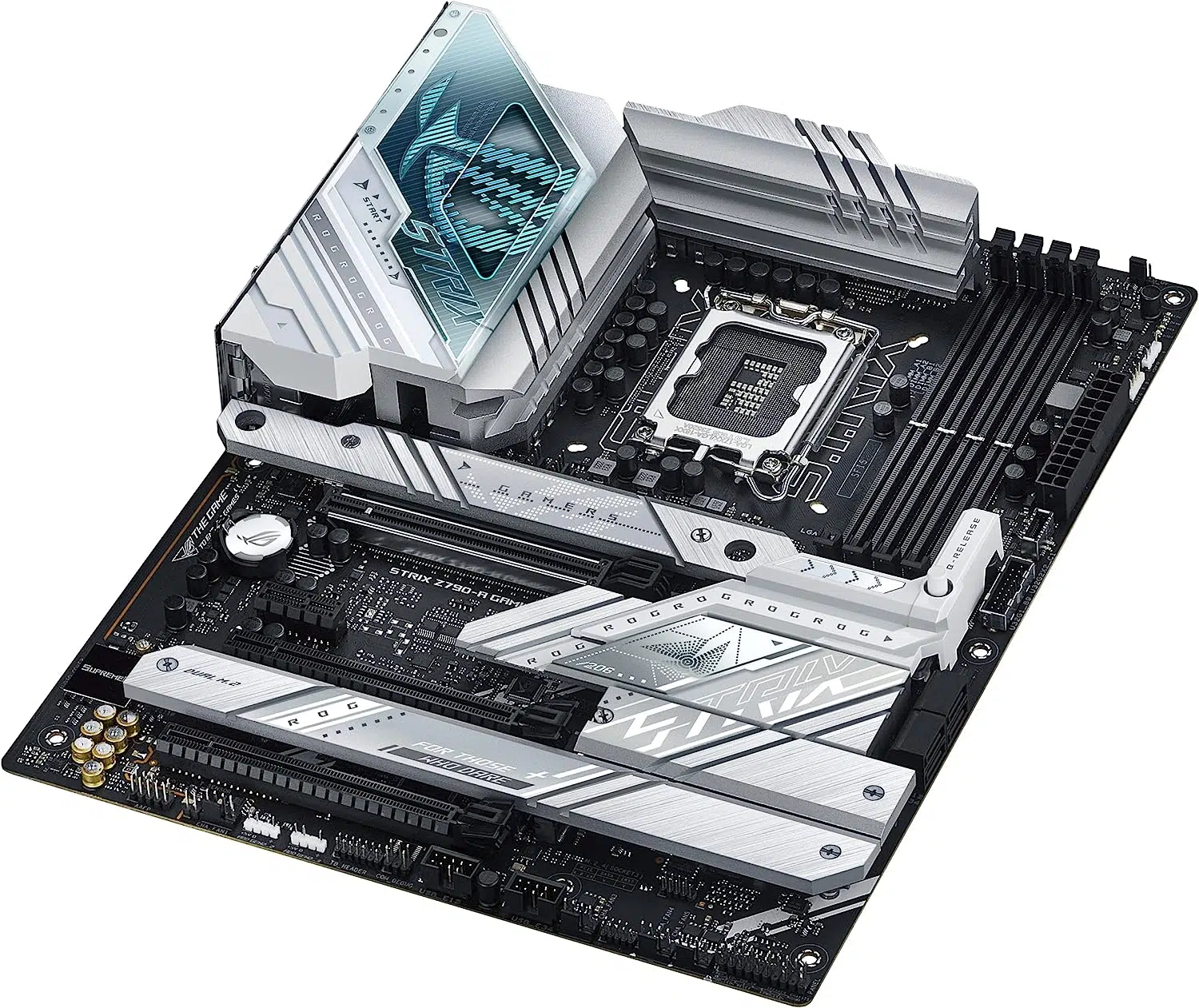

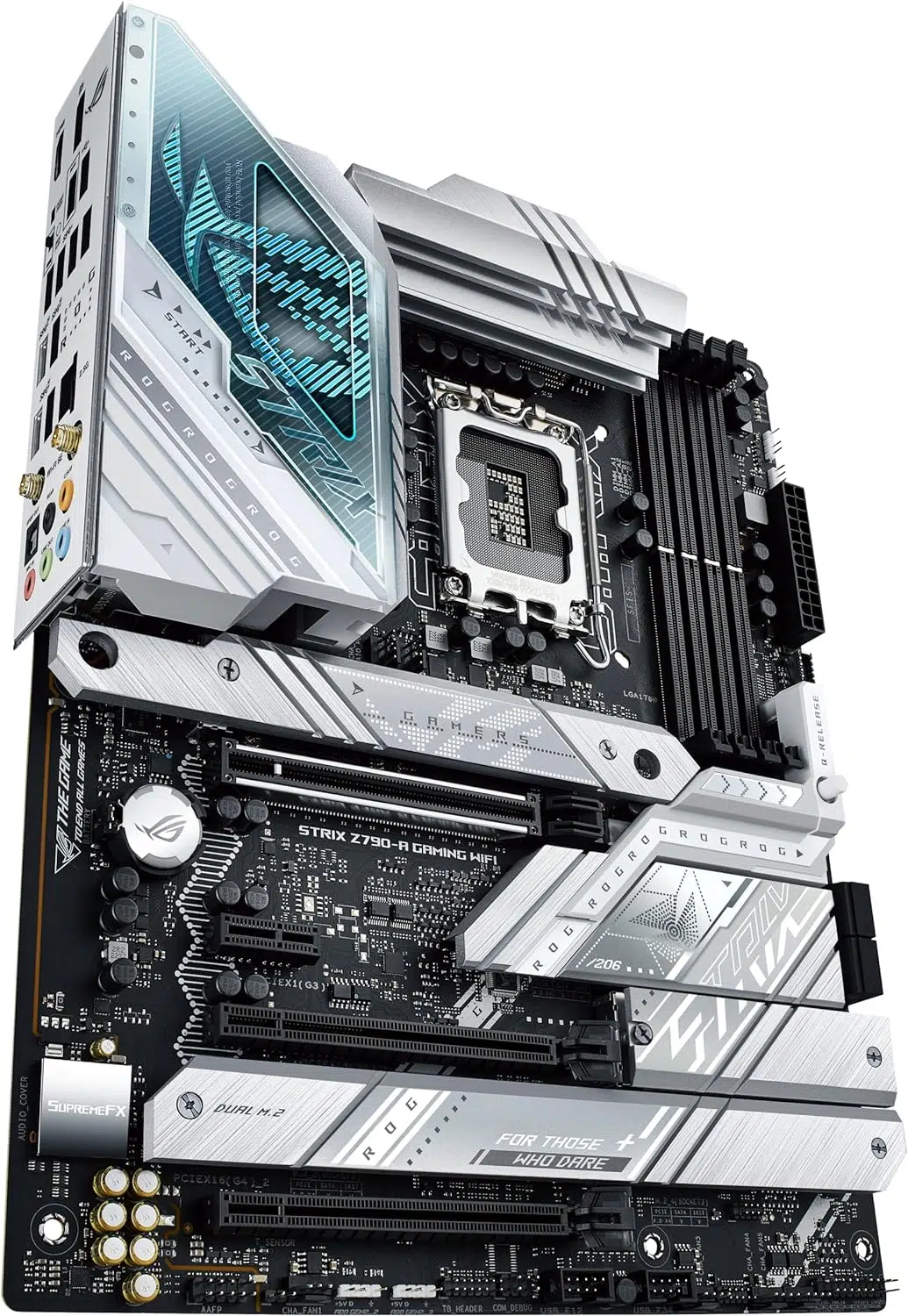

Model | STRIX Z790-A GAMING WIFI D4 |
Part Number | 90MB1CN0-M0AAY0 |
Supported CPU | |
CPU Socket Type | LGA 1700 |
CPU Type | Intel® Socket LGA1700 for 14th & 13th & 12th Gen Intel® Core™ Processors & 12th Gen Intel® Core™,
Pentium® Gold and Celeron® Processors* |
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** | |
* Refer to www.asus.com for CPU support list. | |
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. | |
Chipsets | |
Chipset | Intel Z790 |
Memory | |
Number of Memory Slots | 4x288pin (DDR4) |
Memory Standard | DDR4:5333(OC)/5133(OC)/5066(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/
4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/ |
3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/
2800/2666/2400/2133 Non-ECC, Un-buffered Memory* |
|
Dual Channel Memory Architecture | |
Supports Intel® Extreme Memory Profile (XMP) | |
OptiMem III | |
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. | |
Maximum Memory Supported | 128GB |
Channel Supported | Dual Channel |
Expansion Slots | |
PCI Express 5.0 x16 | Intel® 14th & 13th & 12th Gen Processors |
1 x PCIe 5.0 x16 slot | |
PCI Express 4.0 x16 | Intel Z790 Chipset |
2 x PCIe 4.0 x16 slots (support x4/x4 mode) | |
PCI Express x1 | 1 x PCIe 3.0 x1 slot |
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. | |
Storage Devices | |
SATA 6Gb/s | 4 x SATA 6Gb/s |
M.2 | Intel® 14th & 13th & 12th Gen Processors |
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) | |
Intel® Z790 Chipset | |
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) | |
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) | |
4 x SATA 6Gb/s ports**** | |
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. | |
SATA RAID | Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. |
Onboard Audio | |
Audio Chipset | Realtek ALC4080 |
Audio Channels | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 |
– Impedance sense for front and rear headphone outputs | |
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input | |
– Supports up to 32-Bit/384 kHz playback | |
Audio Features | |
– SupremeFX Shielding Technology | |
– Savitech SV3H712 AMP | |
– Rear optical S/PDIF out port | |
– Premium audio capacitors | |
– Audio cover | |
Onboard LAN | |
Max LAN Speed | 2.5Gbps |
Wireless LAN | Wi-Fi 6E |
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) | |
Supports 2.4/5/6GHz frequency band* | |
* WiFi 6E 6GHz regulatory may vary between countries. | |
Bluetooth | Bluetooth v5.2 |
Rear Panel Ports | |

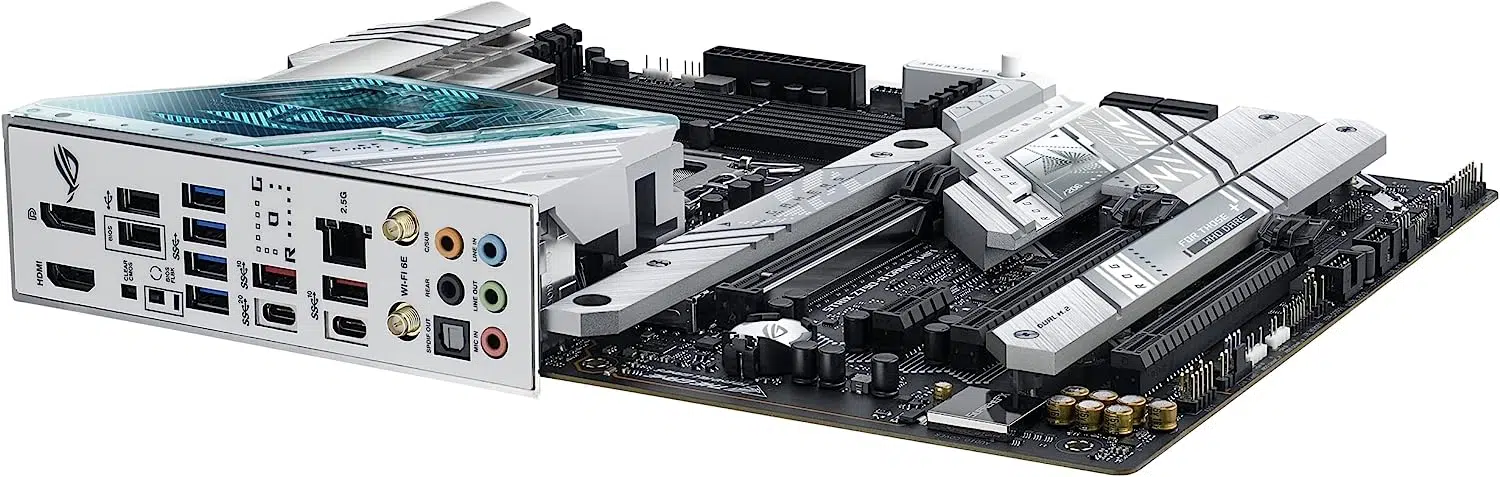

Back I/O Ports | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C) |
3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C) | |
4 x USB 3.2 Gen 1 ports (4 x Type-A) | |
2 x USB 2.0 ports (2 x Type-A) | |
1 x DisplayPort | |
1 x HDMI port | |
1 x Wi-Fi Module | |
1 x Intel 2.5Gb Ethernet port | |
5 x Audio jacks | |
1 x Optical S/PDIF out port | |
1 x BIOS FlashBack button | |
1 x Clear CMOS button | |
Internal I/O Connectors | |
Onboard USB | 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C ) |
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports | |
2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
Other Connectors | Fan and Cooling related |
1 x 4-pin CPU Fan header | |
1 x 4-pin CPU OPT Fan header | |
1 x 4-pin AIO Pump header | |
5 x 4-pin Chassis Fan header(s) | |
Storage related | |
4 x M.2 slots (Key M) | |
4 x SATA 6Gb/s ports | |
Miscellaneous | |
3 x Addressable Gen 2 headers | |
1 x Aura RGB header | |
1 x CPU Over Voltage jumper | |
1 x Front Panel Audio header (AAFP) | |
1 x 20-3 pin System Panel header with Chassis intrude function | |
1 x Thermal Sensor header | |
1 x Thunderbolt header | |
Physical Spec | |
Form Factor | ATX |
Dimensions (W x L) | 305 x 244 mm |
Power Pin | 1 x 24-pin Main Power connector |
2 x 8-pin +12V Power connectors |
