Name: Placa Madre Intel ASUS TUF Gaming B660M PLUS WiFi D4 DDR4 mATX (Open Box)
Brand: Asus
SKU: 12720
Price: 179990 CLP
Availability: OutOfStock

Placa Madre Intel ASUS TUF Gaming B660M PLUS WiFi D4 DDR4 mATX (Open Box)

Iva Inc

Precios según método de pago

Transferencia Bancaria Directa.

$179.990

El precio más bajo
Flow. Tarjetas de Débito/Crédito y Otros

$194.389

hasta 6 cuotas sin interés de $32.398
Mercado Pago. Tarjetas de Crédito

$205.189

hasta 12 cuotas sin interés de $17.099

Estado: Open Box

Entrega: Envíos a todo Chile mediante Chilexpress (24 a 48 horas dentro de Stgo / 48 a 72 horas para regiones)

Garantía: 12 meses

Sin existencias

8 ¡La gente está viendo este producto ahora!

***Producto Open Box con garantía de 12 meses***

***Su estado estético puede presentar signos de uso muy leves, ya que el componente pudo haber sido usado para testeos o exhibición***

***Producto se envía con embalaje genérico***

***Accesorios incluidos: Antenas WiFi ***

Especificaciones

Model
Brand	ASUS
Model	TUF GAMING B660M-PLUS WIFI D4
Supported CPU
CPU Socket Type	LGA 1700

	* Dedicated LGA1700 mounting bracket is required.
CPU Type	Supports 13th / 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors*
	*May require a BIOS update to boot the 13th gen Intel® Core™ desktop processors. Visit: https://www.asus.com/news/oujwh1old5n6oglf/
	* Refer to www.asus.com for CPU support list.
Supported CPU Technologies	Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*

	* Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipsets
Chipset	Intel B660
Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic
Memory
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 5333(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133*

	* Actual Memory frequency support depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported	128GB
Channel Supported	Dual Channel
Expansion Slots
PCI Express 5.0 x16	1 x PCI Express 5.0 x16

	* Actual support may vary by CPU.
PCI Express 3.0 x16	1 x PCI Express 3.0 x16

	* Supports x4 mode.
PCI Express x1	1 x PCIe 4.0 x1
Storage Devices
SATA 6Gb/s	4 x SATA 6Gb/s
M.2	Intel 12th Gen Processors:
	M.2_1 slot (Key M), type 2242/2260/2280
	– Intel 12th Gen processors support PCIe 4.0 x4 mode.

	Intel B660 Chipset*:
	M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

	* Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.
Intel Optane Ready	Yes
SATA RAID	0/1/5/10
Onboard Audio
Audio Chipset	Realtek 7.1 Surround Sound High Definition Audio CODEC
Audio Channels	7.1 Channels
Onboard LAN
LAN Chipset	Realtek 2.5Gb Ethernet
Max LAN Speed	2.5Gbps
Wireless LAN	Wi-Fi 6
Wireless LAN	802.11 a/b/g/n/ac/ax
Bluetooth	Bluetooth 5.2

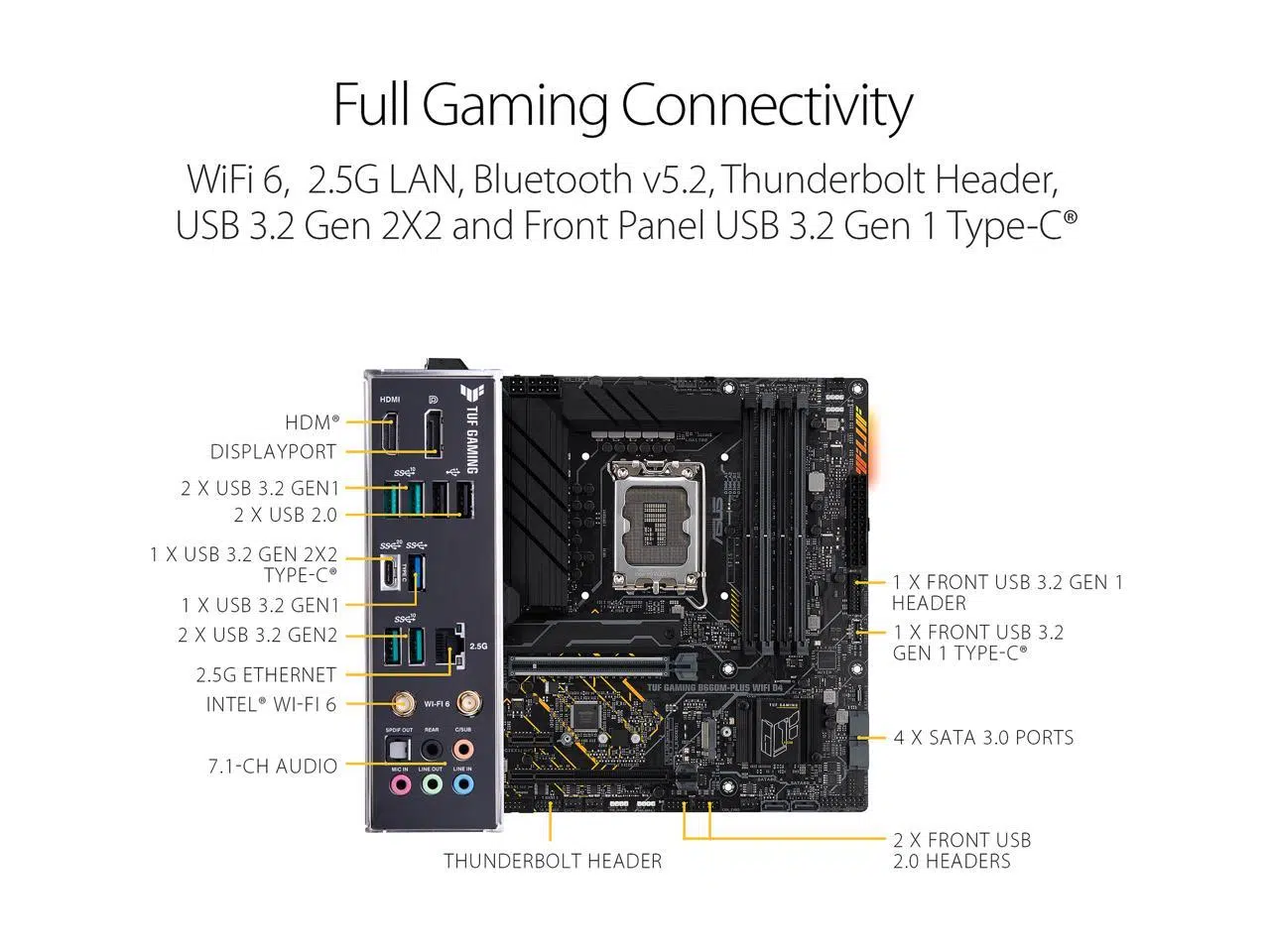

Rear Panel Ports
Back I/O Ports	1 x USB 3.2 Gen 2×2 port (1 x USB Type-C)
	4 x USB 3.2 Gen 2 ports (4 x Type-A)
	1 x USB 3.2 Gen 1 port (1 x Type-A)
	2 x USB 2.0 ports (2 x Type-A)
	1 x DisplayPort
	1 x HDMI port
	1 x Wi-Fi Module
	1 x Realtek 2.5Gb Ethernet port
	5 x Audio jacks
	1 x Optical S/PDIF out port
Internal I/O Connectors
Onboard USB	1 x USB 3.2 Gen 1 connector (supports USB Type-C)
	1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
	2 x USB 2.0 headers support additional 4 USB 2.0 ports

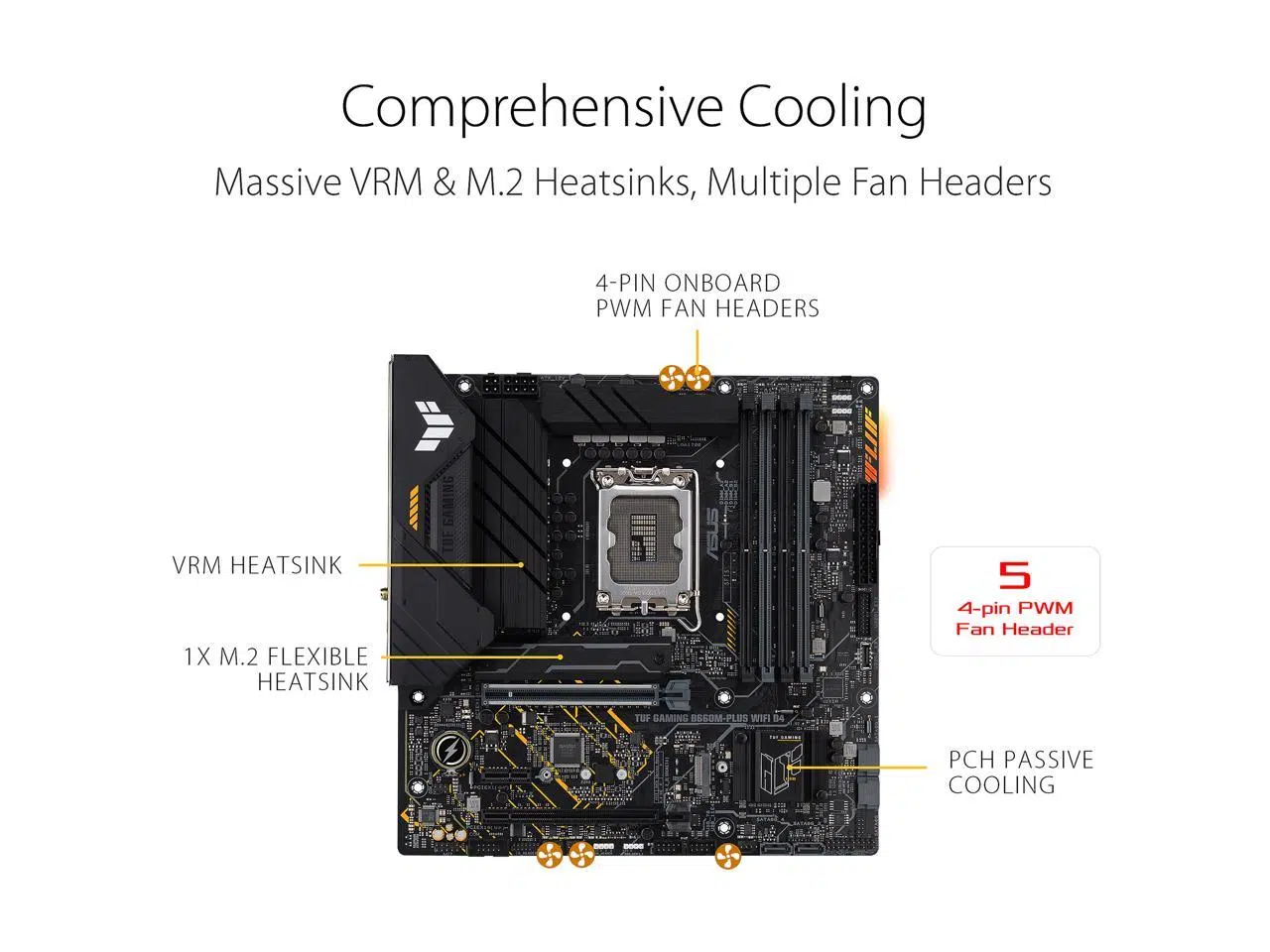

Other Connectors	Fan and Cooling related
	1 x 4-pin CPU Fan header
	1 x 4-pin CPU OPT Fan header
	1 x 4-pin AIO Pump header
	3 x 4-pin Chassis Fan headers

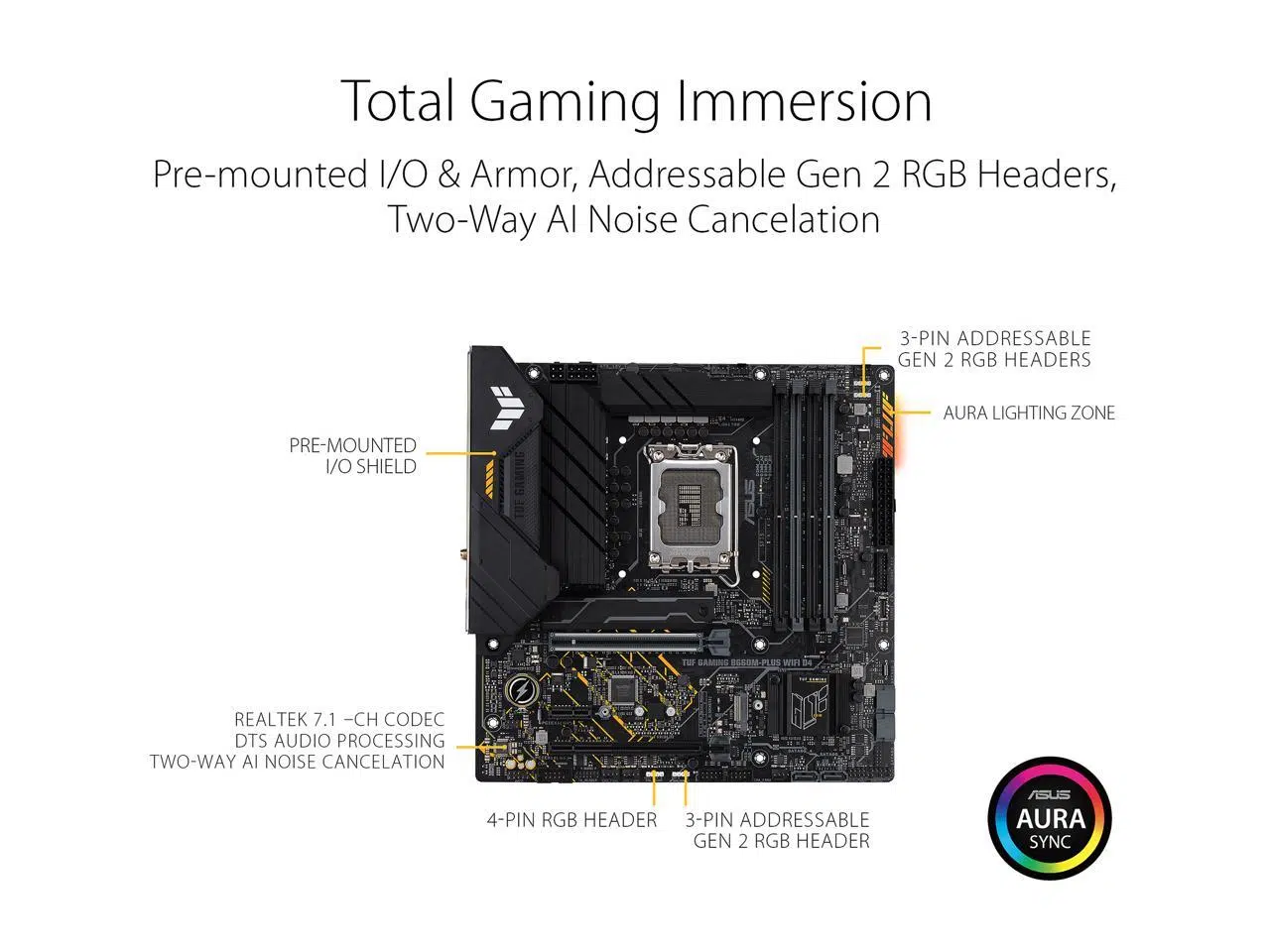

	Miscellaneous
	3 x Addressable Gen 2 headers
	1 x AURA RGB header
	1 x Clear CMOS header
	1 x COM Port header
	1 x Front Panel Audio header (AAFP)
	1 x 20-3 pin System Panel header with Chassis intrude function
	1 x Thunderbolt header
Physical Spec
Form Factor	Micro ATX
LED Lighting	RGB
Dimensions (W x L)	9.6″ x 9.6″
Power Pin	1 x 24-pin Main Power connector
	1 x 8-pin +12V Power connector
	1 x 4-pin +12V Power connector
Windows Compatibility
Windows 11	Ready

-22%

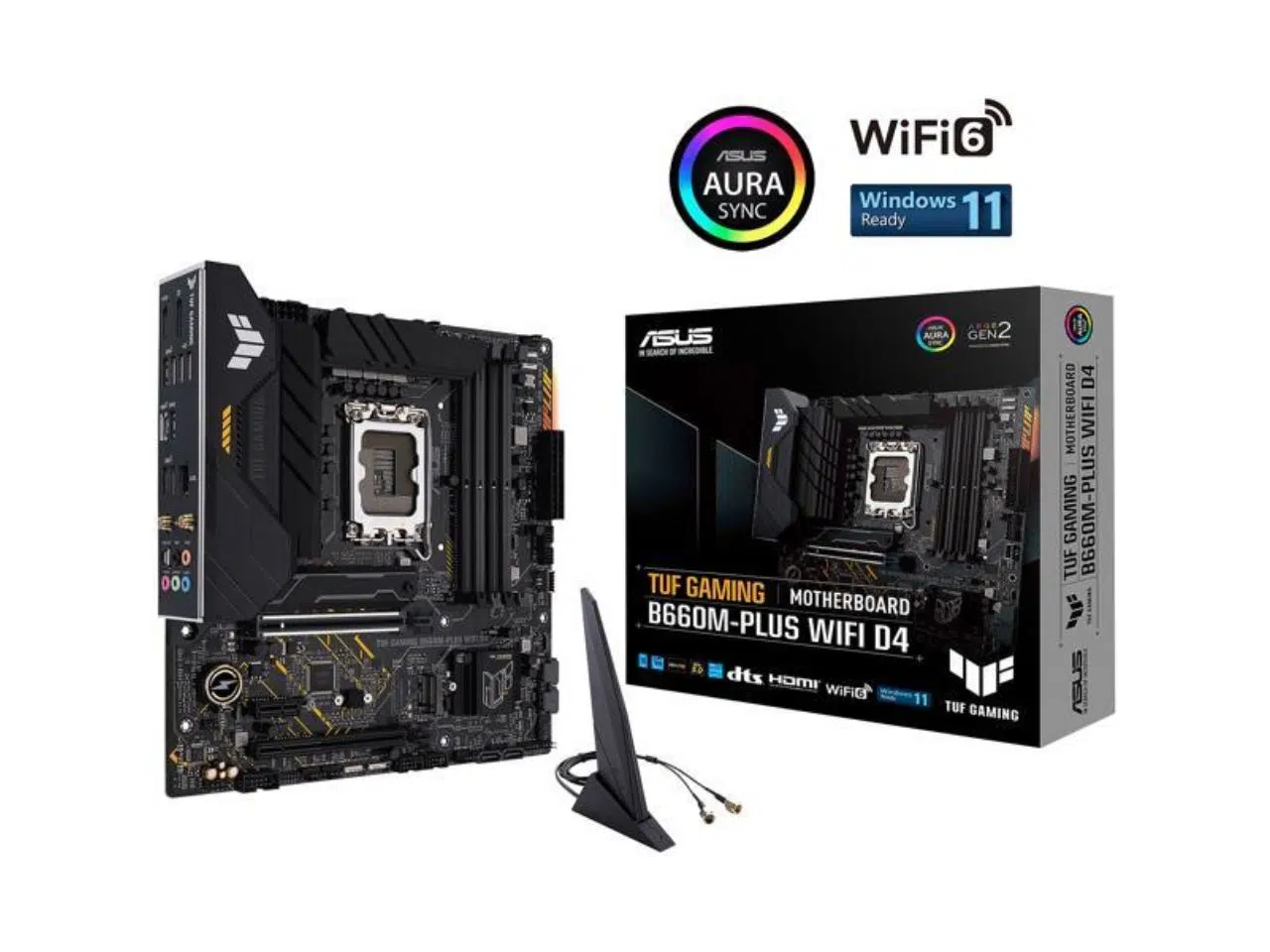

Placa Madre Intel ASUS TUF Gaming B660M PLUS WiFi D4 DDR4 mATX (Open Box) - Imagen 1

Placa Madre Intel ASUS TUF Gaming B660M PLUS WiFi D4 DDR4 mATX (Open Box) - Imagen 2

Clic para ampliar

El precio original era: $229.990.El precio actual es: $179.990. Iva Inc

Descripción
Valoraciones (0)

Descripción

Model
Brand	ASUS
Model	TUF GAMING B660M-PLUS WIFI D4
Supported CPU
CPU Socket Type	LGA 1700

	* Dedicated LGA1700 mounting bracket is required.
CPU Type	Supports 13th / 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors*
	*May require a BIOS update to boot the 13th gen Intel® Core™ desktop processors. Visit: https://www.asus.com/news/oujwh1old5n6oglf/
	* Refer to www.asus.com for CPU support list.
Supported CPU Technologies	Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*

	* Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipsets
Chipset	Intel B660
Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic
Memory
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 5333(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133*

	* Actual Memory frequency support depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported	128GB
Channel Supported	Dual Channel
Expansion Slots
PCI Express 5.0 x16	1 x PCI Express 5.0 x16

	* Actual support may vary by CPU.
PCI Express 3.0 x16	1 x PCI Express 3.0 x16

	* Supports x4 mode.
PCI Express x1	1 x PCIe 4.0 x1
Storage Devices
SATA 6Gb/s	4 x SATA 6Gb/s
M.2	Intel 12th Gen Processors:
	M.2_1 slot (Key M), type 2242/2260/2280
	– Intel 12th Gen processors support PCIe 4.0 x4 mode.

	Intel B660 Chipset*:
	M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

	* Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.
Intel Optane Ready	Yes
SATA RAID	0/1/5/10
Onboard Audio
Audio Chipset	Realtek 7.1 Surround Sound High Definition Audio CODEC
Audio Channels	7.1 Channels
Onboard LAN
LAN Chipset	Realtek 2.5Gb Ethernet
Max LAN Speed	2.5Gbps
Wireless LAN	Wi-Fi 6
Wireless LAN	802.11 a/b/g/n/ac/ax
Bluetooth	Bluetooth 5.2
Rear Panel Ports
Back I/O Ports	1 x USB 3.2 Gen 2×2 port (1 x USB Type-C)
	4 x USB 3.2 Gen 2 ports (4 x Type-A)
	1 x USB 3.2 Gen 1 port (1 x Type-A)
	2 x USB 2.0 ports (2 x Type-A)
	1 x DisplayPort
	1 x HDMI port
	1 x Wi-Fi Module
	1 x Realtek 2.5Gb Ethernet port
	5 x Audio jacks
	1 x Optical S/PDIF out port
Internal I/O Connectors
Onboard USB	1 x USB 3.2 Gen 1 connector (supports USB Type-C)
	1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
	2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other Connectors	Fan and Cooling related
	1 x 4-pin CPU Fan header
	1 x 4-pin CPU OPT Fan header
	1 x 4-pin AIO Pump header
	3 x 4-pin Chassis Fan headers
	Miscellaneous
	3 x Addressable Gen 2 headers
	1 x AURA RGB header
	1 x Clear CMOS header
	1 x COM Port header
	1 x Front Panel Audio header (AAFP)
	1 x 20-3 pin System Panel header with Chassis intrude function
	1 x Thunderbolt header
Physical Spec
Form Factor	Micro ATX
LED Lighting	RGB
Dimensions (W x L)	9.6″ x 9.6″
Power Pin	1 x 24-pin Main Power connector
	1 x 8-pin +12V Power connector
	1 x 4-pin +12V Power connector
Windows Compatibility
Windows 11	Ready
