Name: Placa Madre Intel Gigabyte B760M DS3H AX DDR5 mATX (Nuevo-Open box)
Brand: Gigabyte
SKU: 12433
Price: 134990 CLP
Availability: OutOfStock

Placa Madre Intel Gigabyte B760M DS3H AX DDR5 mATX (Nuevo-Open box)

Iva Inc

Precios según método de pago

Transferencia Bancaria Directa.

$134.990

El precio más bajo
Flow. Tarjetas de Débito/Crédito y Otros

$145.789

hasta 6 cuotas sin interés de $24.298
Mercado Pago. Tarjetas de Crédito

$153.889

hasta 12 cuotas sin interés de $12.824

Estado: Nuevo-Open Box

Entrega: Envíos a todo Chile mediante Chilexpress (24 a 48 horas dentro de Stgo / 48 a 72 horas para regiones)

Garantía: 12 meses

Sin existencias

7 ¡La gente está viendo este producto ahora!

***Producto Nuevo-Open Box con garantía de 12 meses***

***Su estado estético puede presentar signos de uso muy leves, ya que el componente pudo haber sido usado para testeos o exhibición***

***Producto se envía con embalaje original***

Especificaciones:

Model
Brand	GIGABYTE
Model	B760M DS3H AX
Supported CPU
CPU Socket Type	LGA 1700
CPU Type	Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
Chipsets
Chipset	Intel B760
Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
Maximum Memory Supported	128GB
Channel Supported	Dual Channel
Memory Feature	4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
	Dual channel memory architecture
	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for Extreme Memory Profile (XMP) memory modules
Expansion Slots
PCI Express 4.0 x16	1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
PCI Express x1	2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Storage Devices
SATA 6Gb/s	4 x SATA 6Gb/s
M.2	CPU:
	1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
	Chipset:
	1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
SATA RAID	0/1/5/10
Onboard Audio
Audio Chipset	Realtek Audio CODEC
Audio Chipset	High Definition Audio
Audio Channels	2/4/5.1/7.1-channel
Audio Channels	* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Onboard LAN
LAN Chipset	Realtek 2.5GbE LAN chip
Max LAN Speed	2.5Gbps
Wireless LAN	Wi-Fi 6E
Bluetooth	Yes
Rear Panel Ports
Back I/O Ports	2 x USB 2.0/1.1 ports
	1 x PS/2 keyboard/mouse port
	2 x SMA antenna connectors (2T2R)
	1 x HDMI port
	2 x DisplayPorts
	3 x USB 3.2 Gen 1 ports
	1 x USB Type-C port, with USB 3.2 Gen 2 support
	1 x RJ-45 port
	3 x audio jacks
Internal I/O Connectors
Onboard USB	1 x USB 3.2 Gen 1 header
Onboard USB	2 x USB 2.0/1.1 headers
Other Connectors	1 x CPU fan header
	3 x system fan headers
	1 x addressable LED strip header
	1 x RGB LED strip header
	2 x M.2 Socket 3 connectors
	4 x SATA 6Gb/s connectors
	1 x front panel header
	1 x front panel audio header
	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
	1 x S/PDIF Out header
	1 x Q-Flash Plus button
	1 x reset jumper
	1 x Clear CMOS jumper
Physical Spec
Form Factor	Micro ATX
Dimensions (W x L)	24.4cm x 24.4cm
Power Pin	1 x 24-pin ATX main power connector
Power Pin	1 x 8-pin ATX 12V power connector
Windows Compatibility
Windows 11	Supported

-21%

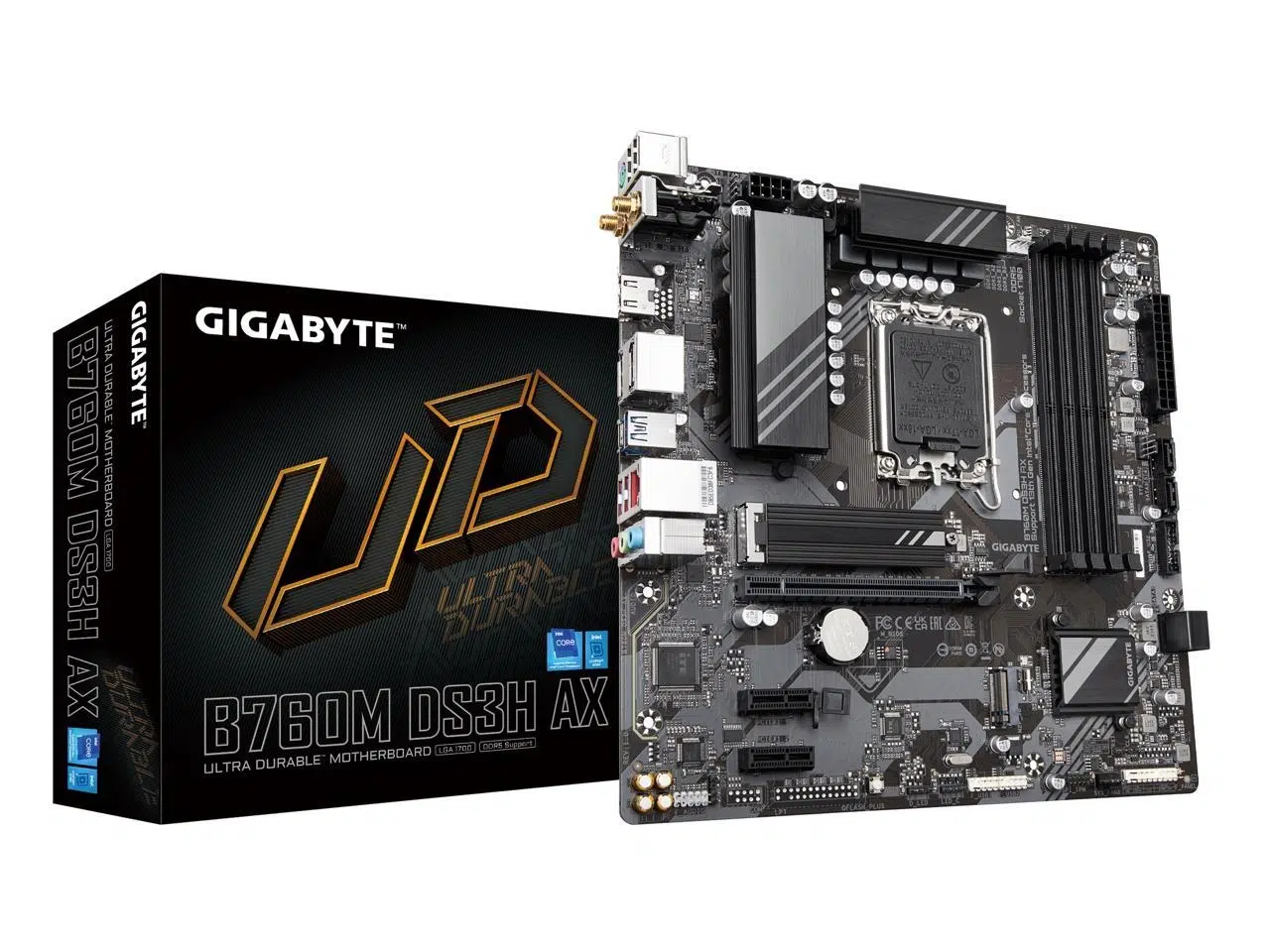

Placa Madre Intel Gigabyte B760M DS3H AX DDR5 mATX (Nuevo-Open box) - Imagen 1

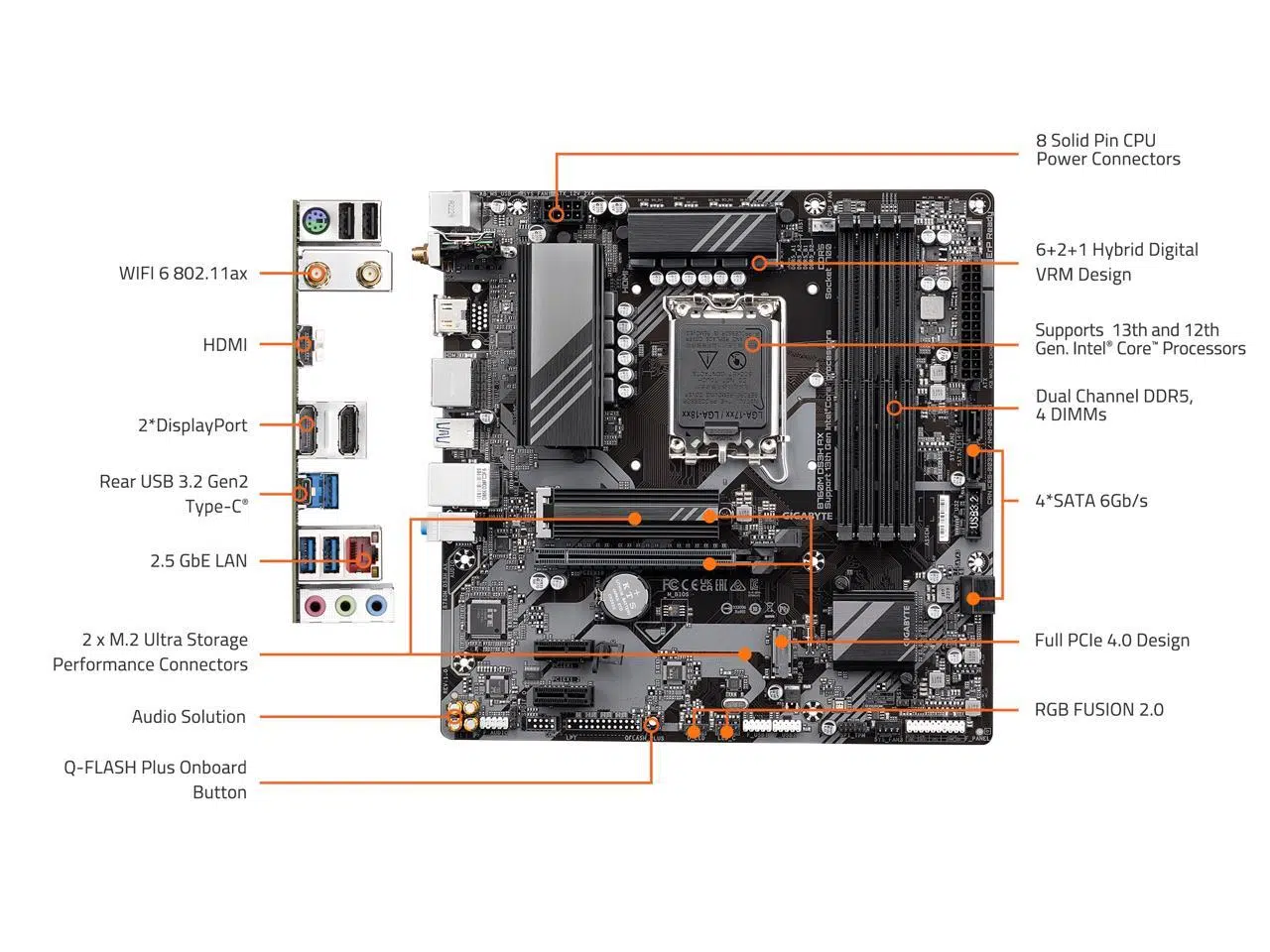

Placa Madre Intel Gigabyte B760M DS3H AX DDR5 mATX (Nuevo-Open box) - Imagen 2

El precio original era: $169.990.El precio actual es: $134.990. Iva Inc

Descripción
Valoraciones (0)

Descripción

Model
Brand	GIGABYTE
Model	B760M DS3H AX
Supported CPU
CPU Socket Type	LGA 1700
CPU Type	Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
Chipsets
Chipset	Intel B760
Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
Maximum Memory Supported	128GB
Channel Supported	Dual Channel
Memory Feature	4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
	Dual channel memory architecture
	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for Extreme Memory Profile (XMP) memory modules
Expansion Slots
PCI Express 4.0 x16	1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
PCI Express x1	2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Storage Devices
SATA 6Gb/s	4 x SATA 6Gb/s
M.2	CPU:
	1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
	Chipset:
	1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
SATA RAID	0/1/5/10
Onboard Audio
Audio Chipset	Realtek Audio CODEC
Audio Chipset	High Definition Audio
Audio Channels	2/4/5.1/7.1-channel
Audio Channels	* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Onboard LAN
LAN Chipset	Realtek 2.5GbE LAN chip
Max LAN Speed	2.5Gbps
Wireless LAN	Wi-Fi 6E
Bluetooth	Yes
Rear Panel Ports
Back I/O Ports	2 x USB 2.0/1.1 ports
	1 x PS/2 keyboard/mouse port
	2 x SMA antenna connectors (2T2R)
	1 x HDMI port
	2 x DisplayPorts
	3 x USB 3.2 Gen 1 ports
	1 x USB Type-C port, with USB 3.2 Gen 2 support
	1 x RJ-45 port
	3 x audio jacks
Internal I/O Connectors
Onboard USB	1 x USB 3.2 Gen 1 header
Onboard USB	2 x USB 2.0/1.1 headers
Other Connectors	1 x CPU fan header
	3 x system fan headers
	1 x addressable LED strip header
	1 x RGB LED strip header
	2 x M.2 Socket 3 connectors
	4 x SATA 6Gb/s connectors
	1 x front panel header
	1 x front panel audio header
	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
	1 x S/PDIF Out header
	1 x Q-Flash Plus button
	1 x reset jumper
	1 x Clear CMOS jumper
Physical Spec
Form Factor	Micro ATX
Dimensions (W x L)	24.4cm x 24.4cm
Power Pin	1 x 24-pin ATX main power connector
Power Pin	1 x 8-pin ATX 12V power connector
Windows Compatibility
Windows 11	Supported
