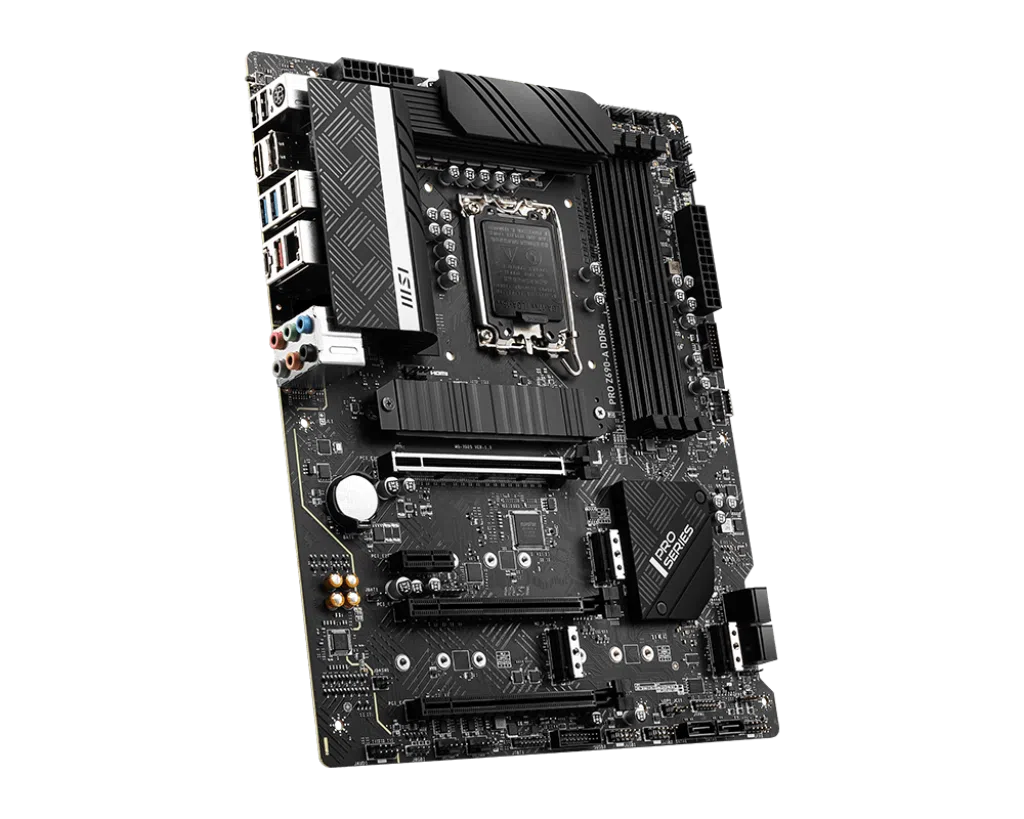

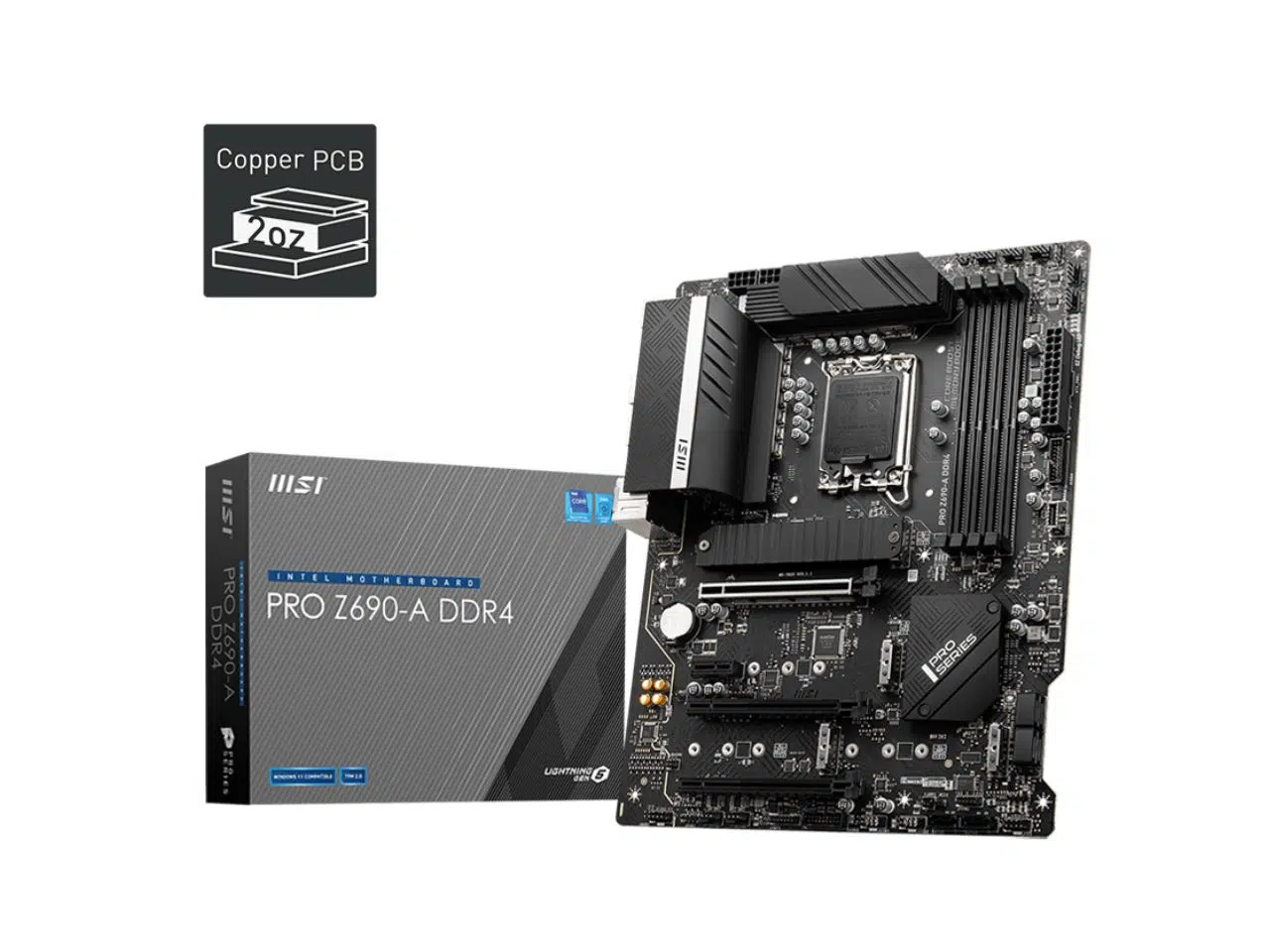

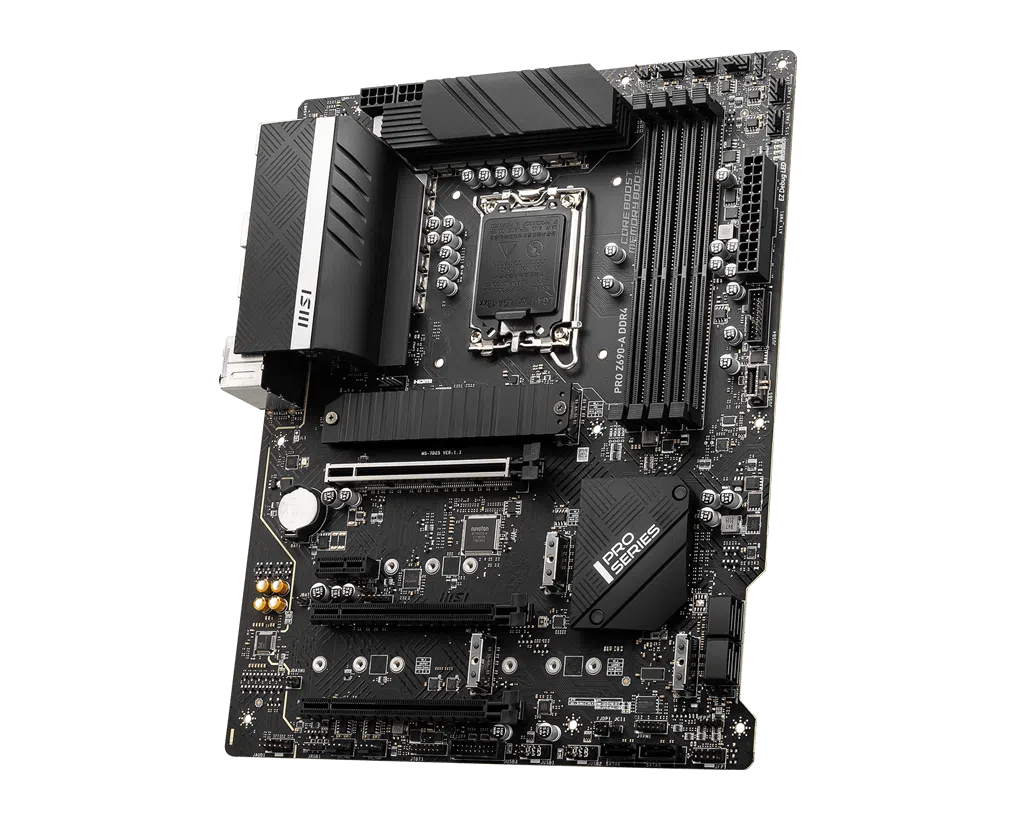

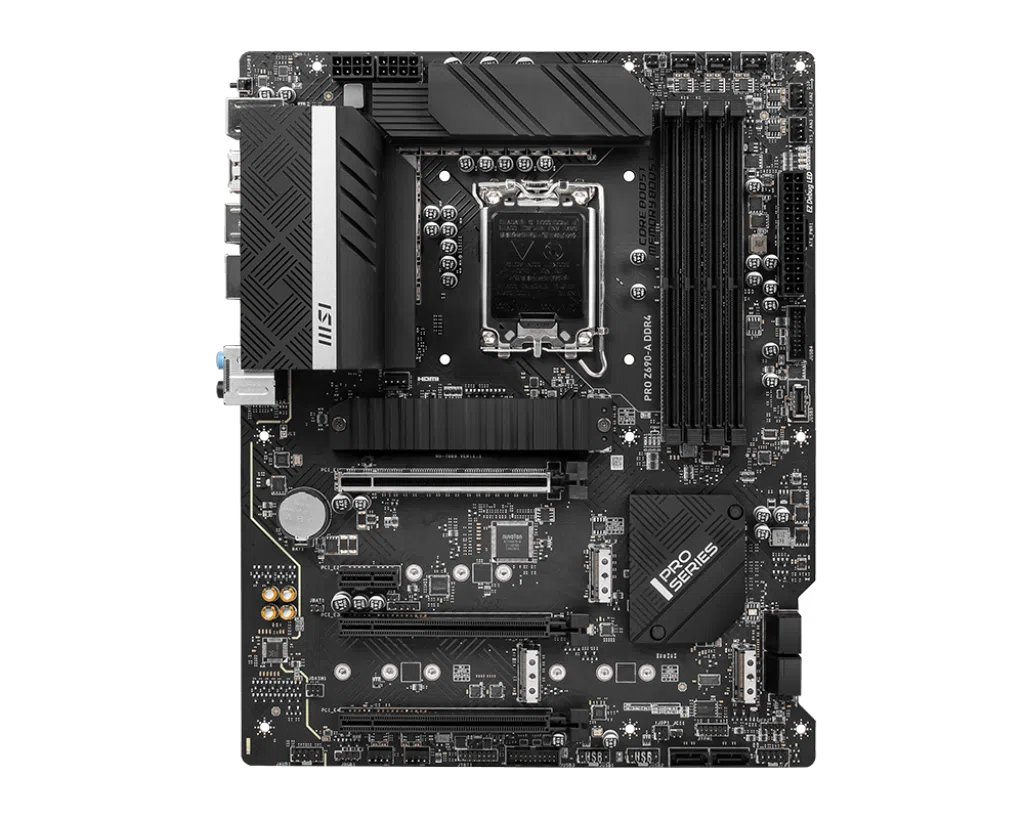

Placa Madre Intel MSI PRO Z690-A ProSeries DDR4 ATX (Open Box)

**Producto Open Box con garantía de 12 meses***

***Su estado estético puede presentar signos de uso muy leves, ya que el componente pudo haber sido usado para testeos o exhibición***

***Producto se envía con embalaje genérico***

Especificaciones

• Processor
  • Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors1
  • Processor socket LGA1700
  • Please go to msi.com to get the newest support status as new processors are released.
• Chipset
  • Intel® Z690 Chipset
• Memory
  • 4x DDR4 memory slots, support up to 128GB 1
  • Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)
  • Max overclocking frequency:
  • 1DPC 1R Max speed up to 5200+ MHz
  • 1DPC 2R Max speed up to 4800+ MHz
  • 2DPC 1R Max speed up to 4400+ MHz
  • 2DPC 2R Max speed up to 4000+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
  • Please refer www.msi.com for more information on compatible memory
  • See supported memory
• Expansion Slot
  • 3x PCIe x16 slotsPCI_E1 (from CPU)
  • Supports up to PCIe 5.0 x16
  • PCI_E3 & PCI_E4 (from Z690 chipset)
  • Supports up to PCIe 3.0 x4 & 3.0 x1
  • 1x PCIe 3.0 x1 slot (from Z690 chipset)
• Onboard Graphics
  • 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 12
  • 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz 12
  • Available only on processors featuring integrated graphics.
  • Graphics specifications may vary depending on the CPU installed.
• Multi-GPU
  • Supports AMD® CrossFire™ Technology
• Storage
  • 6x SATA 6Gb/s ports (from Z690 chipset)
  • 4x M.2 slots (Key M)M2_1 slot (from CPU)
  • Supports PCIe 4.0 x4
  • Supports 2242/ 2260/ 2280/ 22110 storage devices
  • M2_2 slot (from Z690 chipset)
  • Supports PCIe 4.0 x4
  • Supports 2242/ 2260/ 2280 storage devices
  • M2_3 slot (from Z690 chipset)
  • Supports PCIe 3.0 x4
  • Supports SATA 6Gb/s
  • Supports 2242/ 2260/ 2280 storage devices
  • M2_4 slot (from Z690 chipset)
  • Supports PCIe 4.0 x4
  • Supports SATA 6Gb/s
  • Supports 2242/ 2260/ 2280 storage devices
  • Intel® Optane™ Memory Ready for M.2 slots that are from Z690 Chipset
  • Support Intel® Smart Response Technology for Intel Core™ processors
  • RAID
  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
• USB
  • Intel® Z690 Chipset
  • 1x USB 3.2 Gen 2×2 20Gbps Type-C port on the back panel
  • 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel)
  • 6x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 4 ports are available through the internal USB connectors)
  • 4x USB 2.0 Type-A ports on the back panel
  • USB Hub GL850G
  • 4x USB 2.0 ports are available through the internal USB connectors
• Audio
  • Realtek® ALC897 Codec
  • 7.1-Channel High Definition Audio
• LAN
  • 1x Intel® I225-V 2.5Gbps LAN

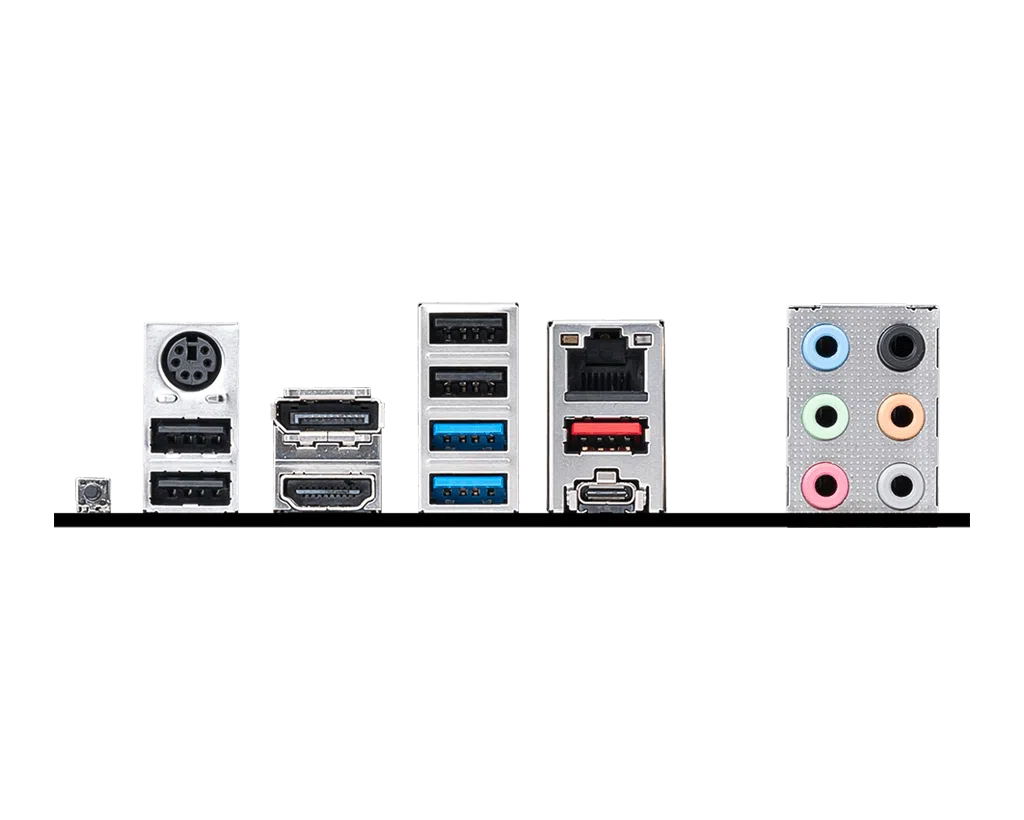

• Back panel ports
  • Keyboard / Mouse
  • DisplayPort
  • USB 2.0
  • LAN port
  • Audio connector
  • Flash BIOS Button
  • USB 2.0
  • HDMI
  • USB 3.2 Gen 1 5Gbps Type-A
  • USB 3.2 Gen 2×2 20Gbps Type-C
  • USB 3.2 Gen 2 10Gbps Type-A
