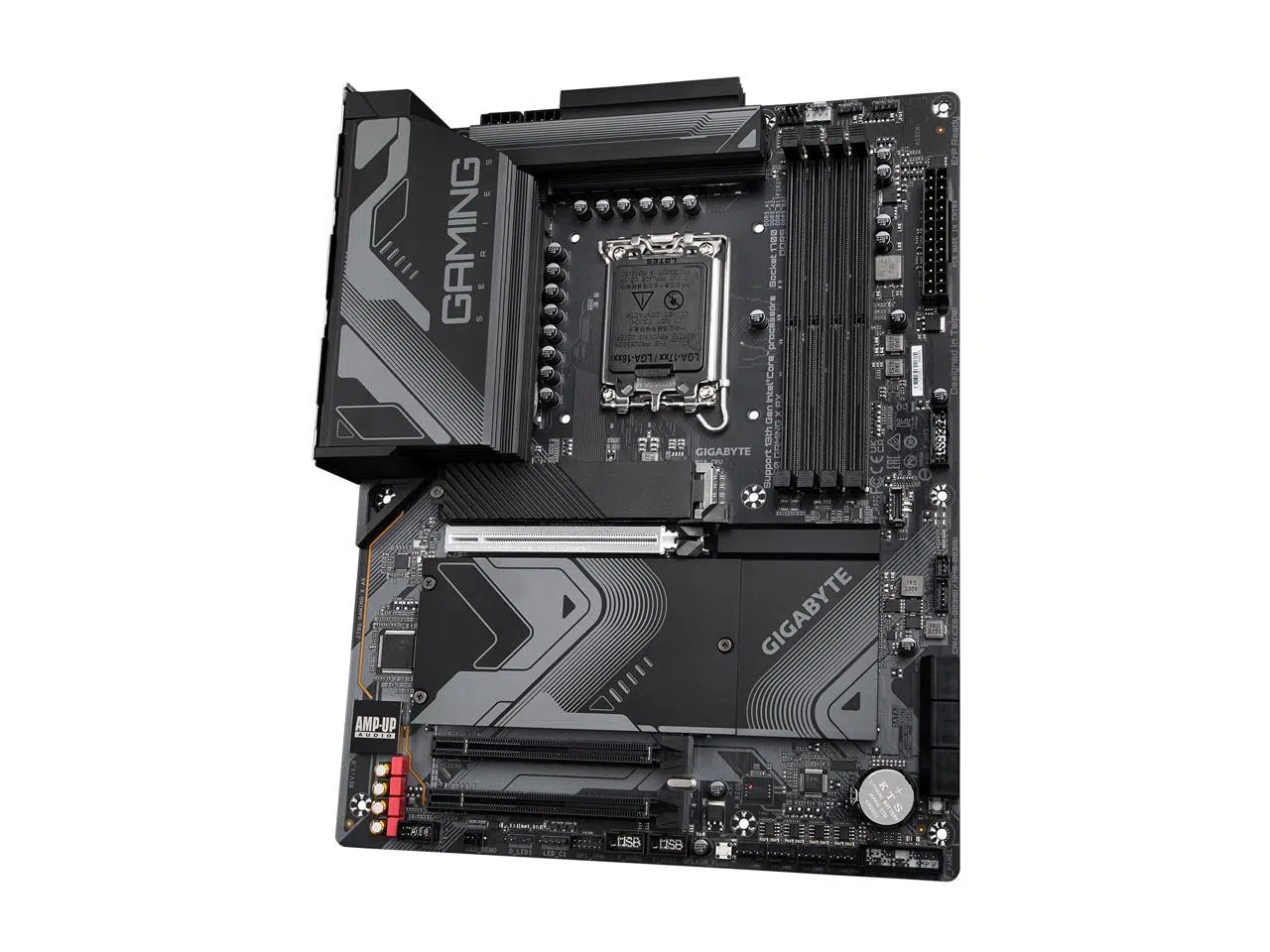

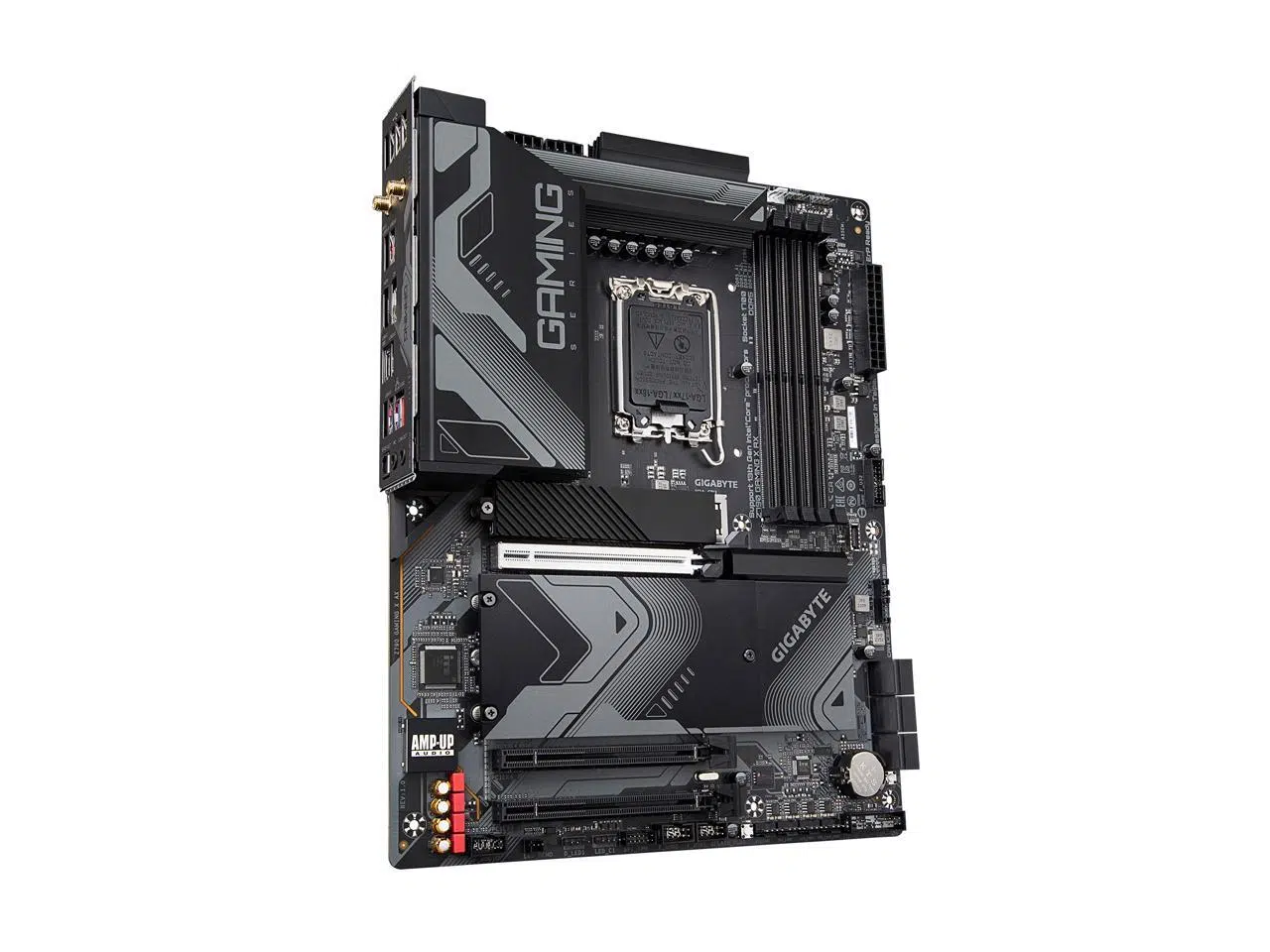

Especificaciones:
Model | |
Brand | GIGABYTE |

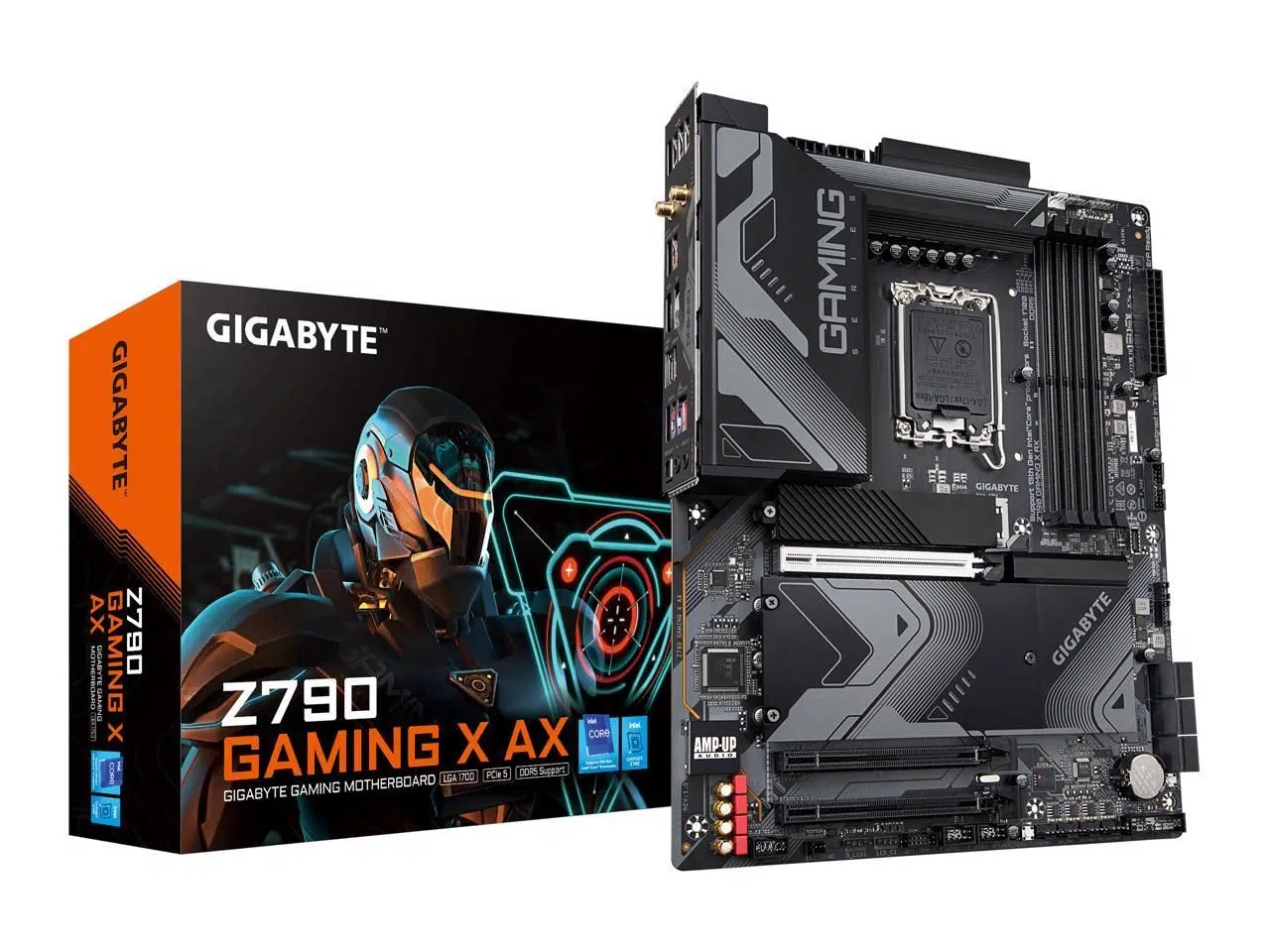

Model | Z790 GAMING X AX |
Supported CPU | |
CPU Socket Type | LGA 1700 |
CPU Type | Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium Gold |
Chipsets | |
Chipset | Intel Z790 |
Memory | |
Number of Memory Slots | 4x288pin (DDR5) |
Memory Standard | DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 |
Maximum Memory Supported | 192GB |
Channel Supported | Dual Channel |
Memory Performance Profile | Intel XMP 3.0 |
Memory Feature | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
Support for Extreme Memory Profile (XMP) memory modules | |
Expansion Slots | |
PCI Express 5.0 x16 | CPU: |
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) | |
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
PCI Express 4.0 x16 | Chipset: |
1 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1) | |
PCI Express 3.0 x16 | 1 x PCI Express x16 slots, supporting PCIe 3.0 and running at x4 (PCIEX4_2) |
Storage Devices | |
SATA 6Gb/s | 6 x SATA 6Gb/s |
M.2 | CPU: |
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) | |
Chipset: | |
2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) | |
1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) | |
SATA RAID | 0/1/5/10 |
Onboard Audio | |
Audio Channels | 7.1 Channels |
Onboard LAN | |
Max LAN Speed | 2.5Gbps |
Wireless LAN | Intel Wi-Fi 6E AX211 |
Bluetooth | BLUETOOTH 5.3 |

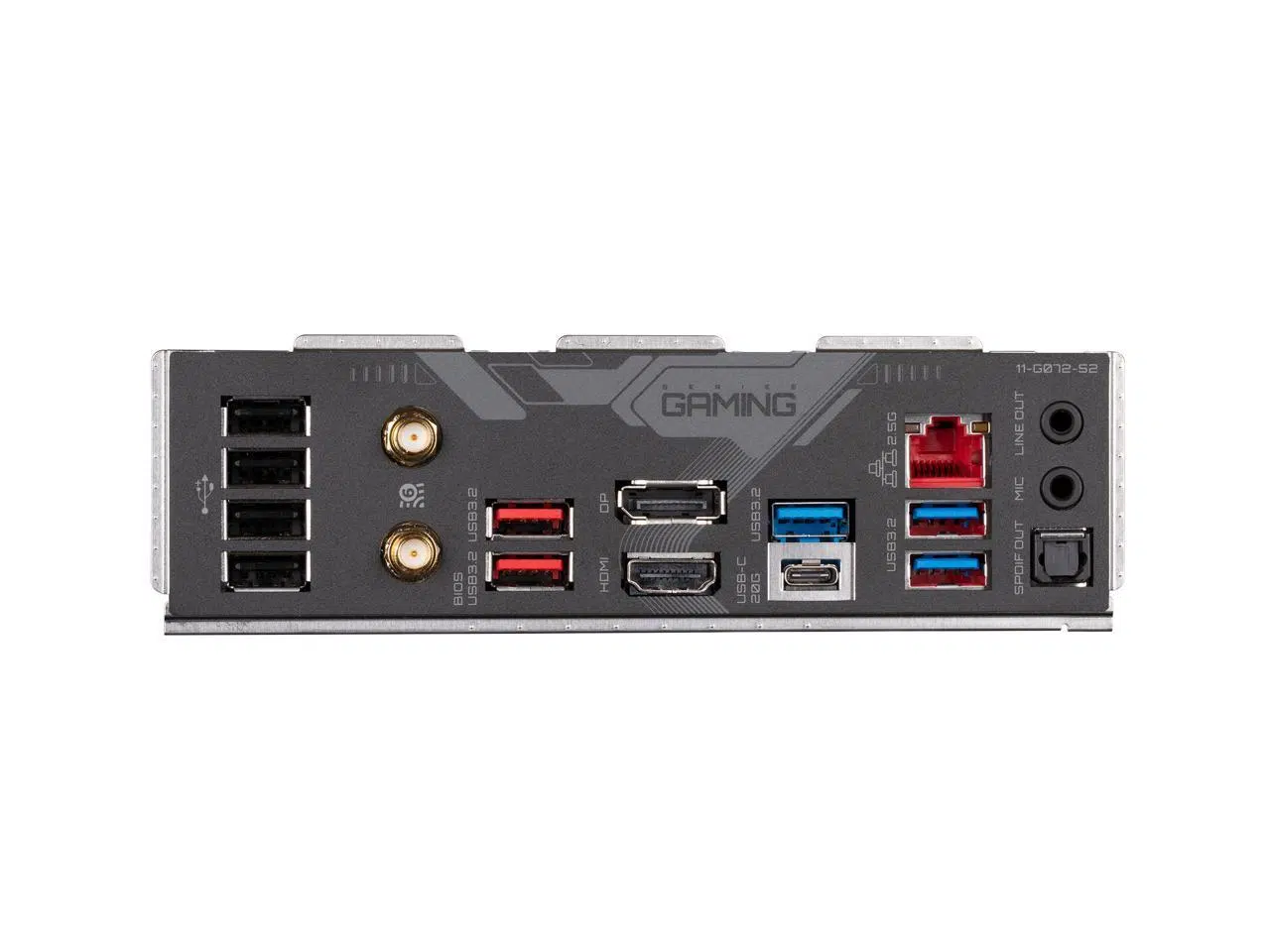

Rear Panel Ports | |
Back I/O Ports | 4 x USB 2.0/1.1 ports |
2 x SMA antenna connectors (2T2R) | |
2 x USB 3.2 Gen 2 Type-A ports (red) | |
1 x DisplayPort | |
1 x HDMI 2.0 port | |
3 x USB 3.2 Gen 1 ports | |
1 x USB Type-C port, with USB 3.2 Gen 2×2 support | |
1 x RJ-45 port | |
1 x optical S/PDIF Out connector | |
2 x audio jacks | |
Internal I/O Connectors | |
Onboard USB | 1 x USB Type-C header, with USB 3.2 Gen 2 support |
1 x USB 3.2 Gen 1 header | |
2 x USB 2.0/1.1 headers | |
Other Connectors | 1 x CPU fan header |
1 x water cooling CPU fan header | |
3 x system fan headers | |
1 x system fan/water cooling pump header | |
2 x addressable LED strip headers | |
2 x RGB LED strip headers | |
4 x M.2 Socket 3 connectors | |
6 x SATA 6Gb/s connectors | |
1 x front panel header | |
1 x front panel audio header | |
2 x Thunderbolt add-in card connectors | |
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
1 x Q-Flash Plus button | |
1 x reset button | |
1 x reset jumper | |
1 x Clear CMOS jumper | |
Physical Spec | |
Form Factor | ATX |
Dimensions (W x L) | 305 x 244 mm |
Power Pin | 1 x 24-pin ATX main power connector |
2 x 8-pin ATX 12V power connectors | |
Windows Compatibility | |
Windows 11 | Supported |
