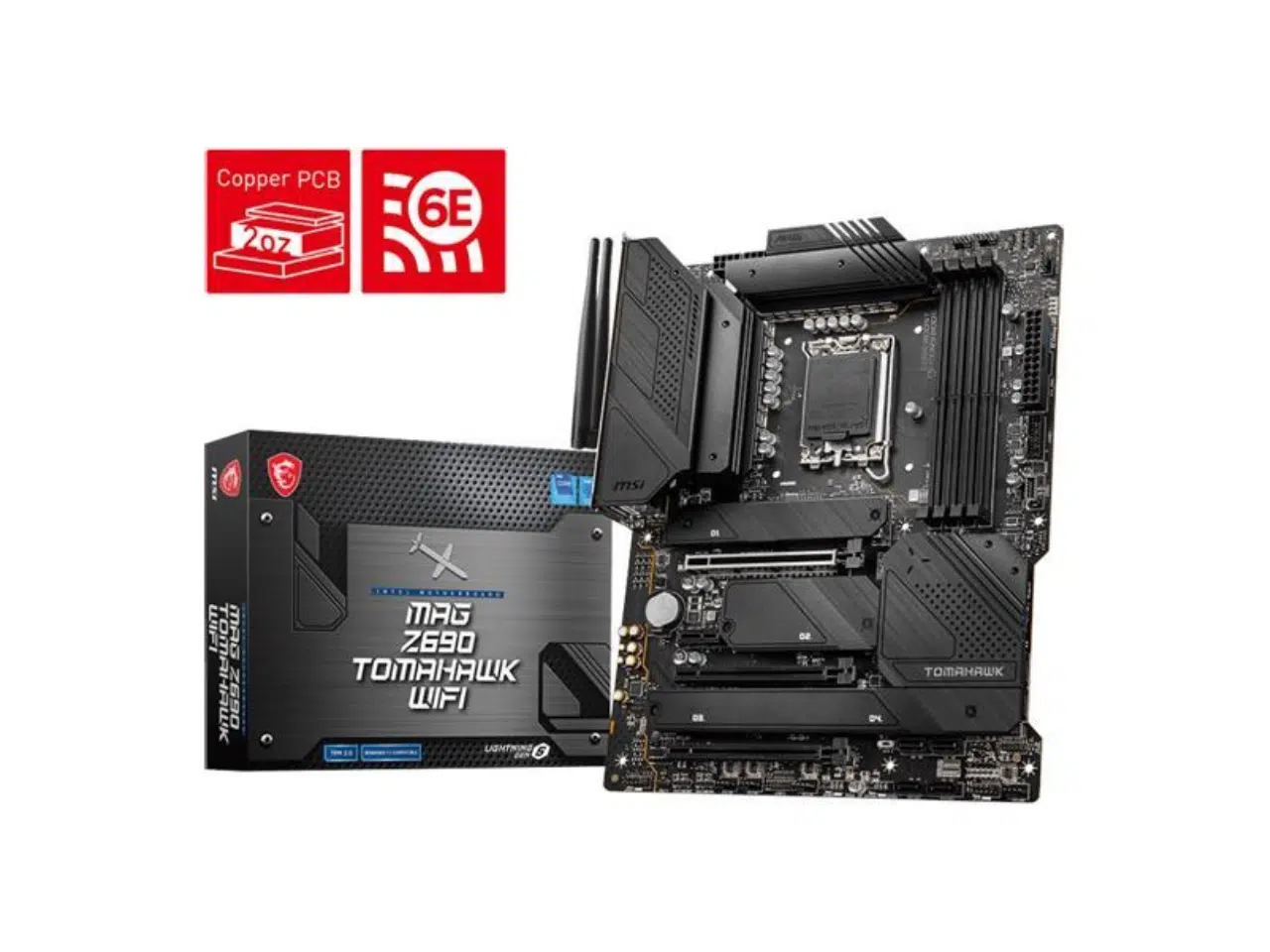

Name: Placa Madre MSI MAG Tomahawk WiFi, Chipset Z690, DDR5, LGA 1700, WiFi 6E, ATX
Brand: MSI
SKU: 9784
Price: 219990 CLP
Availability: OutOfStock

Placa Madre MSI MAG Tomahawk WiFi, Chipset Z690, DDR5, LGA 1700, WiFi 6E, ATX

$219.990 Iva Inc

Precios según método de pago

Transferencia Bancaria Directa.

$219.990

El precio más bajo
Flow. Tarjetas de Débito/Crédito y Otros

$237.589

hasta 6 cuotas sin interés de $39.598
Mercado Pago. Tarjetas de Crédito

$250.789

hasta 12 cuotas sin interés de $20.899

Estado: Nuevo – Sellado

Sin existencias

8 ¡La gente está viendo este producto ahora!

Especificaciones:

Model
Brand	MSI
Model	MAG Z690 TOMAHAWK WIFI
Supported CPU
CPU Socket Type	LGA 1700
CPU Type	Supports 12th Gen Intel Core Processors (LGA1700)
	Supports 13th gen Intel® Core desktop processors.
	May require a BIOS update to boot the 13th gen Intel® Core™ desktop processors.
Chipsets
Chipset	Intel Z690
Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic
Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	6400+(OC) , 6200(OC) , 6000(OC) , 5800(OC) , 5600, 5400, 5200, 5000, 4800 MHz
Maximum Memory Supported	192GB
Channel Supported	Dual Channel
Expansion Slots
PCI Express 5.0 x16	1 x PCI Express 5.0 x16

	* Actual support may vary by CPU.
PCI Express 3.0 x16	2 x PCI Express 3.0 x16

	* PCI_E3 Support up to PCIe 3.0 x4.
	* PCI_E4 Support up to PCIe 3.0 x1.
PCI Express x1	1 x PCI Express 3.0 x1
Storage Devices
SATA 6Gb/s	6 x SATA 6Gb/s
M.2	4 x M.2 slots (Key M):

	M2_1 slot (From CPU):
	Supports up to PCIe 4.0 x4
	Supports 2242/ 2260/ 2280/ 22110 storage devices

	M2_2 slot (From Z690 chipset):
	Supports up to PCIe 4.0 x4
	Supports 2242/ 2260/ 2280 storage devices

	M2_3 slot (From Z690 chipset):
	Supports up to PCIe 3.0 x4
	Supports up to SATA 6Gb/s
	Supports 2242/ 2260/ 2280 storage devices

	M2_4 slot (From Z690 chipset):
	Supports up to PCIe 4.0 x4
	Supports up to SATA 6Gb/s
	Supports 2242/ 2260/ 2280 storage devices
Intel Optane Ready	Intel Optane Memory Ready for M.2 slots from Z690 Chipset
SATA RAID	0/1/5/10
Onboard Audio
Audio Chipset	Realtek ALC4080
Audio Channels	7.1 Channels
Onboard LAN
LAN Chipset	Intel I225-V
Max LAN Speed	2.5Gbps
Wireless LAN	Intel WIFI 6E
Wireless LAN	802.11 a/b/g/n/ac/ax
Bluetooth	Bluetooth 5.2

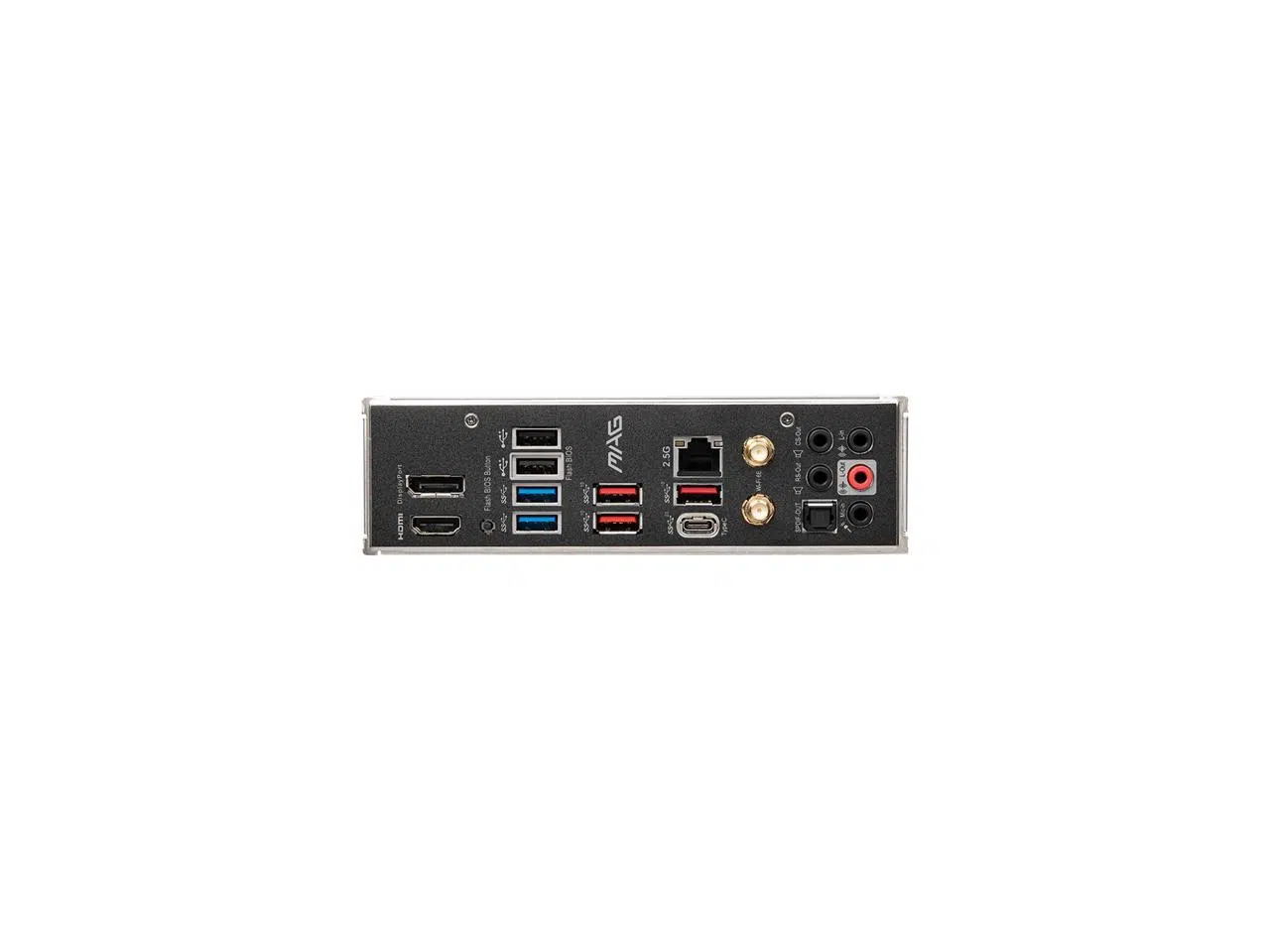

Rear Panel Ports
Back I/O Ports	1 x DisplayPort 1.4
	1 x HDMI 2.1
	1 x Flash BIOS Button
	1 x LAN (RJ45)
	2 x Antenna Bracket
	1 x Optical S/PDIF Out
	5 x Audio Jacks
	1 x USB 3.2 Gen 2×2 Type-C
	3 x USB 3.2 Gen 2 Type-A
	2 x USB 3.2 Gen 1 Type-A
	2 x USB 2.0/1.1
Internal I/O Connectors
Onboard USB	1 x USB 3.2 Gen 2 10Gbps Type-C port
	1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
	2 x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)
Other Connectors	1 x 4-pin CPU fan connector
	1 x 4-pin water-pump fan connector
	6 x 4-pin system fan connectors
	1 x Front panel audio connector
	2 x System panel connectors
	1 x Chassis Intrusion connector
	1 x TPM module connector
	1 x Clear CMOS jumper
	1 x TBT connector (supports RTD3)
	1 x Tuning Controller connector
	1 x EZ LED Control switch
	1 x 4-pin RGB LED connectors
	3 x 3-pin RAINBOW LED connectors
	4 x EZ Debug LED
Physical Spec
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0″ x 9.6″
Power Pin	1 x 24-pin ATX main power connecto
Power Pin	2 x 8-pin ATX 12V power connectors
Windows Compatibility
Windows 11	Supported
Features
Features	Supports 12th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket

	Supports DDR5 Memory, up to 6400(OC) MHz

	Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works

	2.5G LAN and Intel Wi-Fi Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

	Lightning M.2: Running at PCIe Gen 5 maximizes performance for NVMe based SSDs

	Lightning USB 20G: Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1

	AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

	Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire

Nota: Para usar procesadores de 13a Generación, se debe actualizar la bios de la placa, esto se puede realizar mediante puerto USB ubicado en el panel trasero de la placa.

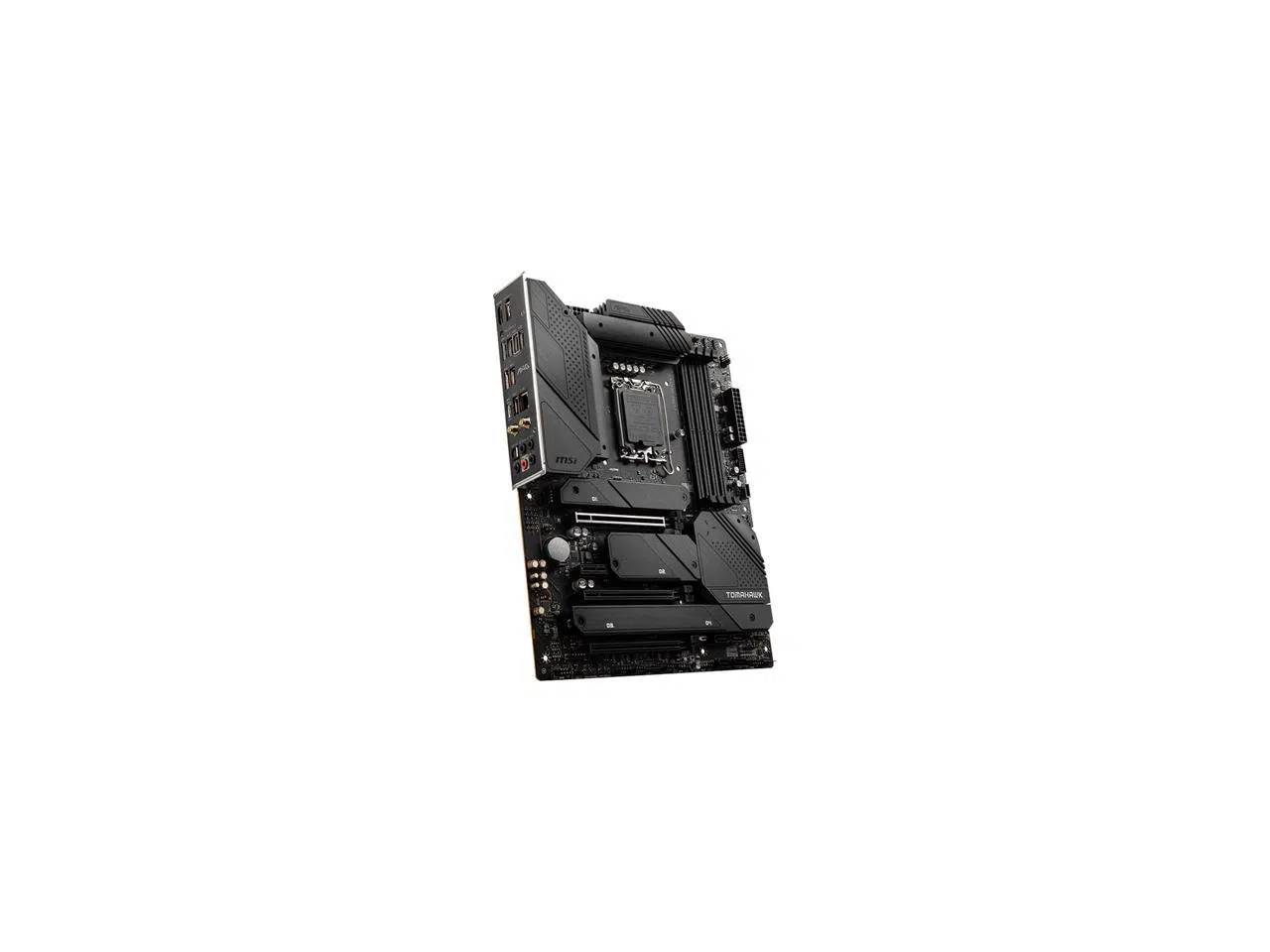

Placa Madre MSI MAG Tomahawk WiFi, Chipset Z690, DDR5, LGA 1700, WiFi 6E, ATX - Imagen 1

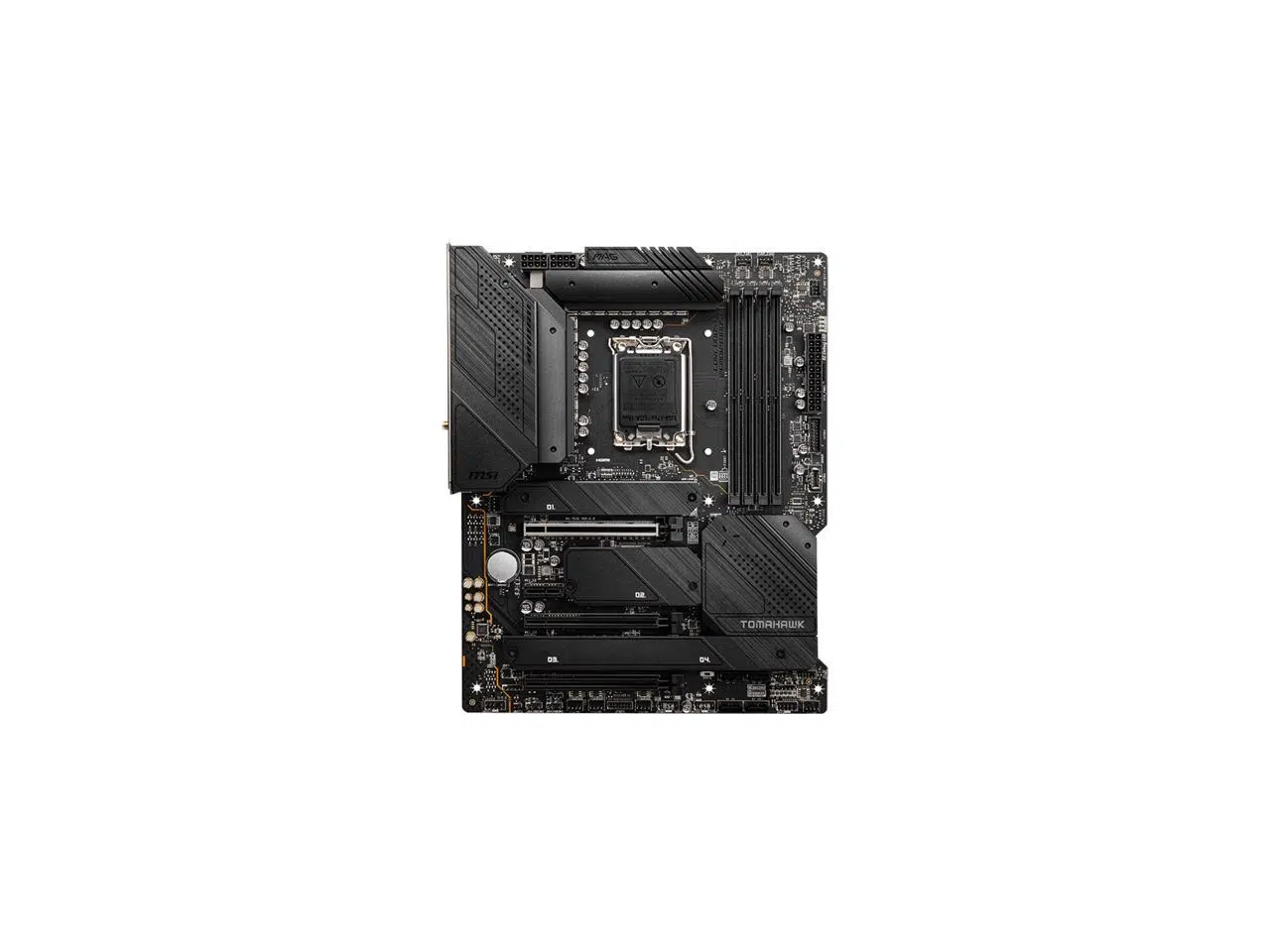

Placa Madre MSI MAG Tomahawk WiFi, Chipset Z690, DDR5, LGA 1700, WiFi 6E, ATX - Imagen 2

Clic para ampliar

Descripción
Valoraciones (0)

Descripción

Model
Brand	MSI
Model	MAG Z690 TOMAHAWK WIFI
Supported CPU
CPU Socket Type	LGA 1700
CPU Type	Supports 12th Gen Intel Core Processors (LGA1700)
	Supports 13th gen Intel® Core desktop processors.
	May require a BIOS update to boot the 13th gen Intel® Core™ desktop processors.
Chipsets
Chipset	Intel Z690
Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic
Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	6400+(OC) , 6200(OC) , 6000(OC) , 5800(OC) , 5600, 5400, 5200, 5000, 4800 MHz
Maximum Memory Supported	192GB
Channel Supported	Dual Channel
Expansion Slots
PCI Express 5.0 x16	1 x PCI Express 5.0 x16

	* Actual support may vary by CPU.
PCI Express 3.0 x16	2 x PCI Express 3.0 x16

	* PCI_E3 Support up to PCIe 3.0 x4.
	* PCI_E4 Support up to PCIe 3.0 x1.
PCI Express x1	1 x PCI Express 3.0 x1
Storage Devices
SATA 6Gb/s	6 x SATA 6Gb/s
M.2	4 x M.2 slots (Key M):

	M2_1 slot (From CPU):
	Supports up to PCIe 4.0 x4
	Supports 2242/ 2260/ 2280/ 22110 storage devices

	M2_2 slot (From Z690 chipset):
	Supports up to PCIe 4.0 x4
	Supports 2242/ 2260/ 2280 storage devices

	M2_3 slot (From Z690 chipset):
	Supports up to PCIe 3.0 x4
	Supports up to SATA 6Gb/s
	Supports 2242/ 2260/ 2280 storage devices

	M2_4 slot (From Z690 chipset):
	Supports up to PCIe 4.0 x4
	Supports up to SATA 6Gb/s
	Supports 2242/ 2260/ 2280 storage devices
Intel Optane Ready	Intel Optane Memory Ready for M.2 slots from Z690 Chipset
SATA RAID	0/1/5/10
Onboard Audio
Audio Chipset	Realtek ALC4080
Audio Channels	7.1 Channels
Onboard LAN
LAN Chipset	Intel I225-V
Max LAN Speed	2.5Gbps
Wireless LAN	Intel WIFI 6E
Wireless LAN	802.11 a/b/g/n/ac/ax
Bluetooth	Bluetooth 5.2
Rear Panel Ports
Back I/O Ports	1 x DisplayPort 1.4
	1 x HDMI 2.1
	1 x Flash BIOS Button
	1 x LAN (RJ45)
	2 x Antenna Bracket
	1 x Optical S/PDIF Out
	5 x Audio Jacks
	1 x USB 3.2 Gen 2×2 Type-C
	3 x USB 3.2 Gen 2 Type-A
	2 x USB 3.2 Gen 1 Type-A
	2 x USB 2.0/1.1
Internal I/O Connectors
Onboard USB	1 x USB 3.2 Gen 2 10Gbps Type-C port
	1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
	2 x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)
Other Connectors	1 x 4-pin CPU fan connector
	1 x 4-pin water-pump fan connector
	6 x 4-pin system fan connectors
	1 x Front panel audio connector
	2 x System panel connectors
	1 x Chassis Intrusion connector
	1 x TPM module connector
	1 x Clear CMOS jumper
	1 x TBT connector (supports RTD3)
	1 x Tuning Controller connector
	1 x EZ LED Control switch
	1 x 4-pin RGB LED connectors
	3 x 3-pin RAINBOW LED connectors
	4 x EZ Debug LED
Physical Spec
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0″ x 9.6″
Power Pin	1 x 24-pin ATX main power connecto
Power Pin	2 x 8-pin ATX 12V power connectors
Windows Compatibility
Windows 11	Supported
Features
Features	Supports 12th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket

	Supports DDR5 Memory, up to 6400(OC) MHz

	Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works

	2.5G LAN and Intel Wi-Fi Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

	Lightning M.2: Running at PCIe Gen 5 maximizes performance for NVMe based SSDs

	Lightning USB 20G: Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1

	AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

	Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire
