Name: Placa Madre MSI PRO Z690-A WiFi, DDR5, Intel LGA 1700, WiFi 6E
Brand: MSI
SKU: 9961
Price: 229990 CLP
Availability: OutOfStock

Placa Madre MSI PRO Z690-A WiFi, DDR5, Intel LGA 1700, WiFi 6E

Iva Inc

Precios según método de pago

Transferencia Bancaria Directa.

$229.990

El precio más bajo
Flow. Tarjetas de Débito/Crédito y Otros

$248.389

hasta 6 cuotas sin interés de $41.398
Mercado Pago. Tarjetas de Crédito

$262.189

hasta 12 cuotas sin interés de $21.849

Estado: Nuevo – Sellado

Sin existencias

7 ¡La gente está viendo este producto ahora!

Especificaciones:

Model
Brand	MSI
Model	PRO Z690-A WIFI
Supported CPU
CPU Socket Type	LGA 1700

	* Dedicated LGA1700 mounting bracket is required.
CPU Type	Supports 13th / 12th Gen Intel Core, Pentium Gold, Celeron Processors*
CPU Type	May require a BIOS update to boot the 13th gen Intel® Core™ desktop processors.
Chipsets
Chipset	Intel Z690
Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic
Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	DDR5 (Max speed up to 6400 MHz OC)
Maximum Memory Supported	192GB
Channel Supported	Dual Channel
Expansion Slots
PCI Express 5.0 x16	1 x PCI Express 5.0 x16

	* Actual support may vary by CPU.
PCI Express 3.0 x16	2 x PCI Express 3.0 x16

	* Supports up to PCIe 3.0 x4 & 3.0 x1.
PCI Express x1	1 x PCI Express 3.0 x1
Storage Devices
SATA 6Gb/s	6 x SATA 6Gb/s
M.2	4 x M.2 slots (Key M):

	M2_1 slot (from CPU):
	Supports PCIe 4.0 x4
	Supports 2242/ 2260/ 2280/ 22110 storage devices

	M2_2 slot (from Z690 chipset):
	Supports PCIe 4.0 x4
	Supports 2242/ 2260/ 2280 storage devices

	M2_3 slot (from Z690 chipset):
	Supports PCIe 3.0 x4
	Supports SATA 6Gb/s
	Supports 2242/ 2260/ 2280 storage devices

	M2_4 slot (from Z690 chipset):
	Supports PCIe 4.0 x4
	Supports SATA 6Gb/s
	Supports 2242/ 2260/ 2280 storage devices
Intel Optane Ready	Intel Optane Memory Ready for M.2 slots that are from Z690 Chipset
SATA RAID	0/1/5/10
Onboard Audio
Audio Chipset	Realtek ALC897
Audio Channels	7.1 Channels
Onboard LAN
LAN Chipset	Intel I225-V
Max LAN Speed	2.5Gbps
Wireless LAN	Intel WIFI 6E
Wireless LAN	802.11 a/b/g/n/ac/ax
Bluetooth	Bluetooth 5.2

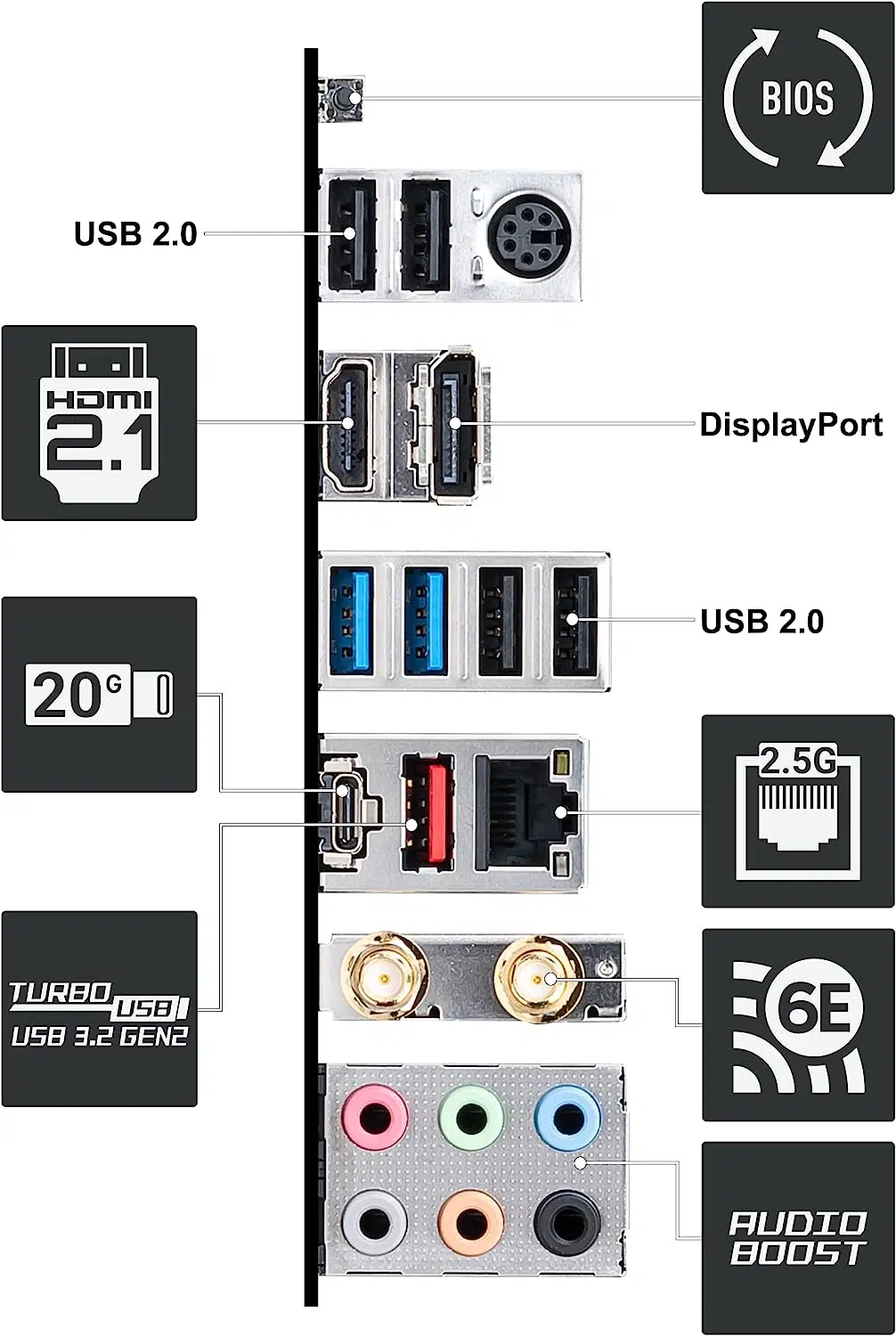

Rear Panel Ports
Back I/O Ports	1 x DisplayPort
	1 x HDMI
	1 x Flash BIOS Button
	1 x LAN (RJ45)
	2 x Antenna Bracket
	6 x Audio Jacks
	1 x PS/2 Keyboard/Mouse Combo
	1 x USB 3.2 Gen 2×2 Type-C
	1 x USB 3.2 Gen 2 Type-A
	2 x USB 3.2 Gen 1 Type-A
	4 x USB 2.0/1.1
Internal I/O Connectors
Onboard USB	1 x USB 3.2 Gen 2 10Gbps Type-C port
	2 x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
	2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
Other Connectors	1 x 4-pin CPU fan connector
	1 x 4-pin water-pump fan connector
	6 x 4-pin system fan connectors
	1 x Front panel audio connector
	2 x System panel connectors
	1 x Chassis Intrusion connector
	1 x Clear CMOS jumper
	1 x TPM module connector
	1 x Tuning controller connector
	1 x TBT connector (Supports RTD3)
	1 x 4-pin RGB LED connector
	2 x 3-pin RAINBOW LED connectors
	4 x EZ Debug LED
Physical Spec
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0″ x 9.6″
Power Pin	1 x 24-pin ATX main power connector

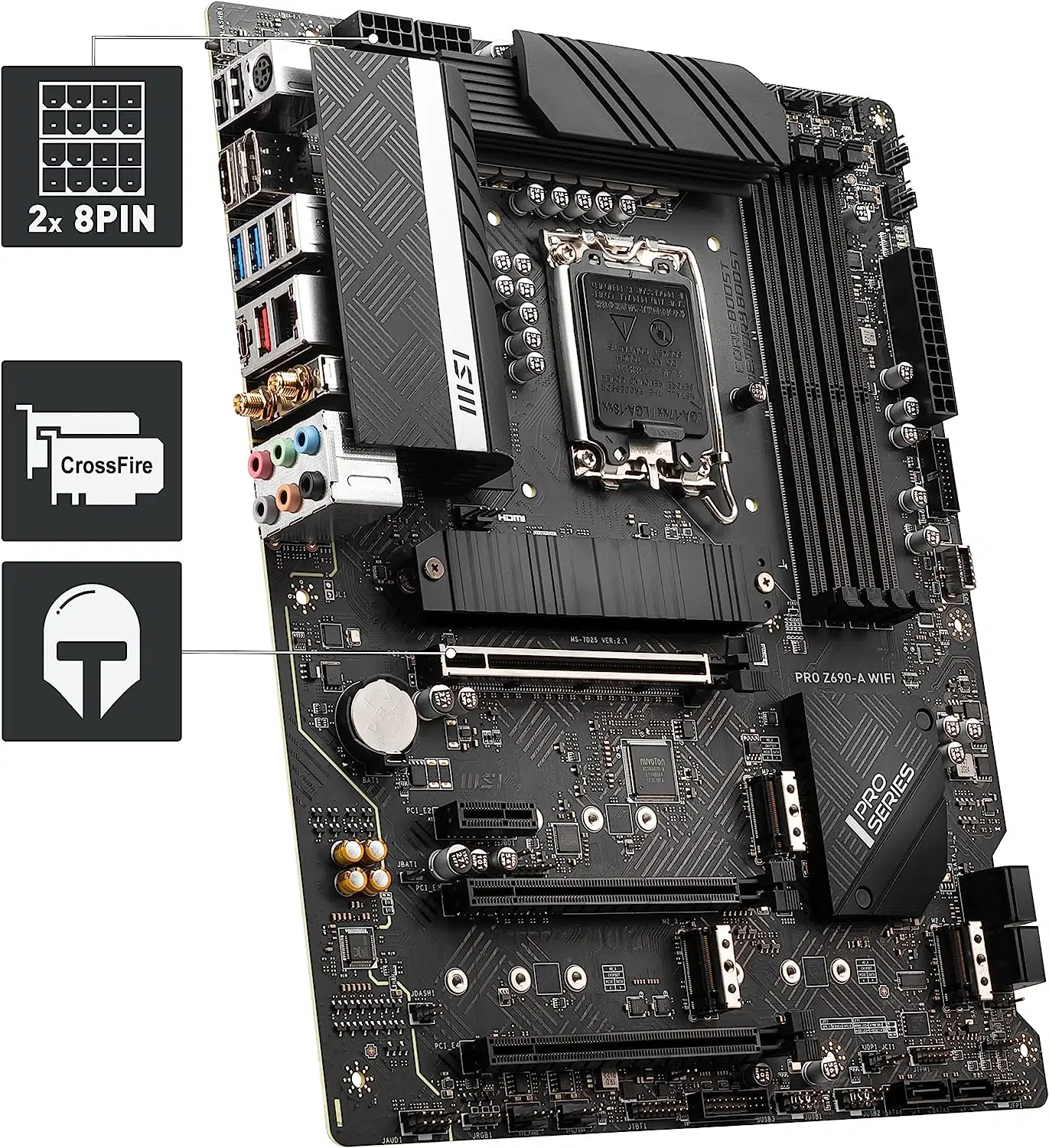

Power Pin	2 x 8-pin ATX 12V power connector
Windows Compatibility
Windows 11	Supported
Features
Features	Supports 12th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket

	Supports DDR5 Memory, up to 6400+(OC) MHz

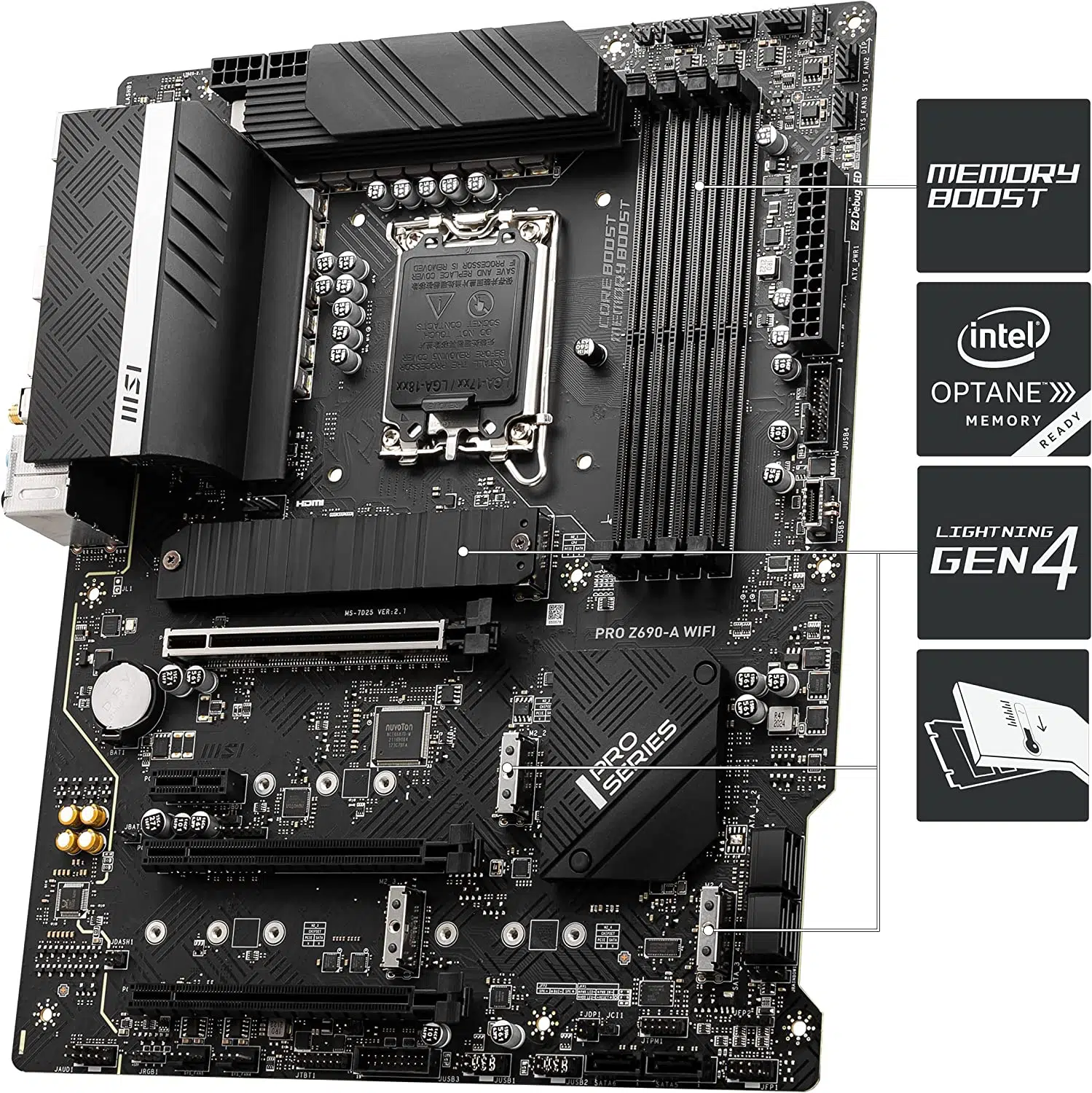

	Lightning Fast Experience: PCIe 5.0 slots, Lightning Gen4 x4 M.2, USB 3.2 Gen 2×2

	Premium Thermal Solution: Extended Heatsink Design, MOSFET thermal pads rated for 7W/mk and M.2 Shield Frozr are built for high performance system and non-stop works

	2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

	Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds

	Audio Boost: Reward your ears with studio grade sound quality

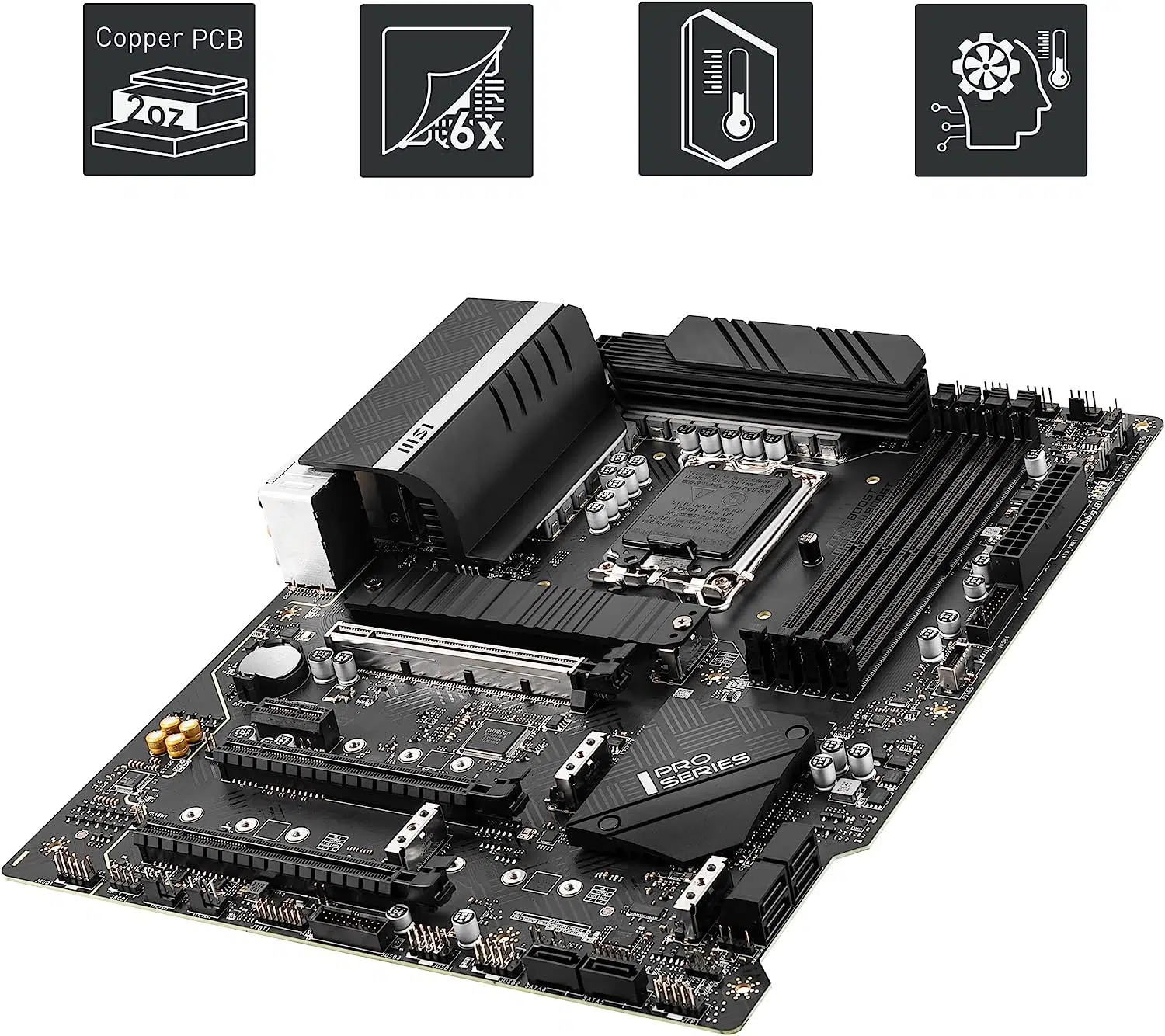

	High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material

	Multi-GPU: With Steel armor PCI-E slots. Supports AMD Crossfire

Nota: Para usar procesadores de 13a Generación, es probable que requiera actualizar la bios de la placa, esto se puede realizar mediante puerto USB ubicado en el panel trasero de la placa.

-23%

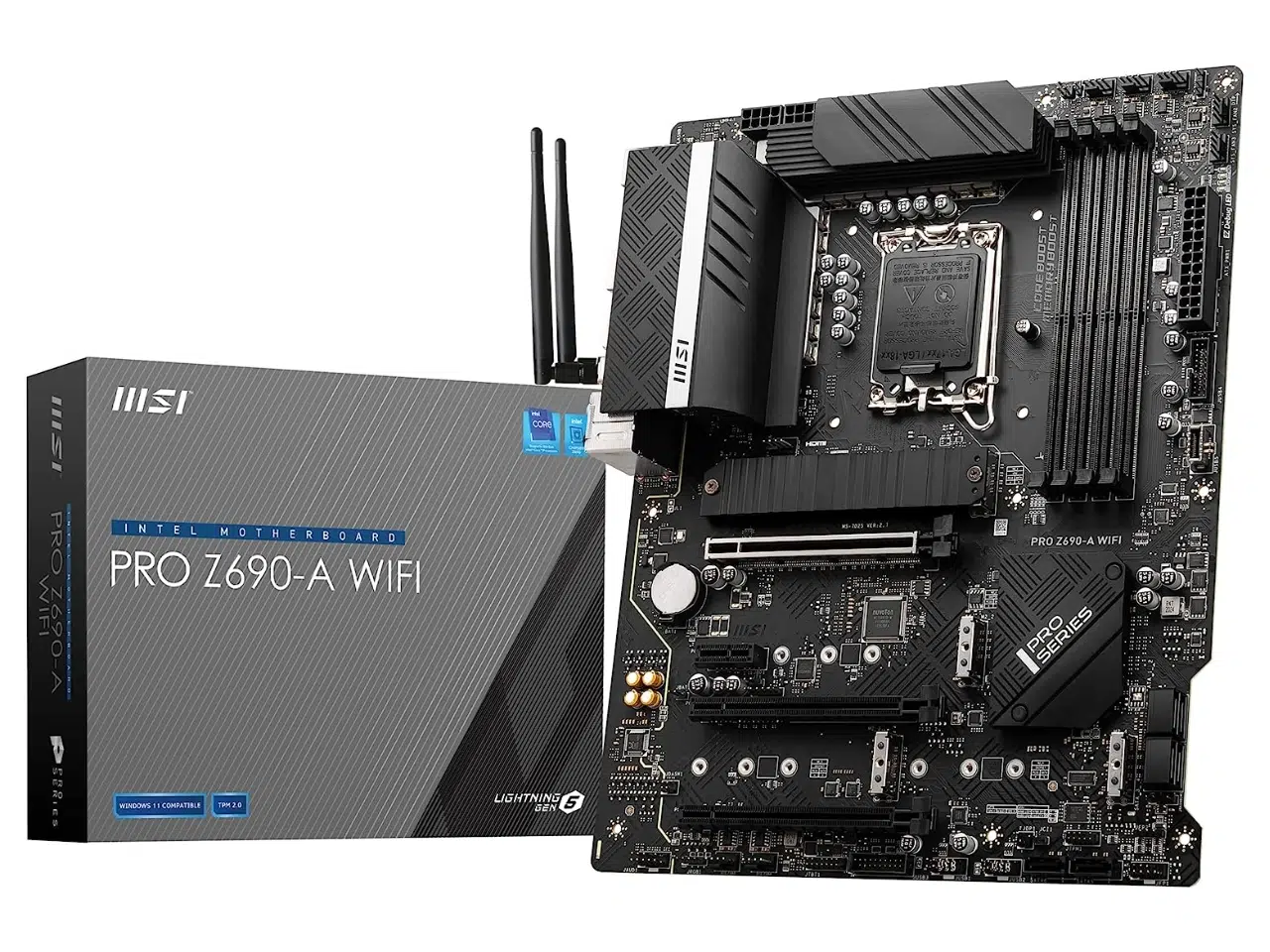

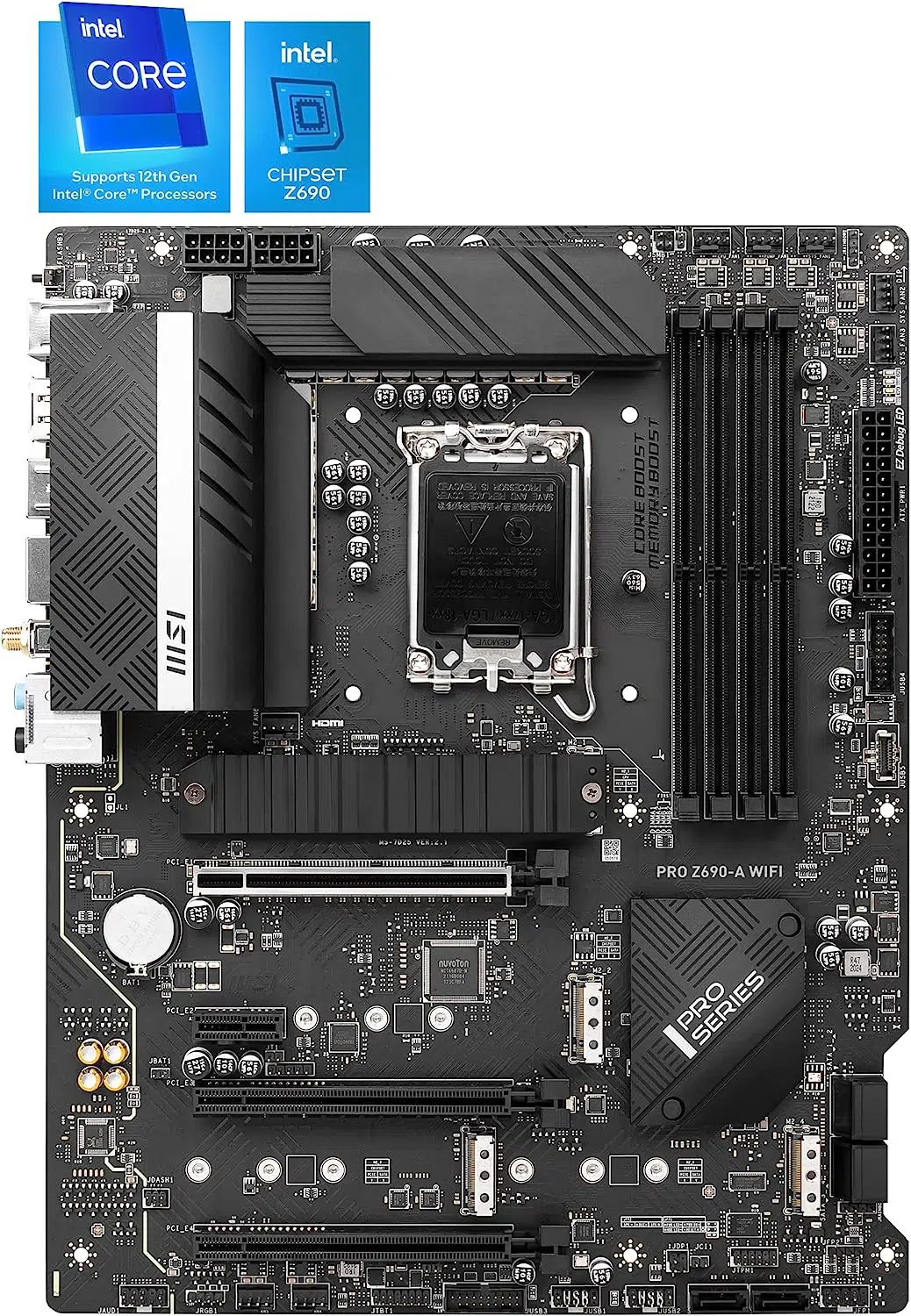

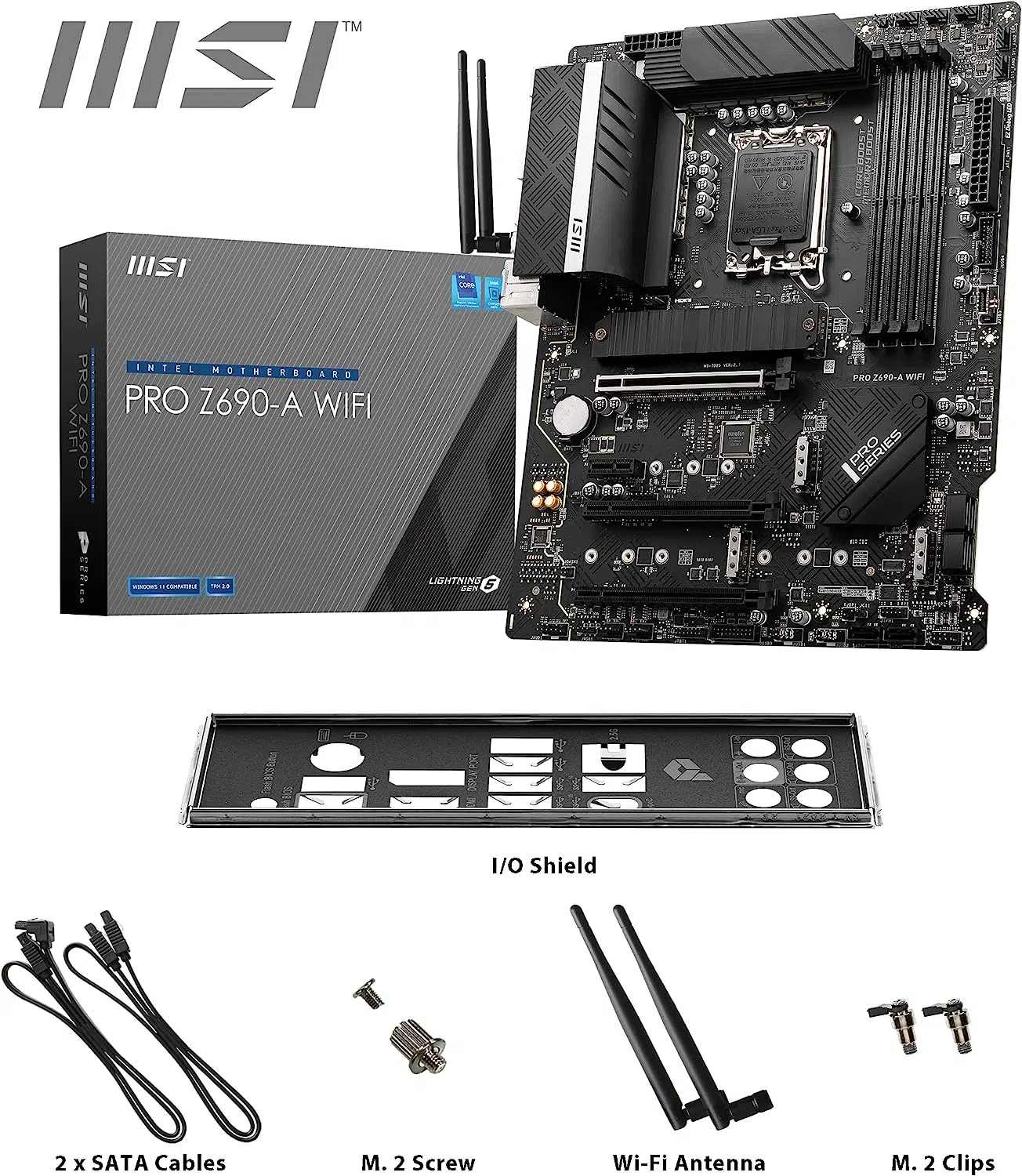

Placa Madre MSI PRO Z690-A WiFi, DDR5, Intel LGA 1700, WiFi 6E - Imagen 1

Placa Madre MSI PRO Z690-A WiFi, DDR5, Intel LGA 1700, WiFi 6E - Imagen 2

Clic para ampliar

El precio original era: $299.990.El precio actual es: $229.990. Iva Inc

Descripción
Valoraciones (0)

Descripción

Model
Brand	MSI
Model	PRO Z690-A WIFI
Supported CPU
CPU Socket Type	LGA 1700

	* Dedicated LGA1700 mounting bracket is required.
CPU Type	Supports 13th / 12th Gen Intel Core, Pentium Gold, Celeron Processors*
CPU Type	May require a BIOS update to boot the 13th gen Intel® Core™ desktop processors.
Chipsets
Chipset	Intel Z690
Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic
Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	DDR5 (Max speed up to 6400 MHz OC)
Maximum Memory Supported	192GB
Channel Supported	Dual Channel
Expansion Slots
PCI Express 5.0 x16	1 x PCI Express 5.0 x16

	* Actual support may vary by CPU.
PCI Express 3.0 x16	2 x PCI Express 3.0 x16

	* Supports up to PCIe 3.0 x4 & 3.0 x1.
PCI Express x1	1 x PCI Express 3.0 x1
Storage Devices
SATA 6Gb/s	6 x SATA 6Gb/s
M.2	4 x M.2 slots (Key M):

	M2_1 slot (from CPU):
	Supports PCIe 4.0 x4
	Supports 2242/ 2260/ 2280/ 22110 storage devices

	M2_2 slot (from Z690 chipset):
	Supports PCIe 4.0 x4
	Supports 2242/ 2260/ 2280 storage devices

	M2_3 slot (from Z690 chipset):
	Supports PCIe 3.0 x4
	Supports SATA 6Gb/s
	Supports 2242/ 2260/ 2280 storage devices

	M2_4 slot (from Z690 chipset):
	Supports PCIe 4.0 x4
	Supports SATA 6Gb/s
	Supports 2242/ 2260/ 2280 storage devices
Intel Optane Ready	Intel Optane Memory Ready for M.2 slots that are from Z690 Chipset
SATA RAID	0/1/5/10
Onboard Audio
Audio Chipset	Realtek ALC897
Audio Channels	7.1 Channels
Onboard LAN
LAN Chipset	Intel I225-V
Max LAN Speed	2.5Gbps
Wireless LAN	Intel WIFI 6E
Wireless LAN	802.11 a/b/g/n/ac/ax
Bluetooth	Bluetooth 5.2
Rear Panel Ports
Back I/O Ports	1 x DisplayPort
	1 x HDMI
	1 x Flash BIOS Button
	1 x LAN (RJ45)
	2 x Antenna Bracket
	6 x Audio Jacks
	1 x PS/2 Keyboard/Mouse Combo
	1 x USB 3.2 Gen 2×2 Type-C
	1 x USB 3.2 Gen 2 Type-A
	2 x USB 3.2 Gen 1 Type-A
	4 x USB 2.0/1.1
Internal I/O Connectors
Onboard USB	1 x USB 3.2 Gen 2 10Gbps Type-C port
	2 x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
	2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
Other Connectors	1 x 4-pin CPU fan connector
	1 x 4-pin water-pump fan connector
	6 x 4-pin system fan connectors
	1 x Front panel audio connector
	2 x System panel connectors
	1 x Chassis Intrusion connector
	1 x Clear CMOS jumper
	1 x TPM module connector
	1 x Tuning controller connector
	1 x TBT connector (Supports RTD3)
	1 x 4-pin RGB LED connector
	2 x 3-pin RAINBOW LED connectors
	4 x EZ Debug LED
Physical Spec
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0″ x 9.6″
Power Pin	1 x 24-pin ATX main power connector
Power Pin	2 x 8-pin ATX 12V power connector
Windows Compatibility
Windows 11	Supported
Features
Features	Supports 12th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket

	Supports DDR5 Memory, up to 6400+(OC) MHz

	Lightning Fast Experience: PCIe 5.0 slots, Lightning Gen4 x4 M.2, USB 3.2 Gen 2×2

	Premium Thermal Solution: Extended Heatsink Design, MOSFET thermal pads rated for 7W/mk and M.2 Shield Frozr are built for high performance system and non-stop works

	2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

	Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds

	Audio Boost: Reward your ears with studio grade sound quality

	High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material

	Multi-GPU: With Steel armor PCI-E slots. Supports AMD Crossfire
