Especificaciones:
| Model | |
| Brand | ASUS |

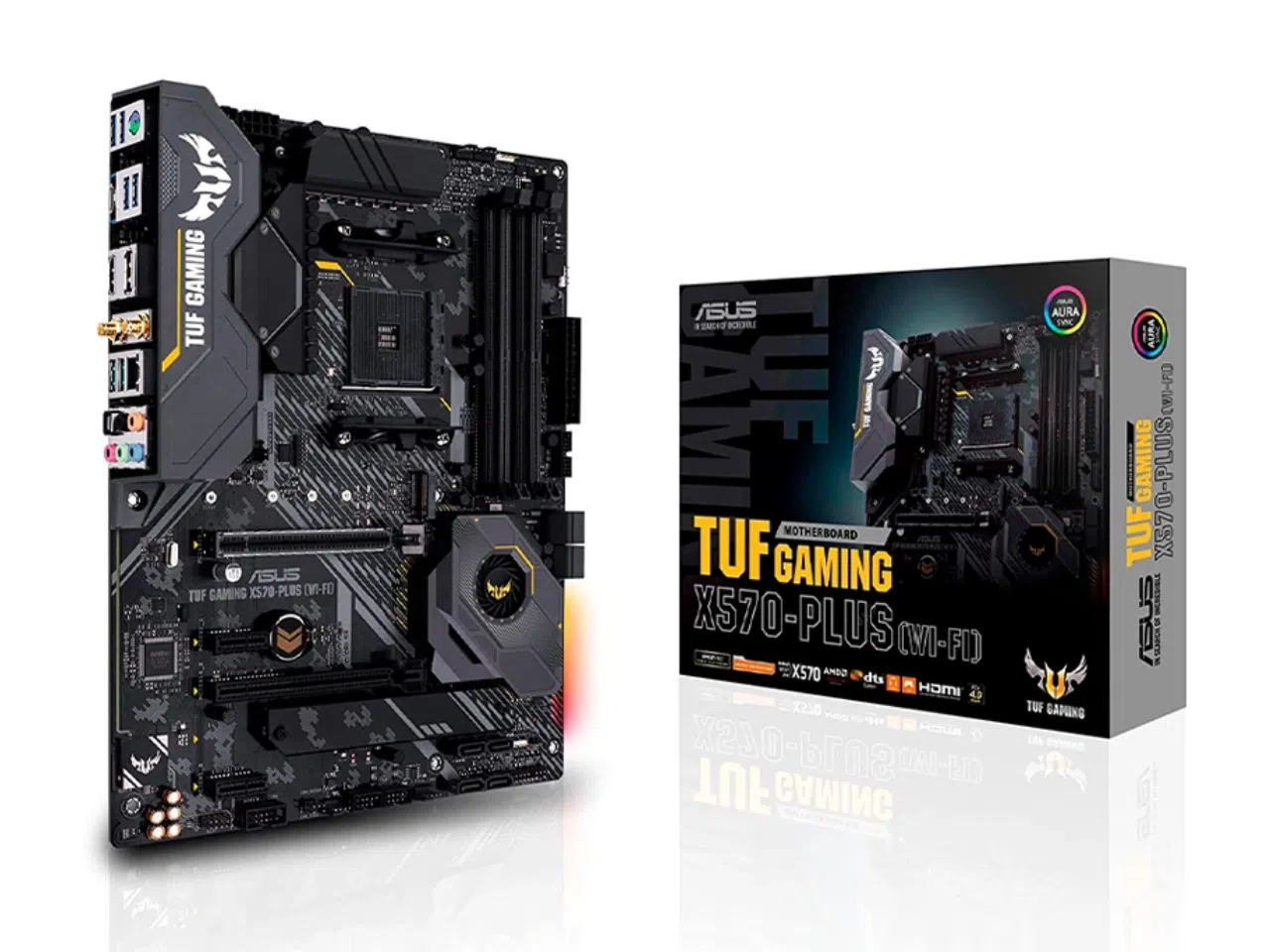

| Model | TUF GAMING X570-PLUS (Wi-Fi) |
| Supported CPU | |
| CPU Socket Type | AM4 |
| CPU Type | AMD AM4 Socket 3rd and 2nd Gen AMD Ryzen / 3rd, 2nd and 1st Gen AMD Ryzen with Radeon Graphics Processors |
| * BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU. Refer to ASUS website for CPU support list. | |
| Chipsets | |
| Chipset | AMD X570 |
| Memory | |
| Number of Memory Slots | 4x288pin (DDR4) |
| Memory Standard | 3rd Gen AMD Ryzen Processors |
| DDR4 4400(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Un-buffered Memory | |
| 2nd Gen AMD Ryzen Processors | |
| DDR4 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Un-buffered Memory | |
| 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors | |
| DDR4 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Un-buffered Memory | |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| Expansion Slots | |
| PCI Express 4.0 x16 | 3rd Gen AMD Ryzen Processors |
| 1 x PCIe 4.0 x16 (x16 mode) | |
| 2nd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics Processors | |
| 1 x PCIe 3.0 x16 (x16 mode) | |
| 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors | |
| 1 x PCIe 3.0/2.0 x16 (x8 mode) | |
| AMD X570 chipset | |
| 1 x PCIe 4.0 x16 (max at x4 mode) | |
| PCI Express x1 | 2 x PCIe 4.0 x1 |
| Storage Devices | |
| SATA 6Gb/s | 8 x SATA 6Gb/s |
| M.2 | 3rd Gen AMD Ryzen Processors: |
| 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 4.0 x4 and SATA modes) storage devices support | |
| 2nd Gen AMD Ryzen / 3rd, 2nd and 1st Gen AMD Ryzen with Radeon Graphics Processors: | |
| 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 3.0 x4 and SATA modes) storage devices support | |
| AMD X570 chipset: | |
| 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 4.0 x4 and SATA modes) storage devices support | |
| SATA RAID | 0/1/10 |
| Onboard Video | |
| Onboard Video Chipset | Integrated Graphics in the 3rd, 2nd and 1st Gen AMD Ryzen with Radeon Graphics Processors |
| Multi-VGA output support: HDMI/DisplayPort ports | |
| – Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz | |
| – Supports DisplayPort with max. resolution 4096 x 2160 @ 60 Hz | |
| Onboard Audio | |
| Audio Chipset | Realtek ALC S1200A High Definition Audio CODEC |
| Audio Channels | 8 Channels |
| Onboard LAN | |
| LAN Chipset | Realtek L8200A |
| Max LAN Speed | 1Gbps |
| Wireless LAN | Intel Wireless-AC 9260 |
| Wi-Fi 802.11 a/b/g/n/ac | |
| Supports dual band frequency 2.4/5 GHz | |
| Supports MU-MIMO | |
| Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed | |
| Bluetooth | Bluetooth 5.0 |
| Rear Panel Ports | |
| Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s) |
| 1 x DisplayPort | |
| 1 x HDMI | |
| 1 x LAN (RJ45) port(s) | |
| 1 x Optical S/PDIF out | |
| 5 x Audio jack(s) | |
| 4 x USB 3.2 Gen 1 (up to 5Gbps) ports | |
| 3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-C) | |
| ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0) | |
| Internal I/O Connectors | |
| Onboard USB | 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports |
| 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) | |
| Other Connectors | 2 x Aura RGB Strip Header(s) |
| 1 x Addressable Gen 2 header(s) | |
| 1 x SPI TPM header | |
| 1 x CPU Fan connector(s) | |
| 1 x CPU OPT Fan connector(s) | |
| 3 x Chassis Fan connector(s) | |
| 1 x AIO_PUMP connector | |
| 1 x Front panel audio connector(s) (AAFP) | |
| 1 x System panel(s) | |
| 1 x Clear CMOS jumper(s) | |
| 1 x COM port header | |
| Physical Spec | |
| Form Factor | ATX |
| LED Lighting | RGB |
| Dimensions (W x L) | 305 x 244 mm |
| Power Pin | 1 x 24-pin EATX Power connector(s) |
| 1 x 8-pin ATX 12V Power connector(s) | |
| 1 x 4-pin ATX 12V Power connector(s) | |
| Windows 11 Compatibility | |
| Windows 11 | Supported |
| Features | |
| Features | Multi-GPU Support: |
| 3rd and 2nd Gen AMD Ryzen / 3rd, 2nd and 1st Gen AMD Ryzen with Radeon Graphics Processors | |
| Supports AMD CrossFireX Technology | |
| Special Features: | |
| ASUS TUF PROTECTION | |
| – ASUS SafeSlot: Protect your graphics card Investment | |
| – ASUS ESD Guard: Enhanced ESD protection | |
| – ASUS Overvoltage Protection: World-class circuit-protecting power design | |
| – ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! | |
| – ASUS DIGI+ VRM: Precision control for stable power | |
| – ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! | |
| AURA: | |
| – Aura Lighting Control | |
| – Aura RGB Strip Headers | |
| – Addressable Gen 2 Header | |
| ASUS Exclusive Features: | |
| – AI Suite 3 | |
| – Ai Charger | |
| ASUS Quiet Thermal Solution: | |
| – Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan, PCH and M.2 Heatsink | |
| – ASUS Fan Xpert 4 | |
| ASUS EZ DIY: | |
| – ASUS CrashFree BIOS 3 | |
| – ASUS EZ Flash 3 | |
| – ASUS UEFI BIOS EZ Mode | |
| ASUS Q-Design: | |
| – ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) | |
| – ASUS Q-Slot | |
| – ASUS Q-DIMM | |
| DIY Friendly Design | |
| – Procool | |
| – SafeSlot | |
| – Digi+ VRM | |
| – Highly Durable components | |
| – ESD Guards | |
| BIOS: | |
| 256MB Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F4 AURA ON/OFF, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information | |
| Manageability: | |
| WOL by PME, PXE | |
| Operating System: | |
| Windows 10 64-bit | |
| Packaging | |
| Package Contents | Accessories: |
| User’s manual | |
| I/O Shield | |
| 2 x SATA 6Gb/s cable(s) | |
| 1 x M.2 Screw Package | |
| 1 x Supporting DVD | |
| 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11 a/b/g/n/ac compliant) | |
| 1 x TUF GAMING Sticker | |
| 1 x TUF Certification card(s) | |
