Especificaciones:
Model | |
Brand | ASRock |
Model | Z690 Phantom Gaming 4/D5 |
Supported CPU | |
CPU Socket Type | LGA 1700 |
* Dedicated LGA1700 mounting bracket is required. | |
CPU Type | Supports 13th / 12th Gen Intel Core Processors, Intel Pentium Gold, Celeron Processors |
Supported CPU Technologies | Turbo Boost Technology 3.0 |
Chipsets | |
Chipset | Intel Z690 |
Onboard Video | |
Onboard Video Chipset | Supported only by CPU with integrated graphic |
Memory | |
Number of Memory Slots | 4x288pin (DDR5) |
Memory Standard | DDR5 5800+(OC)* |
Maximum Memory Supported | 128GB |
Channel Supported | Dual Channel |
Expansion Slots | |
PCI Express 5.0 x16 | 1 x PCI Express 5.0 x16 (PCIE1) |
* Supports NVMe SSD as boot disks. | |
PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16, Gen4 x4 (PCIE3) |
* Supports NVMe SSD as boot disks. | |
PCI Express x1 | 3 x PCIe Gen3 x1 |
Other Slots | 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi (Integrated WiFi/BT) |
Storage Devices | |
SATA 6Gb/s | 4 x SATA 6Gb/s |
M.2 | 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* |
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* | |
1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280/22110 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes* | |
* Supports Intel Optane Technology. | |
* Supports Intel Volume Management Device (VMD). | |
* Supports NVMe SSD as boot disks. | |
* Supports ASRock U.2 Kit. | |
Intel Optane Ready | Yes |
SATA RAID | 0/1/5/10 |
Onboard Audio | |
Audio Chipset | Realtek ALC897 |
Audio Channels | 7.1 Channels |
Onboard LAN | |
LAN Chipset | Intel I219-V |
Max LAN Speed | 1Gbps |

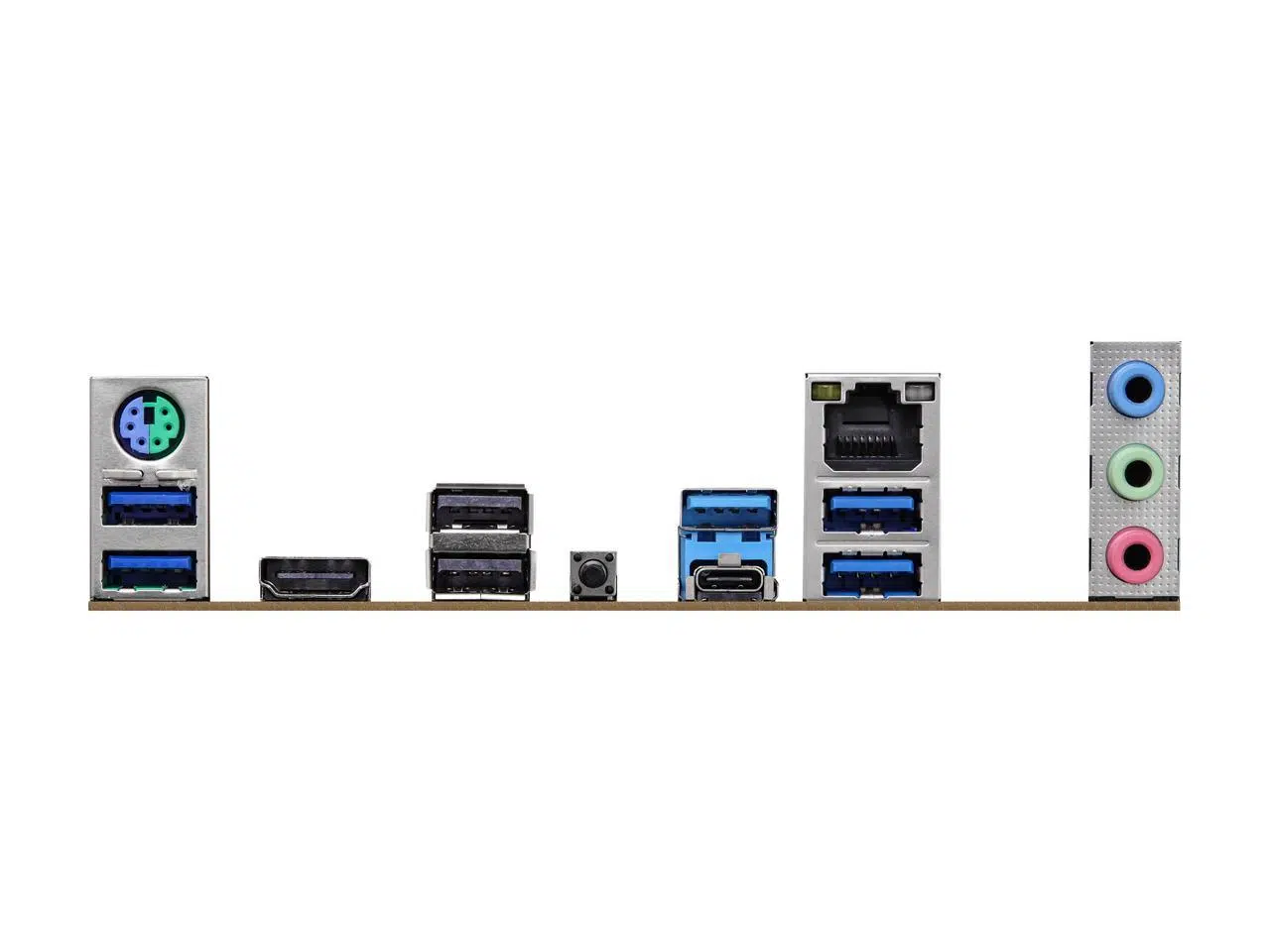

Rear Panel Ports | |
Back I/O Ports | 1 x PS/2 Mouse/Keyboard Port |
1 x HDMI Port | |
1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection) | |
1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection) | |
4 x USB 3.2 Gen1 Ports (Supports ESD Protection) | |
2 x USB 2.0 Ports (Supports ESD Protection) | |
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) | |
1 x BIOS Flashback Button | |
HD Audio Jacks: Line in / Front Speaker / Microphone | |

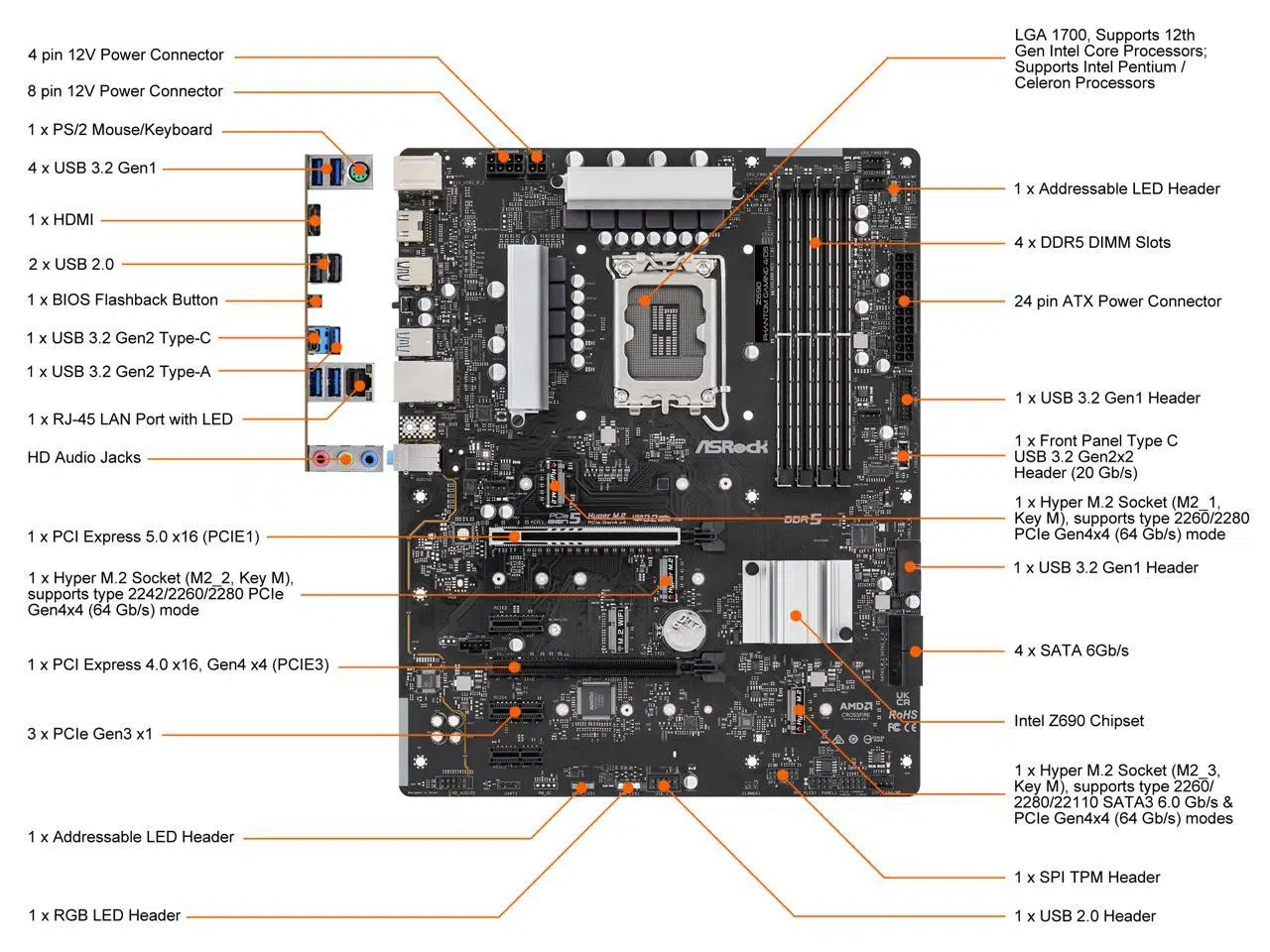

Internal I/O Connectors | |
Onboard USB | 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) |
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) | |
1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection) | |
Other Connectors | 1 x SPI TPM Header |
1 x Power LED and Speaker Header | |
1 x RGB LED Header* | |
2 x Addressable LED Headers** | |
1 x CPU Fan Connector (4-pin)*** | |
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** | |
4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** | |
1 x Front Panel Audio Connector | |
1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) | |
* Supports in total up to 12V/3A, 36W LED Strip. | |
** Support in total up to 5V/3A, 15W LED Strip. | |
*** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. | |
**** The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. | |
***** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. | |
***** CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use. | |
Physical Spec | |
Form Factor | ATX |
LED Lighting | RGB |

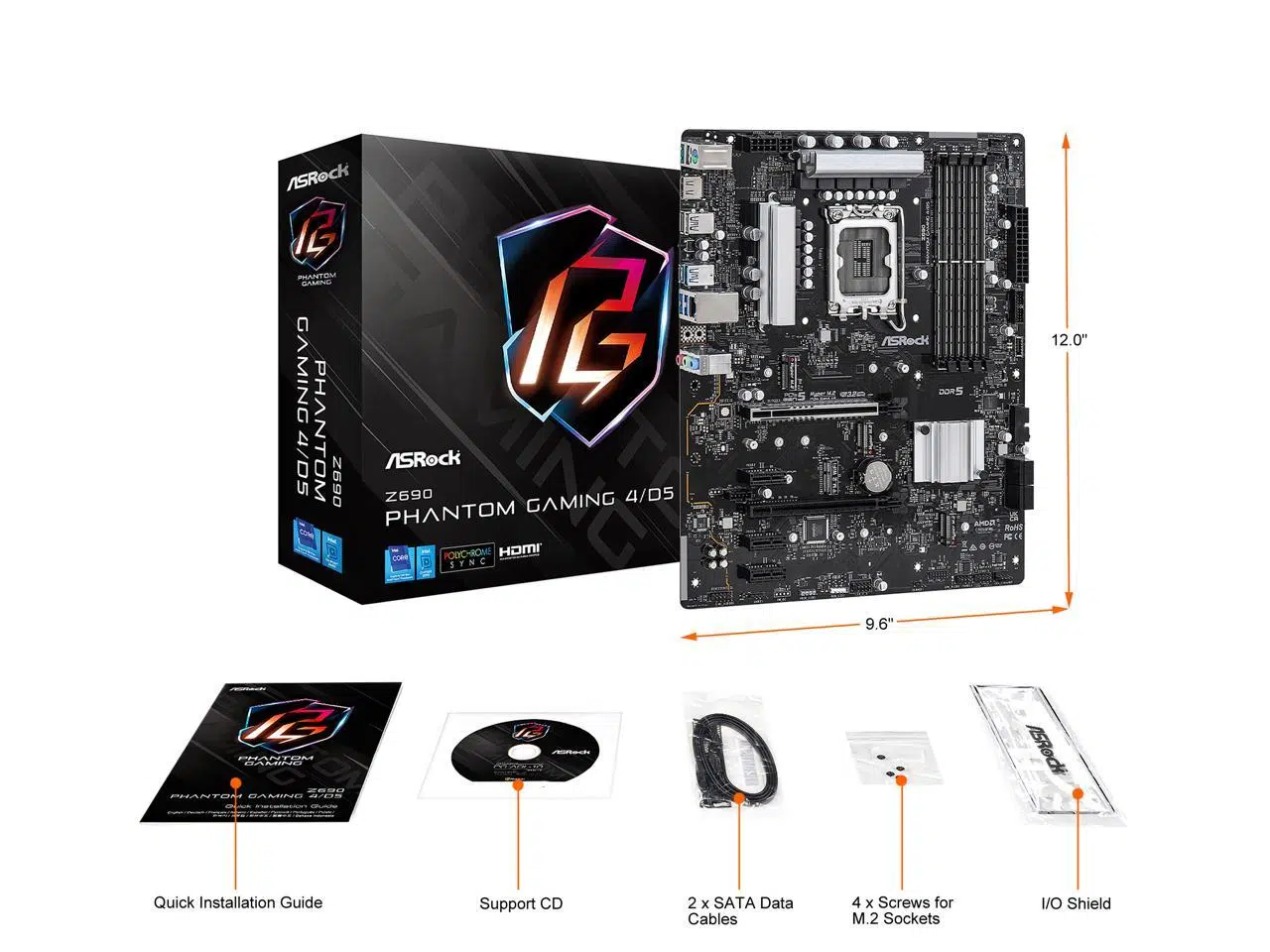

Dimensions (W x L) | 305 x 244 mm |
Power Pin | 1 x 24 pin ATX Power Connector |
1 x 8 pin 12V Power Connector (Hi-Density Power Connector) | |
1 x 4 pin 12V Power Connector (Hi-Density Power Connector) | |
Windows Compatibility | |
Windows 11 | Supported |
