Especificaciones:
Model | |
Brand | ASUS |
Series | ROG |

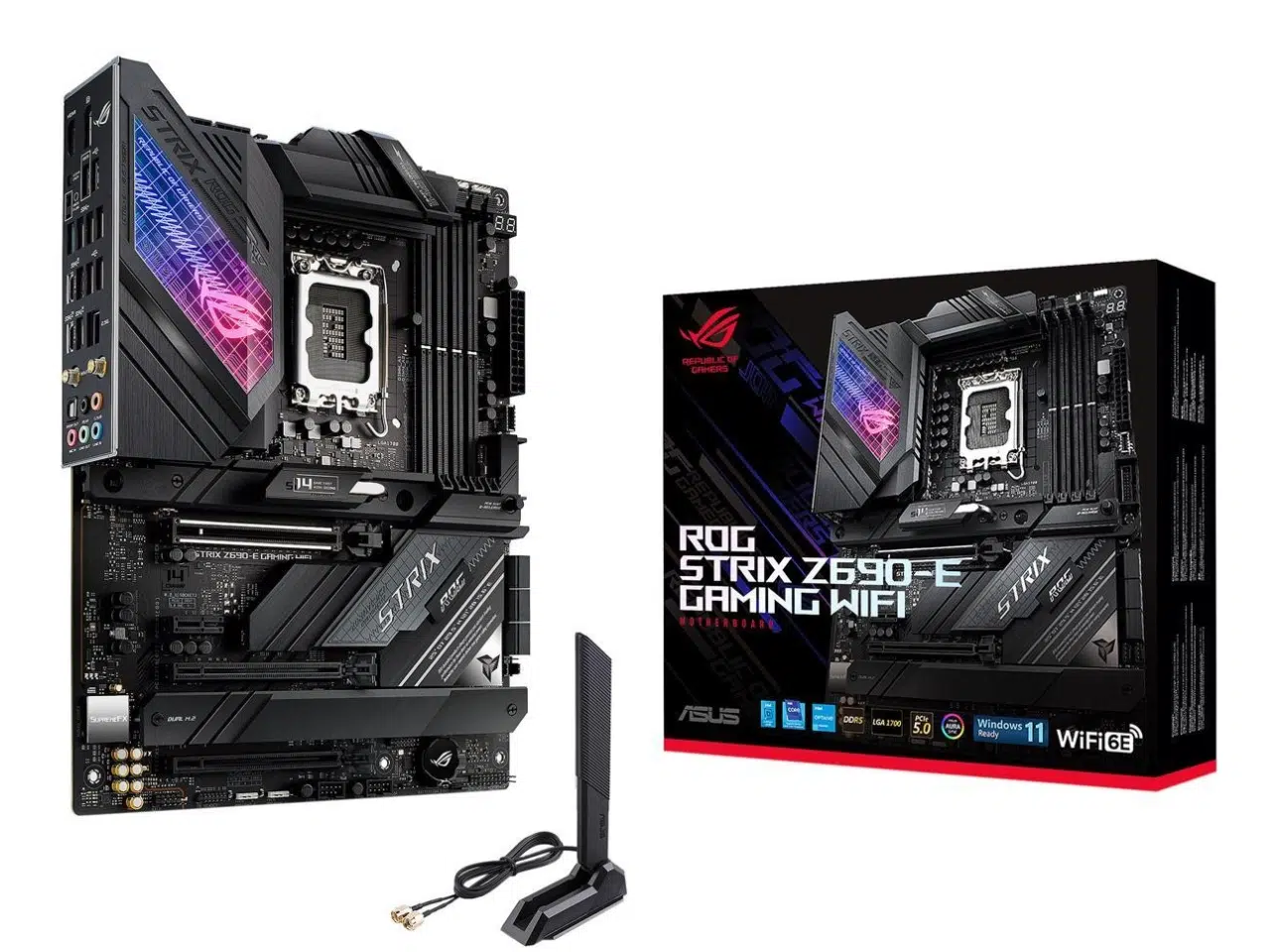

Model | STRIX Z690-E GAMING WIFI |
Part Number | 90MB18J0-M0AAY0 |
Supported CPU | |

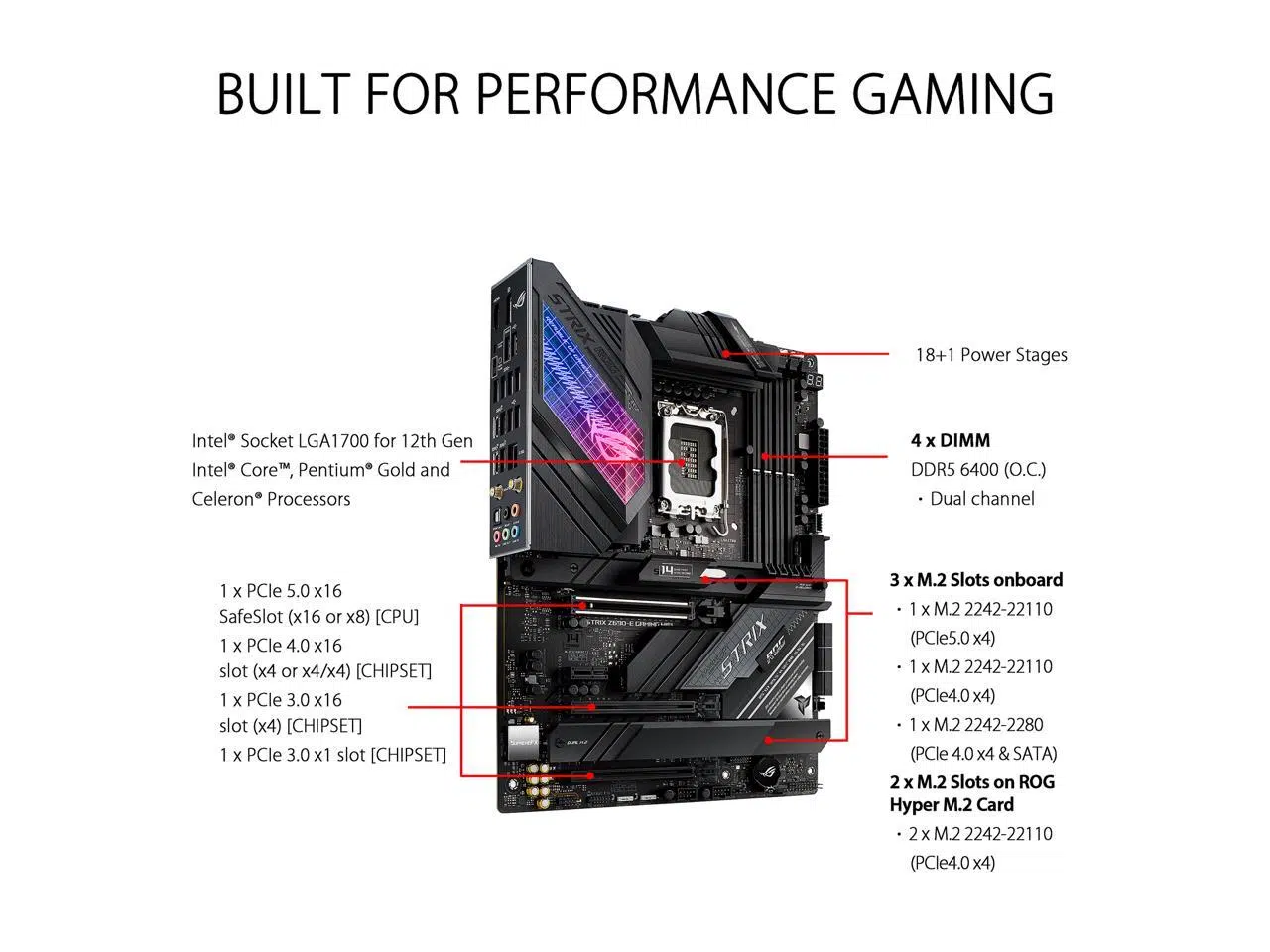

CPU Socket Type | LGA 1700 |
* Designed with dual mounting holes compatible with both Intel LGA1700 and LGA1200 cooling brackets. | |
CPU Type | Supports 13th / 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors* |
*May require a BIOS update to boot the 13th gen Intel® Core™ desktop processors. Visit: https://www.asus.com/news/oujwh1old5n6oglf/ | |
* Refer to www.asus.com for CPU support list. | |
Supported CPU Technologies | Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0* |
* Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. | |
Chipsets | |
Chipset | Intel Z690 |
Onboard Video | |
Onboard Video Chipset | Supported only by CPU with integrated graphic |
Memory | |
Number of Memory Slots | 4x288pin (DDR5) |
Memory Standard | DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800 |
* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. | |
Maximum Memory Supported | 128GB |
Channel Supported | Dual Channel |
Expansion Slots | |
PCI Express 5.0 x16 | 1 x PCI Express 5.0 x16 |
* Actual support may vary by CPU. | |
* When M.2_1 is occupied with SSD device, PCIEX16(G5) will run x8 only. | |
PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16 |
* Supports x4 mode or x4/x4 mode for ROG HYPER M.2 CARD. | |
PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 |
* Supports x4 mode. | |
PCI Express x1 | 1 x PCIe 3.0 x1 |
Onboard Audio | |

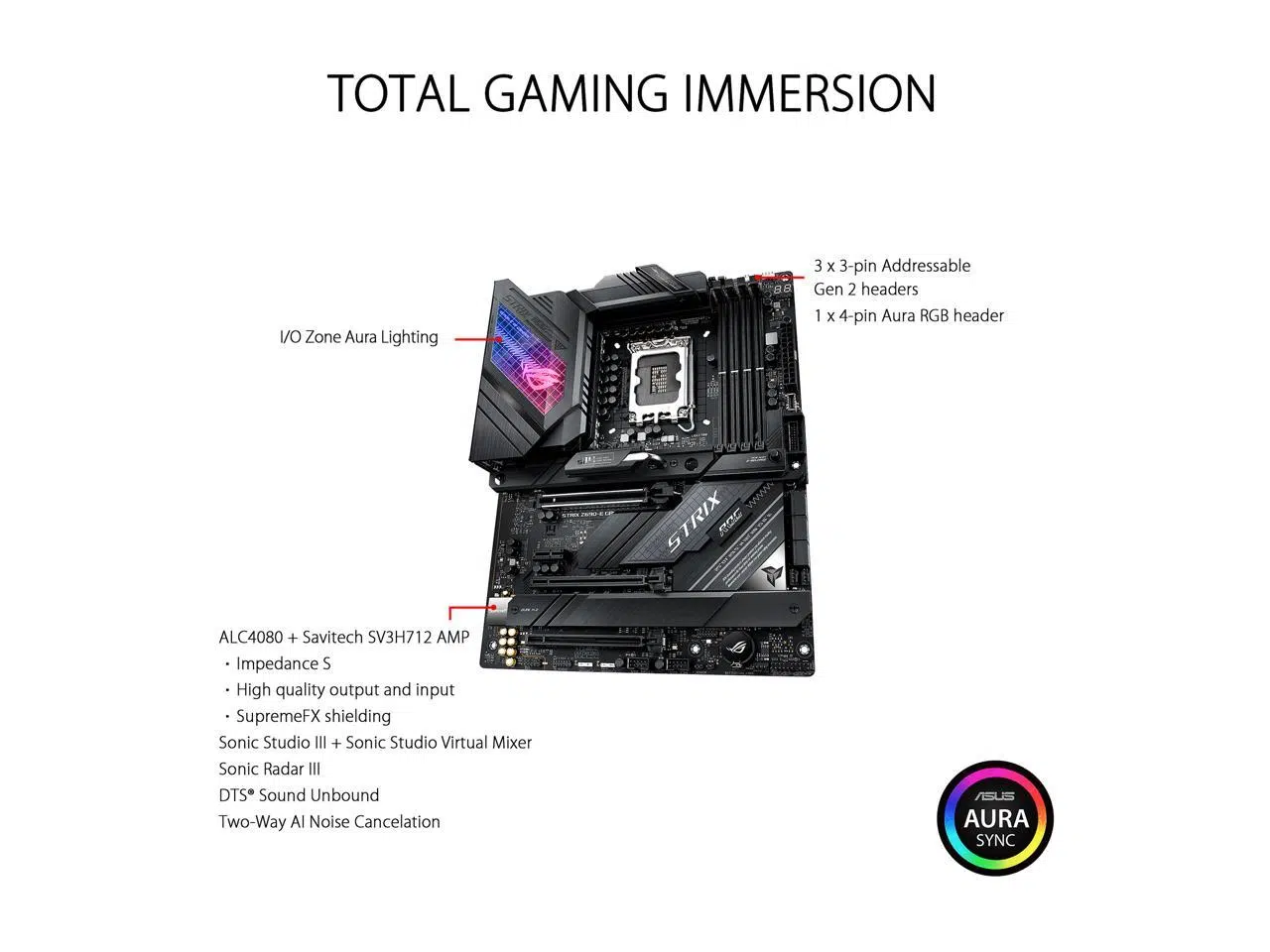

Audio Chipset | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 |
Audio Channels | 7.1 Channels |
Onboard LAN | |
LAN Chipset | Intel I225-V |
Max LAN Speed | 2.5Gbps |
Wireless LAN | Wi-Fi 6E |
802.11 a/b/g/n/ac/ax | |
Bluetooth | Bluetooth 5.2 |

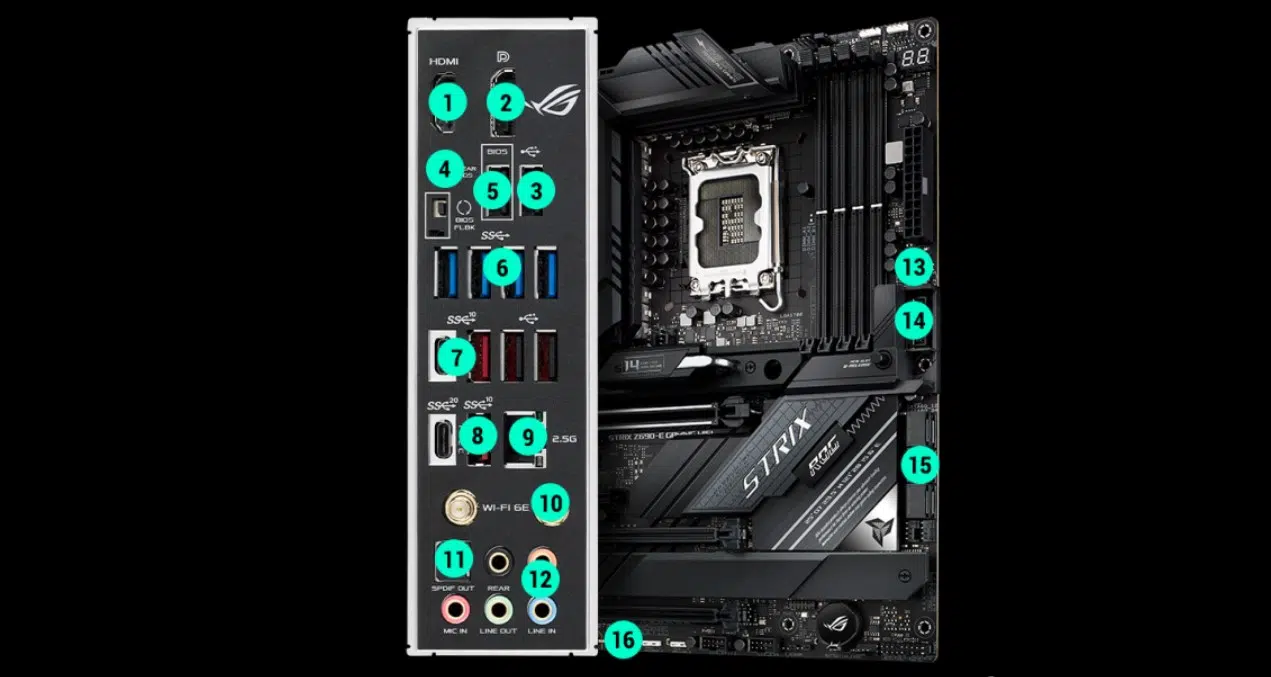

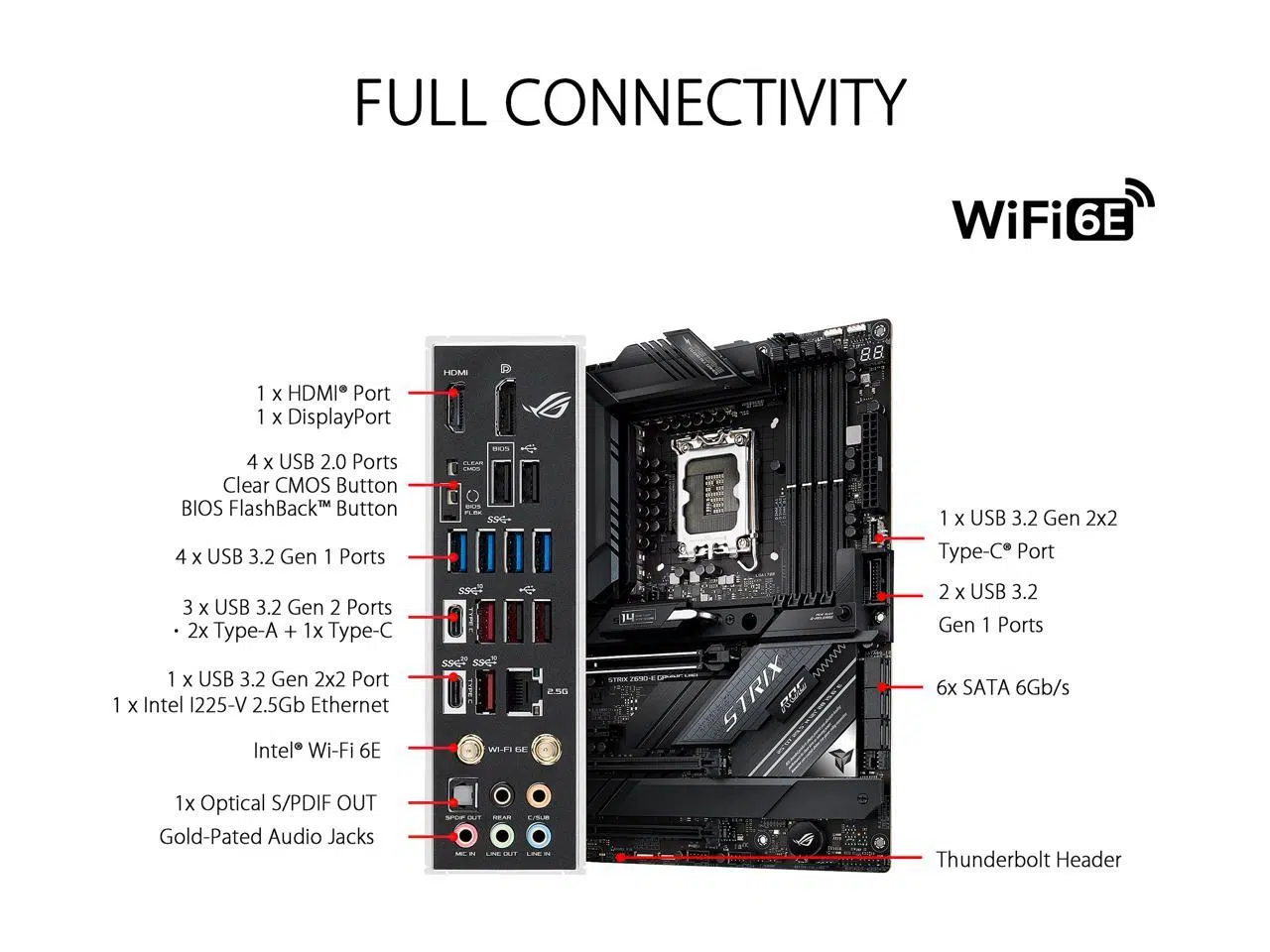

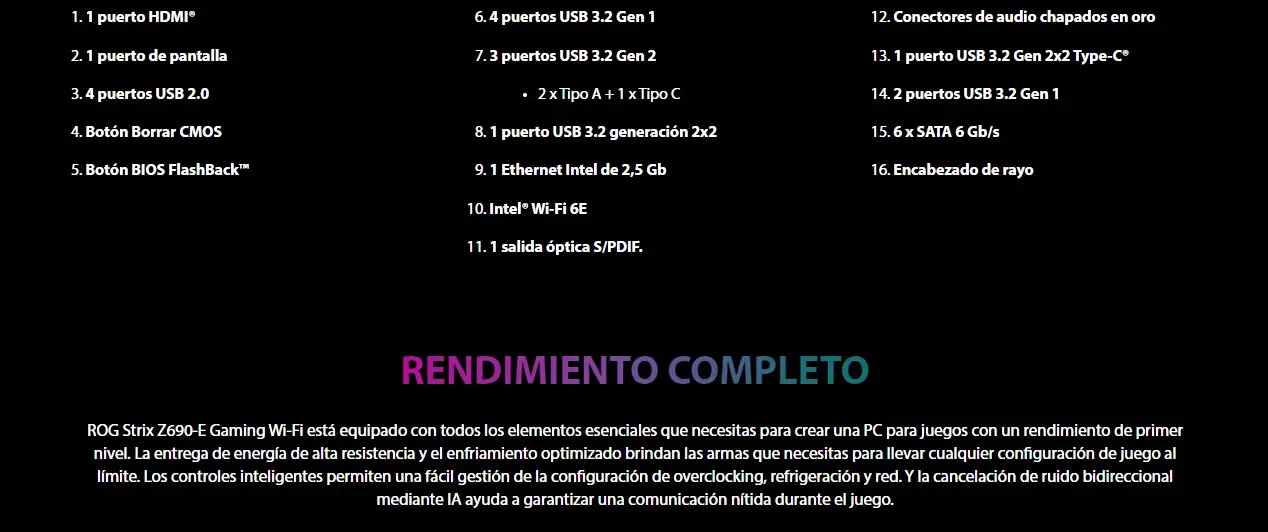

Rear Panel Ports | |
Back I/O Ports | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C) |
3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C ) | |
4 x USB 3.2 Gen 1 ports (4 x Type-A) | |
4 x USB 2.0 ports (2 x Type-A) | |
1 x HDMI port | |
1 x DisplayPort | |
1 x Wi-Fi Module | |
1 x Intel I225-V 2.5Gb Ethernet | |
5 x Gold-plated audio jacks | |
1 x Optical S/PDIF out port | |
1 x BIOS FlashBack button | |
1 x Clear CMOS button | |
Internal I/O Connectors | |
Onboard USB | 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C) |
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
2 x USB 2.0 headers support additional 4 USB 2.0 ports | |

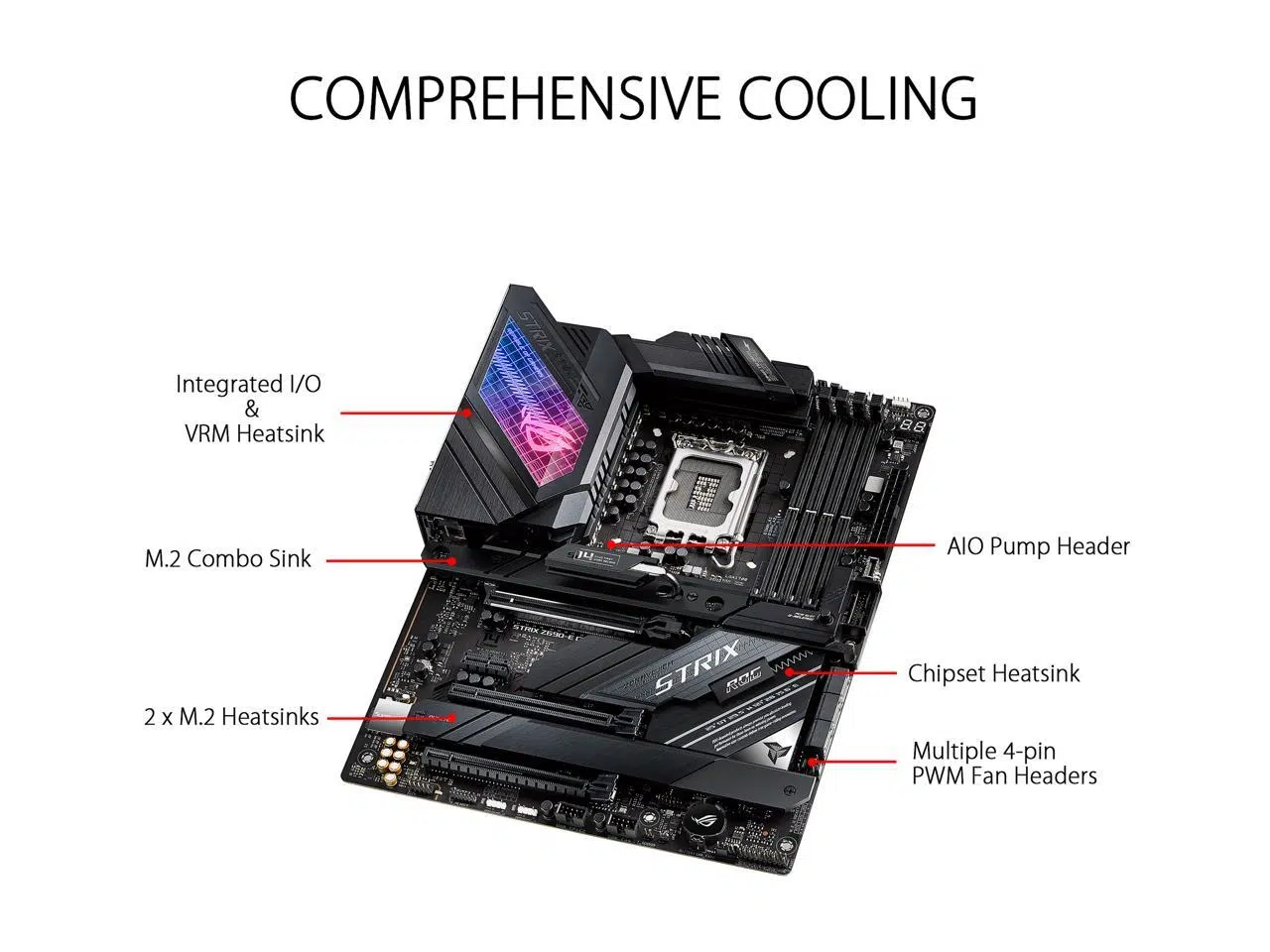

Other Connectors | Fan and Cooling related |
1 x 4-pin CPU Fan header | |
1 x 4-pin CPU OPT Fan header | |
1 x 4-pin AIO Pump header | |
5 x 4-pin Chassis Fan headers | |
Miscellaneous | |
3 x Addressable Gen 2 headers | |
1 x AURA RGB header | |
1 x CPU Over Voltage jumper | |
1 x Front Panel Audio header (AAFP) | |
1 x SPI TPM header (14-1pin) | |
1 x 20-3 pin System Panel header with Chassis intrude function | |
1 x Thermal Sensor header | |
1 x Thunderbolt header | |
Physical Spec | |
Form Factor | ATX |
LED Lighting | RGB |
Dimensions (W x L) | 305 x 244 |
Power Pin | 1 x 24-pin Main Power connector |
2 x 8-pin +12V Power connector | |

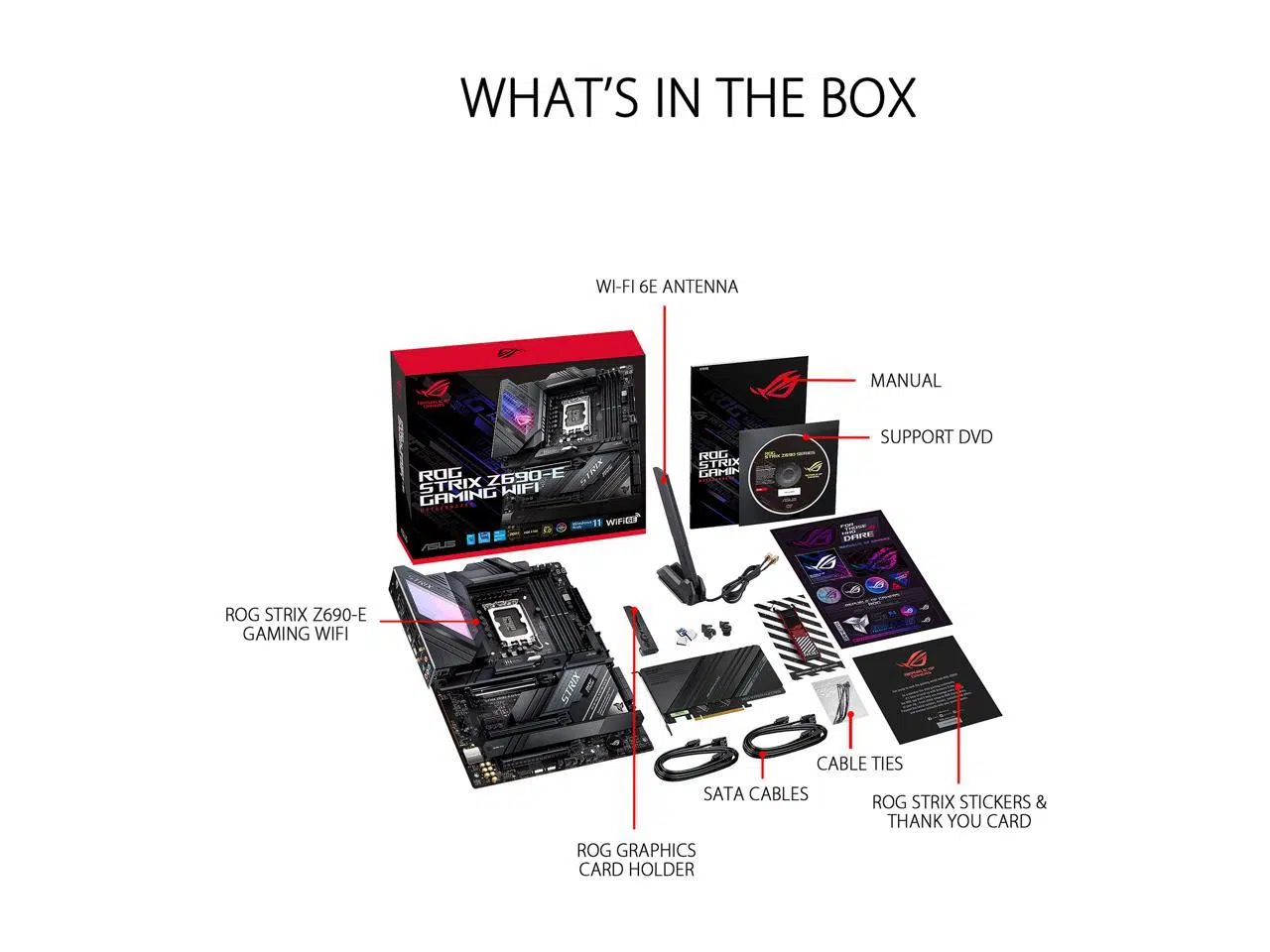

Packaging | |
Package Contents | Accessories: |
Cables | |
4 x SATA 6Gb/s cables | |
ROG HYPER M.2 CARD | |
1 x ROG HYPER M.2 CARD | |
Miscellaneous | |
1 x ASUS 2×2 Dual-Band Wi-Fi moving antennas | |
1 x M.2 Q-Latch package | |
1 x M.2 Q-Latch package for M.2 backplate | |
1 x M.2 Rubber Packages | |
2 x M.2 Screw Packages | |
1 x ROG Graphics card holder | |
1 x ROG key chain | |
1 x cable tie | |
1 x ROG STRIX stickers | |
1 x ROG STRIX thank you card | |
Installation Media | |
1 x Support DVD | |
Documentation | |
1 x User manual |
Nota: Para usar procesadores de 13a Generación, es probable que deba actualizar la BIOS de la placa, esto se puede realizar mediante puerto USB ubicado en el panel trasero de la placa.
