***Producto Open Box con garantía de 6 meses***
***Su estado estético puede presentar signos de uso muy leves, ya que el componente pudo haber sido usado para testeos o exhibición***
***Producto se envía con embalaje genérico***
**Producto incluye antenas WiFi. No se incluyen otros accesorios ni manuales***
Especificaciones:
Model | |
Brand | ASUS |
Series | ROG |

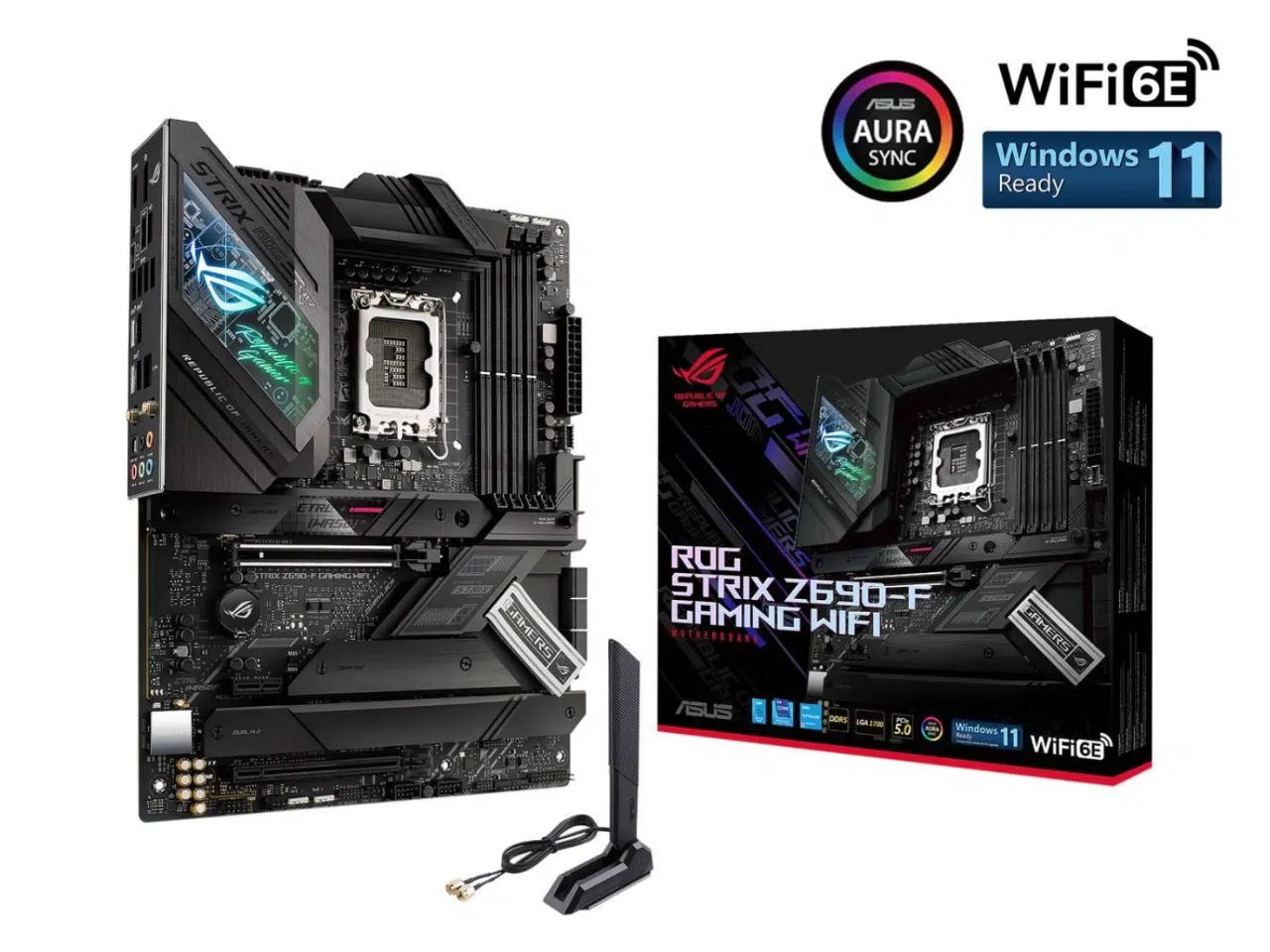

Model | STRIX Z690-F GAMING WIFI |
Part Number | 90MB18M0-M0AAY0 |
Supported CPU | |

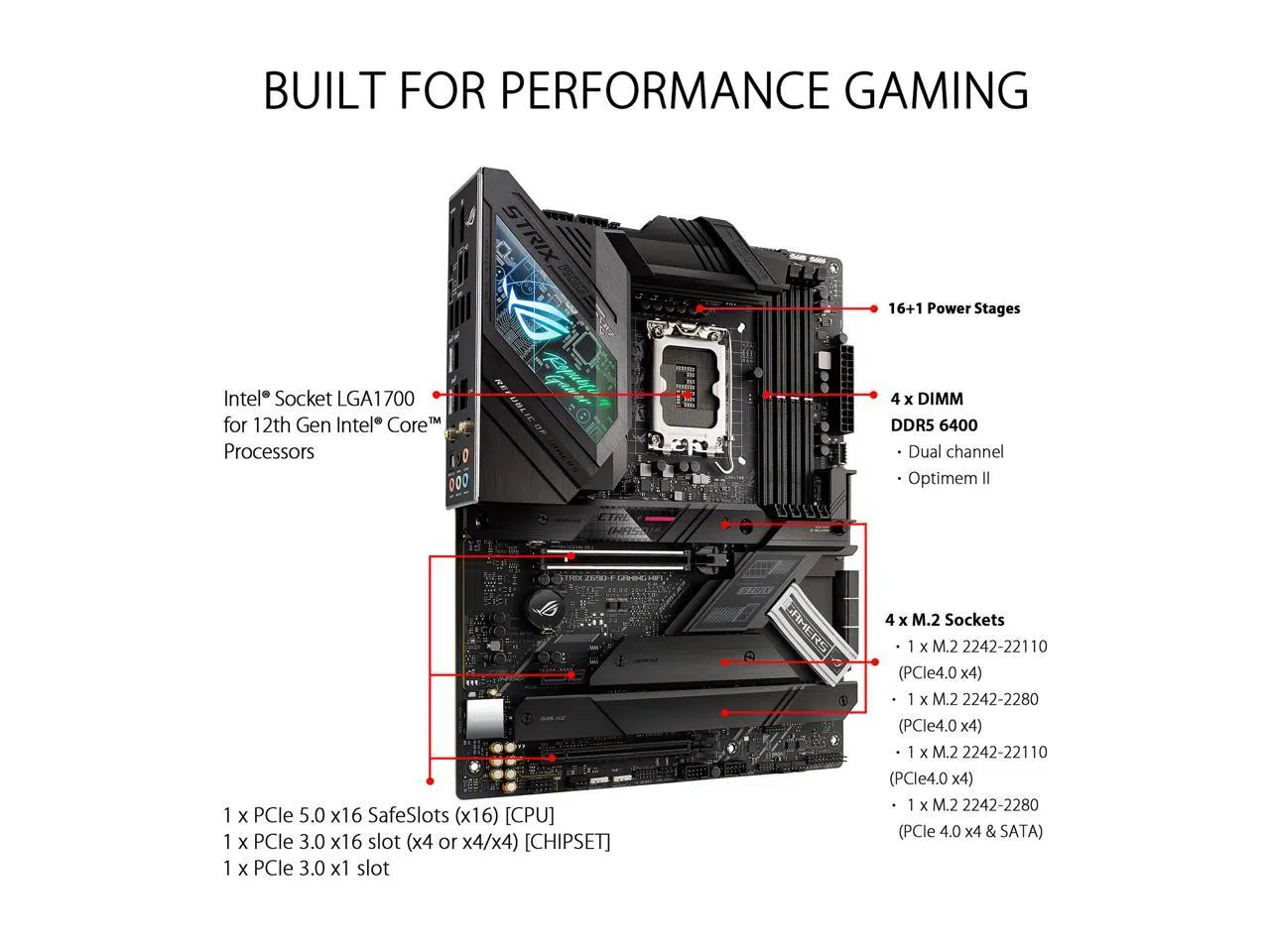

CPU Socket Type | LGA 1700 |
* Designed with dual mounting holes compatible with both Intel LGA1700 and LGA1200 cooling brackets. | |
CPU Type | Supports 13th / 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors* |
*May require a BIOS update to boot the 13th gen Intel® Core™ desktop processors. Visit: https://www.asus.com/news/oujwh1old5n6oglf/ | |
* Refer to www.asus.com for CPU support list. | |
Supported CPU Technologies | Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0* |
* Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. | |
Chipsets | |
Chipset | Intel Z690 |
Onboard Video | |
Onboard Video Chipset | Supported only by CPU with integrated graphic |
Memory | |
Number of Memory Slots | 4x288pin (DDR5) |
Memory Standard | DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800 |
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). | |
Maximum Memory Supported | 128GB |
Channel Supported | Dual Channel |
Expansion Slots | |
PCI Express 5.0 x16 | 1 x PCI Express 5.0 x16 |
* Actual support may vary by CPU. | |
* Please check PCIe bifurcation table in support site. | |
PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 |
* Supports x4 mode or x4/x4 mode. | |
PCI Express x1 | 1 x PCIe 3.0 x1 |
Storage Devices | |
SATA 6Gb/s | 6 x SATA 6Gb/s |
M.2 | Intel 12th Gen Processors:* |
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) | |
Intel Z690 Chipset:** | |
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) | |
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)*** | |
* Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. | |
** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots. | |
*** When M.2_4 is operating in SATA device, SATA6G_2 will be disabled. | |
Intel Optane Ready | Yes |
Onboard Audio | |
Audio Chipset | Realtek ALC4080 |
Audio Channels | 7.1 Channels |
Onboard LAN | |
LAN Chipset | Intel I225-V |
Max LAN Speed | 2.5Gbps |
Wireless LAN | Wi-Fi 6E |
802.11a/b/g/n/ac/ax | |
Bluetooth | Bluetooth 5.2 |

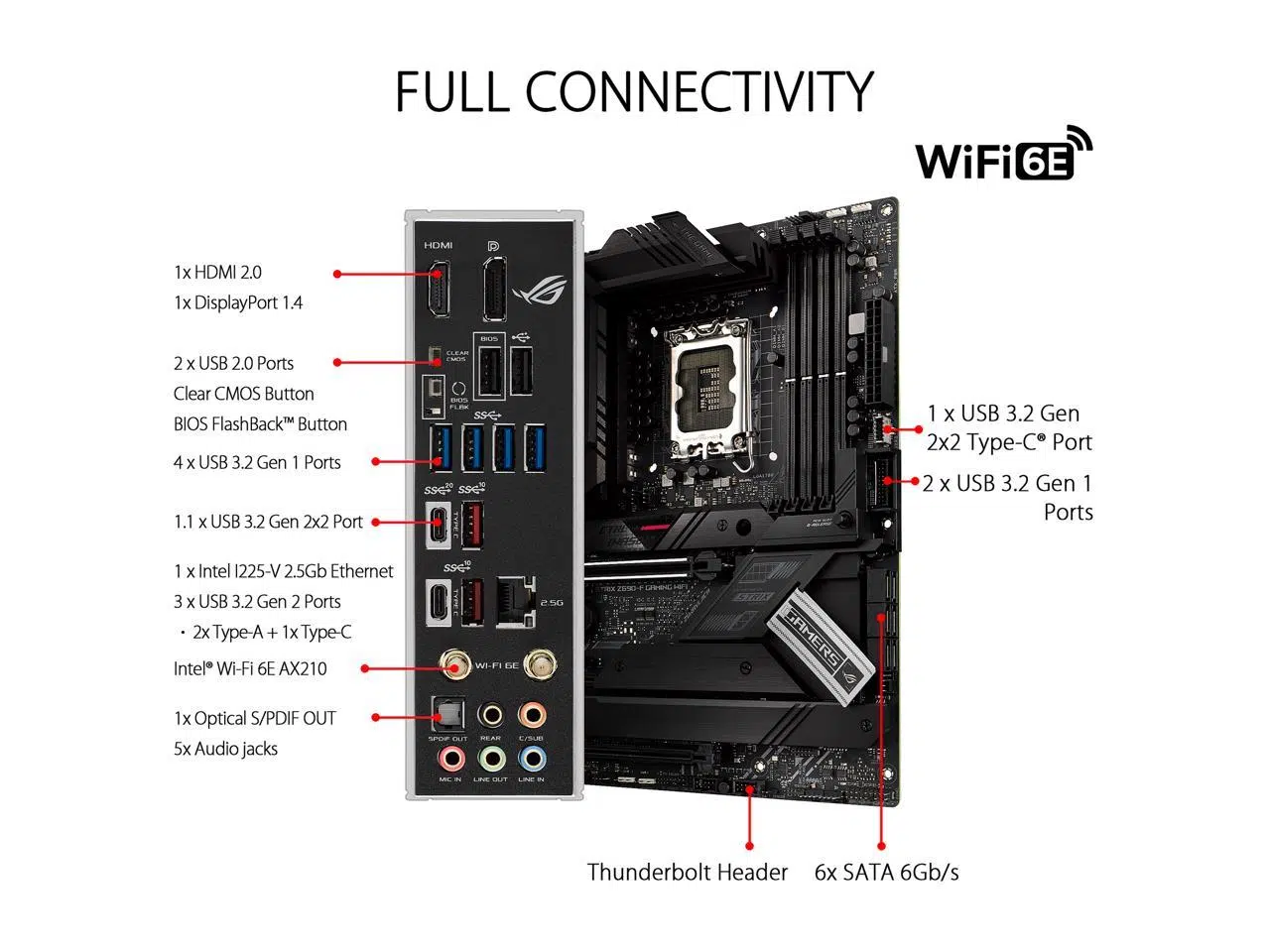

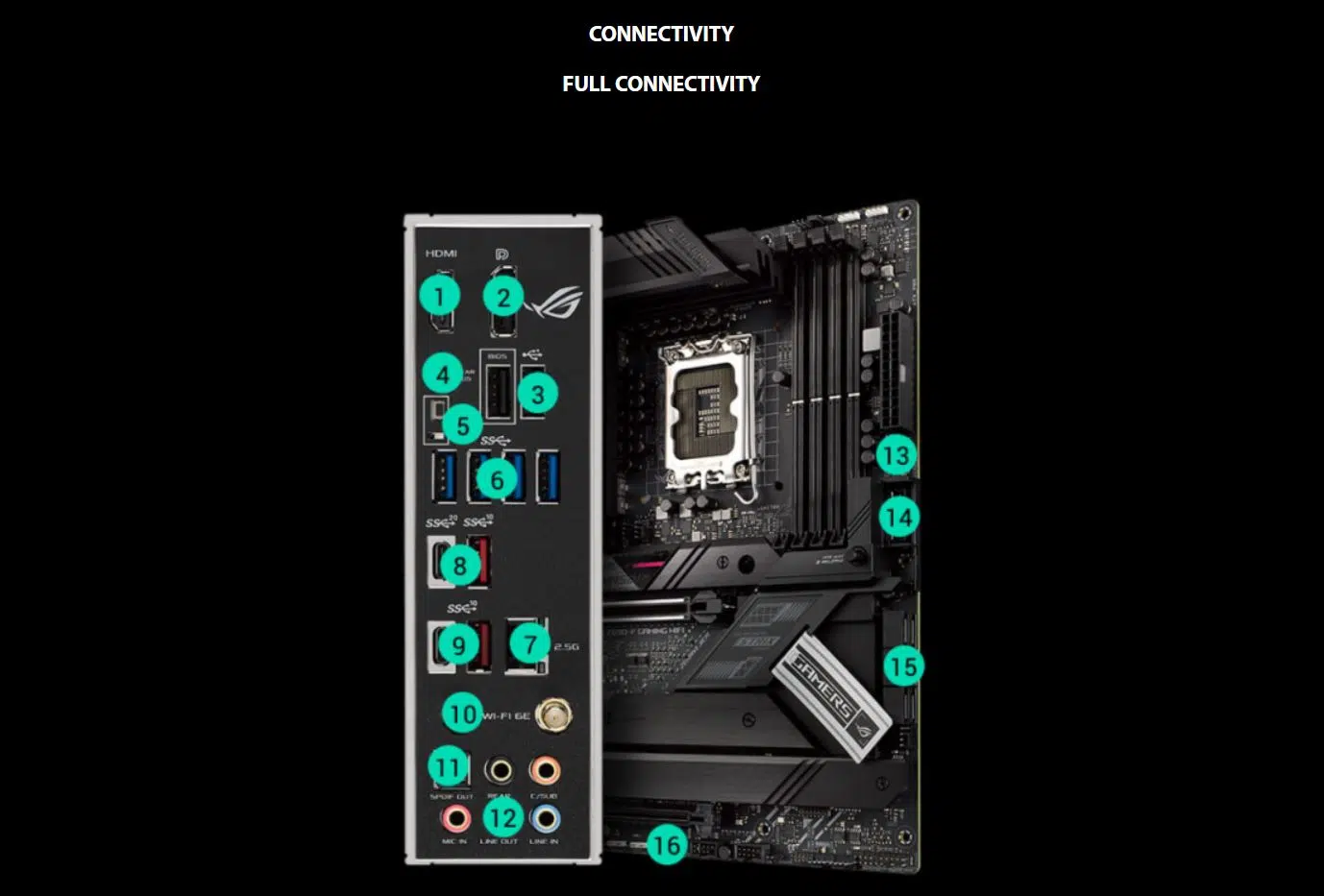

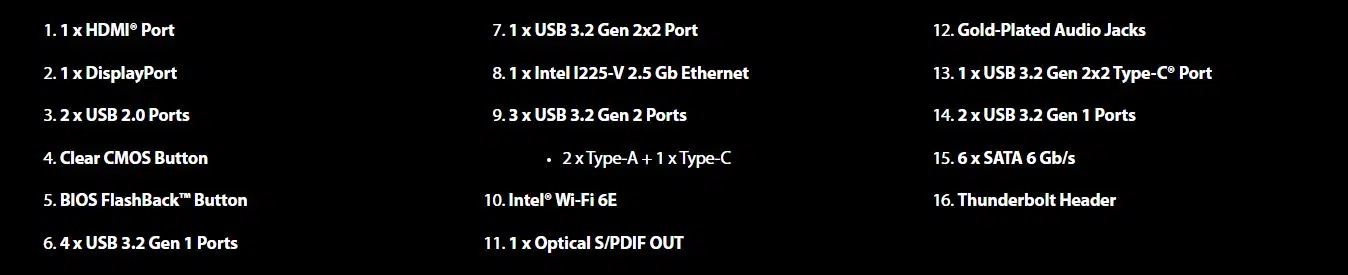

Rear Panel Ports | |
Back I/O Ports | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C) |
3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C ) | |
4 x USB 3.2 Gen 1 ports (4 x Type-A) | |
2 x USB 2.0 ports (2 x Type-A) | |
1 x HDMI port | |
1 x DisplayPort | |
1 x Wi-Fi Module | |
1 x Intel I225-V 2.5Gb Ethernet | |
5 x Gold-plated audio jacks | |
1 x Optical S/PDIF out port | |
1 x BIOS FlashBack button | |
1 x Clear CMOS button | |
Internal I/O Connectors | |
Onboard USB | 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C) |
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
2 x USB 2.0 headers support additional 4 USB 2.0 ports | |

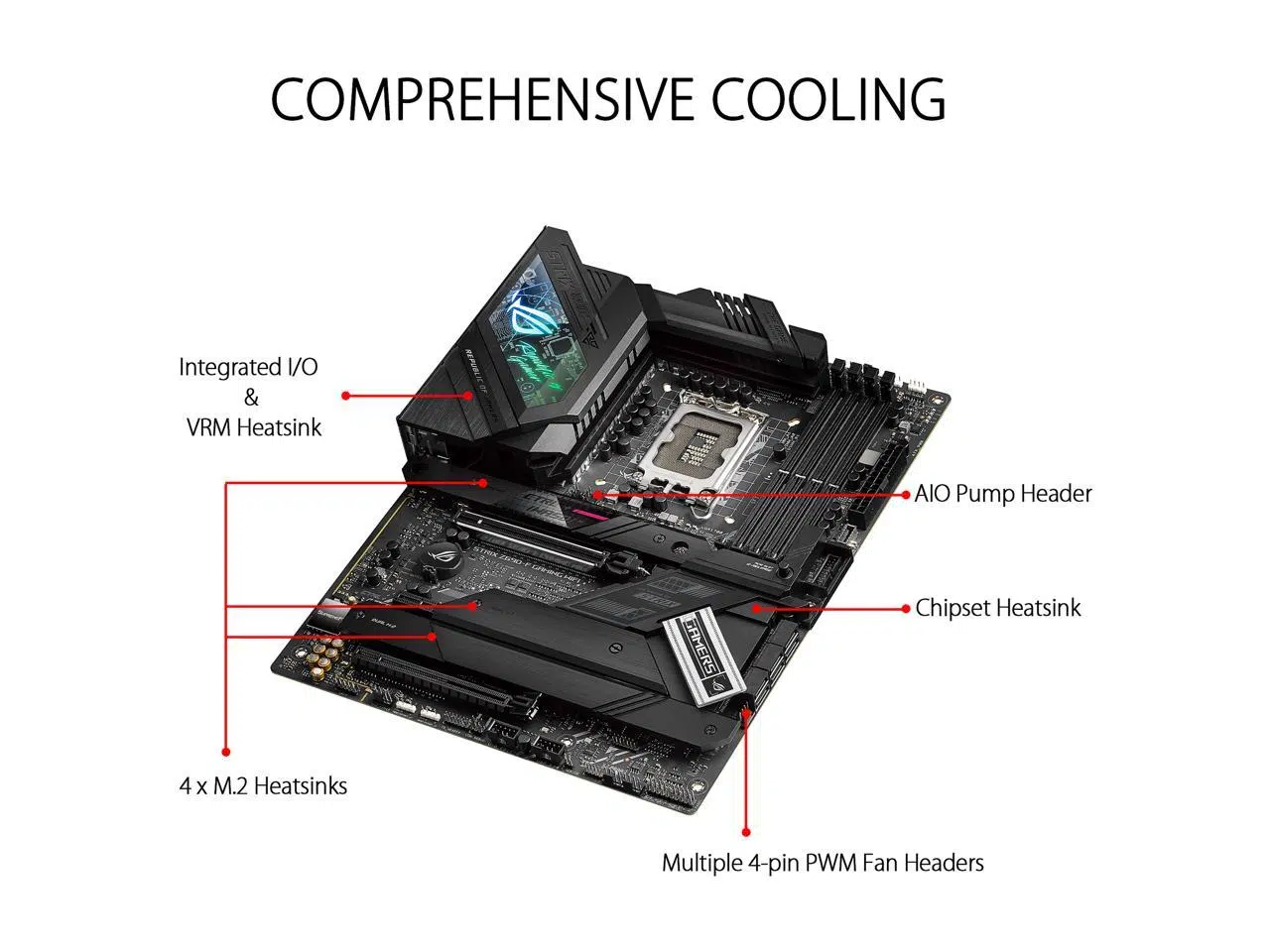

Other Connectors | Fan and Cooling related |
1 x 4-pin CPU Fan header | |
1 x 4-pin CPU OPT Fan header | |
1 x 4-pin AIO Pump header | |
5 x 4-pin Chassis Fan headers | |
Miscellaneous | |
3 x Addressable Gen 2 headers | |
1 x AURA RGB header | |
1 x BMC header | |
1 x CPU Over Voltage jumper | |
1 x Front Panel Audio header (AAFP) | |
1 x SPI TPM header (14-1pin) | |
1 x 20-3 pin System Panel header with Chassis intrude function | |
1 x Thermal Sensor header | |
1 x Thunderbolt header | |
Physical Spec | |
Form Factor | ATX |
LED Lighting | RGB |
Dimensions (W x L) | 305 x 244 mm |
Power Pin | 1 x 24-pin Main Power connector |
2 x 8-pin +12V Power connector | |
Windows Compatibility | |
Windows 11 | Ready |
Features | |
Features | Special Features: |
Extreme Engine Digi+ | |
– 5K Black Metallic Capacitors | |
ASUS Q-Design | |
– M.2 Q-Latch | |
– PCIe Slot Q-Release | |
– Q-DIMM | |
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |
– Q-Slot | |
ASUS Thermal Solution | |
– M.2 heatsink backplate | |
– M.2 heatsink | |
ASUS EZ DIY | |
– BIOS FlashBack™ button | |
– BIOS FlashBack™ LED | |
– Clear CMOS button | |
-CPU Socket lever protector | |
– ProCool II | |
– Pre-mounted I/O shield | |
– SafeSlot | |
– SafeDIMM | |

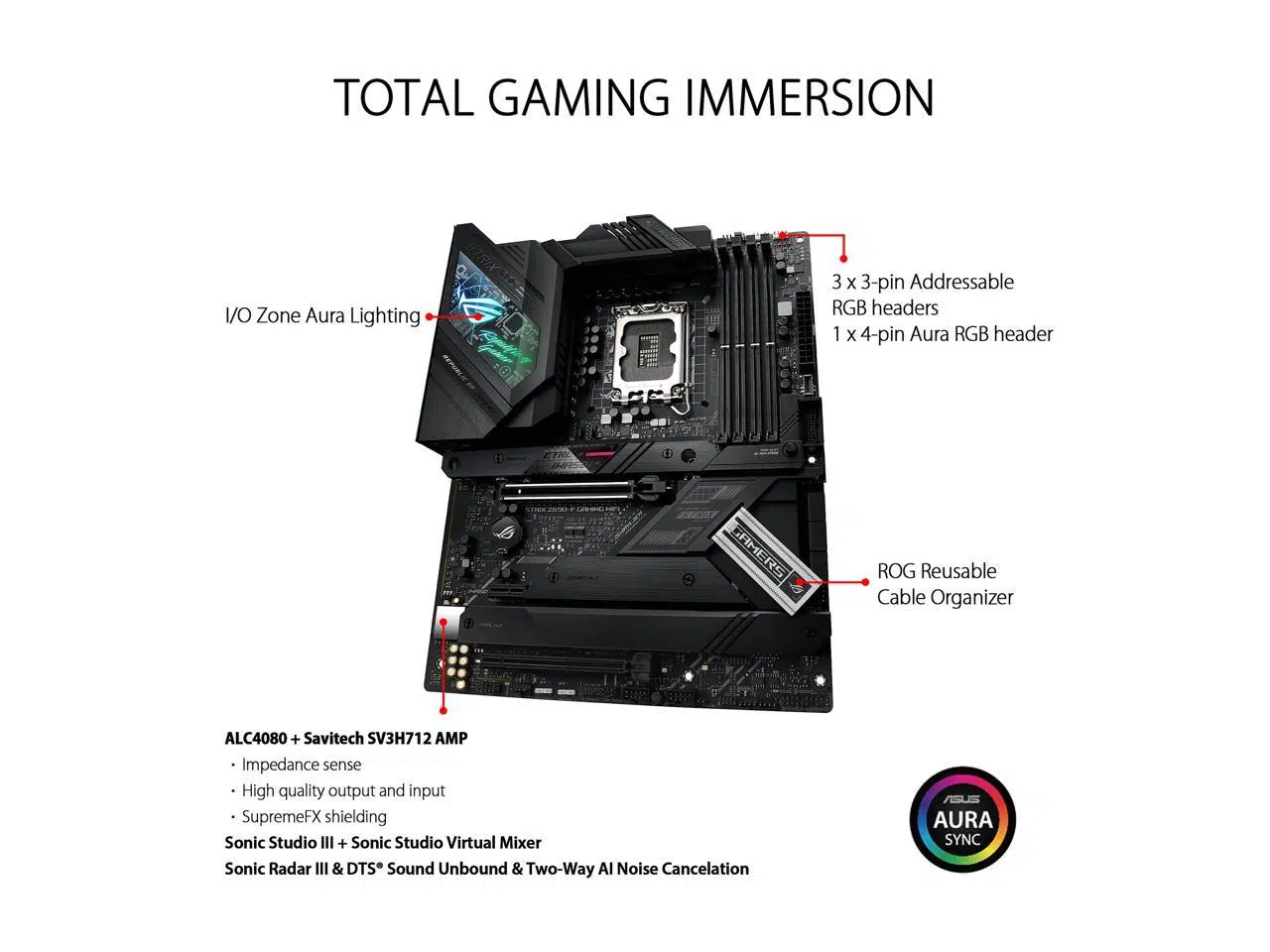

AURA Sync | |
– AURA RGB header | |
– Addressable Gen 2 RGB headers | |
ASUS HYDRANODE | |
– 1 x Chassis fan support* (CHA_FAN1P) | |
* Visit ASUS Website for the latest compatibility list. | |
TPM header | |
Software Features: | |
ROG Exclusive Software | |
– ROG CPU-Z | |
– GameFirst VI | |
– Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion | |
– Sonic Radar III | |
– DTS Sound Unbound | |
– Anti-virus software | |
ASUS Exclusive Software | |
Armoury Crate | |
– AIDA64 Extreme (60 days free trial) | |
– AURA Creator | |
– AURA Sync | |
– Fan Xpert 4 | |
– Two-Way AI Noise Cancelation | |
AI Suite 3 | |
– 5-Way Optimization with AI Overclocking | |
TPU | |
EPU | |
DIGI+ VRM | |
Turbo app | |
MyAsus | |
WinRAR | |
UEFI BIOS | |
AI Overclocking Guide | |
ASUS EZ DIY | |
– ASUS CrashFree BIOS 3 | |
– ASUS EZ Flash 3 | |
– ASUS UEFI BIOS EZ Mode | |
FlexKey | |
MemTest86 | |
BIOS: | |
256 Mb Flash ROM, UEFI AMI BIOS | |
Manageability: | |
WOL by PME, PXE | |
Operating System: | |
Windows 10 64-bit, Windows 11 64-bit | |

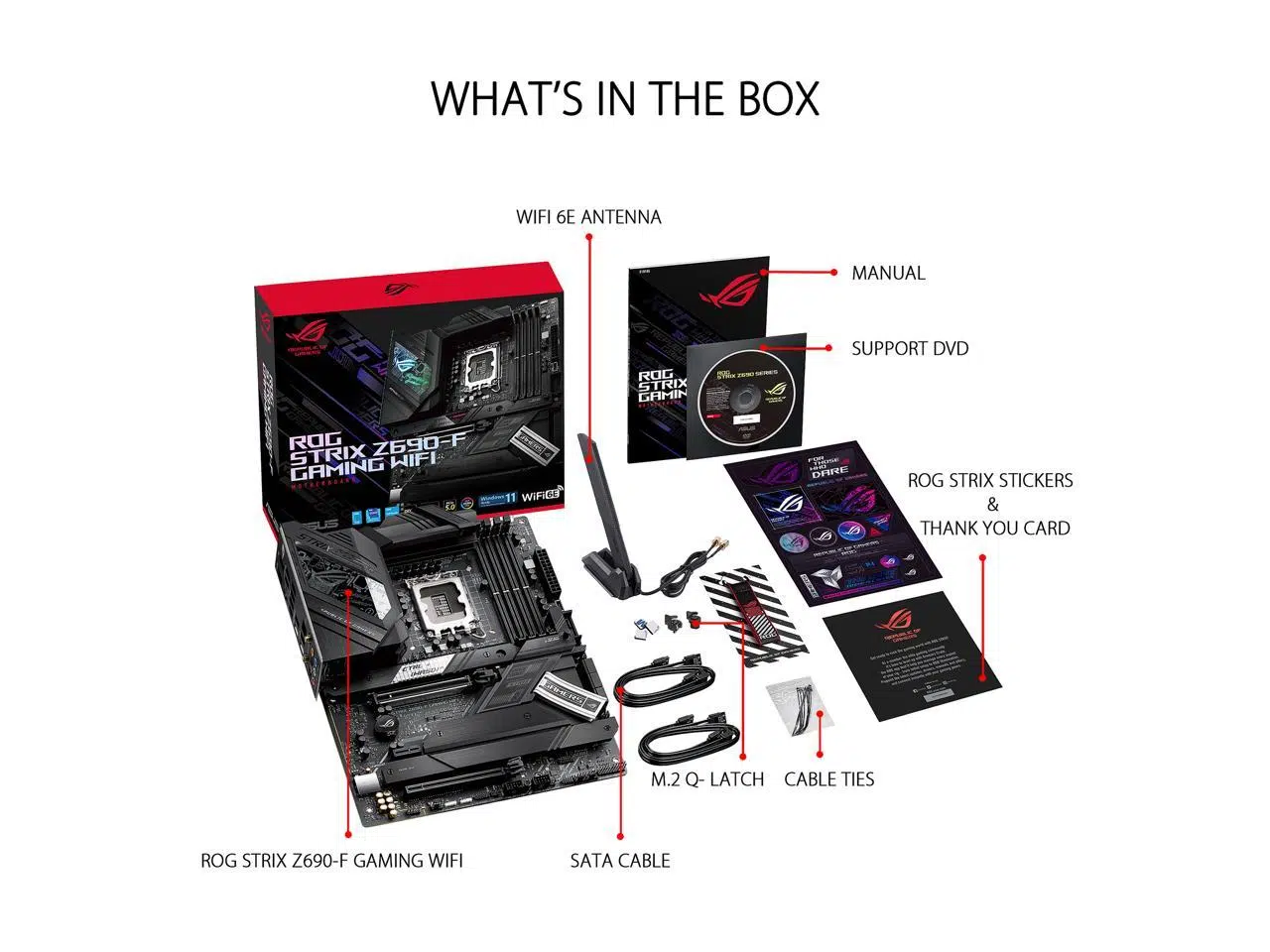

Packaging | |
Package Contents | Accessories: |
Cables | |
4 x SATA 6Gb/s cables | |
Miscellaneous | |
1 x ASUS 2×2 Dual-Band Wi-Fi moving antennas | |
1 x M.2 Q-Latch package | |
1 x M.2 Q-Latch package for M.2 backplate | |
2 x M.2 Rubber Packages | |
1 x ROG key chain | |
1 x cable tie | |
1 x ROG STRIX stickers | |
1 x ROG STRIX thank you card | |
Installation Media | |
1 x Support DVD | |
Documentation | |
1 x User manual |
Nota: Para usar procesadores de 13a Generación, es probable que deba actualizar la BIOS de la placa, esto se puede realizar mediante puerto USB ubicado en el panel trasero de la placa.
