Especificaciones:
Model | |
Brand | MSI |

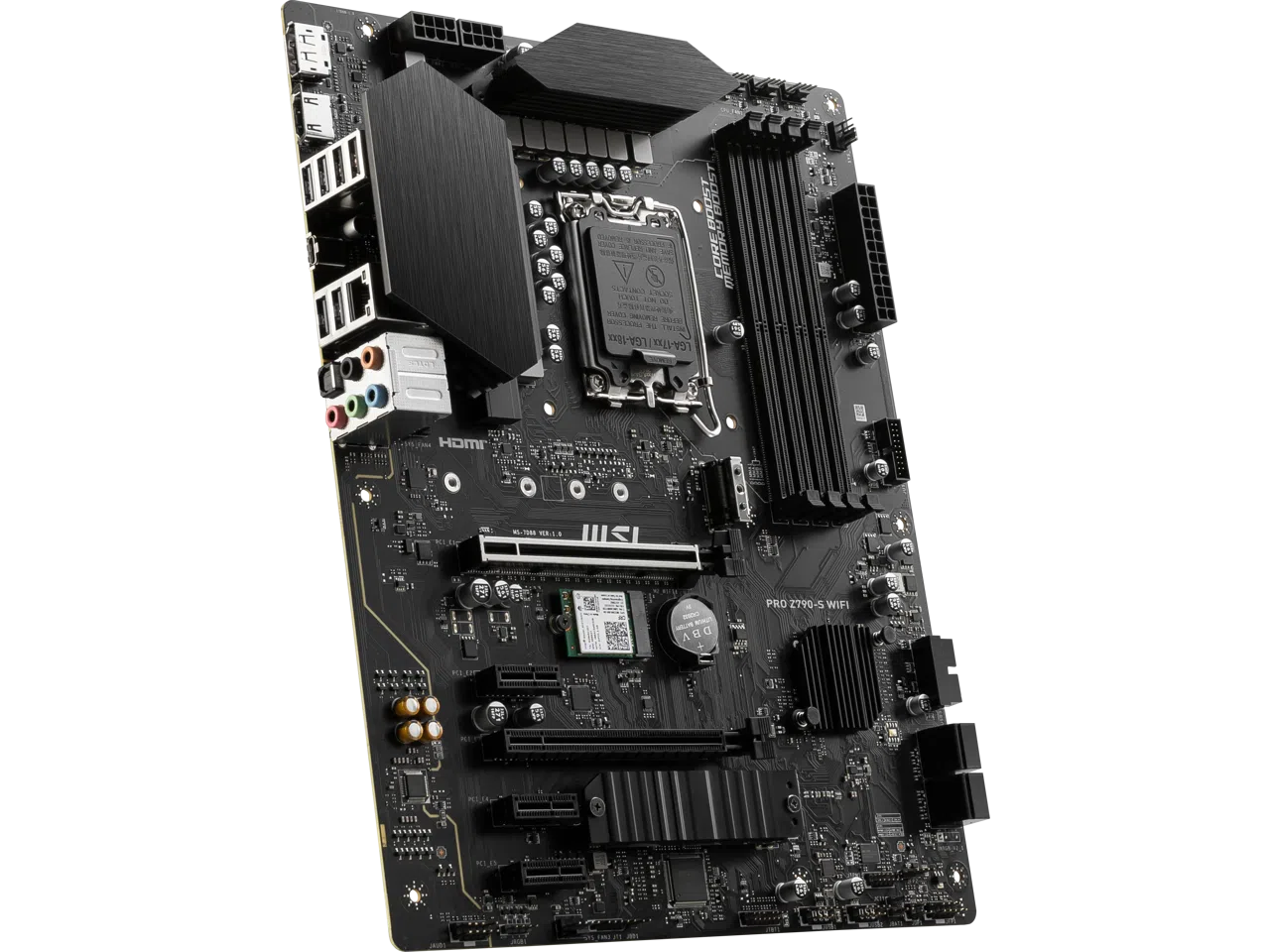

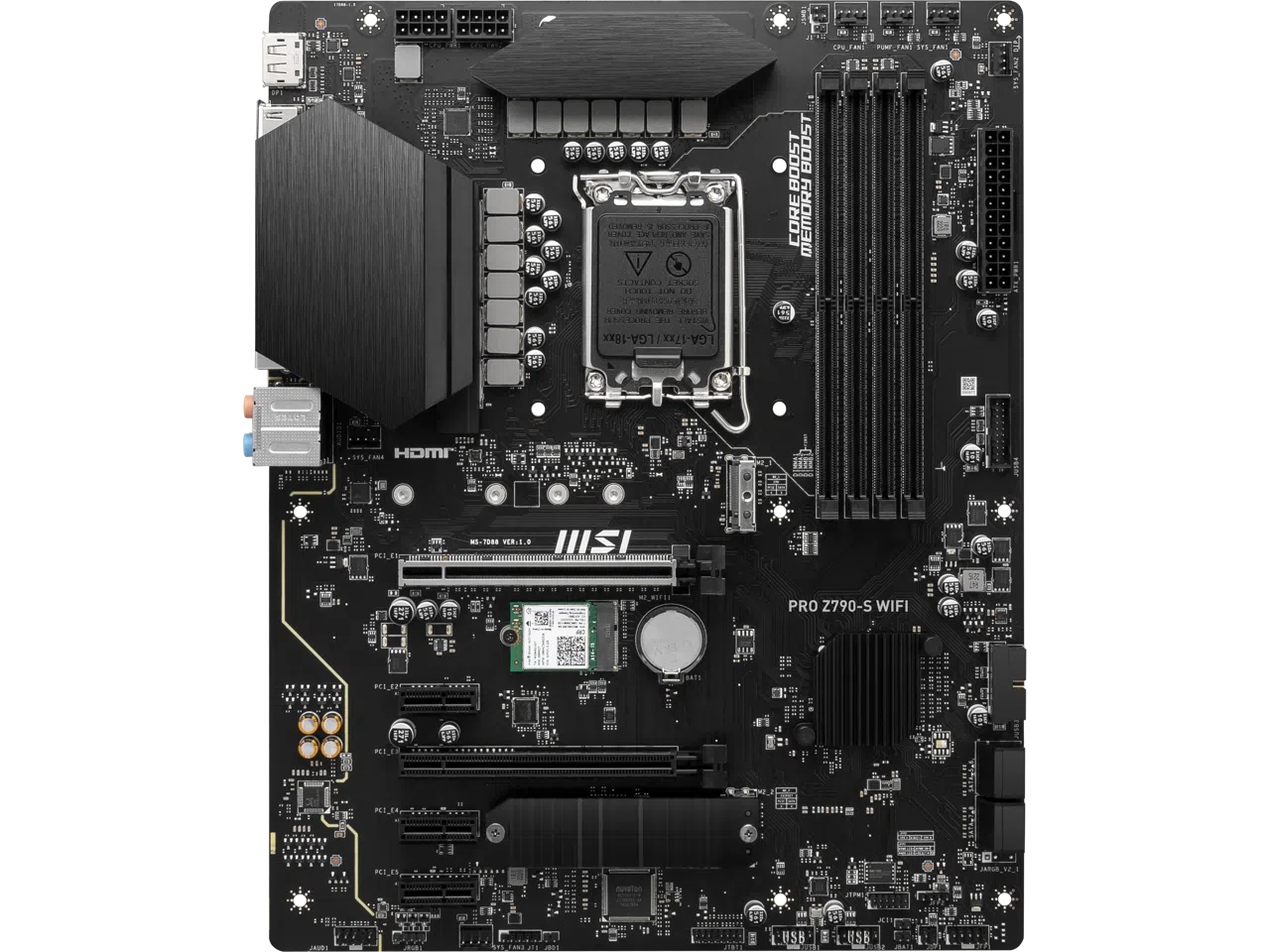

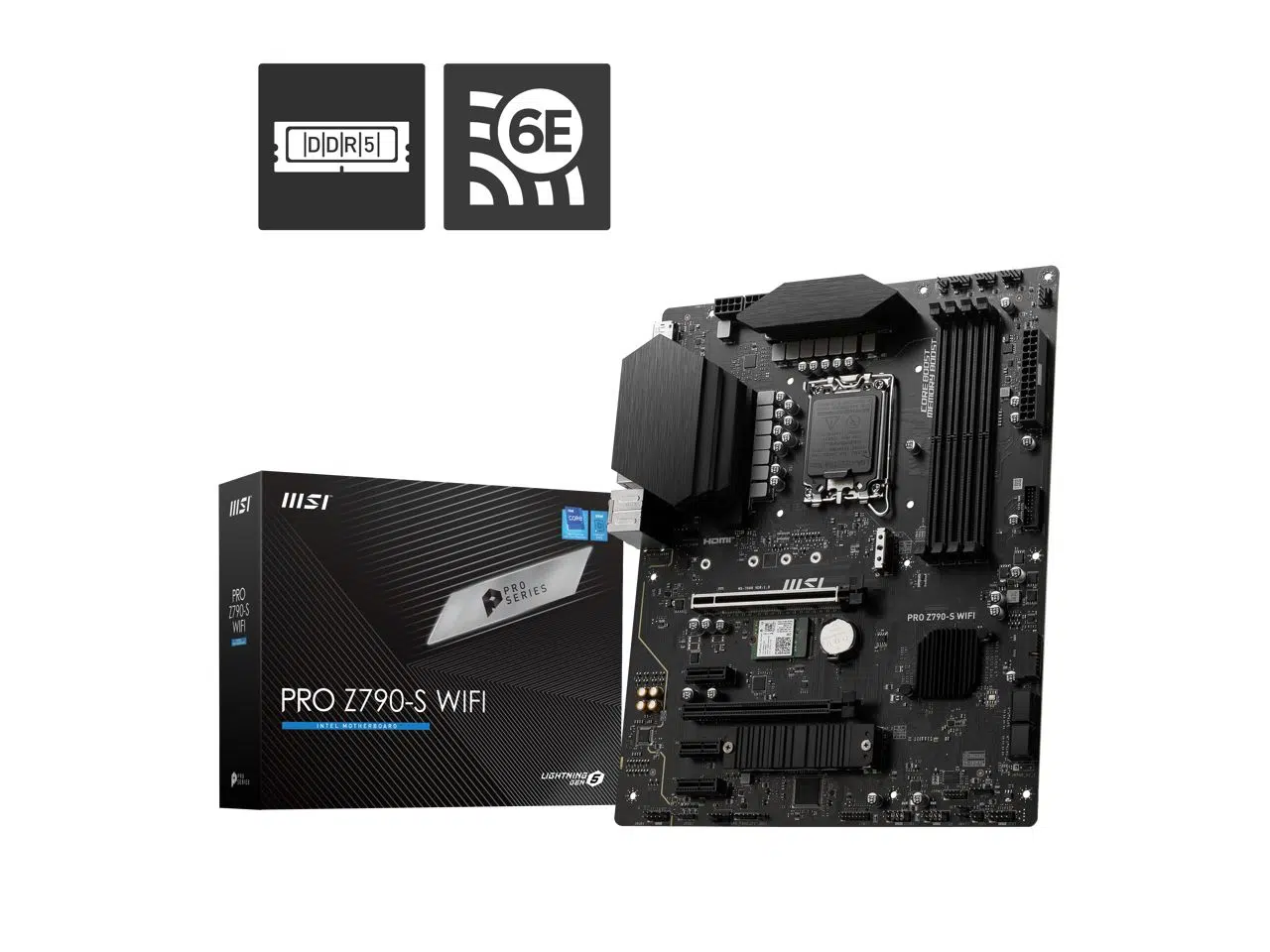

Model | PRO Z790-S WIFI |
Supported CPU | |
CPU Socket Type | LGA 1700 |
CPU Type | Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors |
Chipsets | |
Chipset | Intel Z790 |
Memory | |
Number of Memory Slots | 4x288pin (DDR5) |
Memory Standard | Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz |
Maximum Memory Supported | 192GB |
Channel Supported | Dual Channel |
Memory Feature | Supports Intel XMP 3.0 OC |
Supports Dual-Controller Dual-Channel mode | |
Supports non-ECC, un-buffered memory | |
Expansion Slots | |
PCI Express 5.0 x16 | PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) |
PCI Express 3.0 x16 | PCI_E3 Gen PCIe 3.0 supports up to x4 (From Chipset) |
PCI Express x1 | 3x PCI-E x1 slot |
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) | |
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) | |
PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset) | |
Storage Devices | |
SATA 6Gb/s | 4 x SATA 6Gb/s |
M.2 | 2x M.2 |
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices | |
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices | |
SATA RAID | 0/1/5/10 |
Onboard Audio | |
Audio Chipset | Realtek ALC897 Codec |
7.1-Channel High Definition Audio | |
Supports S/PDIF output | |
Audio Channels | 7.1 Channels |
Onboard LAN | |
LAN Chipset | Realtek RTL8125BG 2.5Gbps LAN |
Max LAN Speed | 2.5Gbps |
Wireless LAN | Intel Wi-Fi 6E |
The Wireless module is pre-installed in the M.2_WIFI1 (Key-E) slot | |
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps | |
Supports 802.11 a/ b/ g/ n/ ac/ ax | |
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. | |
Bluetooth | Supports Bluetooth 5.3, FIPS, FISMA |
* Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. | |
Rear Panel Ports | |

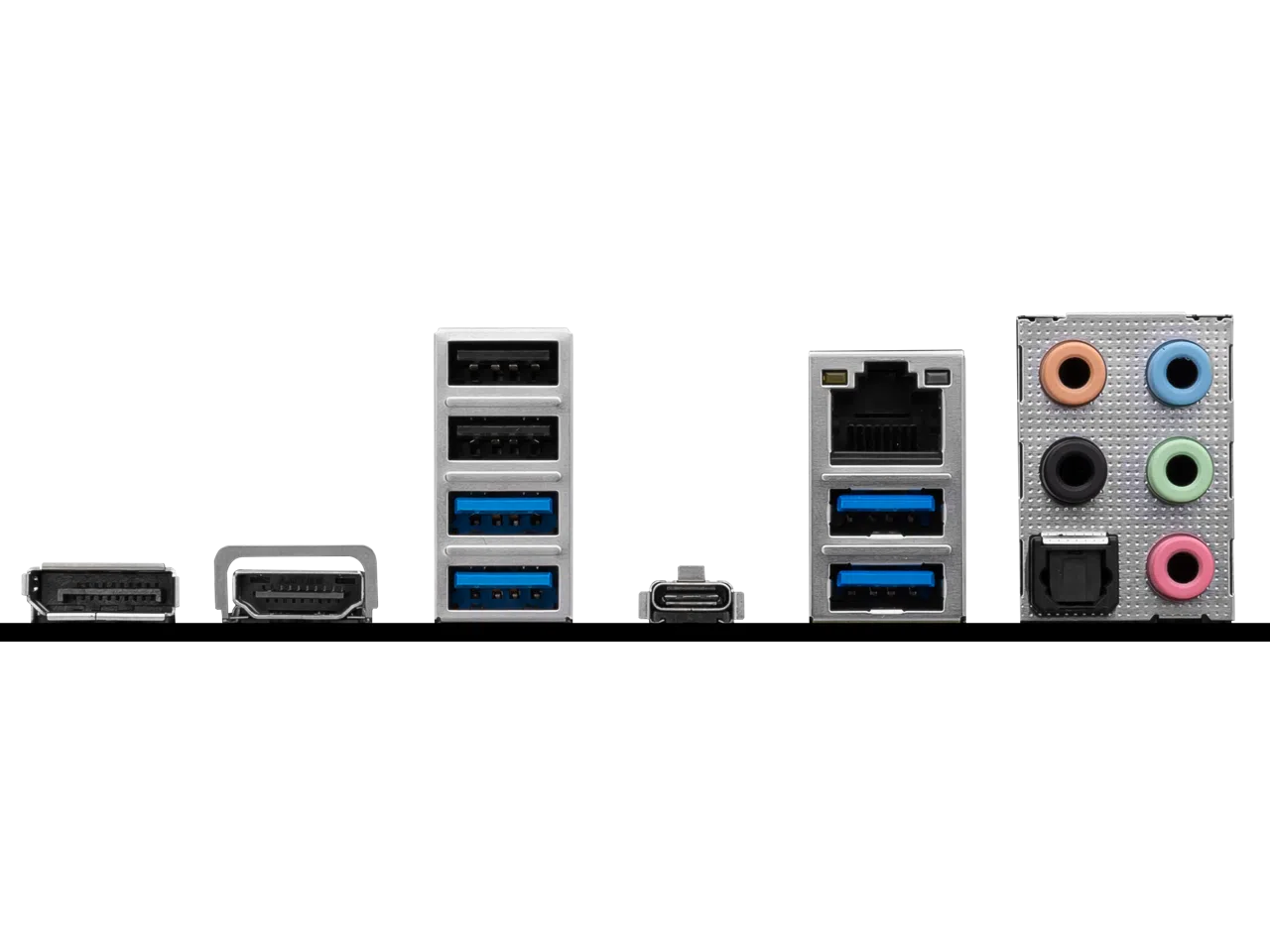

Back I/O Ports | 1 x DisplayPort / 1 x HDMI / 1 x LAN (RJ45) / 1 x Optical S/PDIF Out / 1 x USB 3.2 Gen 2×2 Type-C / 2 x USB 2.0/1.1 / 4 x USB 3.2 Gen 1 Type-A / 5 x Audio Jacks |
Internal I/O Connectors | |
Onboard USB | 4x USB 2.0 ports |
4x USB 3.2 Gen1 Type A ports | |
Other Connectors | 1x Power Connector (ATX_PWR) |
2x Power Connector (CPU_PWR) | |
1x CPU Fan | |
1x Pump Fan | |
4x System Fan | |
2x Front Panel (JFP) | |
1x Chassis Intrusion (JCI) | |
1x Front Audio (JAUD) | |
1x TBT connector (JTBT, supports RTD3) | |
1x RGB LED connector (JRGB) | |
1x TPM pin header (Support TPM 2.0) | |
Physical Spec | |
Form Factor | ATX |
Dimensions (W x L) | 12.0″ x 9.6″ |
Windows Compatibility | |
Windows 11 | Supported |
Features | |
Features | Lightning Gen 5 |
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for | |
maximum transfer speed. | |
Wi-Fi 6E | |
The latest wireless solution supports 6GHz spectrum, MU-MIMO | |
and BSS color technology, delivering speeds up to 2400Mbps. | |
Lightning USB 20G | |
Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, | |
4X faster than USB 3.2 Gen 1. | |

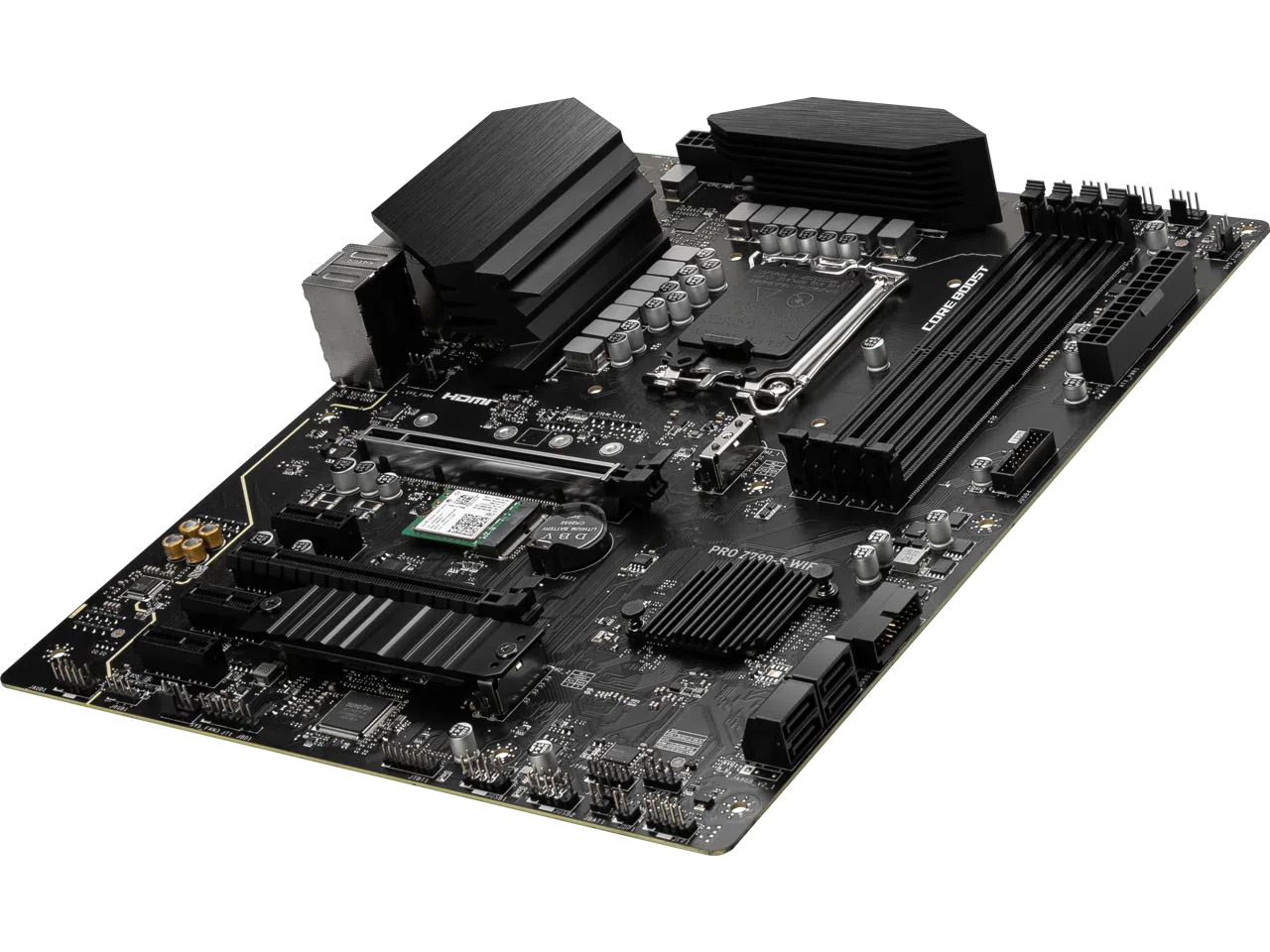

Extended Heatsink Design | |
MSI extended PWM heatsink and enhanced circuit design ensures | |
even high-end processors to run in full speed. | |
M.2 Shield FROZR | |
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe | |
while preventing throttling, making them run faster. | |
2.5G Network Solution | |
Featuring premium 2.5G LAN to deliver better network | |
experience. | |
Frozr AI Cooling | |
Detect CPU & GPU temperatures and automatically adjust system | |
fan duty to a proper value. | |
Memory Boost | |
Advanced technology to deliver pure data signals for the best | |
performance, stability and compatibility. | |
Core Boost | |
With premium layout and fully digital power design to support | |
more cores and provide better performance. |
